Solenoid Valve 3/2 NC PP FKM Without Body 0330 260594

This is a Burkert direct operating 3/2 way solenoid valve with a 24 V DC coil. The valve has a polypropylene (PP) housing with FKM sealing and an orifice size of mm. The circuit function of the solenoid valve is normally closed, which means the valve opens when voltage is applied. When the valve is closed, the output port connects to a third exhaust port. As it is direct operating, no pressure differential over the valve is needed to open the valve. The PP (polypropylene) housing is suited for a wide range of chemical processes. Please note that the internal valve parts, such as the stainless steel plunger and springs, are also in contact with the medium and must be chemically compatible. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.

Pros:

• Good protection against the environment thanks to the IP65 rating
• Solenoid valves open and close very fast compared to many other valve types

Cons:

• Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
• The coil may get hot when energized. A well ventilated environment is recommended

Series:

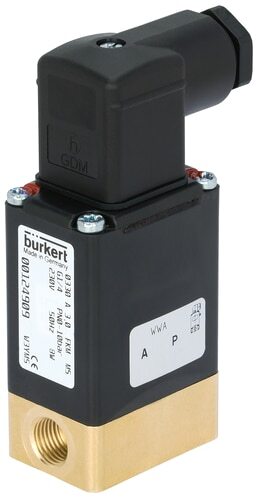

The Bürkert solenoid valve type 0330 is a direct-operated solenoid valve, meaning no pressure difference is needed to open the valve. This design is media separated, which allows for complete isolation of your fluid from the valve's working parts. This feature makes the valve a good solution for aggressive or slightly contaminated media. The valves can be delivered with DN 2 up to DN 5 or with a flange. The pressure range depends on the voltage, but has a maximum of 16 bar. The valve has a maintenance free pivot armature design instead of the common linear translating plunger. The valve is available in IP65 or IP67 protection. The valve has few moving parts, allowing for a long service life due to minimal wear on valve components. The 2/2-way and 3/2-way versions are designed for applications like mixing, diversion, and universal direction of media. The valves are available with different housing materials, such as brass, stainless steel, PP or PVDF in combination with different sealing materials. Finally, there are options for position feedback, bi-stable, vacuum variants, as well as ATEX explosion approved versions.

Please note: this product is made to order and can unfortunately not be returned.
