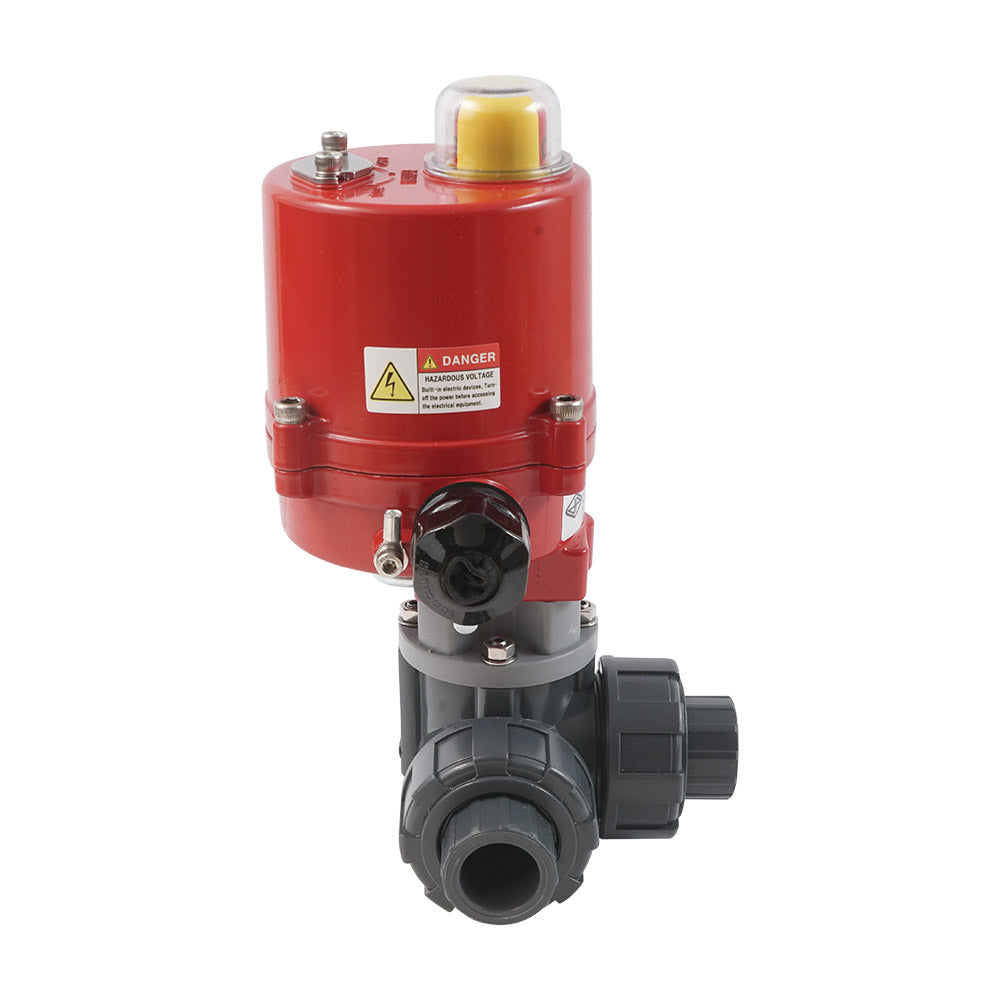

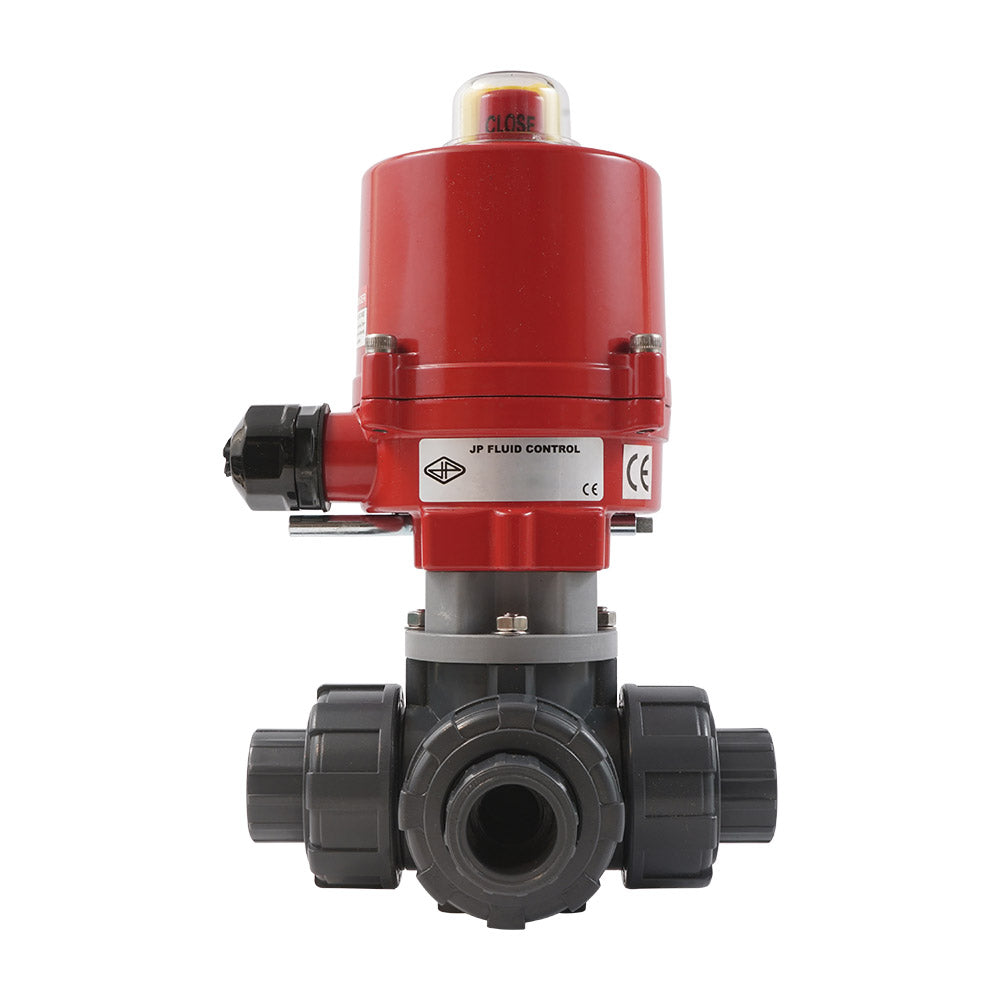

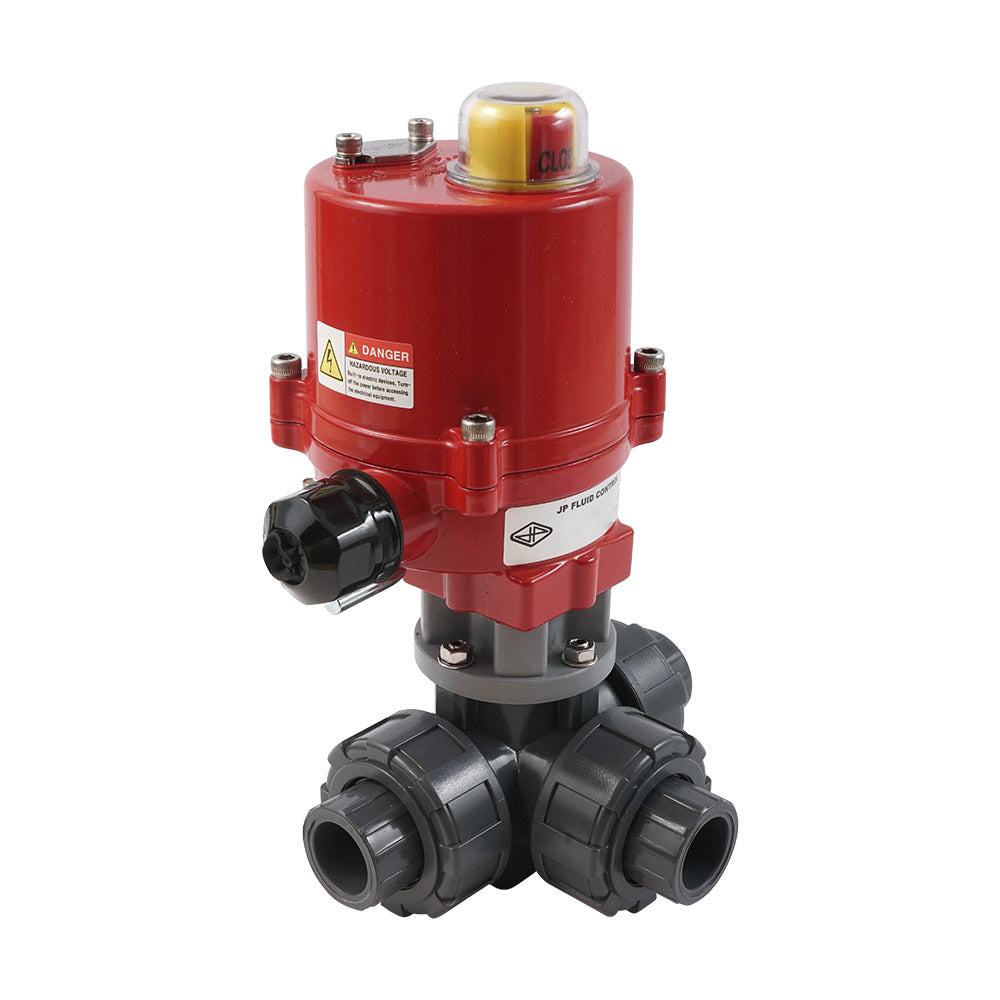

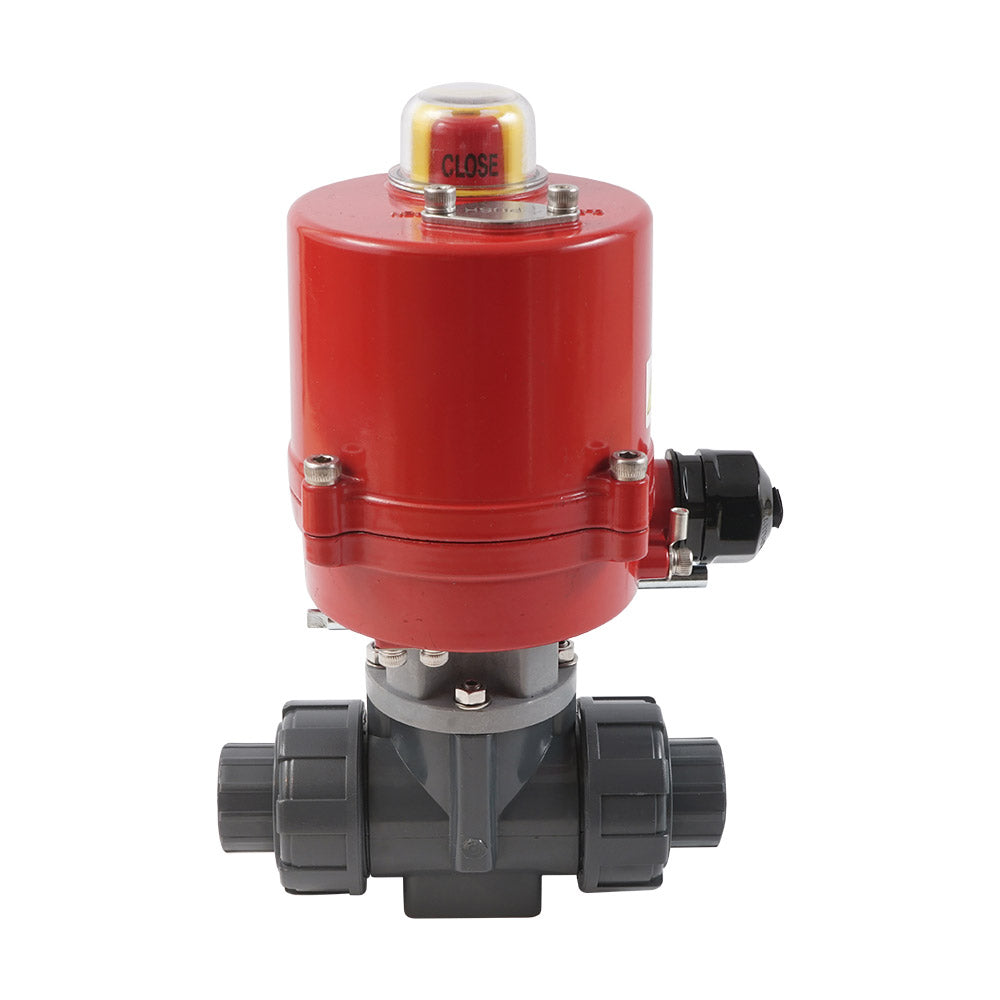

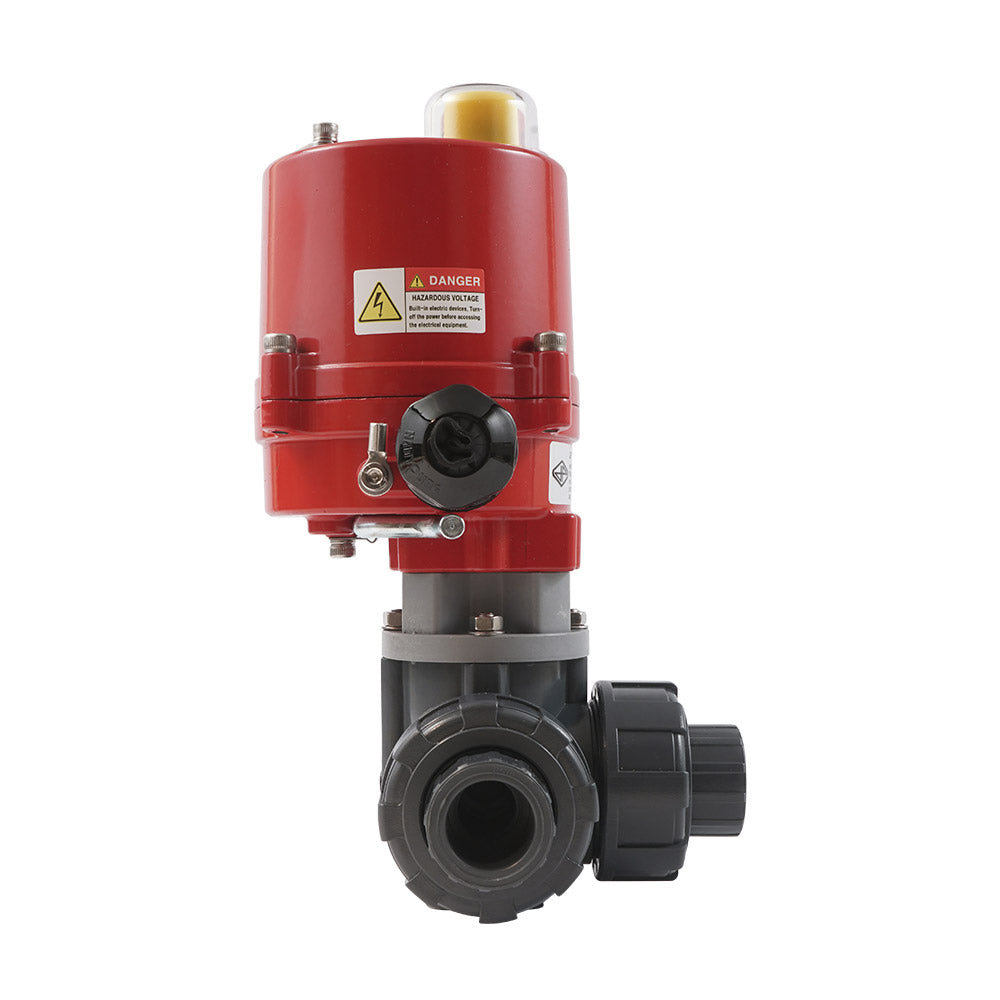

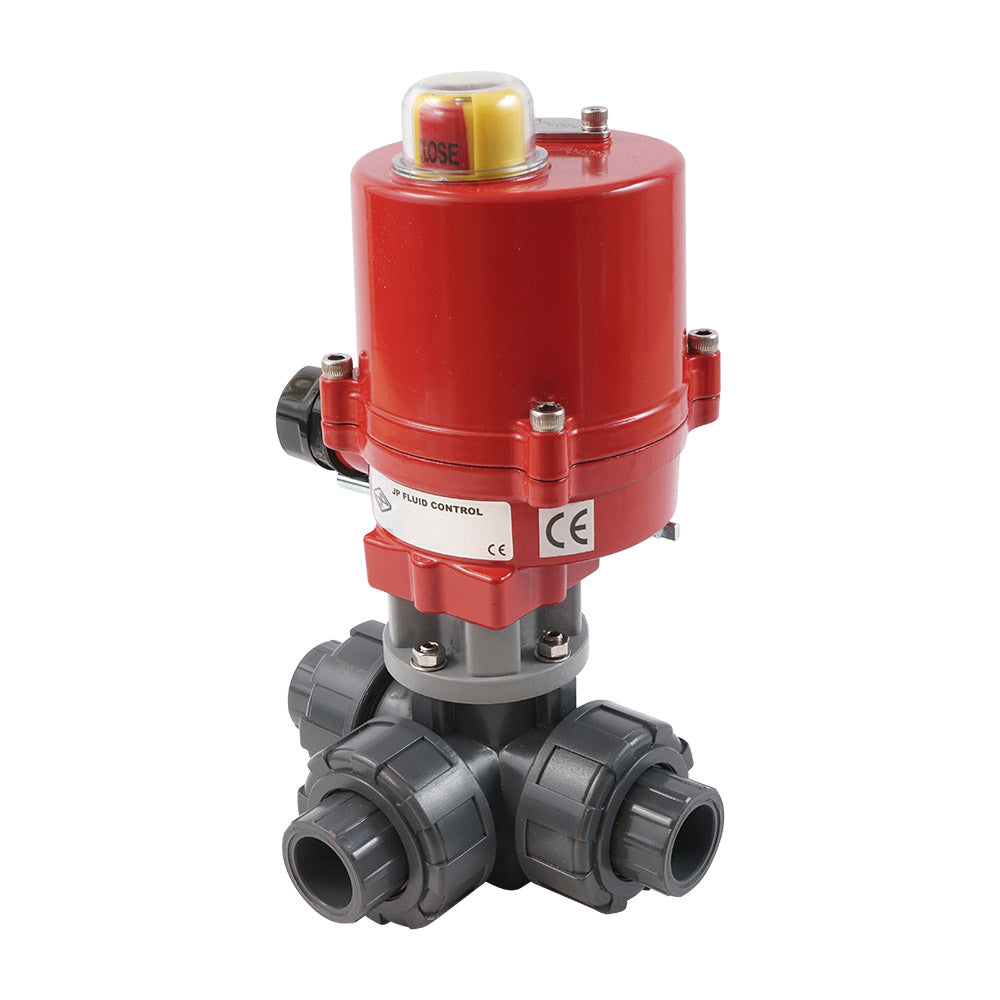

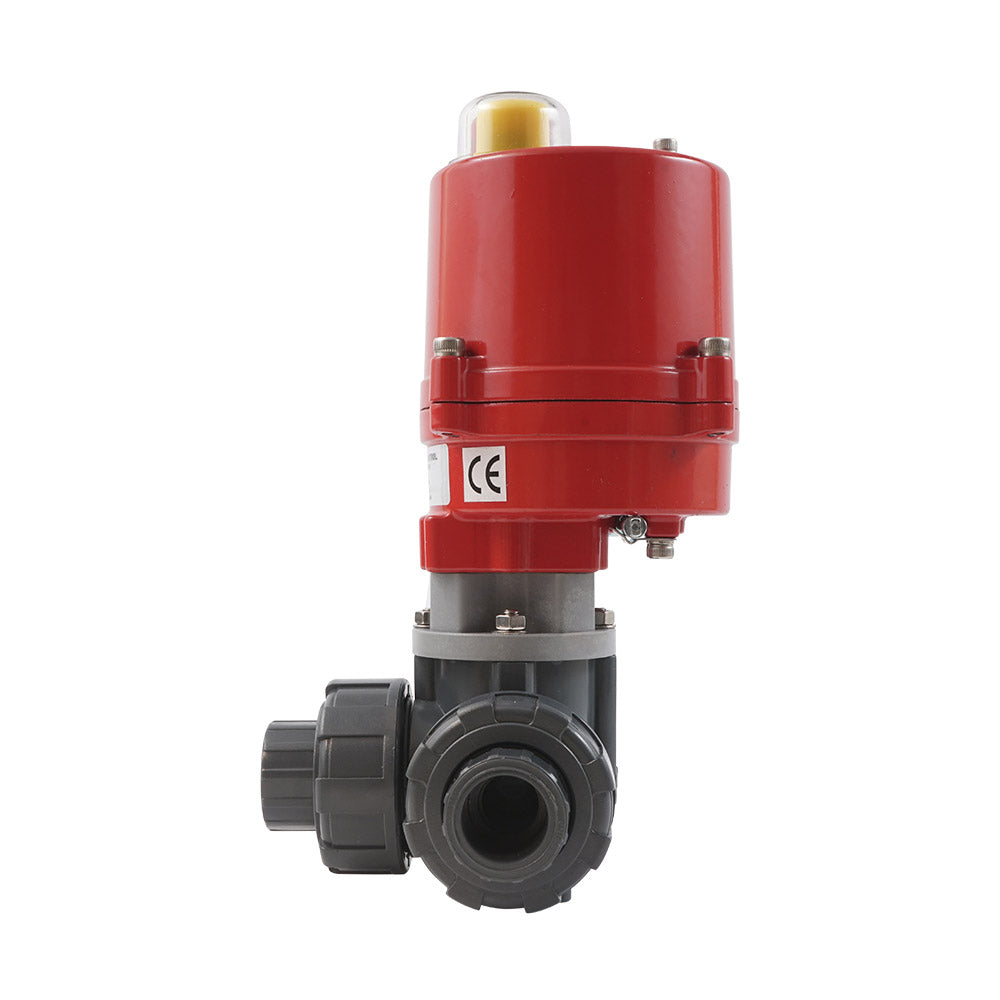

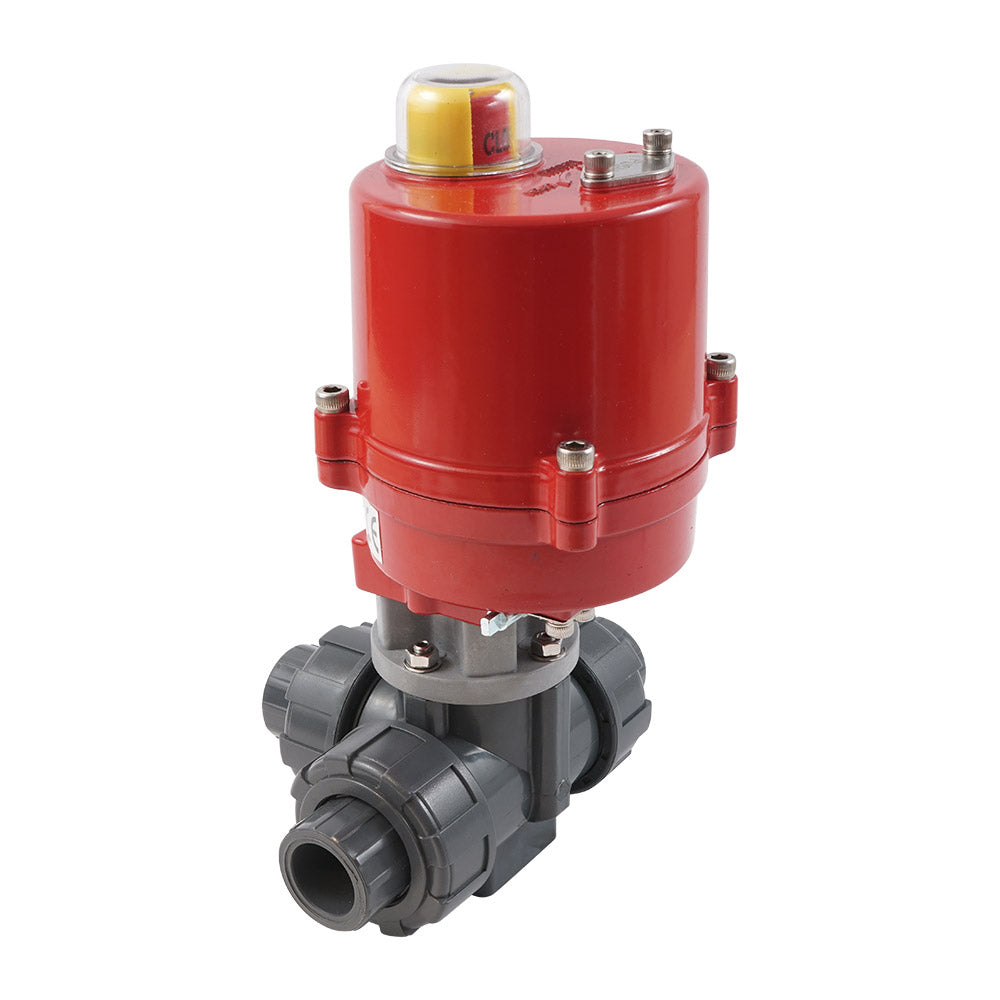

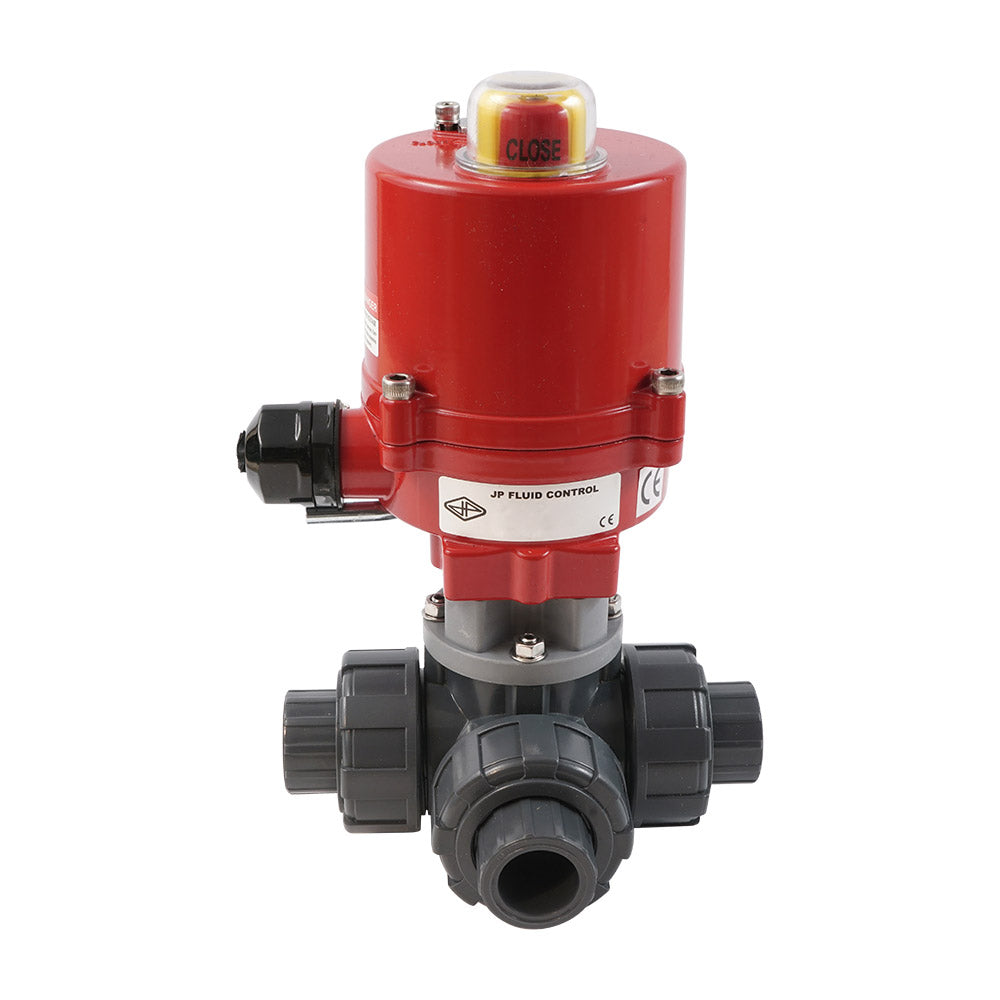

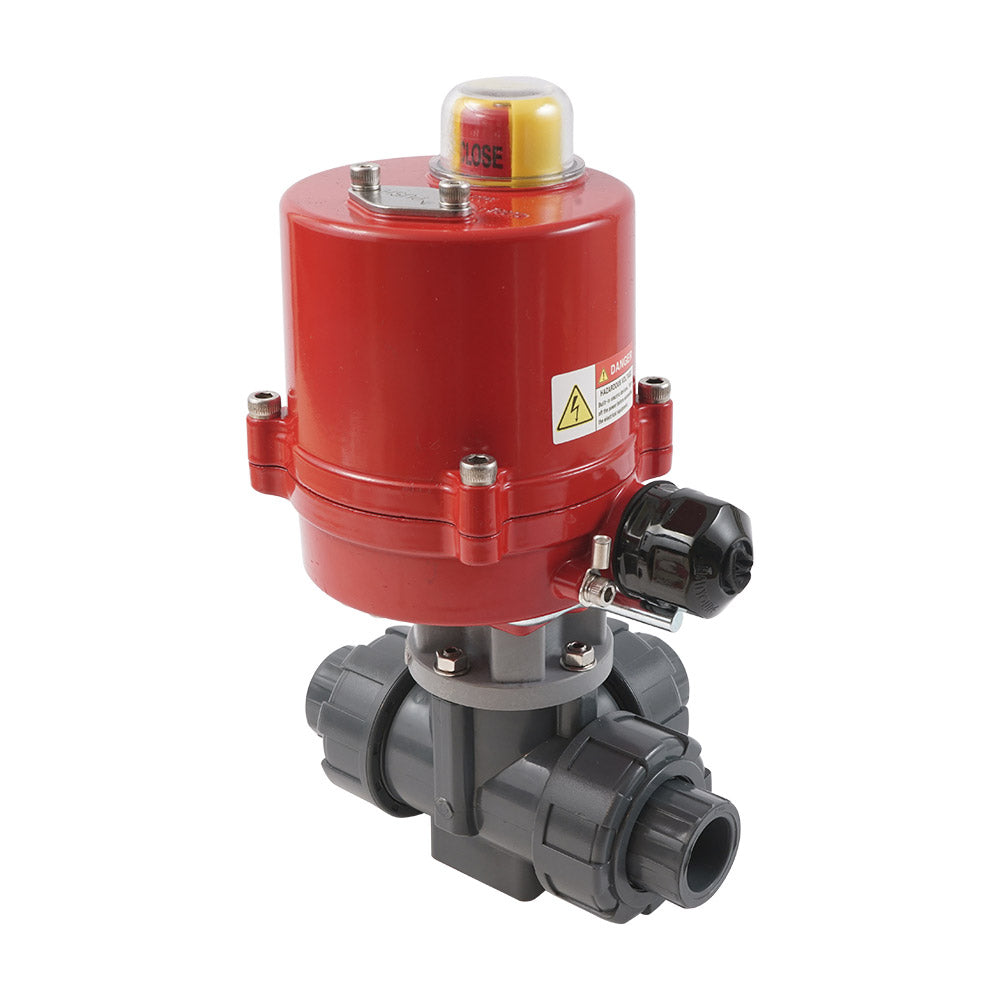

Solvent Socket 20 mm L-port 3-Way PVC Electric Ball Valve 100-240 V AC PTFE/EPDM
Notice: This product is discontinued
3-Way electric PVC ball valve (L-port) with solvent socket 20 mm ports and powerful and energy efficient 100-240 V AC actuator (max 20Nm). Media from -20 to 80°C, max pressure 10 bar (145 psi). PVC valve housing with PVC-C ball and PTFE/EPDM seals. The valve bore is 15 mm. 3-point control. Rotation 0-90° in only 4 sec. Compact and strong actuator housing (IP67) with position indicator. Manual override function and two extra limit switches for position feedback. FKM available on request.
Notice: This product is discontinued
Description
This strong and energy efficient 3-way (L-port) electrical PVC ball valve from Tameson can be used to automatically shut off pipes with contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools). Besides that, PVC is resistant to many salt solutions, acids and bases and solvents up to a maximum pressure of 10 bar or 145 psi. The valve has 20 mm solvent sockets ports with a true union design. The housing of the valve is made of PVC with a PVC-C ball and PTFE/EPDM seals. The valve can be used within a temperature range from -20 to 80 °C (-4 to 176 °F). The actuator can be used with alternating current (50/60Hz) from 100 volt up to 240 volt. The actuator draws 0.1A nominal, and 0.2A at maximal torque. The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 20 Nm torque. The valve rotates from 0 to 90 degrees in 4 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override. FKM available on request.
Pros:
- Switching time of only 4 seconds
- Strong IP67 actuator housing
- Suitable for power supplies from 100 to 240V AC
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
- Lower energy consumption than a pneumatically operated ball valve
Cons:
- Electric actuators usually have a shorter life span than pneumatic actuators
- Electric actuators are sensitive to wet environments
- Electric actuators could overheat
BL3PA series
View our 3-way electric PVC ball valve BL3PA-AG series. The ports range from G 1/2 inch to G 2 inch and from 20 mm to 63 mm solvent sockets. The valves are suitable for contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools) and resistant to many salt solutions, acids and bases and solvents up to a maxiumum pressure of 10 bar (145 psi). The housing of the valve is made of PVC, the ball is made of PVC-C and the sealings are either PTFE/EPDM or FKM/EPDM. The valves can be used within a temperature range from -20 to 80 °C (-4 to 176 °F). The whole series is suitable for electrical and pneumatic actuation thanks to ISO 5211 flange and not equipped with handles for manual control. The pressure inlet can be on all three ports. The ball valves in the BL3PA-AG series of Tameson are characterized by a long life. The AG-series is a range of high quality actuators to control rotary quarter turn valves with an ISO 5211 flange of type F03, F04 and F05. The actuator can deliver 20 Nm torque (type AG-020) or 40Nm (type AG-040) in a fast and smooth operation. The dome indicator provides a clear visual inspection of the valve position. The actuator features a manual override and 2 auxiliary limit switches for control purposes.
