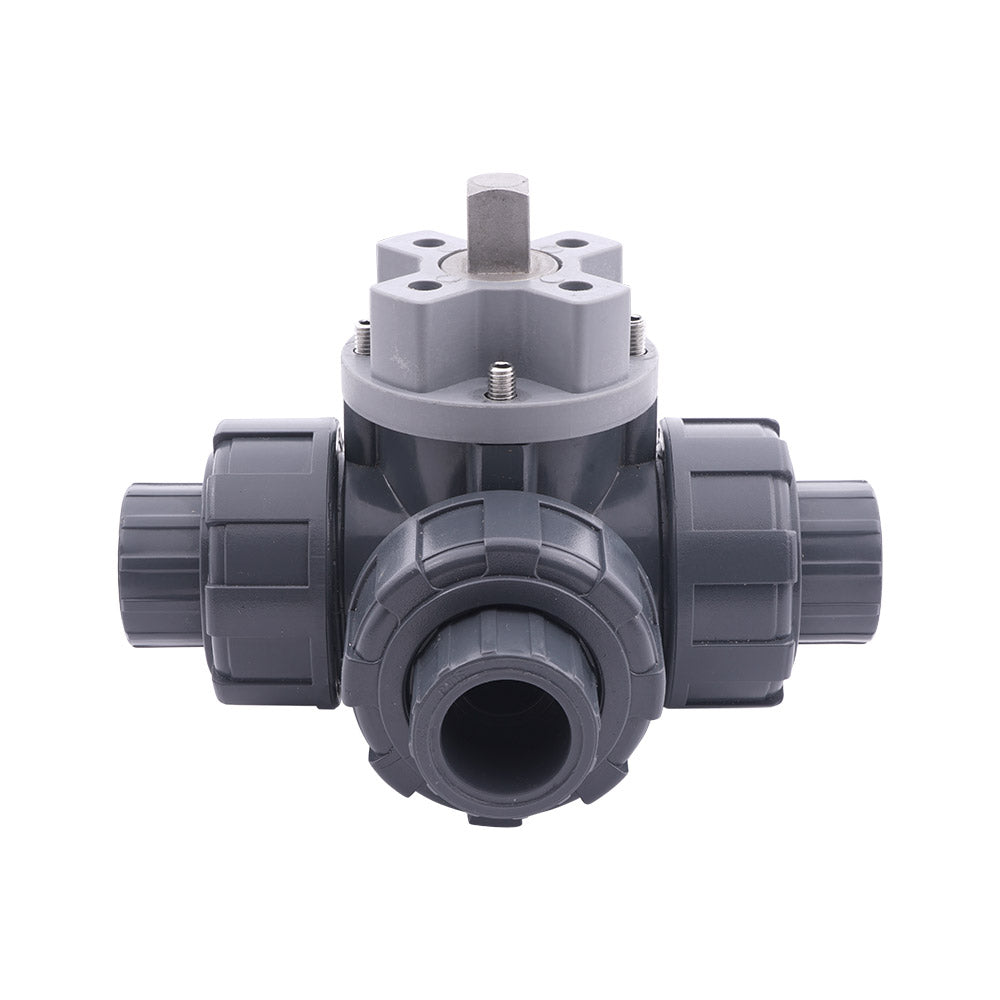

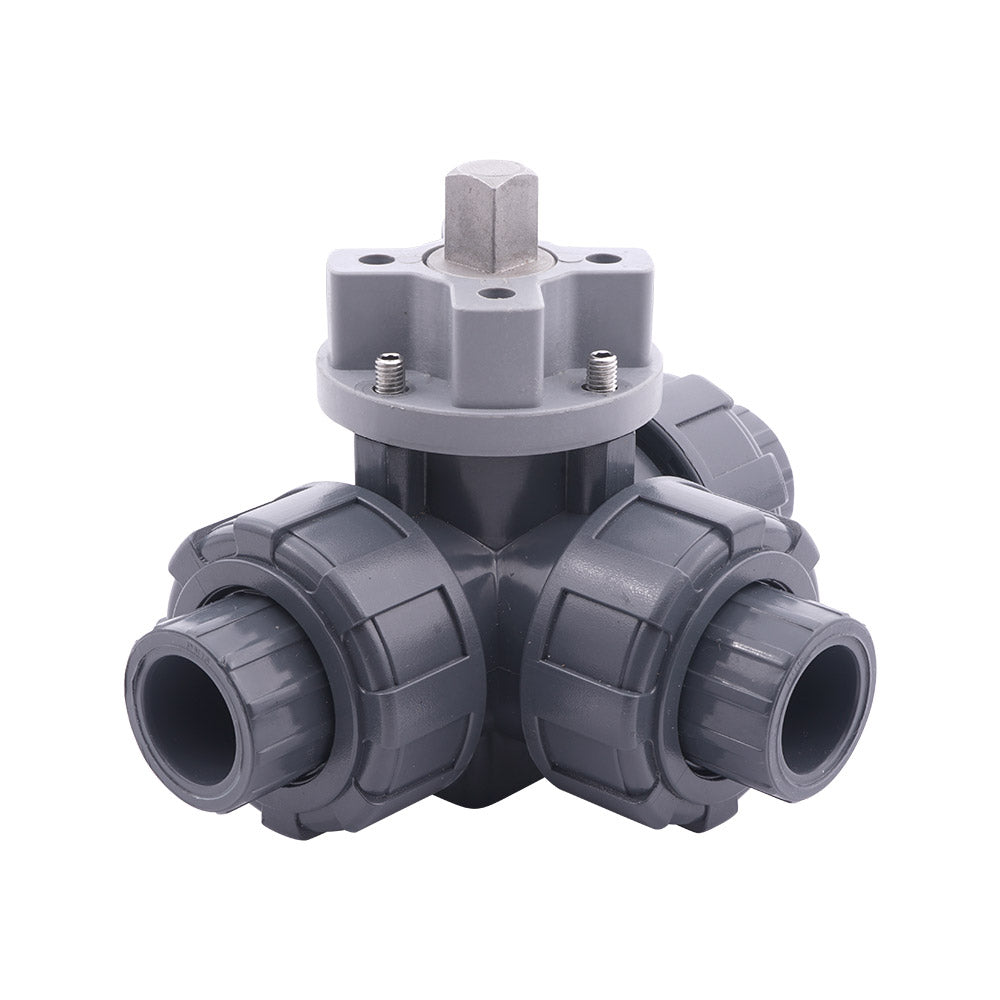

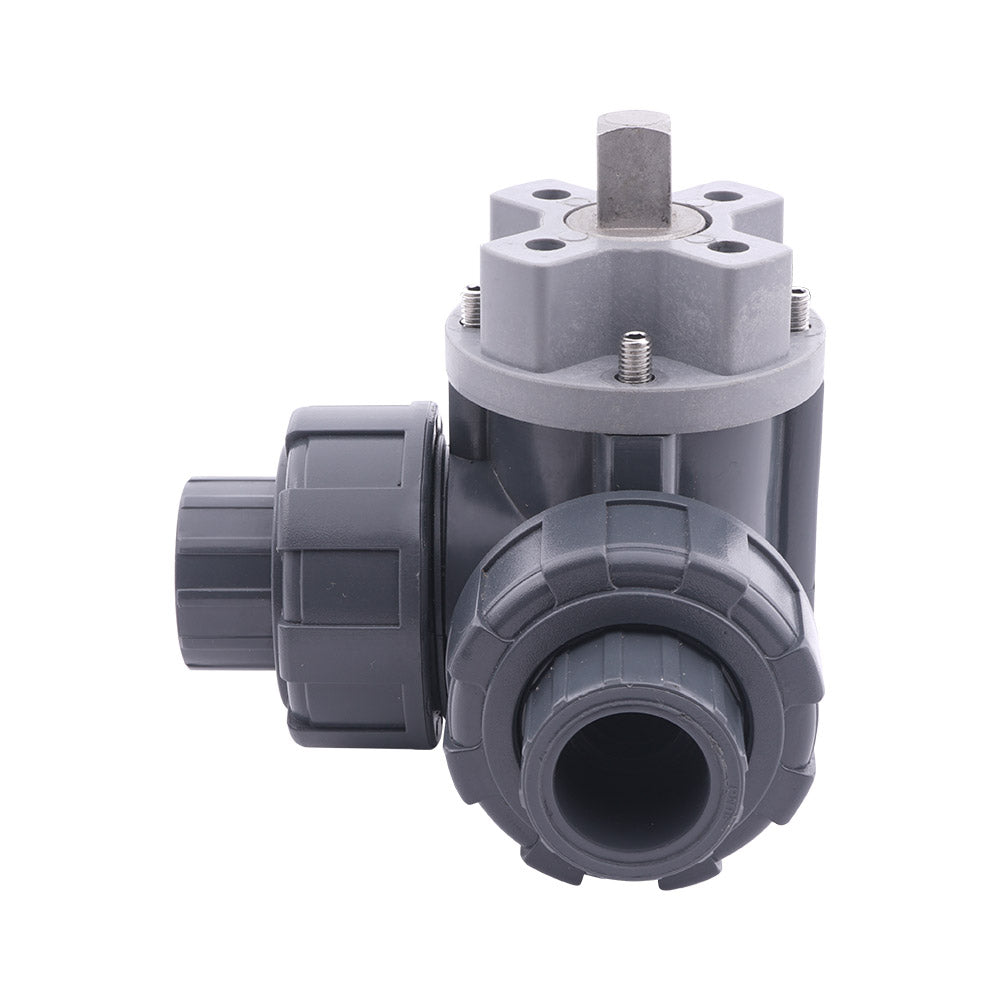

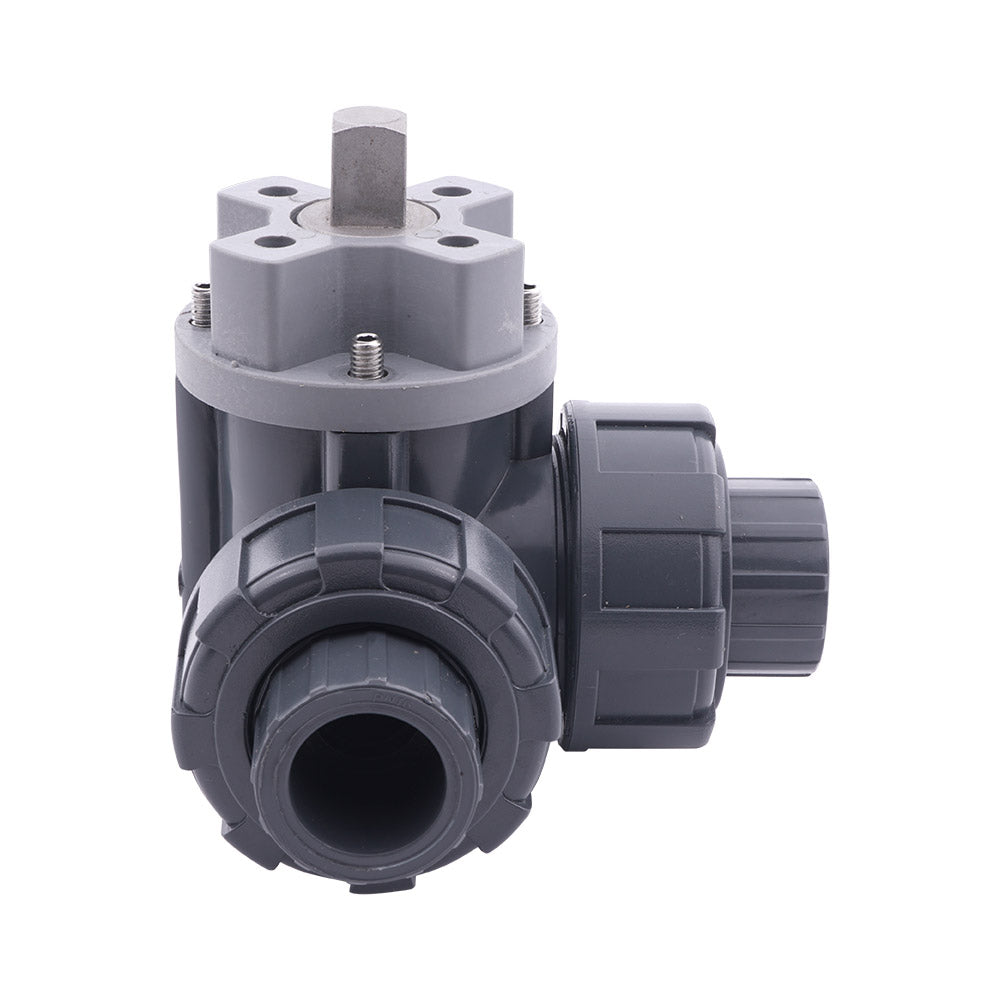

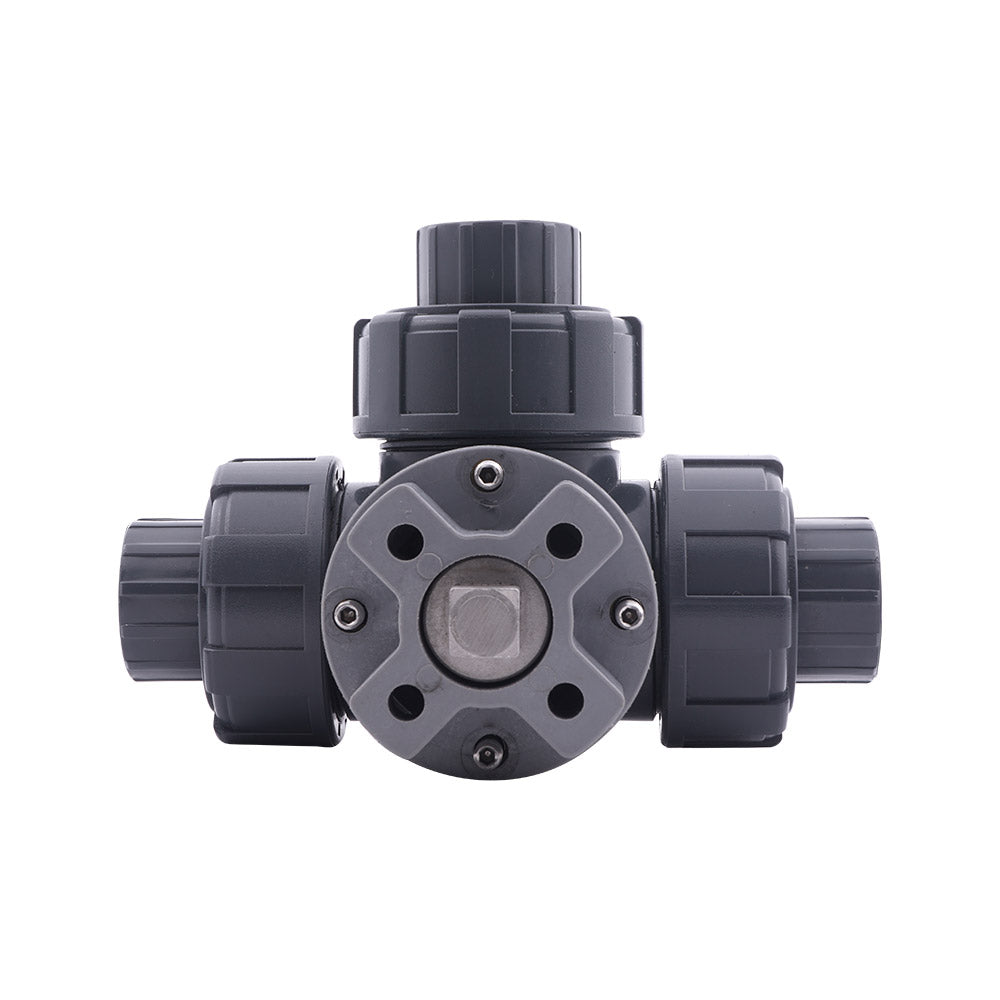

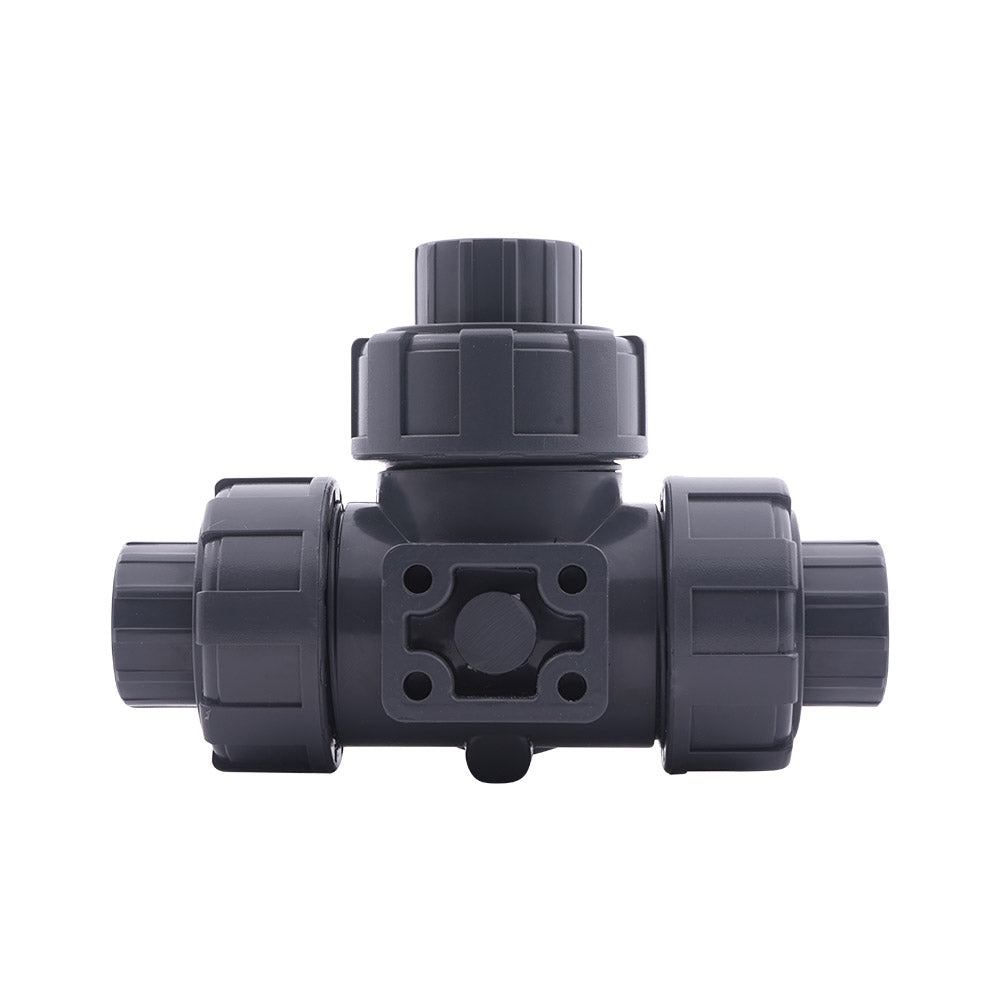

32mm Solvent Socket 3-Way PVC Ball Valve L-Bore ISO-Top F03 10 bar PTFE/EPDM
This 3-way L-bore PVC ball valve with a 22 mm bore size is designed for flow direction control. The valve has 32 mm solvent socket ports with a true union design. The valve body and the ball are made of PVC-U. The sealings are made of PTFE/EPDM. The valve is very suitable for contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools). Besides that, the PVC-U body and PTFE/EPDM seals are suitable for salt solutions, diluted acids and bases, and polar solvents such as alcohols. They are not suitable for oils, fuels, or aromatic/chlorinated hydrocarbons - refer to the chemical resistance chart for specific media. The valve handles a maximum pressure of 10 bar at 20°C (145 psi at 68°F). The valve can be used within a temperature range from 0 to 60°C (32 to 140°F). The valve has a Kv value of 12 m3/h at a differential pressure of 1 bar (Cv = 13.87 gpm). Kv value expresses the flow rate of water in m3/h at a pressure drop of one bar. Pressure inlet is possible on all three ports. The valve has a flange according to the ISO 5211 F03 norm. This makes the valve suitable for electrical or pneumatic actuation. The valve is not equipped with a handle for manual control.
- Regular price
- £137.41
Description
This 3-way L-bore PVC ball valve with a 22 mm bore size is designed for flow direction control. The valve has 32 mm solvent socket ports with a true union design. The valve body and the ball are made of PVC-U. The sealings are made of PTFE/EPDM. The valve is very suitable for contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools). Besides that, the PVC-U body and PTFE/EPDM seals are suitable for salt solutions, diluted acids and bases, and polar solvents such as alcohols. They are not suitable for oils, fuels, or aromatic/chlorinated hydrocarbons - refer to the chemical resistance chart for specific media. The valve handles a maximum pressure of 10 bar at 20°C (145 psi at 68°F). The valve can be used within a temperature range from 0 to 60°C (32 to 140°F). The valve has a Kv value of 12 m3/h at a differential pressure of 1 bar (Cv = 13.87 gpm). Kv value expresses the flow rate of water in m3/h at a pressure drop of one bar. Pressure inlet is possible on all three ports. The valve has a flange according to the ISO 5211 F03 norm. This makes the valve suitable for electrical or pneumatic actuation. The valve is not equipped with a handle for manual control.
Pros:
- Suitable for contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools)
- Suitable for electrical or pneumatic actuation thanks to the ISO-top F03 flange
- The L-bore design allows to direct flow from one of two inlets to one outlet (or vice versa)
- Pressure inlet on all three ports
Cons:
- Not equipped with a handle for manual control
Bore and circuit function
The ball has a L-port. Rotating the ball 90 degrees allows you to switch between two circuits.
Schematic drawing of the circuit function of L-bore valves
