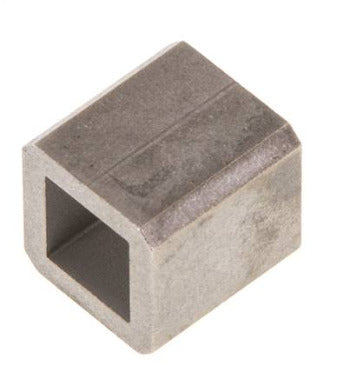

Square Adapter 14x9
With an adapter you can adjust the size of the valve stem to match a pneumatic actuator output drive shaft. Install this square adapter over the valve stem to increase the size from 9x9 mm to 14x14 mm. It is constructed with corrosion-protected sintered metal, with rounded corners and a minimal tolerance range. It conforms to ISO 5211, DIN 3337, and NAMUR standards.
- Regular price
- £7.74
Description
With an adapter you can adjust the size of the valve stem to match a pneumatic actuator output drive shaft. Install this square adapter over the valve stem to increase the size from 9x9 mm to 14x14 mm. It is constructed with corrosion-protected sintered metal, with rounded corners and a minimal tolerance range. It conforms to ISO 5211, DIN 3337, and NAMUR standards.
Pros:
- Minimal tolerance range ensures good contact with high precision
- Conforms to ISO 5211, DIN 3337, and NAMUR standards
Adapter series
The series includes corrosion-protected sintered metal adapters designed to increase the square drives of valves, or reduce the square drives of pneumatic and electric actuators. These adapters conform to ISO 5211, DIN 3337, and NAMUR standards. The sizes include 11x9, 14x9, 14x10, 14x11, 17x11, 17x14, 22x17, 27x22 and 36x27 mm.
