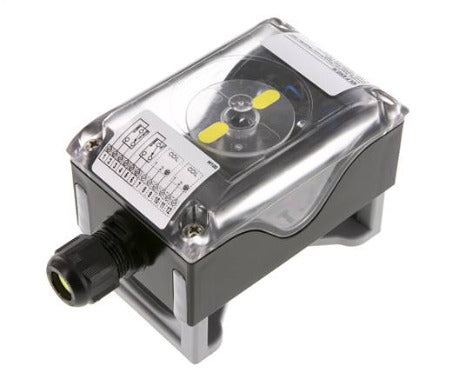

Standard Limit Switch Box DPDT Micro Switch 250VAC/10A - 12-250VDC/2.5A
This limit switch box checks the end positions for pneumatic actuated quarter-turn valves. The box is mounted on top of the actuator and detects the shaft position with built-in switches. The housing, selector shaft and assembly bridge are made of PA6. The cover is constructed from polycarbonate, the seals are made of EPDM and NBR, and the screws are of 1.4301 stainless steel. Suited for temperatures between -20 and +80 °C (-4 and +176 °F). The switch box is suitable for various mounting holes patterns and utilizes a micro-switch with a 250 VAC/10 A and 12 - 250 VDC/2.5 A capacity.
- Regular price
- £112.76
Description
This limit switch box checks the end positions for pneumatic actuated quarter-turn valves. The box is mounted on top of the actuator and detects the shaft position with built-in switches. The housing, selector shaft and assembly bridge are made of PA6. The cover is constructed from polycarbonate, the seals are made of EPDM and NBR, and the screws are of 1.4301 stainless steel. Suited for temperatures between -20 and +80 °C (-4 and +176 °F). The switch box is suitable for various mounting holes patterns and utilizes a micro-switch with a 250 VAC/10 A and 12 - 250 VDC/2.5 A capacity.
Pros:
- Fits mounting hole patterns 50 x 25, 80 x 30 and 130 x 30 mm
- Shaft height adjustable from 20 to 30 mm
- Simple and robust micro switch
- Dust-tight and temporary submersible (IP67)
Cons:
- Not suitable for size '50' 'PAL' pneumatic actuators
S-VZFC series
Made from robust plastic with EPDM and NBR seals, the Standard series is suitable for temperatures ranging from -20 to +80°C (-10 to +60°C for pneumatic valve type). Compatible with mounting hole patterns of 50 x 25, 80 x 30, and 130 x 30 mm, this series offers adjustable shaft height (20-30 mm). Beyond choices for micro-switches, inductive sensors, and NAMUR sensors, it encompasses a 3/2-way pneumatic valve limit switch box for diverse applications.
