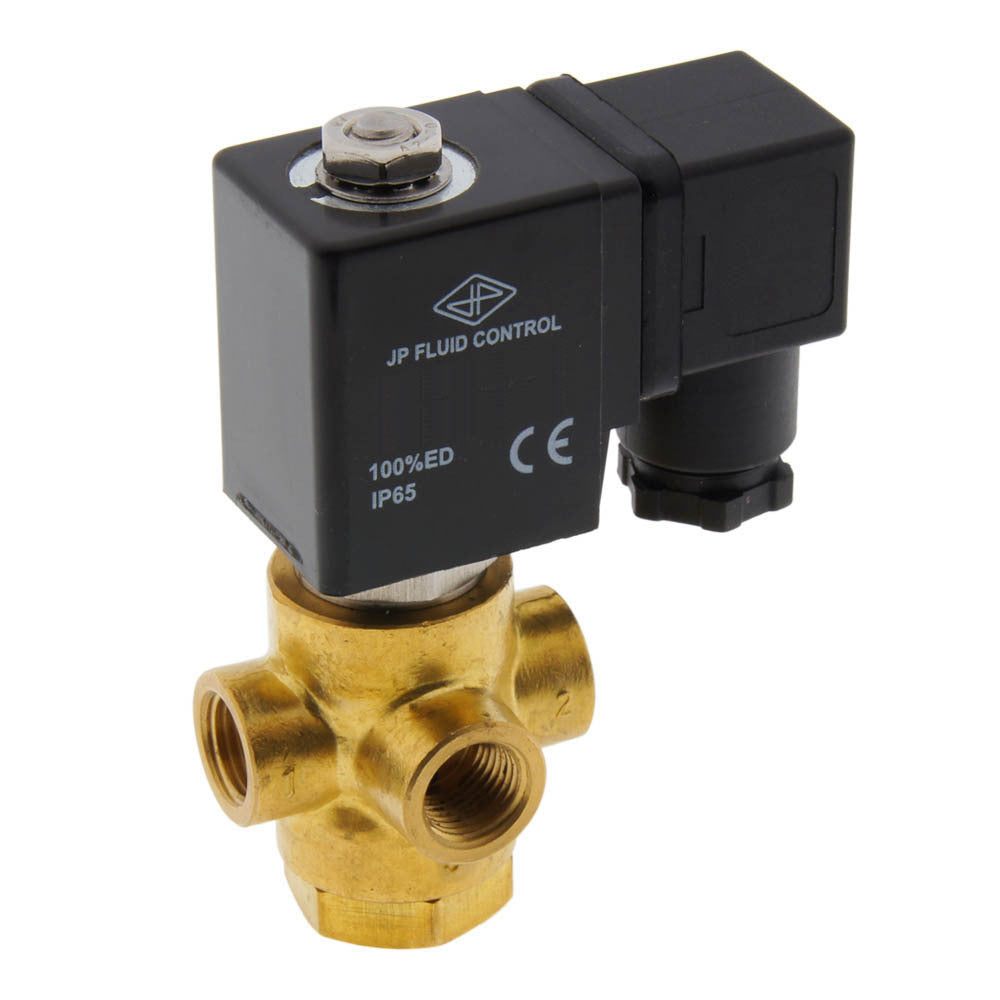

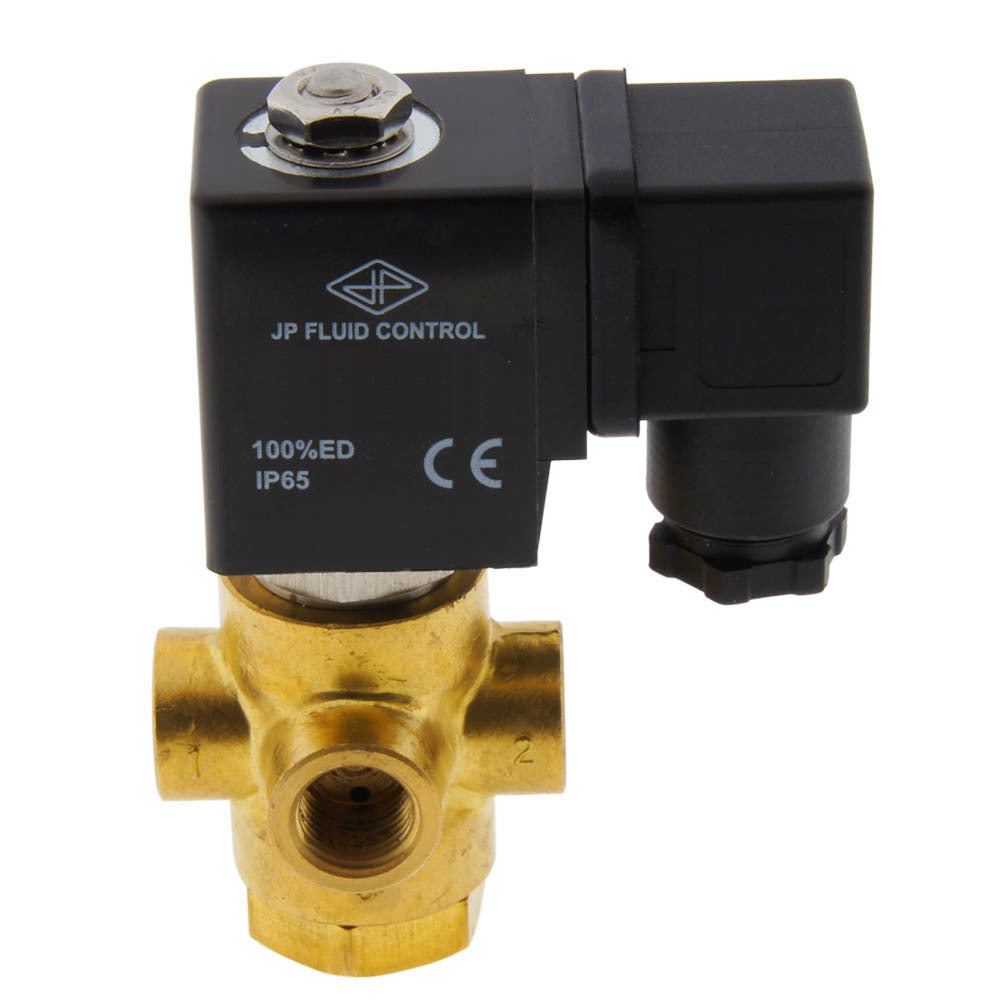

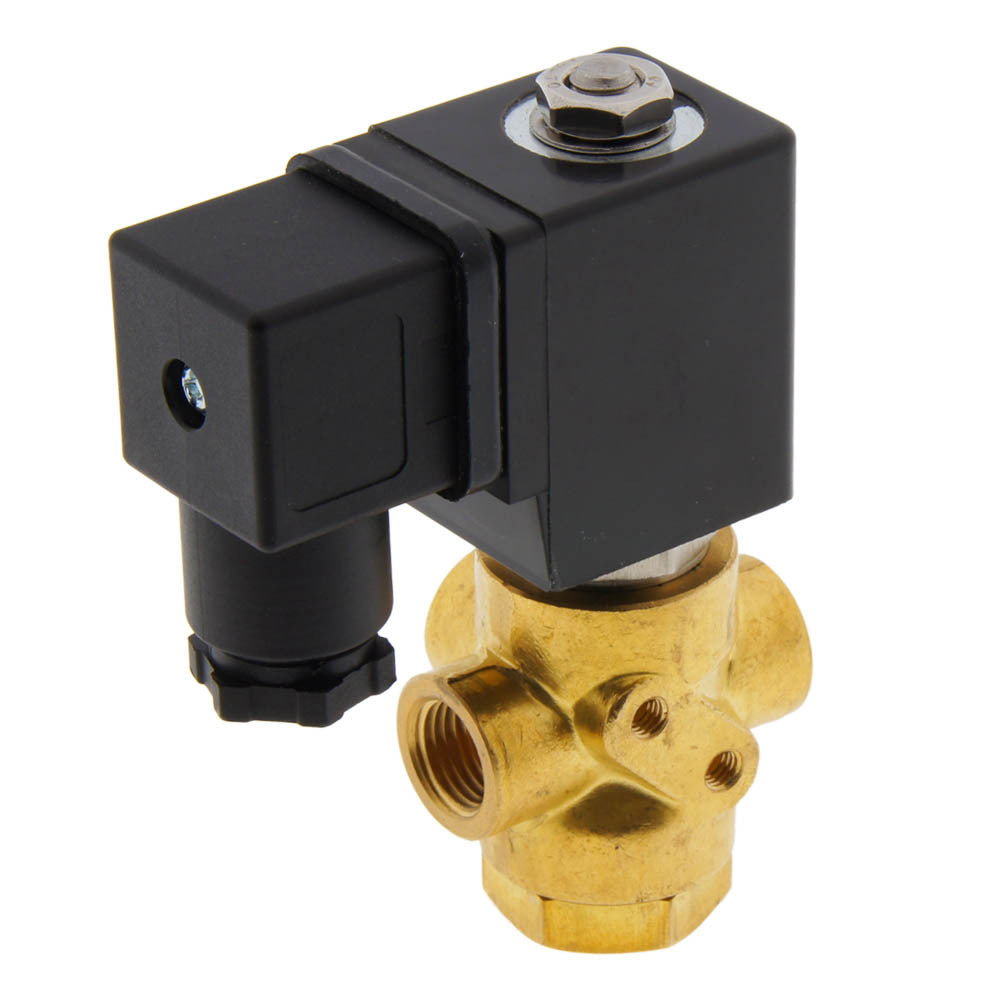

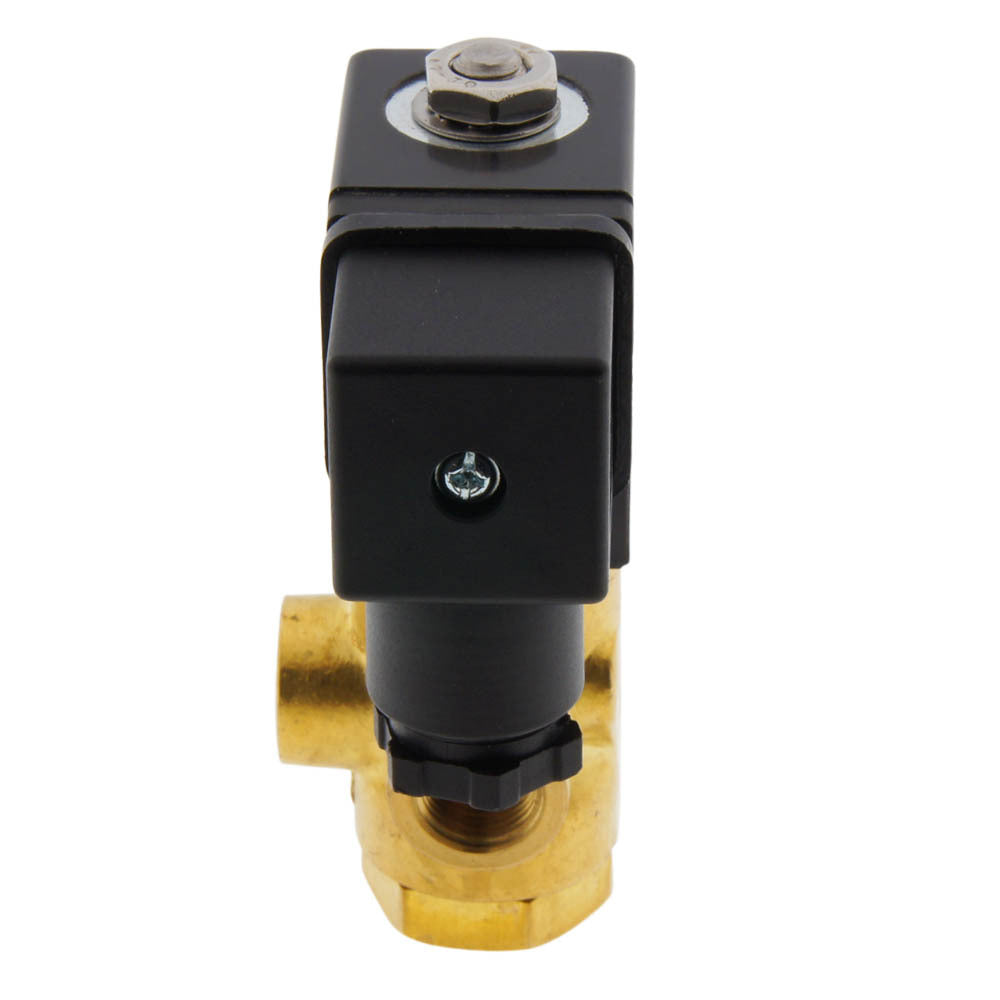

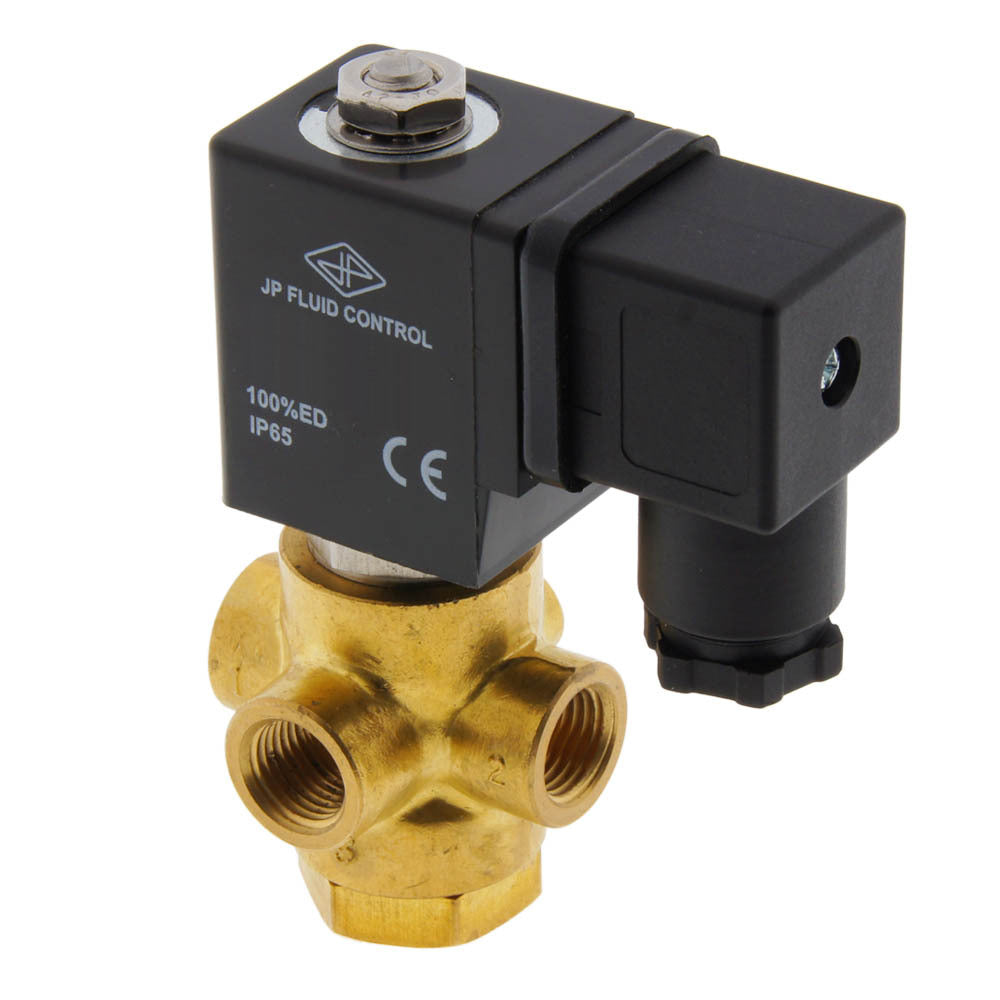

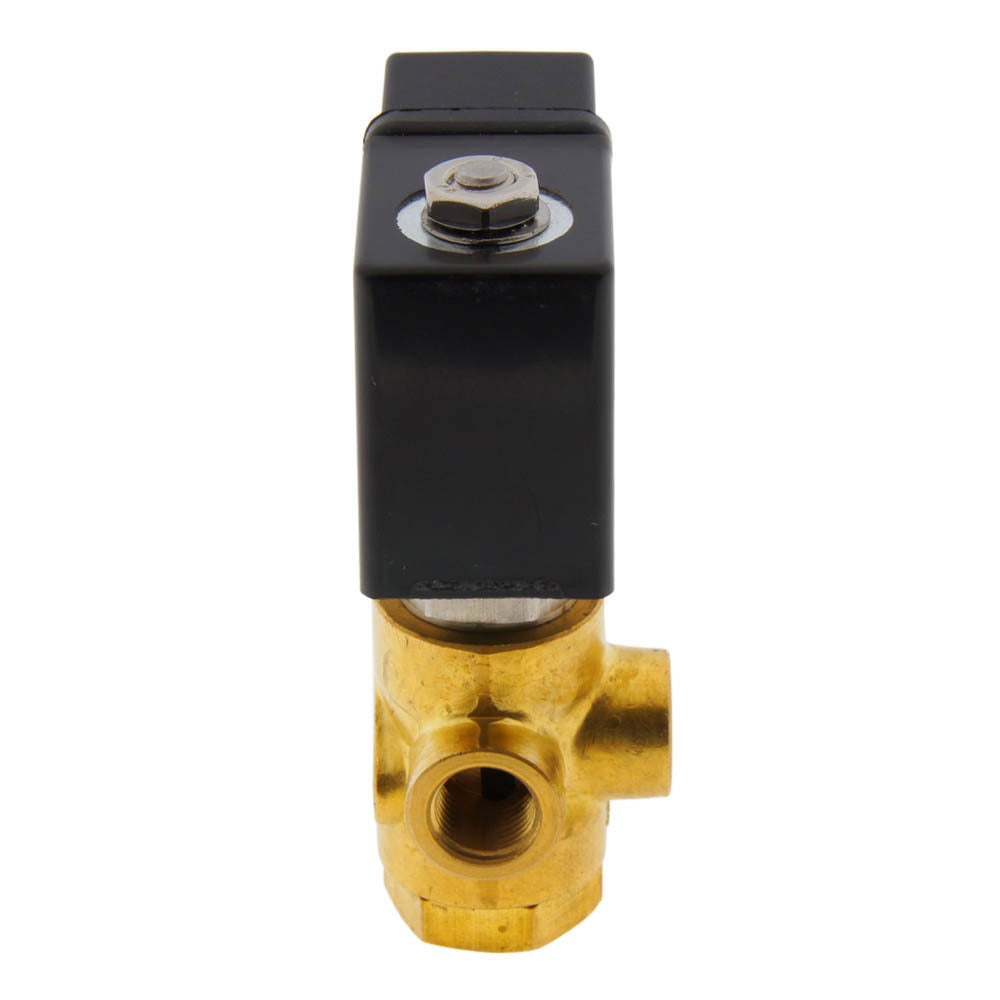

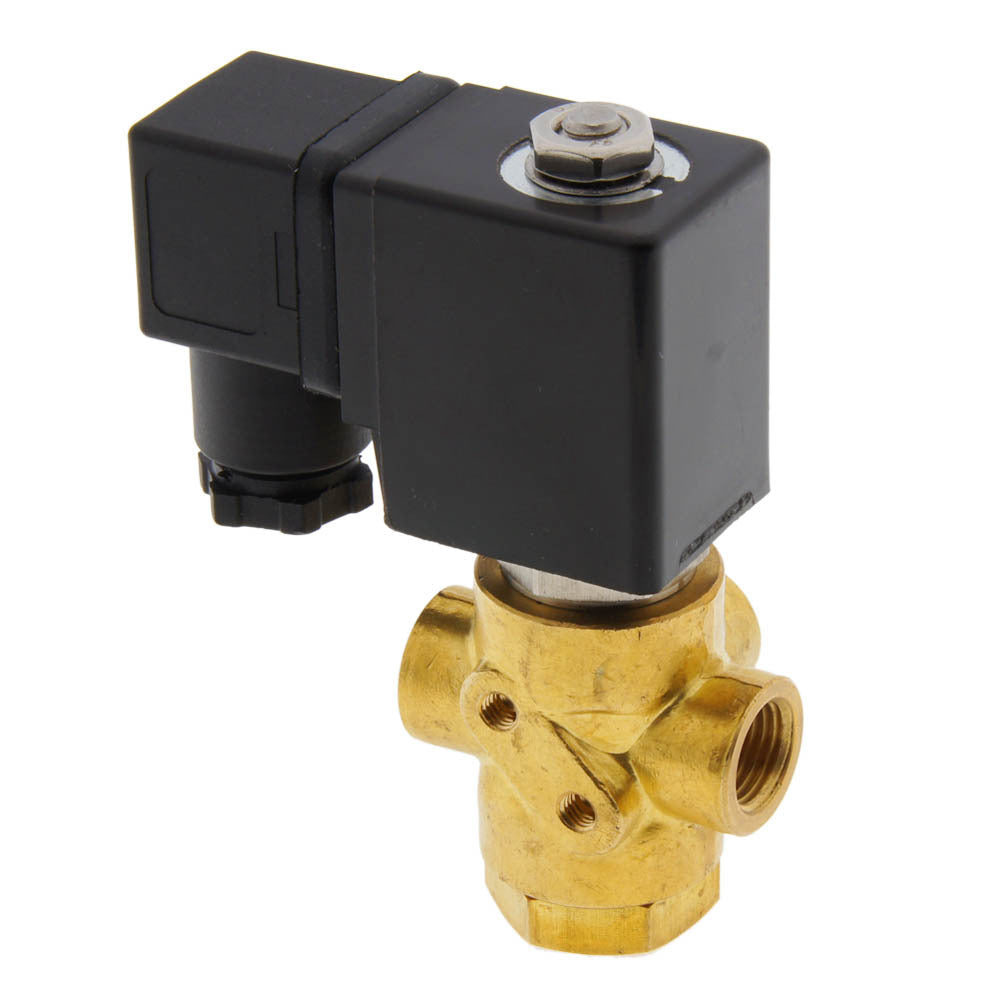

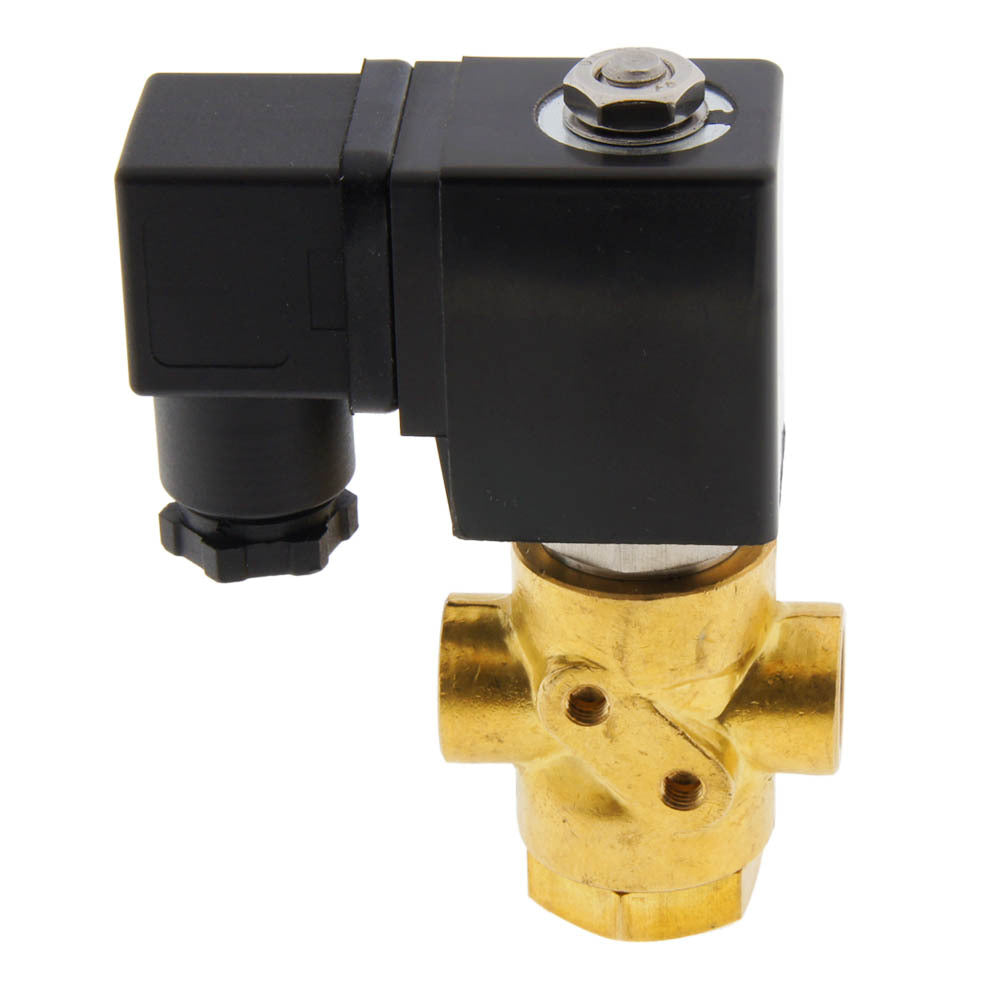

Solenoid Valve TP-DC 1/4'' 3/2 Way DI Brass FKM 0-3.2bar 230V AC

This is a JP Fluid Control direct operating 3 way solenoid valve with G 1/4 inch threads and a 230 V AC coil. The valve has a brass housing with FKM (FPM) sealing and an orifice size of 4 mm (approximately 5/32 inch). The circuit function of the solenoid valve is diverting, which means the valve inlet port connects to one of the two outlet ports, depending on the valve's state.
The valve is suitable for pressures of 0 - 3.5 bar (0 - 51 psi) and a maximum temperature of 120° C (248° F). The valve has a Kv-value of 0.3 m3/h, which translates to a flow rate of 5 l/min at a differential pressure of 1 bar (for water). In imperial units: Cv = 0.35, which means 0.35 GPM @ 1 psi pressure drop. For simple applications it is often enough to select a valve based on the thread size and orifice diameter. For more accurate sizing, use the Kv-value with our easy to use valve sizing calculator.
The brass housing is durable, suitable for neutral fluids and resistant to many chemicals. Consult our chemical resistance chart to verify compatibility of housing and seals with the medium. The valve has an IP65 rating if properly connected.

Pros:

• Solenoid valves open and close very fast compared to many other valve types
• Delivered including coil and connector
• Good protection against the environment thanks to the IP65 rating

Cons:

• Solenoid valves are very sensitive to dirt and can only be used with clean liquids and gases
• Solenoid valves use energy while activated and the coil may get hot. A well ventilated installation environment is recommended to dissipate the heat

TP series

The TP series consists of different types of 3/2-way solenoid valves, suitable for a variety of applications such as actuating pneumatic equipment, draining, distribution or mixing of liquids and gases.
The valves are available with BSP or NPT threads on request.
