Image may vary slightly
See specifications for accurate information.

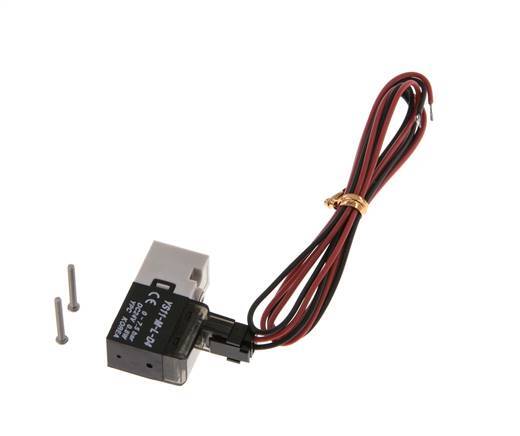

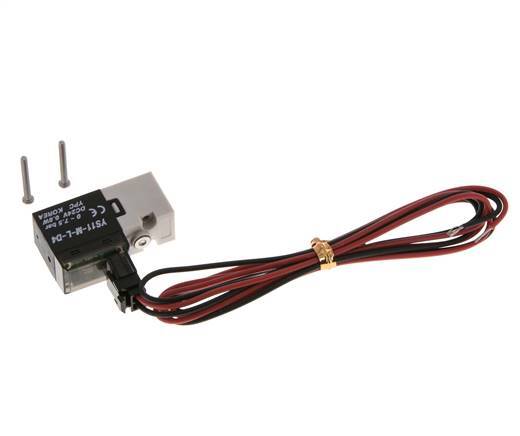

Reference: V2PA2
Brand: YPC
Mfr. Part: YS11-ML-D4

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position.

Including coil and connector.

View all
£29.53
excl VAT
In stock +38 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 38 days. Up to 212 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 40 - 42 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Choose a 3/2-way valve for a single acting cylinder with a spring return, which requires a single action to extend. After the spring retracts the valve rod, the valve returns to its normal, unactuated position.

Downloads

YPC YSV10
pdf
Download

Specifications

Connection type
Flange
Function
Circuit function of the valve
Normally open
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V DC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Min pressure difference (bar)
0
Max pressure (bar)
Maximum system pressure.
7.5
Valve bore (mm)
0.7
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.02
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Electrical connection
2-pin with LED (cable 600mm)
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP40
Nominal power (VA)
0.8
Max flow rate (l/min)
23
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
3/2 way
Model
YPC YSV10
Voltage-type
DC
Max pressure (bar)
7.5
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Electric
