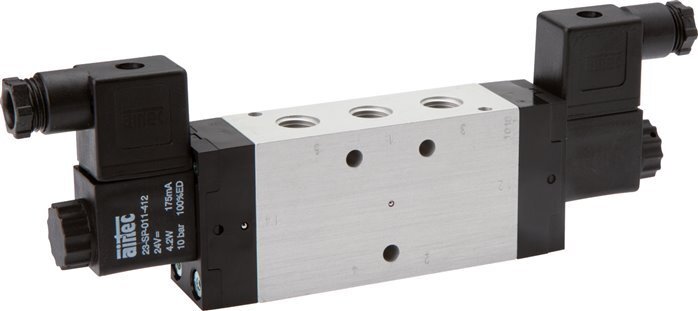

5/3 G1/4'' Center Closed Solenoid Valve 24V DC ATEX 3-10bar/42-140psi Airtec

5/3 G1/4'' Center Closed Solenoid Valve 24V DC ATEX 3-10bar/42-140psi Airtec
5/3 G1/4'' Center Closed Solenoid Valve 24V DC ATEX 3-10bar/42-140psi Airtec
Image may vary slightly
See specifications for accurate information.
Reference: V2PNH
Brand: Airtec
Mfr. Part: KM-10-530-HN-412-ATEX

To lock the equipment in place when the motion ceases, select a 5/3-way valve with a closed center. As they have a closed center, they trap air within the cylinder when they are stopped. In vertical cylinder applications, for instance, you need a valve to keep air pressure off when the equipment stops, in order to prevent the rod from failing.

Including coil and connector.

View all
£461.40
excl VAT
In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 12 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

To lock the equipment in place when the motion ceases, select a 5/3-way valve with a closed center. As they have a closed center, they trap air within the cylinder when they are stopped. In vertical cylinder applications, for instance, you need a valve to keep air pressure off when the equipment stops, in order to prevent the rod from failing.

Downloads

Airtec KM
pdf
Download

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/4 inch
Connection type
Inner thread cylindrical BSPP-G
Function
Circuit function of the valve
Center closed
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V DC
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Seal material
The choice mostly depends on chemical resistance, temperature and pressure ratings. Use our chemical resistance chart to search for compatibility with specific substances.
NBR (nitrile rubber)
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/3 way
Max pressure (bar)
Maximum system pressure.
10
Min pressure difference (bar)
3
Valve bore (mm)
9
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
1.34
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
70
Electrical connection
DIN-BI (11mm)
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP65
Nominal power (VA)
4.2
Max flow rate (l/min)
1500
Approval
Certifications or approvals indicating safety, quality, or performance standards met.
Atex Zone 1, Atex Zone 21
Model
Airtec KM
Voltage-type
DC
Peak power (VA)
A guideline of this maximum value is determined by multiplying the voltage by the amperage.
7
Surface protection
Anodized
Max pressure (bar)
10
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Electric
