Image may vary slightly
See specifications for accurate information.
Reference: V2PVK
Brand: Tameson

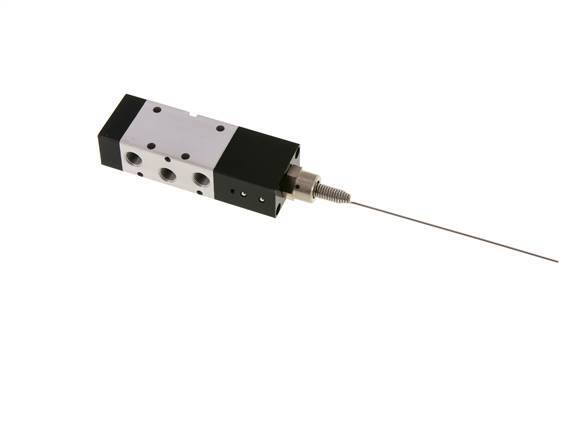

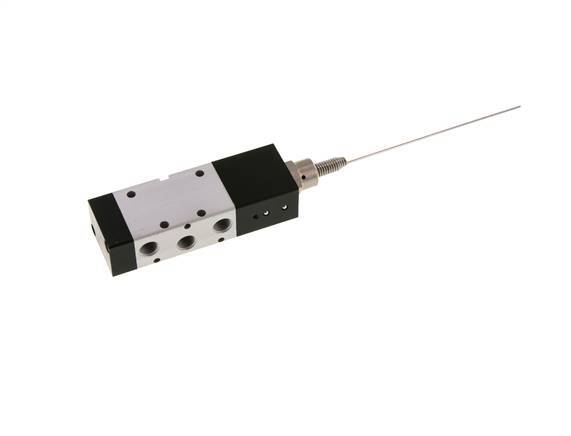

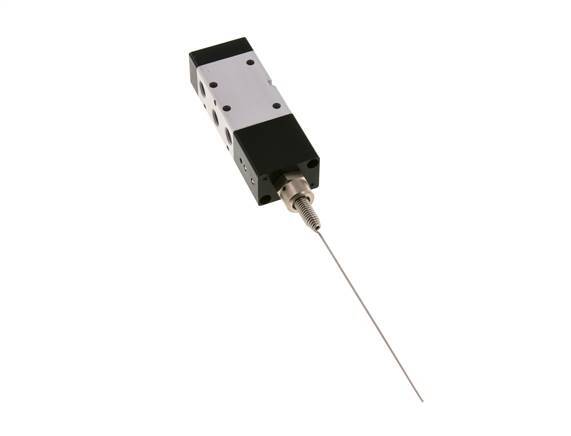

Use a 5/2-way valve in applications that move continuously between two positions, such as extending and retracting double-acting cylinders, where it is not necessary to stop air pressure. Pneumatic whisker (spring pin) valves are used to control the position of parts mechanically. As an object rolls along a conveyor, it pushes the spring, activating the valve.

View all
£47.97
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

Use a 5/2-way valve in applications that move continuously between two positions, such as extending and retracting double-acting cylinders, where it is not necessary to stop air pressure. Pneumatic whisker (spring pin) valves are used to control the position of parts mechanically. As an object rolls along a conveyor, it pushes the spring, activating the valve.

Downloads

Specifications

Connection size
Choose a connection size that matches the system it will be connected to. Tip: the inch size is not equal to the actual diameter of the thread, when in doubt use our thread table.
1/8 inch
Connection type
Inner thread cylindrical BSPP-G
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Aluminium
Valve ports/positions
Number of ports and positions, e.g. 2/2-way means 2 ports (in/out) and 2 positions (open/closed)
5/2 way
Max pressure (bar)
Maximum system pressure.
10
Min pressure difference (bar)
2.5
Kv value [m3/h]
Kv is a measure of the flow rate of water in m3/h at a pressure drop of 1bar. Use the Kv calculator to calculate the required Kv for your application. Imperial units: Cv=1.16xKv.
0.49
Min temperature (°C)
The minimum temperature of the fluid at which the system can operate continuously.
-10
Max temperature (°C)
The maximum temperature of the fluid at which the system can operate continuously.
60
Max flow rate (l/min)
550
Actuator style
The style of the actuator for manually or mechanically actuated valves.
Spring pin
Actuating force (N)
The force required to activate a manually or mechanically operated valve.
0.6
Max pressure (bar)
10
Actuation
Valves can be actuated in 5 ways: manual, mechanical, electrical, hydraulical, or pneumatical.
Manual
