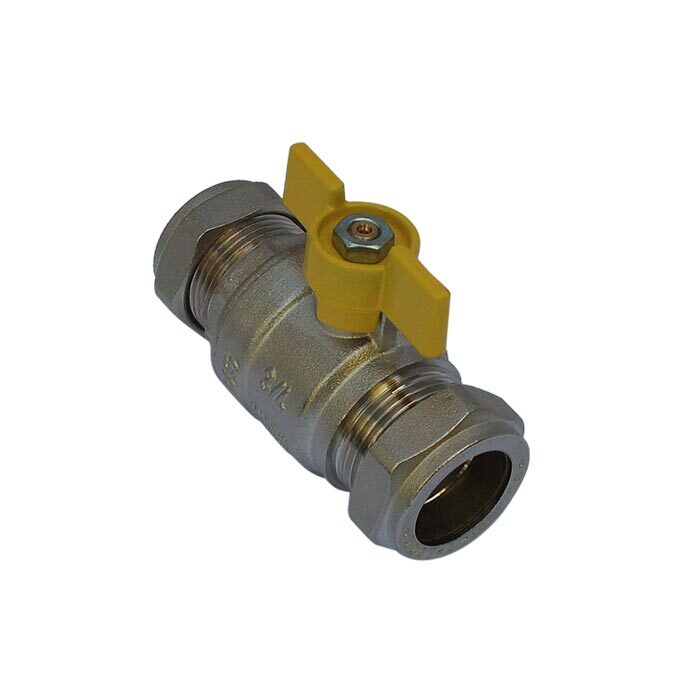

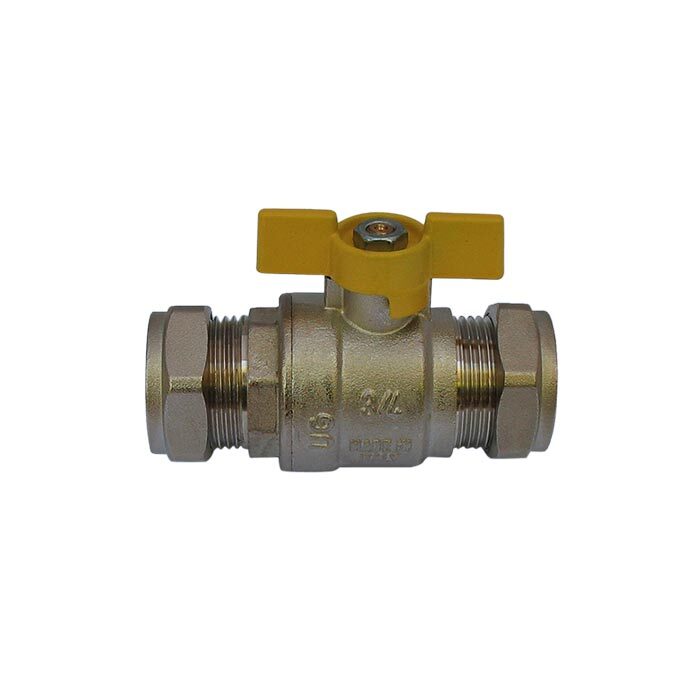

160A - 2-Way Ball Valve Full Bore 15mm Compression Ends - Gas
Notice: This product will be discontinued in the future
2-Way ball valve with 15mm compression ends and lever for open/close control. 15mm nominal diameter and max pressure 16 bar. Approval for gas appliances. Temperature range from -20 to 60°C. Nickel plated brass hard chromed ball and PTFE seals.
Notice: This product will be discontinued in the future
- Regular price
- £9.33
Description
This 2-way ball valve from JP Fluid Control with a nominal diameter of 15 mm is designed for on/off flow control. The valve is equipped with integrated compression fittings (15 mm), on both sides, this way the valve can be directly installed in the piping..
The housing of the valve is made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE/HNBR. This valve is suitable for gas applications and meets the EN-331 standard. The valve is also suitable for various media, such as water, oil or air. The valve can be used up to a max pressure of 16 bar (232 psi) and within a temperature range between -20 and 60 °C (-4 and 140 °F).
Use the handle to operate the valve. By rotating it 90 degrees, the valve will open or close. If the handle is perpendicular to the pipe, the valve is closed. This valve is not suitable for electrical or pneumatic control. For this purpose, valves with an ISO-Top flange (ISO 5211) are recommended.
Pros:
- DVGW approval for gas applications (DIN-EN 331)
- Suitable for a wide variety of non-aggressive liquids and gases
- No extra friction losses thanks to the full bore design
Cons:
- Not suitable for aggressive media
- Suitable only for manual actuation
160A series
Our 2-way brass ball valve selection ranges from 15 mm to 28 mm compression ends. The valves are made of nickel-plated brass, the ball is made of brass and the seals are made of PTFE/HNBR. Their operating pressure is up to 16 bar (232 psi). The 160A series is manufactured in accordance with the EN 331 standard. It is also suitable for water, neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air up to a maximum operating pressure. The operating temperature range is from -20 to 60 °C (-4 to 140 °F). The valves are handle operated. The ball valves in the 160A series of JP Fluid Control are characterized by a long life.
