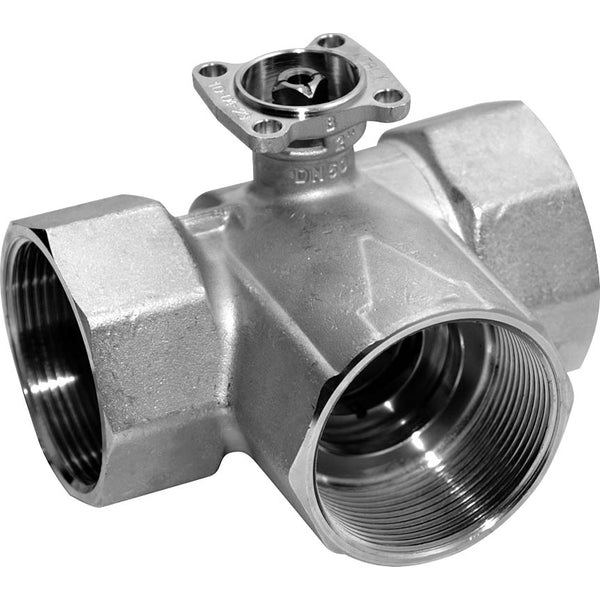

Belimo 3-Way Ball Valve Rp1 Kvs10 L-Port R3025-BL2
This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 25 and the port size is Rp 1 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 and 248 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 12 gpm. This valve requires a separate Belimo open/close actuator, which is not included. Installing Belimo actuators on this valve is made easy due to the central bolt design.
- Regular price
- £121.52
Description
This is a Belimo 3-way ball valve with a nickel-plated brass housing and EPDM sealing. The ball within the valve is made of brass. The bore diameter of the valve is DN 25 and the port size is Rp 1 inch with female threads. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 and 248 °F). The Kv value of the valve is 10 m3/h, equivalent to a Cv-value of 12 gpm. This valve requires a separate Belimo open/close actuator, which is not included. Installing Belimo actuators on this valve is made easy due to the central bolt design.
Pros:
- Very easy installation of Belimo actuators with the central bolt
Series:
The Belimo R2-S series is designed for open and closed cold and warm water systems. With the ability to operate in air-handling units and heating systems, the series offers shut-off functions on the water side and 2-point controls. One key feature is its air-bubble tight capability, ensuring efficient operations. The series accommodates a range of applications, suitable for sizes ranging from DN15-50. This makes it a versatile choice for different settings. This series is a reflection of Belimo's commitment to providing reliable and efficient solutions.
