AG Quarter Turn Actuator 100-240V AC 40Nm F03/F04/F05

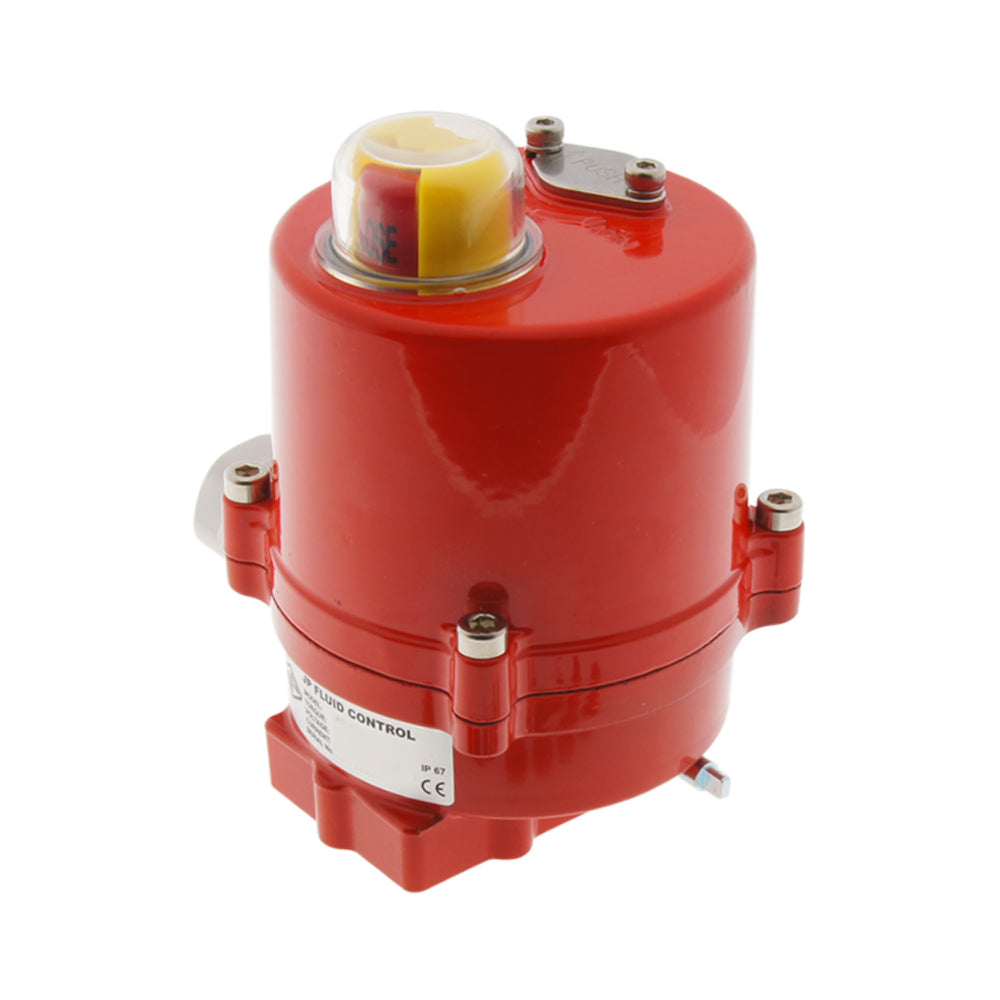

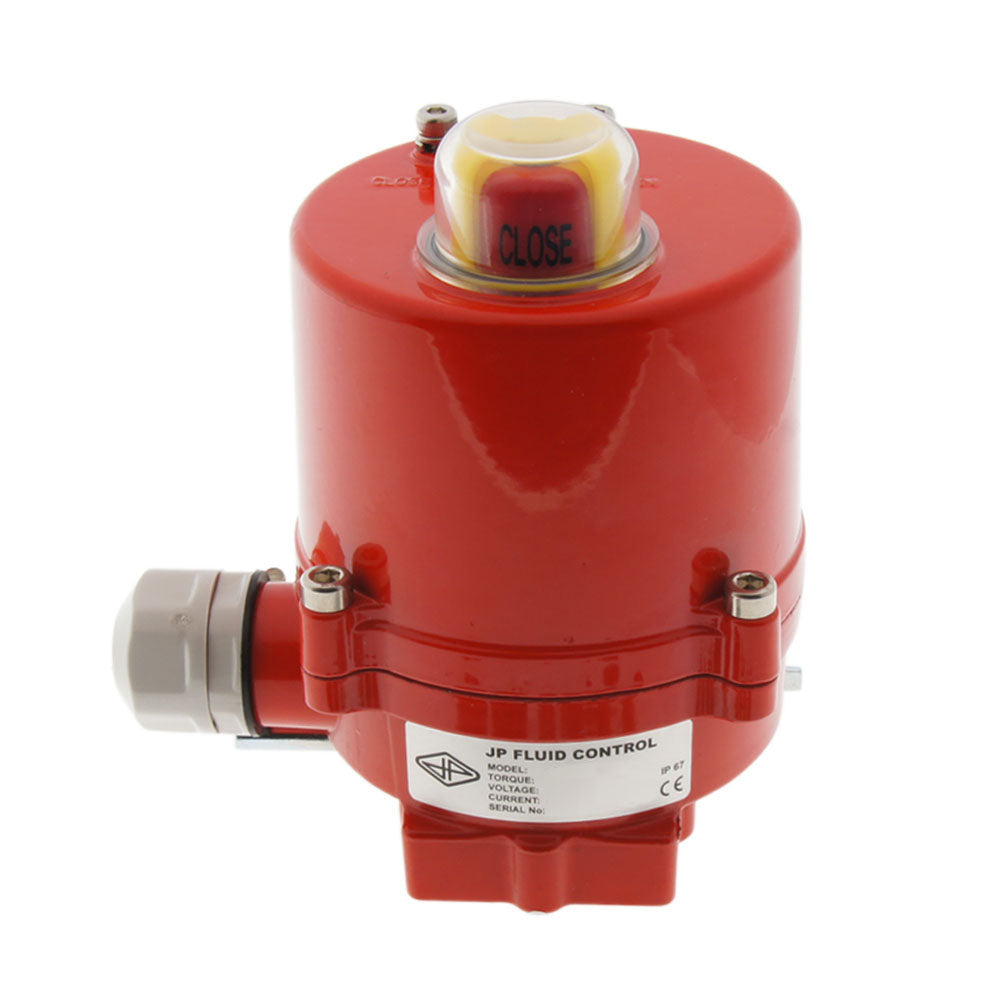

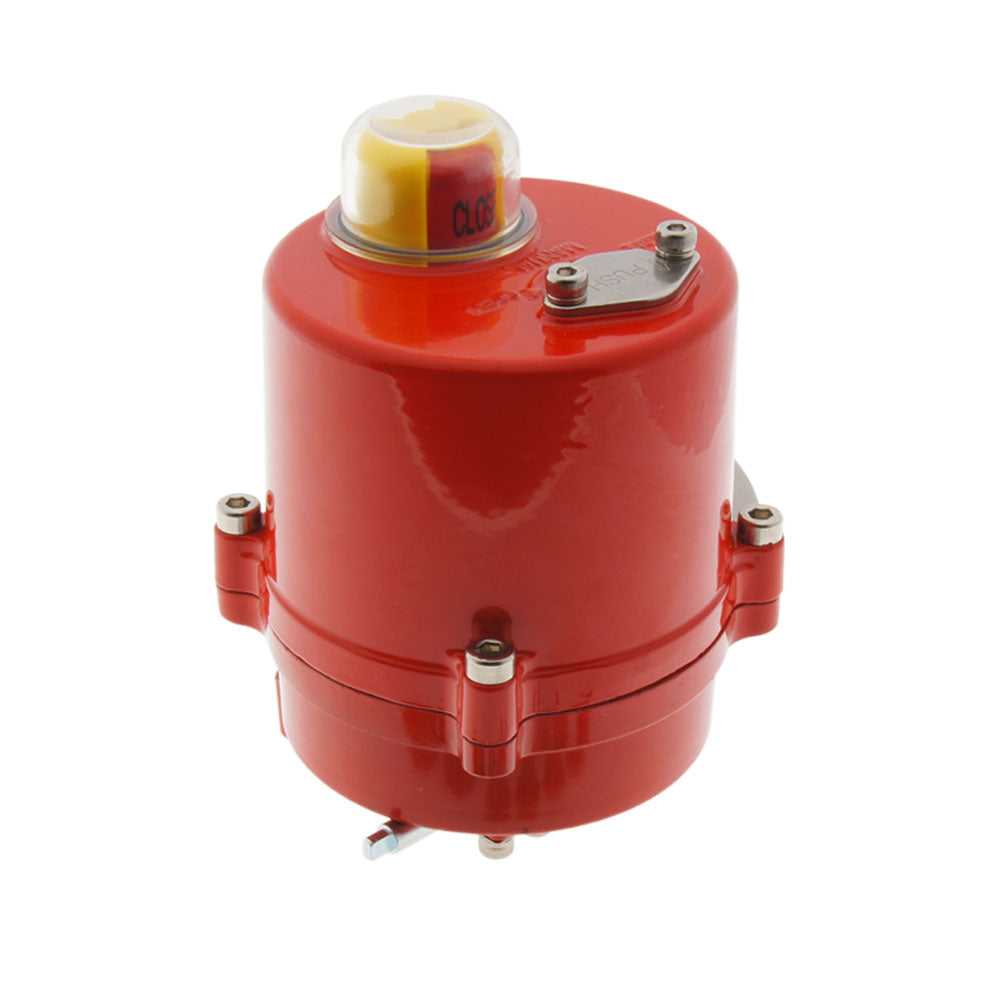

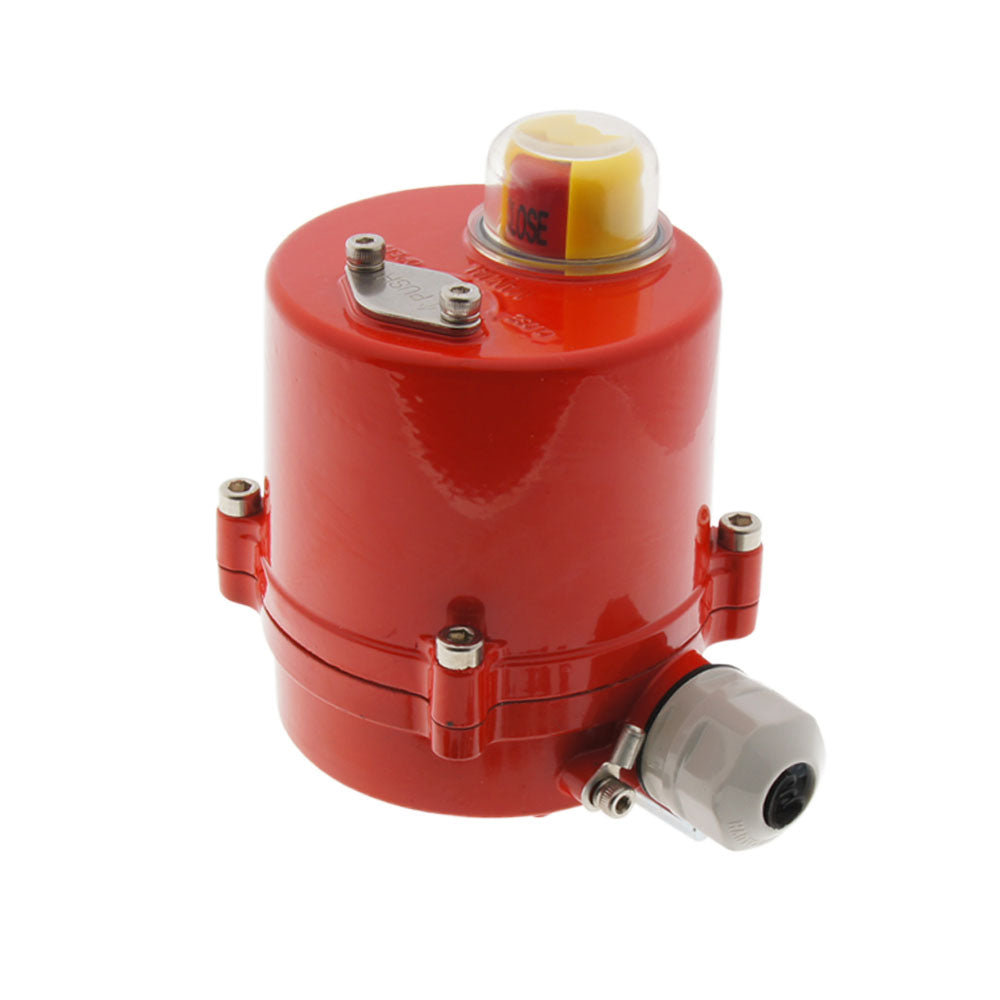

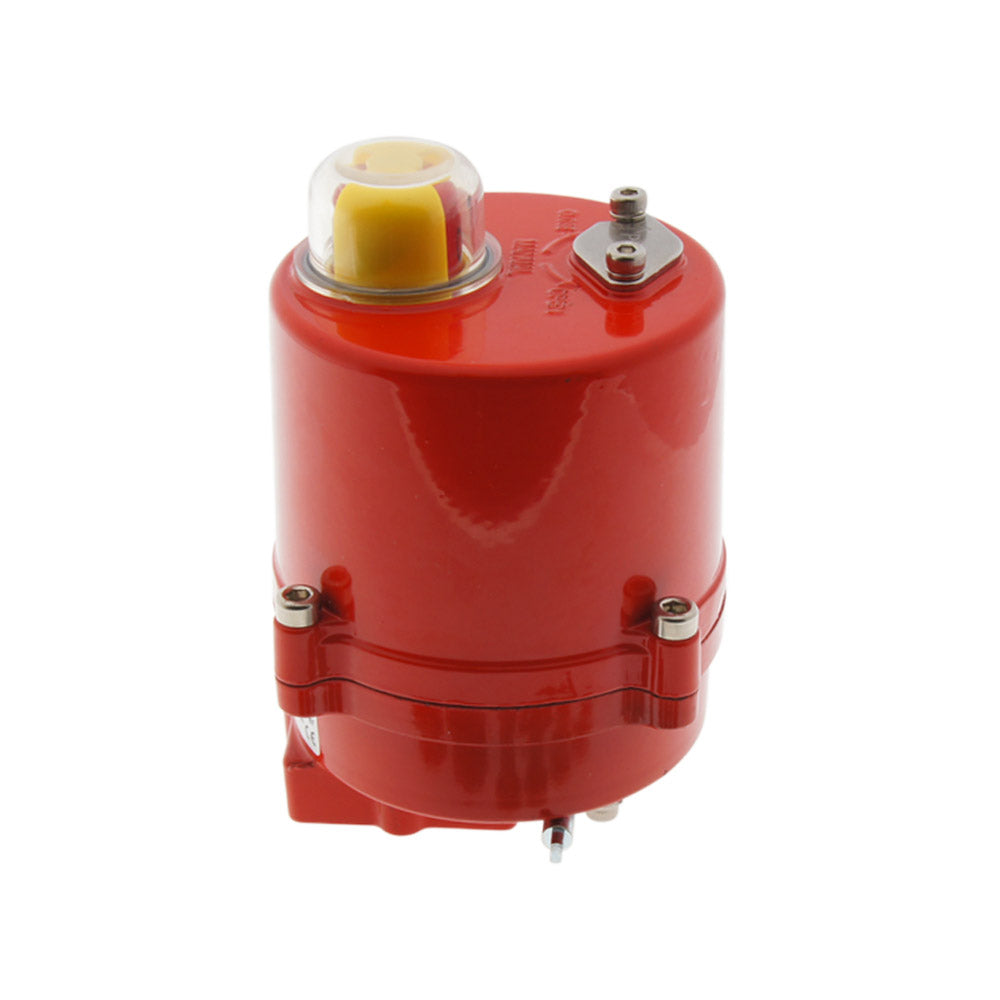

The AG-040-A is a high-quality electric actuator to operate quarter turn valves such as ball valves and butterfly valves. The actuator can be mounted on valves with a ISO-5211 flange of type F03, F04 or F05. In just 8 seconds the actuator turns from 0 to 90°. The maximum torque is 40 Nm. The actuator has a robust, compact aluminum housing (powder coated) and is resistant to dust and moisture, provided that a properly sized cable is correctly installed. A position indicator at the top indicates the position of the actuator and is clearly visible from different directions. The device is equipped with a manual override.

The actuator is suitable for power supplies from 100 up to 240 volts AC (50/60Hz) and the nominal current while running is 0.1 amps (peak current 0.2A). The valve has 3-point control: besides the two contacts for power supply, there is one control wire for opening and one control wire for closing.

Applications

The actuator can be used for ball valves and butterfly valves with 0-90° control. The valves can be made of different materials, such as brass, plastic or (stainless) steel. The actuator can be mounted on valves with ISO-5211 flange of size F03, F04 or F05. Some examples of commonly used applications are heating systems, irrigation, industrial automation, water supply and drainage, etc.

The required torque to rotate the valve should be well below the maximum torque of the actuator (40 Nm). Please note that the breakaway torque of a ball valve is about 30% higher than the torque while running. The medium, the temperature, the pressure, and the period of inactivity have an influence on the required torque. Always follow the specifications of the manufacturer of the valve.

Important features

• Response time only 8 seconds

• Robust IP-67 housing

• Power supply 100-240V AC

• Two extra limit switches for position feedback

• ISO 5211 Flange form F03, F04 and F05

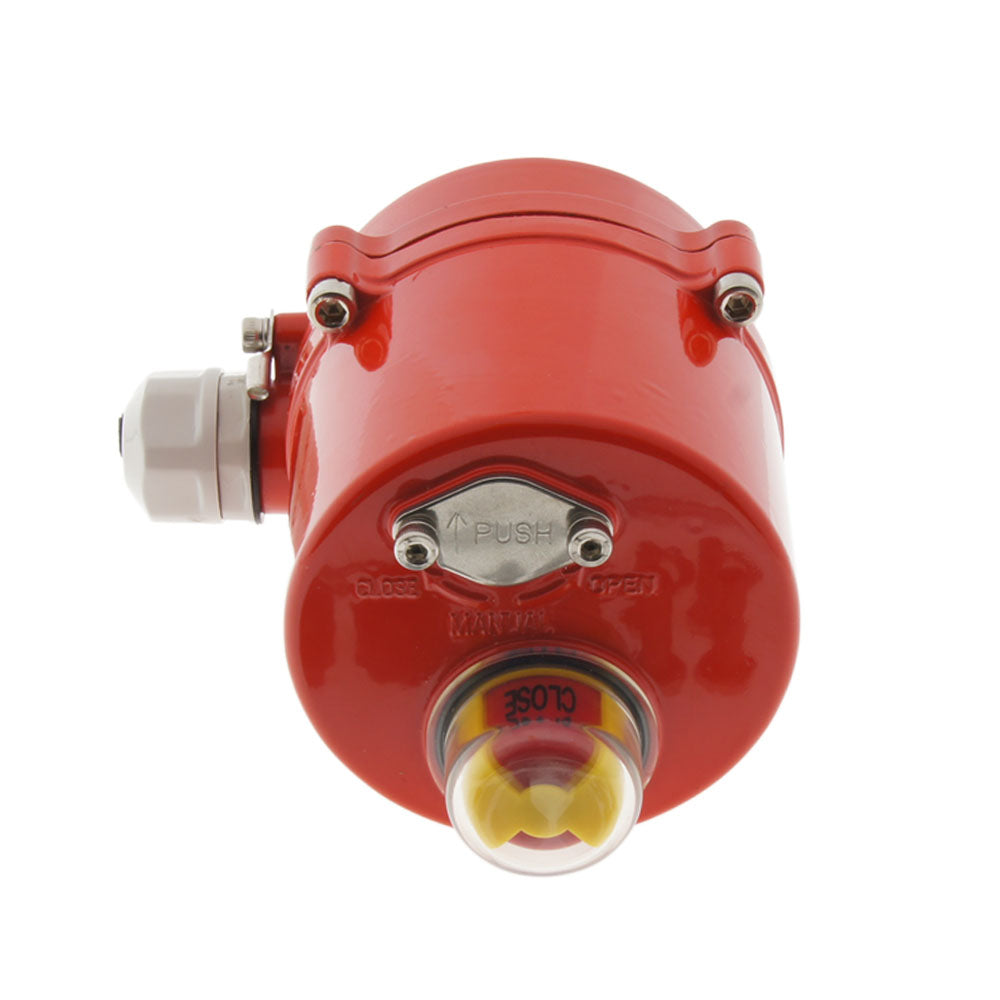

• Manual Override

• Clear visual position indicator

• Captive bolts (bolts do not fall out of the housing during assembly).


Technical Information

Operating Range

• Open/Close: 7s

• Torque (max): 40Nm

• Range: 0..90°

• Ambient Temperature: -10..50 °C

• Protection Grade: IP67 (provided correctly installed)


Electrical Specifications

• Voltage: 100-240V AC (50/60Hz)

• Current Nominal: 0.1A

• Current Peak: 0.2A (at max torque)

• Duty Cycle: S2 30min. (IEC 60034-1)

• Wiring Diagram:






Dimensions

• Height: 130 mm (5.12")

• Length: 94 mm (3.70")

• Width: 88 mm (3.46")

• Flange: ISO 5211 Type F03/F04/F05

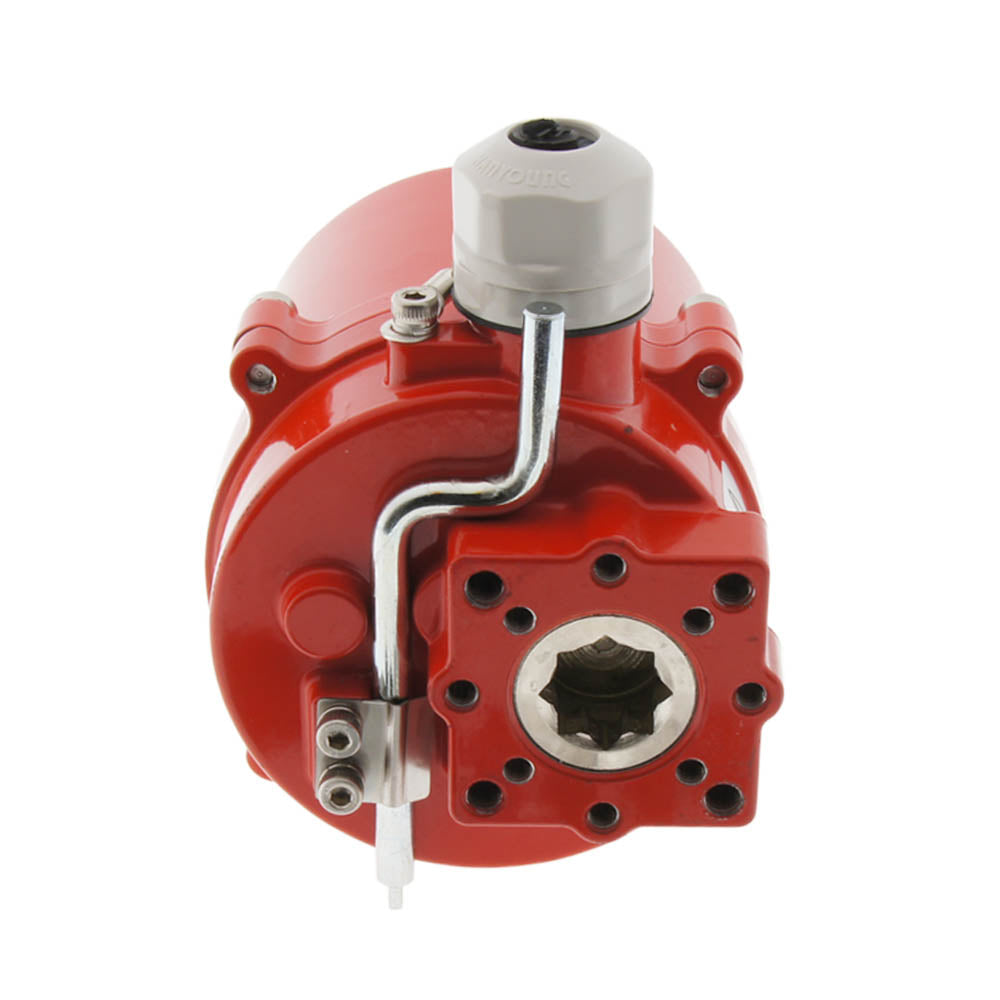

• Drive shaft: 14x14mm (9 and 11 with included inserts)

•

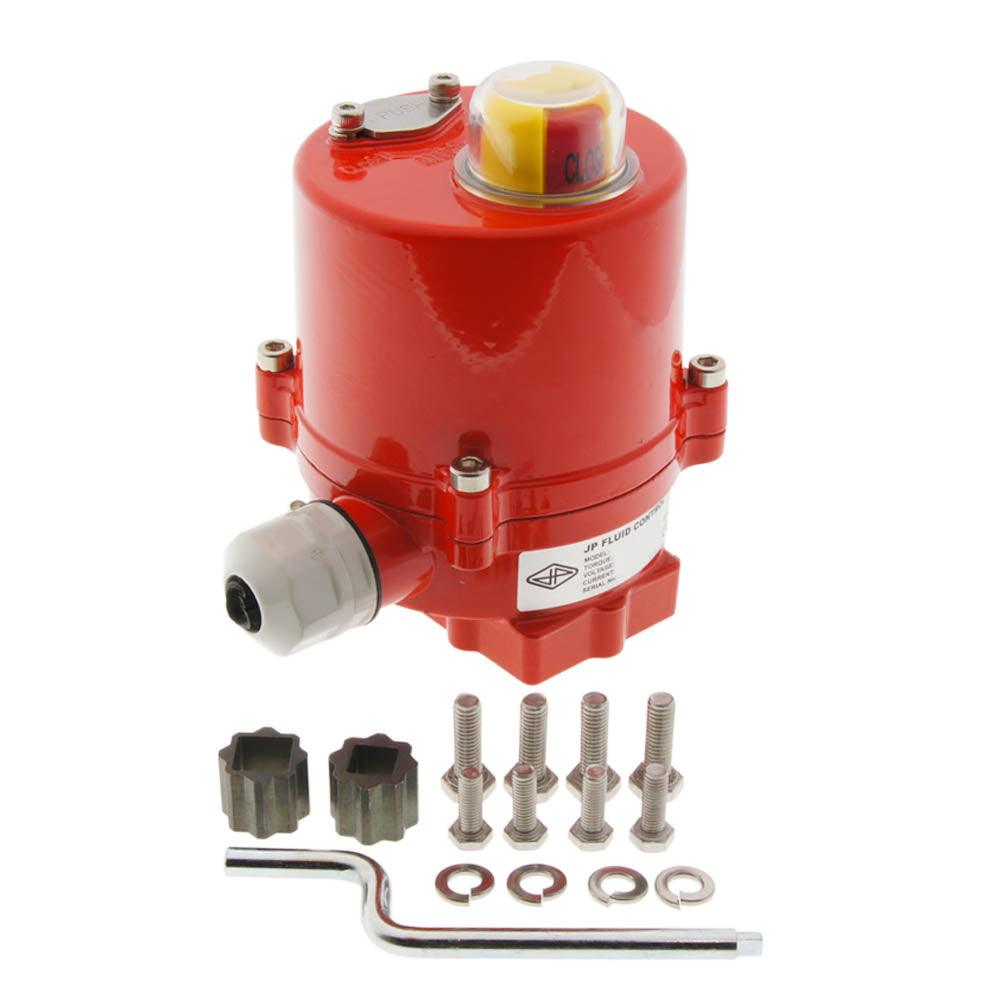

In the box

• Actuator AG-040-A (cable not included)

• Drive shaft adapter (9x9mm, 11x11mm)

• 4 bolts M5x16mm & washers & spring washers (for F03 flange)

• 4 bolts M6x16mm & washers & spring washers (for F04 & F05 flange)
