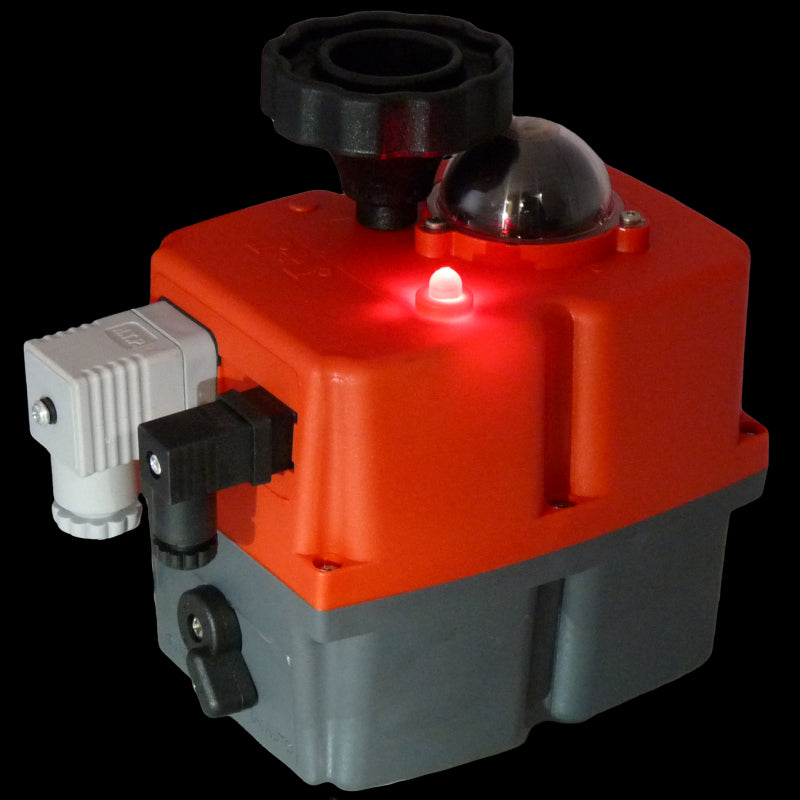

J4C 24-240V AC/DC Electric Actuator 20Nm F03/F04/F05 14 mm

J4C 24-240V AC/DC Electric Actuator 20Nm F03/F04/F05 14 mm
Image may vary slightly
See specifications for accurate information.
Reference: V2S94
Brand: JJ

This electrical actuator allows you to control quarter turn (ball or butterfly) valves. It has an operating torque of 20 Nm and an operating time of 9 seconds with a 24-240 V AC/DC supply voltage. Actuator mounts to a quarter turn valve with an ISO 5211 F03, F04 or F05 flanges. Durable polyamide (PA) housing, IP67 protection, and suitable for ambient environment temperature of -20 to 70 °C.

View all
Note: product cannot be returned
Regular price
£442.69
excl VAT

In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 2 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 4 - 6 business days

Description
Specifications
Downloads
Related products

This electrical actuator allows you to control quarter turn (ball or butterfly) valves. It has an operating torque of 20 Nm (higher break torque so please see the manual) and can open/close the valve in 9 seconds with a duty cycle of 75%. It requires a supply voltage of 24-240 V AC/DC and it has a visual positioning indicator on top of the unit to clearly see valve position. As standard, it does have a manual operation cogwheel for manually rotating the actuator’s stem in case of emergency. It is designed to mount to a quarter turn ball or butterfly valve that has an ISO 5211 F03, F04 or F05 flange with a 14 mm star connection for square drive shafts. It has a durable polyamide (PA) housing making an IP67 enclosure capable of operating in an environment of -20 to 70 °C. Before connecting the actuator, please read the manual carefully.

Pros:

  • It has a robust IP67 housing
  • As standard, it does have a manual operation cogwheel for manually turning the valve if needed
  • It has a clear visual position indicator to see the valve’s state
  • It is designed to mount to a quarter turn ball or butterfly valve that has an ISO 5211 F03, F04 or F05 flanges

Cons:

  • The actuator is not equipped with a battery safety return (BSR) but can be operated manually if power fails
  • In comparison to a pneumatic actuator of the same size, the operating speed is slower

J4C series

The J4C high voltage electric valve actuators from manufacturer J+J offers an impressive list of standard features that include protection against damage from over-torque or condensation. Actuators are also available with different options like fail-safe BSR (Battery Safety Return) or modulating called DPS (Digital Positioning System). The series has an operating torque range between 20-300 Nm. The J4C fail-safe or modulating electric actuator is the same as the standard on-off J4C actuator but a BSR and/or a DPS kit is added inside the actuator. The J4C BSR fail-safe actuator can be set to fail open or fail closed. The J4C DPS modulating actuator can be controlled with 4-20 mA or 0-10 V (0-10 V on request).
