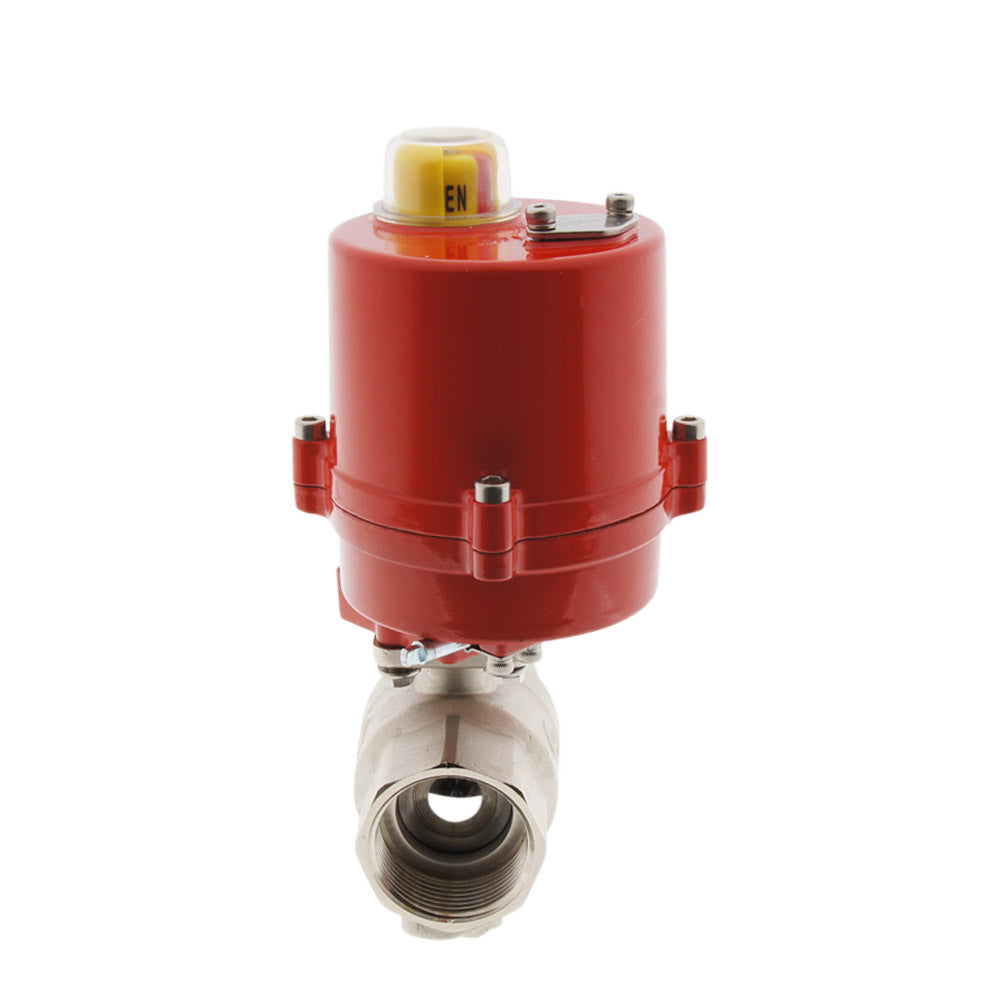

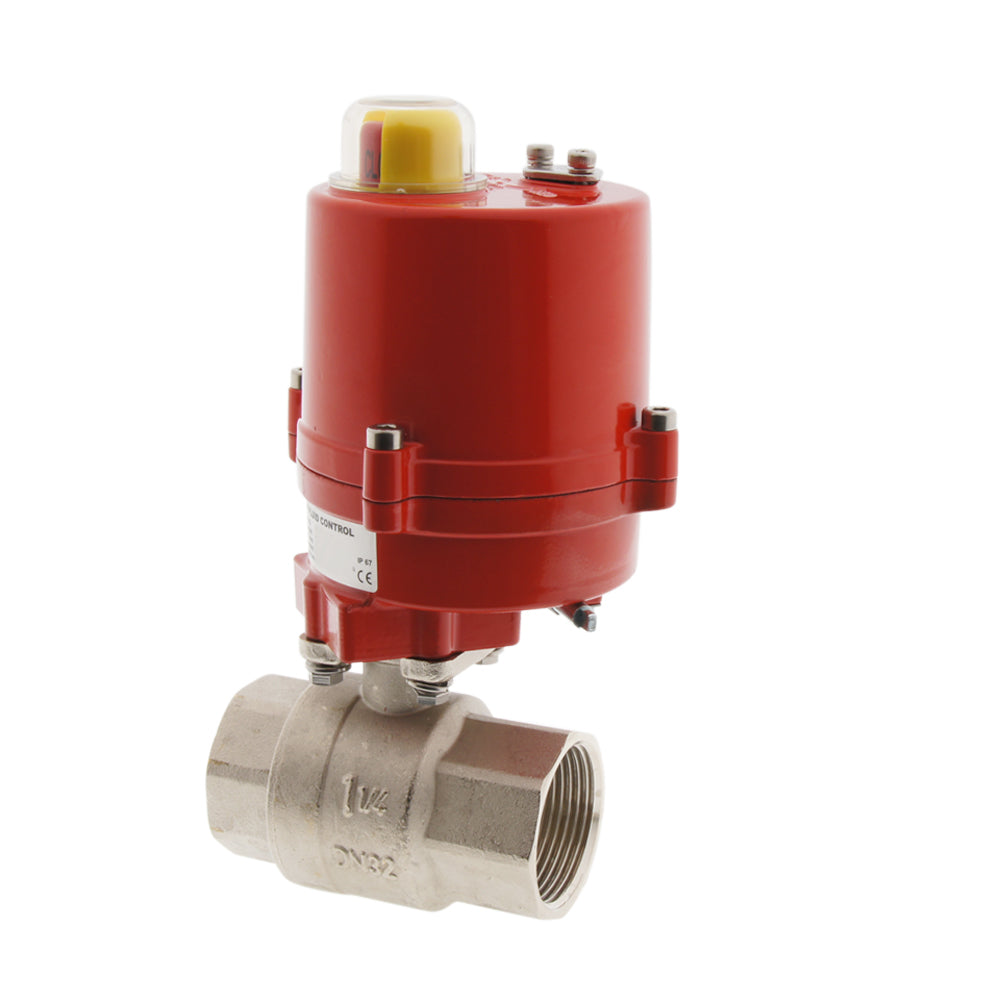

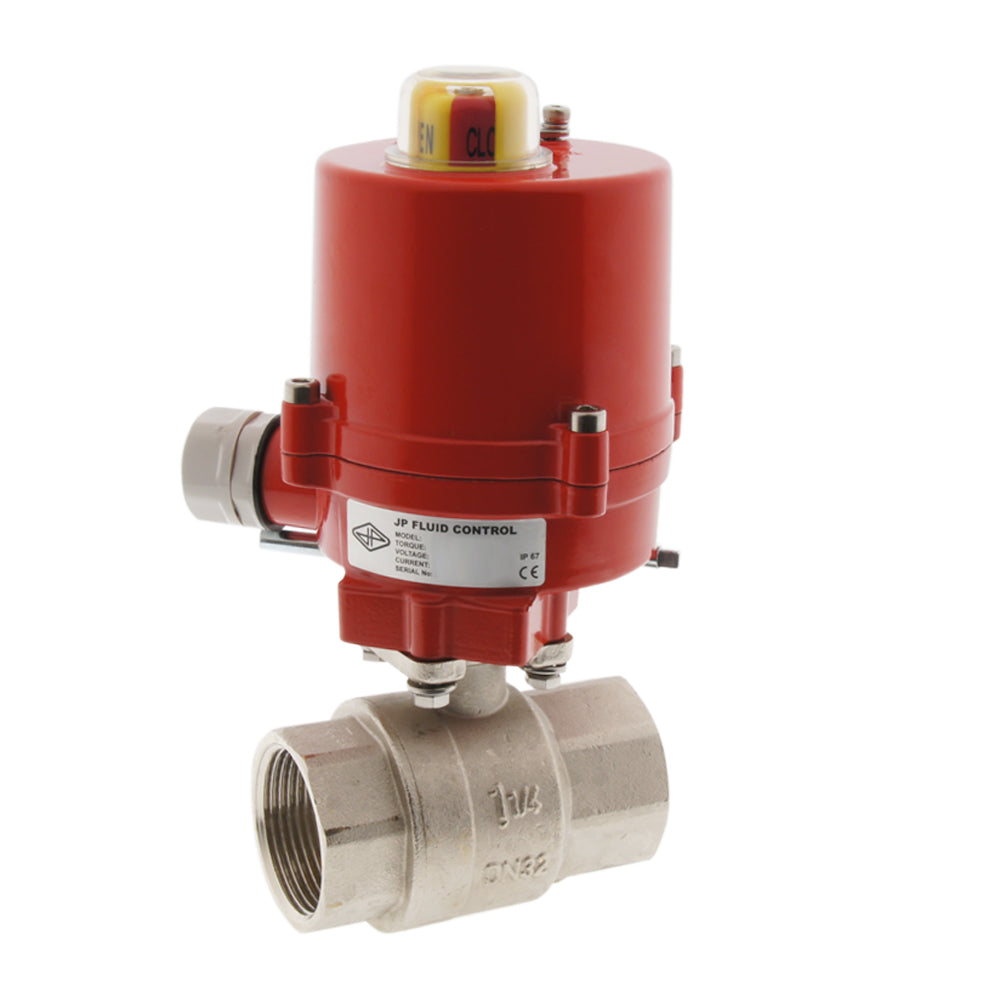

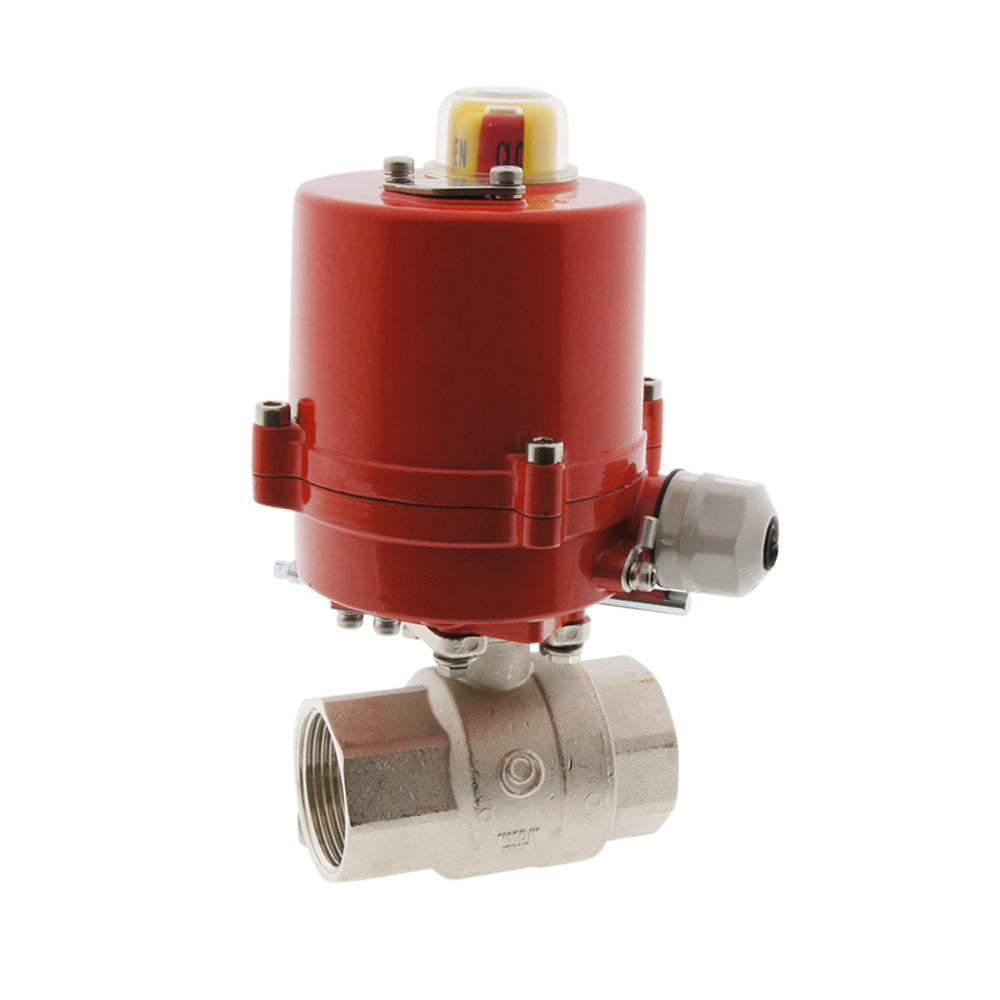

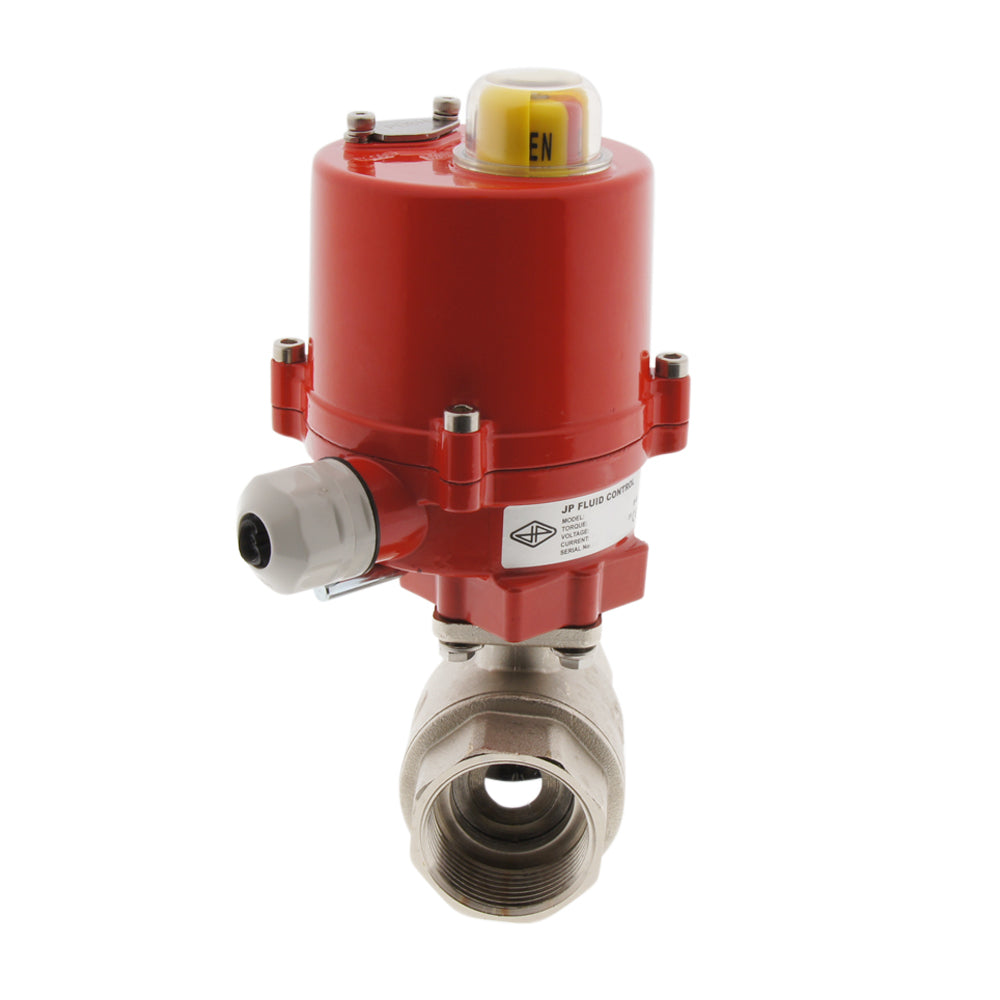

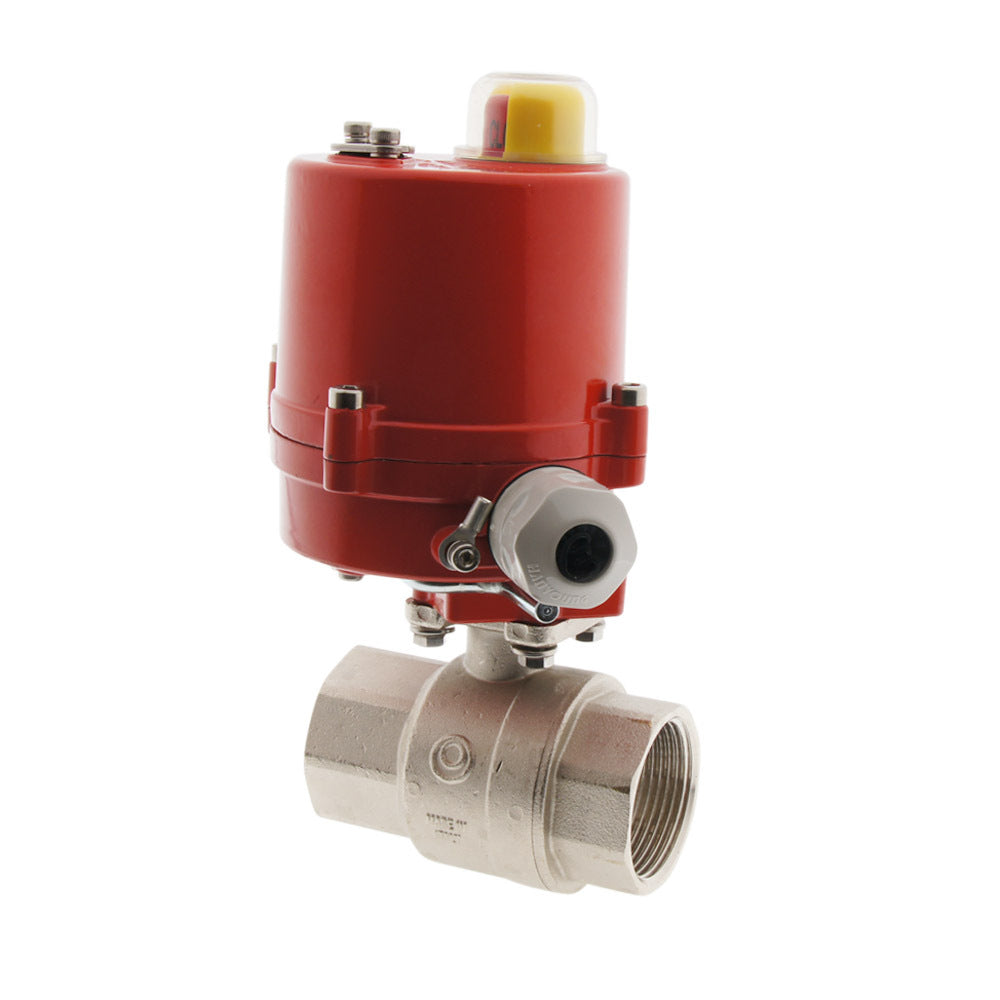

Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC

Notice: This product is discontinued and replaced by BL2BA-114-AG4-012AC

Discontinued
Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC
Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC
Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC
Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC
Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC
Electrical Ball Valve 2-Way G1-1/4'' Brass 12V AC
Reference: 230B114-AG2-012AC
Brand: Tameson

2 Way electric ball valve with G1-1/4 inch pipe threads and powerful and energy efficient 12V AC/DC actuator (max 20Nm). Media from -20 to 130°C, max pressure 32 bar at 20°C. Brass valve housing with hard chromed ball and PTFE valve seats. The nominal diameter is 32mm, the Kv-value is 100m3/h (1666.7 l/min water at dP=1 bar). 3-point control. Rotation 0-90° in only 4 sec. Compact and strong actuator housing (IP67) with position indicator. Manual override function and two extra limit switches for position feedback.

View all

Notice: This product is discontinued and replaced by BL2BA-114-AG4-012AC

Description
Specifications
Downloads
Related products

This strong and energy efficient 2-way electrical ball valve from Tameson can be used to automatically shut of pipes with gas or fluids. The valve has 1-1/4 inch pipe threads (internal thread, BSPP). The housing of the valve is made of brass with a hard chrome plated brass ball and PTFE (teflon) sealing. The actuator is suitable for both 12 volt AC 50/60Hz (alternating current) and 12 volt DC (direct current). With switches on the circuit board, the actuator can be set for AC or DC. The factory default setting is direct current (DC). It is very imortant to set the actuator to AC, before using an AC power supply. The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 20 Nm torque. The valve rotates from 0 to 90 degrees in 4 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.

Key benefits

  • Robust brass ball valve with 1-1/4 inch pipe threads
  • Switching time only 4 seconds
  • Strong IP67 actuator housing
  • Both 12V AC and DC possible (set by switch)
  • Two extra limit switches for position feedback
  • Manual override control
  • Clear visual position indicator

Technical specifications

ActuatorBall Valve
Actuator ref:AG-020-CBall Valve ref:230B114
Voltage:12V DC/AC (50/60Hz)Housing:Brass (CW 617N)
Nom./Max. Current:0.2/2.2 ABall: hard chrome plated brass
Protection:IP67Seat rings:PTFE (teflon)
Duty Cycle:S2 30min.Pipe threads: G1-1/4" BSP
Open/Close:4 sNominal Diameter:32mm (DN)
Amb. Temp.:-10°C..50°CInstallation length:91 mm
Range:0-90°Max pressure (@20°C):32 bar
Extra limit switches:2Function: 2 way
Manual override:YesTemp medium:-20°C..130°C

Dimensions

Dimensions

L1=62mm

L2=26mm

L3=176mm

L4=91mm

L5=94mm

L6=mm

dimensions ball valve with actuator

Dimensions of the AG-020-C actuator and 230B114 ball valve.

Applications

This valve can be used in combination with gases and fluids. Some examples of compatible media are water, (compressed) air, vacuum (max -0.9 bar), oils and fuels. The brass housing is not suitable for chloride solutions (like seawater, swimming pools) or demineralized water. The maximum pressure at room temperature is 32 bar, at higher temperatures the maximum allowed temperature decreases. The direction of pressure is not important, the direction of flow may be in any direction. The temperature range of the medium lies between -20°C and 130°C. At high temperatures, it is recommended to install the valve in a ventilated area. It is allowed to install the valve in a humid environment provided that all parts, like an appropriate electrical cable, are correctly fixed. Ball valves can be used with light contaminated fluids. Some examples of applications for this valve are HVAC, irrigation, industrial automation, water management.

pressure-temperature diagram

Maximum pressure as a function of temperature.

Electrical Wiring Diagram

Follow the safety instructions and manual before you start installation.

The actuator works with 12 volt DC and 12 volt AC (50/60Hz). On the PCB are two small switches to set the actuator to AC or DC. The default setting is DC. The actuator draws 0.2A nominal, and 2.2A at maximal torque. The actuator has 3-point control. Before using AC power supply, the switches on the PCB need to be adjusted first. Terminals 1 and 2 are permanently connected to the power supply. Terminals 3 and 4 are required to use the same signal (phase/null) as terminal 1. Connecting one of these control wires, closes or opens the valve. Never connect terminals 3 and 4 at the same time to prevent short circuit and damage.The actuator has two internal limit switches. As soon as the actuator's end position is reached (0 or 90 degrees), the motor turns off and no energy is consumed. In addition, in the actuator there are two additional limit switches for control purposes. The angular position of the limiti switches can be modified. Always connect the earth and do not use the pipes as ground.

elektrical diagram AG actuator 12V ACag-actuator-switch-acdc-schematic.png

Electrical wiring diagram of the AG-020-C actuator. Before using alternating current, first the switches on the PCB need te be set.

Assembly

Make sure that the position of the ball and the actuator are properly set before assembly. The actuator is provided with two adapters to connect the actuator to the valve shaft. Mount the actuator to the valve with the provided bolts. There should be no play between both flanges. Use our fittings range for the connection between the pipe and the valve.

In the box

  • Actuator AG-020-C (cable not included)
  • Drive shaft adapter (9x9mm, 11x11mm)
  • 4 bolts M5x16mm & spring washers (for F03 flange)
  • 4 bolts M6x16mm & spring washers (for F04 & F05 flange)
  • Ball Valve 230B114

Note: Delivered in separate parts.
