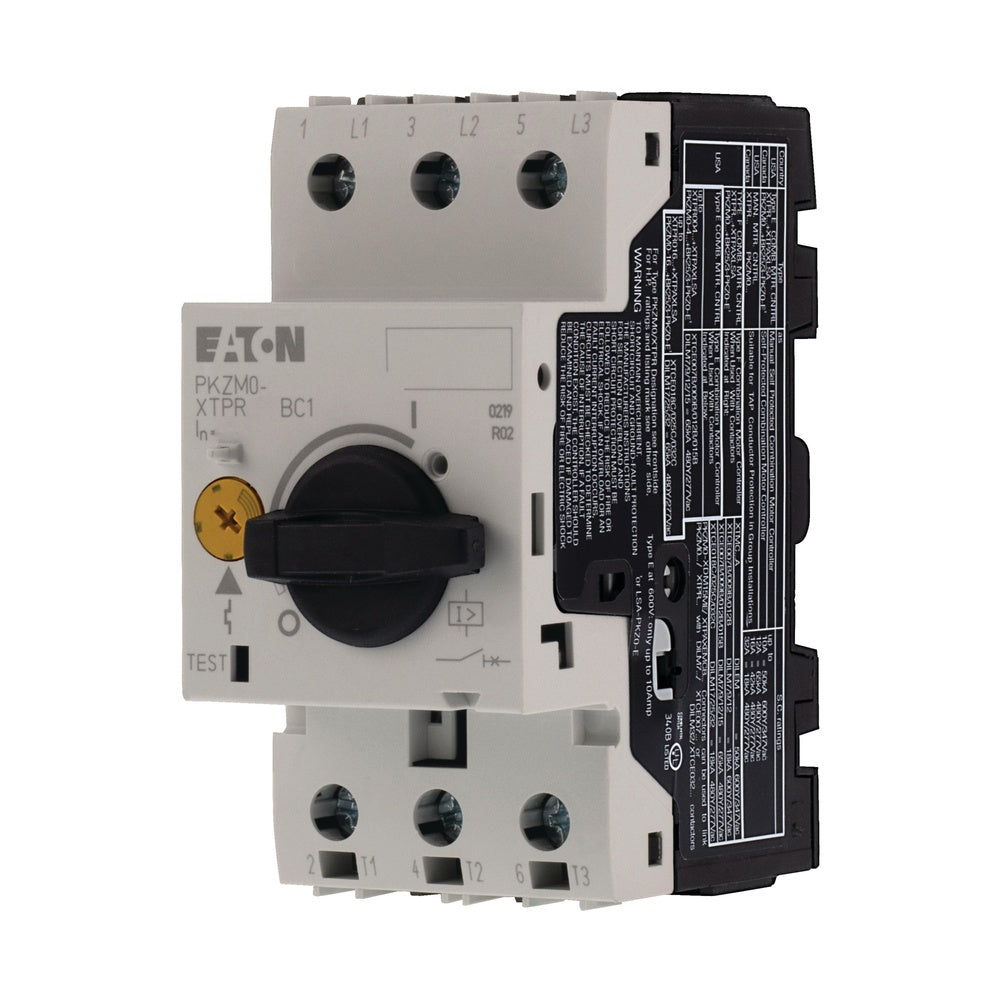

3P Transformer Circuit Breaker 10-16A PKZM0 - 088917
Notice: This product is discontinued

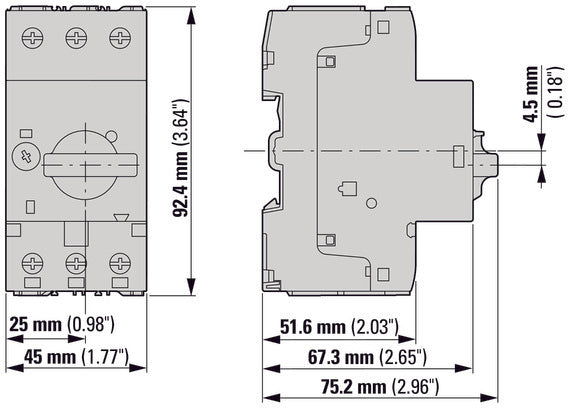

IEC/EN60947-compliant transformer circuit breaker featuring 3-pole PKZM0 design with adjustable overload and non-delayed short-circuit protection. Offers phase failure sensitivity, 690V rated operating voltage, and IP20 protection rating. Includes screw terminals and snap fitting capability with 45mm cap installation dimension. Features finger-proof design per VDE 0106 T.100 with optional auxiliary contact and voltage release compatibility.
Notice: This product is discontinued
Description
IEC/EN60947-compliant transformer circuit breaker featuring 3-pole PKZM0 design with adjustable overload and non-delayed short-circuit protection. Offers phase failure sensitivity, 690V rated operating voltage, and IP20 protection rating. Includes screw terminals and snap fitting capability with 45mm cap installation dimension. Features finger-proof design per VDE 0106 T.100 with optional auxiliary contact and voltage release compatibility.
Pros:
- Adjustable overload and short-circuit protection
- Phase failure sensitive for enhanced safety
- High 690V operating voltage rating
- Compatible with auxiliary contacts and voltage release
