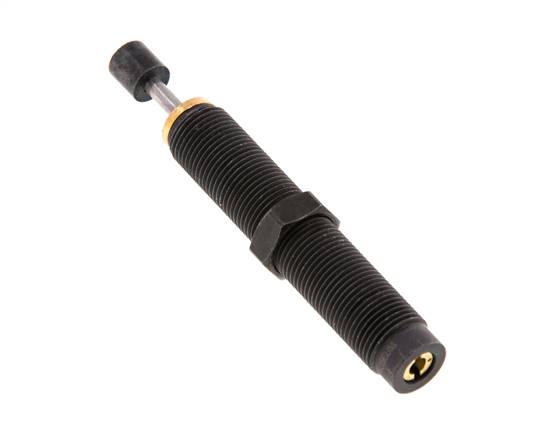

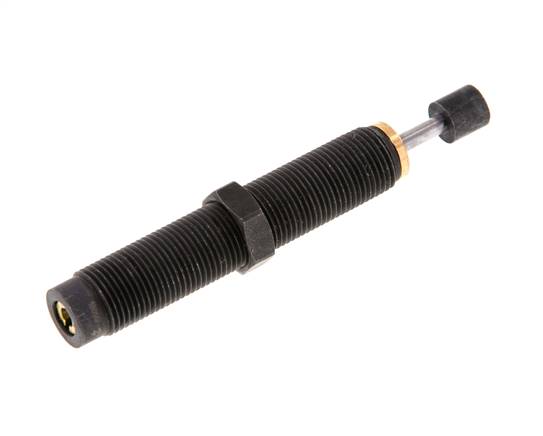

ACE Adjustable Shock Absorber M 12x1, 10.2 mm Stroke - MA35EUM
ACE adjustable industrial shock absorber with M 12x1 body thread and 10,2 mm stroke rated for up to 4 Nm per stroke, 6000 Nm/h continuous, effective mass 6 - 57 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on machine axes, pick-and-place arms, packaging machinery, and small automation cells where the mass or impact velocity varies between cycles and the damping must be tuned.
- Regular price
- £88.25
Description
ACE adjustable industrial shock absorber with M 12x1 body thread and 10,2 mm stroke rated for up to 4 Nm per stroke, 6000 Nm/h continuous, effective mass 6 - 57 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on machine axes, pick-and-place arms, packaging machinery, and small automation cells where the mass or impact velocity varies between cycles and the damping must be tuned.
Pros:
- Tunable damping across 6–57 kg, so each cycle ends at the lowest reaction force
- Rated 4 Nm/stroke, 6000 Nm/h on a compact M 12x1 threaded body, 10,2 mm stroke
- Self-returning piston with integrated limit stop, no external return spring needed
Cons:
- Requires re-tuning when mass or impact velocity changes
- Operating range 0 to +66 °C (32 to +151 °F); derate or pick another series outside it
- Free-falling vertical loads need a separate energy calculation
