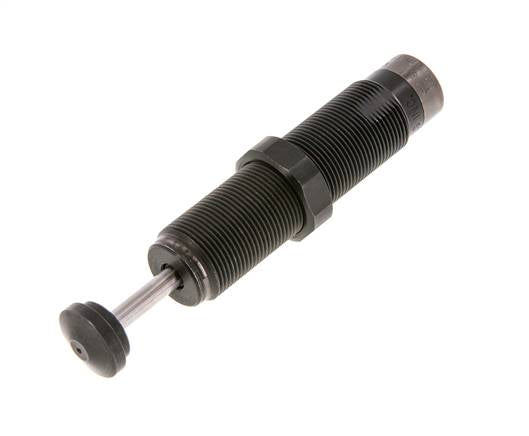

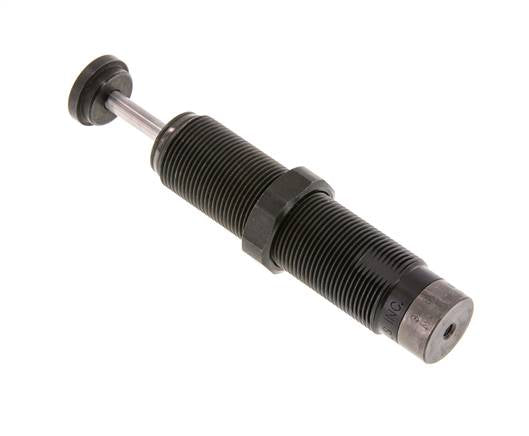

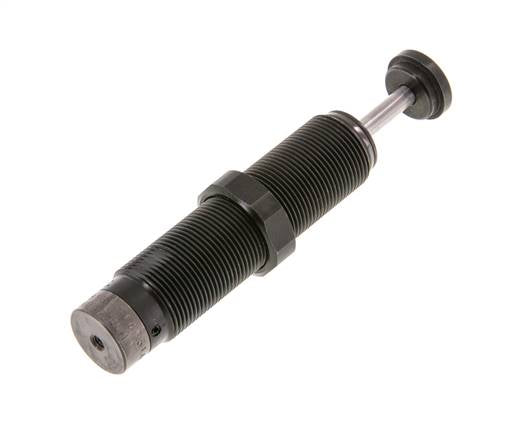

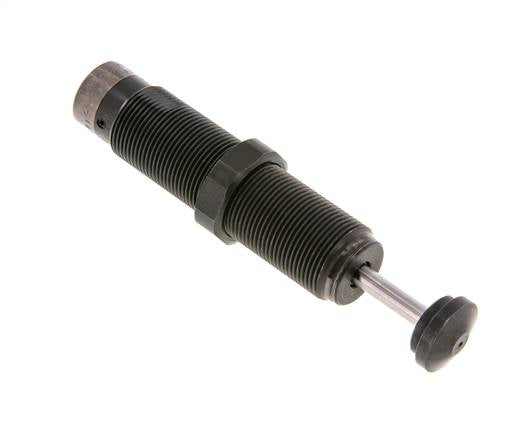

ACE Adjustable Shock Absorber M 25x1.5, 25.4 mm Stroke - MA600EUM
ACE adjustable industrial shock absorber with M 25x1,5 body thread and 25,4 mm stroke rated for up to 68 Nm per stroke, 68000 Nm/h continuous, effective mass 9 - 1360 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
- Regular price
- £175.53
Description
ACE adjustable industrial shock absorber with M 25x1,5 body thread and 25,4 mm stroke rated for up to 68 Nm per stroke, 68000 Nm/h continuous, effective mass 9 - 1360 kg, operating temperature 0 to +66 °C (32 to +151 °F). Damping is tunable on-absorber to the actual mass and impact velocity. Used as an end-of-stroke buffer on heavy machine axes, cranes, hoists, transfer systems, and conveyor end stops where high kinetic energy must be absorbed safely.
Pros:
- Tunable damping across 9–1360 kg, so each cycle ends at the lowest reaction force
- Rated 68 Nm/stroke, 68000 Nm/h on a compact M 25x1,5 threaded body, 25,4 mm stroke
- Self-returning piston with integrated limit stop, no external return spring needed
Cons:
- Requires re-tuning when mass or impact velocity changes
- Operating range 0 to +66 °C (32 to +151 °F); derate or pick another series outside it
- Free-falling vertical loads need a separate energy calculation
