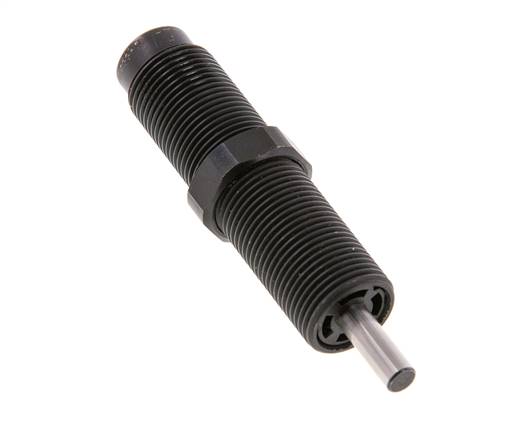

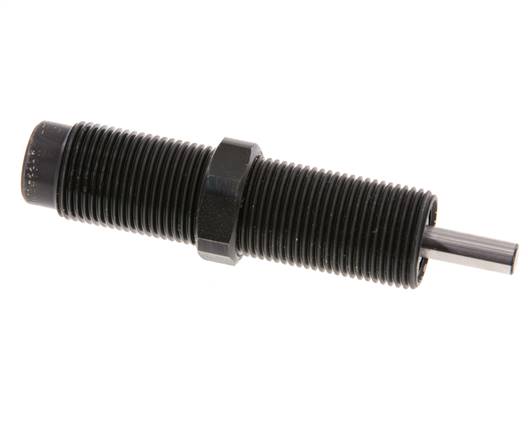

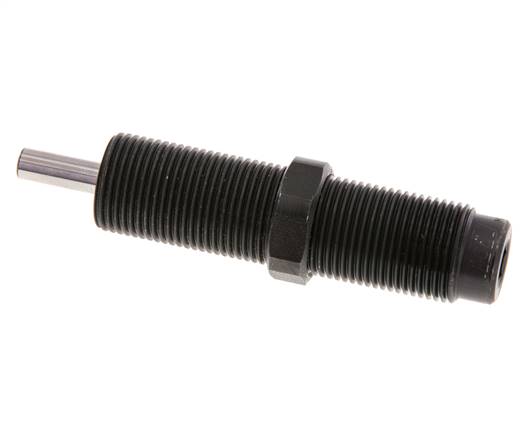

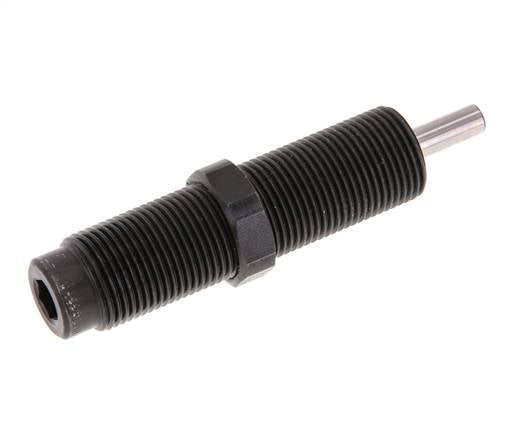

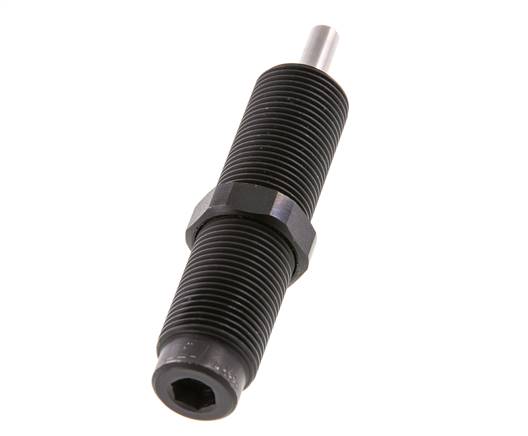

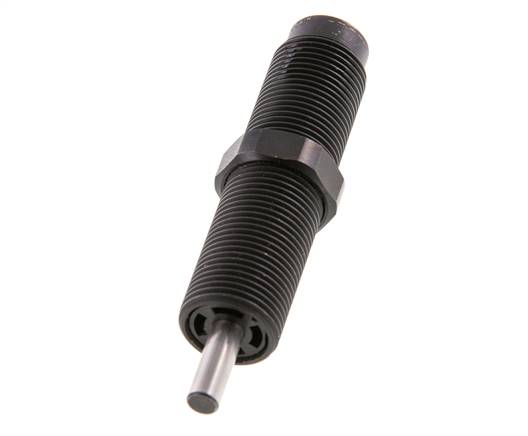

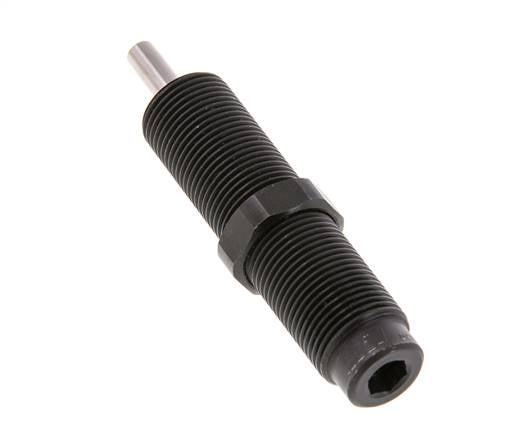

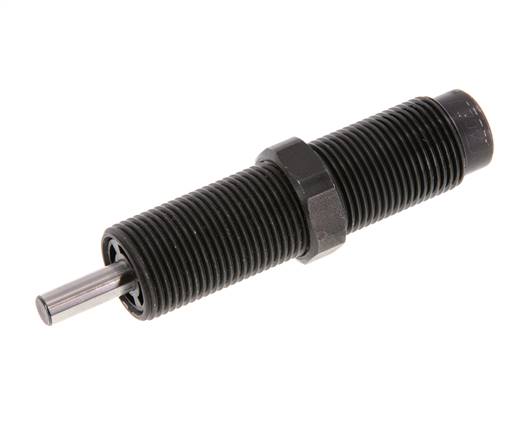

ACE Self-Adjusting Shock Absorber M 20x1.5, 12.7 mm Stroke - MC225EUM
ACE self-adjusting industrial shock absorber with M 20x1,5 body thread and 12,7 mm stroke rated for up to 41 Nm per stroke, 45000 Nm/h continuous, effective mass 2,3 - 25 kg, operating temperature 0 to +66 °C (32 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on pneumatic cylinders, compact linear axes, indexing tables, and rotary stops where the impact energy is consistent between cycles and no field tuning is wanted.
- Regular price
- £91.59
Description
ACE self-adjusting industrial shock absorber with M 20x1,5 body thread and 12,7 mm stroke rated for up to 41 Nm per stroke, 45000 Nm/h continuous, effective mass 2,3 - 25 kg, operating temperature 0 to +66 °C (32 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on pneumatic cylinders, compact linear axes, indexing tables, and rotary stops where the impact energy is consistent between cycles and no field tuning is wanted.
Pros:
- Fixed damping profile for 2,3–25 kg, no setup or tuning required
- Up to 41 Nm/stroke, 45000 Nm/h on a M 20x1,5 body, 12,7 mm stroke
- Sealed and maintenance-free, drop-in on standard machine axes
Cons:
- Outside 2,3–25 kg the damping curve is no longer optimal
- Rated 0 to +66 °C (32 to +151 °F); check before sub-zero or hot service
- Off-axis impacts shorten life; add a side load adapter when needed
