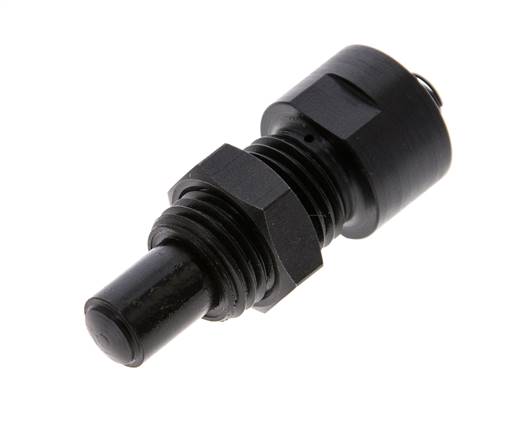

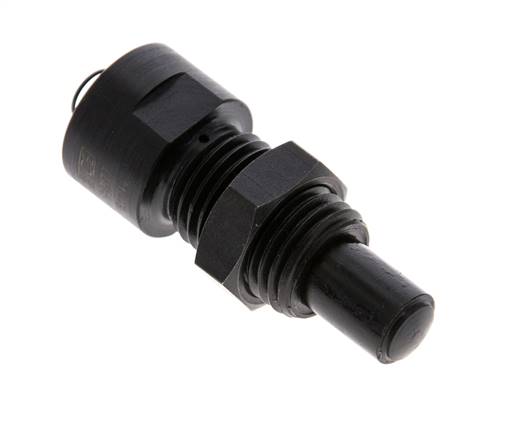

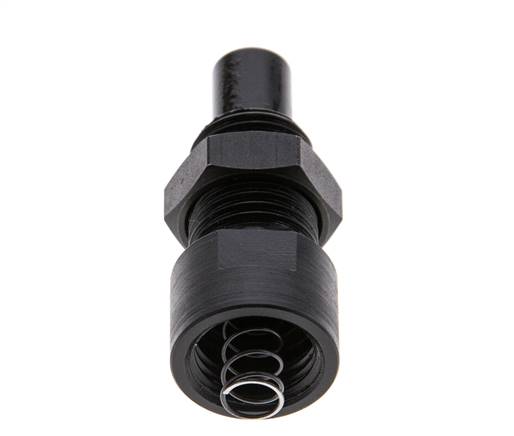

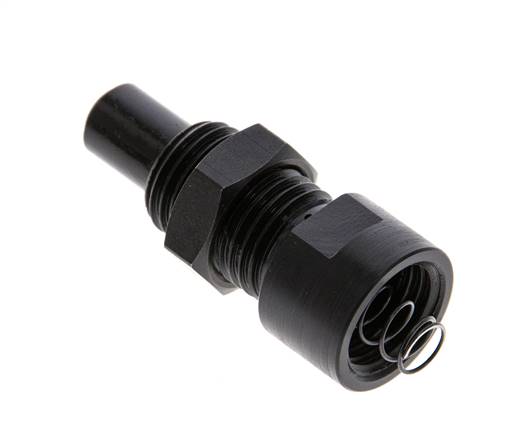

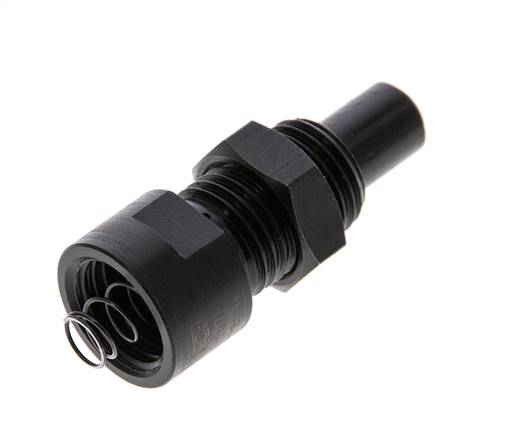

ACE Side Load Adapter M 14x1.5 for SC 190 EUM0-4 Shock Absorber - BV14SC
Reference:
P49US
Brand:
ACE
Mfr. Part:
BV14SC
ACE side load adapter with M 14x1,5 thread, compatible with ACE shock absorbers SC 190 EUM0-​4. Fits onto the piston rod end and transfers lateral forces into the housing so the rod itself sees only axial load. Used on swinging arms, indexing tables, and linear systems where the impacting mass cannot strike the absorber on-axis.
- Regular price
- £53.48
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Description
Specifications
Description
ACE side load adapter with M 14x1,5 thread, compatible with ACE shock absorbers SC 190 EUM0-​4. Fits onto the piston rod end and transfers lateral forces into the housing so the rod itself sees only axial load. Used on swinging arms, indexing tables, and linear systems where the impacting mass cannot strike the absorber on-axis.
Pros:
- Removes lateral load from the M 14x1,5 piston rod, extending absorber life
- Self-aligning head accommodates off-axis impacts on SC 190 EUM0-​4
- Mandatory wherever the moving mass cannot strike the absorber on-axis
Cons:
- Not combinable with an impact head; choose one accessory
- Adds installation length and changes the absorber's effective reach
- Finite swing-angle; outside that range a different adapter is needed
