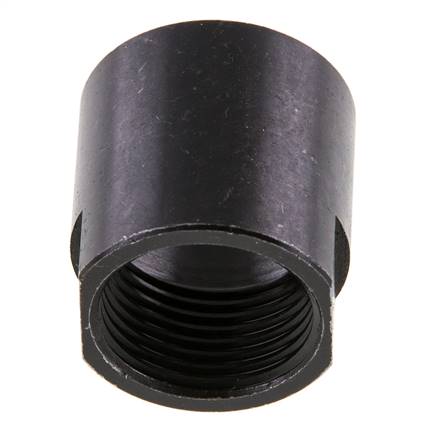

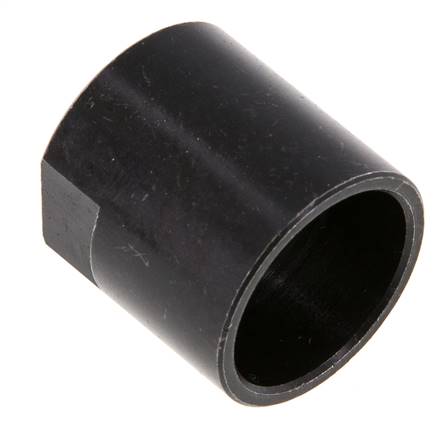

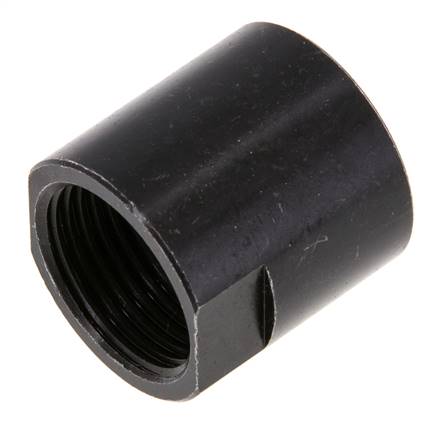

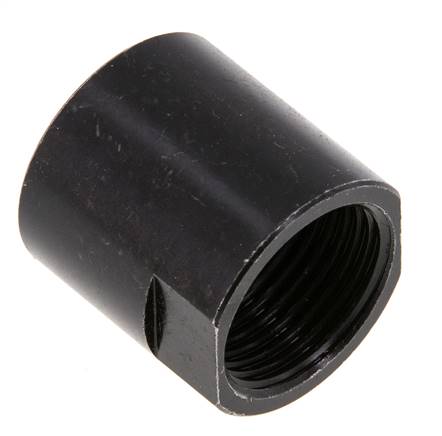

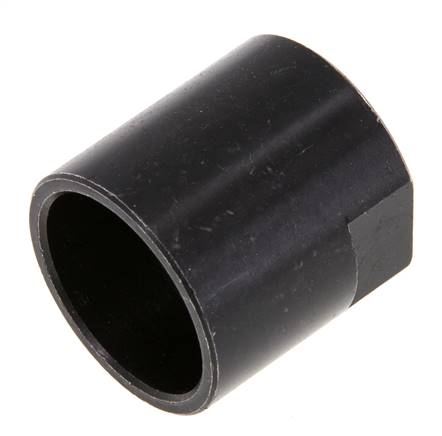

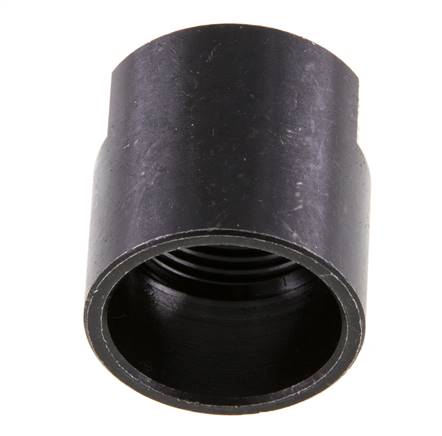

ACE Stop Sleeve M 20x1.5 for Shock Absorber - AH20

ACE stop sleeve with M 20x1,5 thread, compatible with ACE shock absorbers MA 225..., MC 225..., SC 300.... Threads onto the absorber body and acts as a hard mechanical end stop once the stroke is fully compressed. Used to give a repeatable end position on indexing axes and to protect the absorber from over-travel.

Pros:

• Repeatable mechanical end stop for M 20x1,5 absorber on indexing axes
• Protects MA 225..., MC 225..., SC 300... from full-collapse over-travel and hard bottoming
• Threads directly onto the absorber body, no extra brackets

Cons:

• Hard impact once the absorber is fully compressed
• Thread-specific (M 20x1,5), only fits MA 225..., MC 225..., SC 300...
• Adds installation length on the absorber side
