Connector with LED (DIN - C) [2 Pieces]
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-01.a3d33cea_961539bb-4723-4a83-9266-12ec0b47b0c4.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-03.ebbc2f1f_a00a755d-2f6f-48d2-8f53-428a38f53b4d.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-11.e09c1064.jpg?v=1742767405)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-02.4ca60415_d3202af9-e56b-46f0-b63c-60593b30f90b.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-04.5ebe8cee.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-06.e0144c1d_e73af947-f697-4990-9c15-fb444778001d.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-08.7277714c.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-09.7ab58ace.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-10.32f19fa5.jpg?v=1742767405)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-12.2027b589.jpg?v=1742767404)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-01.a3d33cea_961539bb-4723-4a83-9266-12ec0b47b0c4.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-03.ebbc2f1f_a00a755d-2f6f-48d2-8f53-428a38f53b4d.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-11.e09c1064.jpg?height=232&v=1742767405&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-02.4ca60415_d3202af9-e56b-46f0-b63c-60593b30f90b.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-04.5ebe8cee.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-06.e0144c1d_e73af947-f697-4990-9c15-fb444778001d.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-08.7277714c.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-09.7ab58ace.jpg?height=232&v=1742767404&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-10.32f19fa5.jpg?height=232&v=1742767405&width=232)
![Connector with LED (DIN - C) [2 Pieces]](http://tameson.co.uk/cdn/shop/files/af-ccl-magneetventiel-connector-met-led-din-c-12.2027b589.jpg?height=232&v=1742767404&width=232)
Reference:
AF-CCL-X2
Brand:
JP Fluid Control
Mfr. Part:
AF-CCL

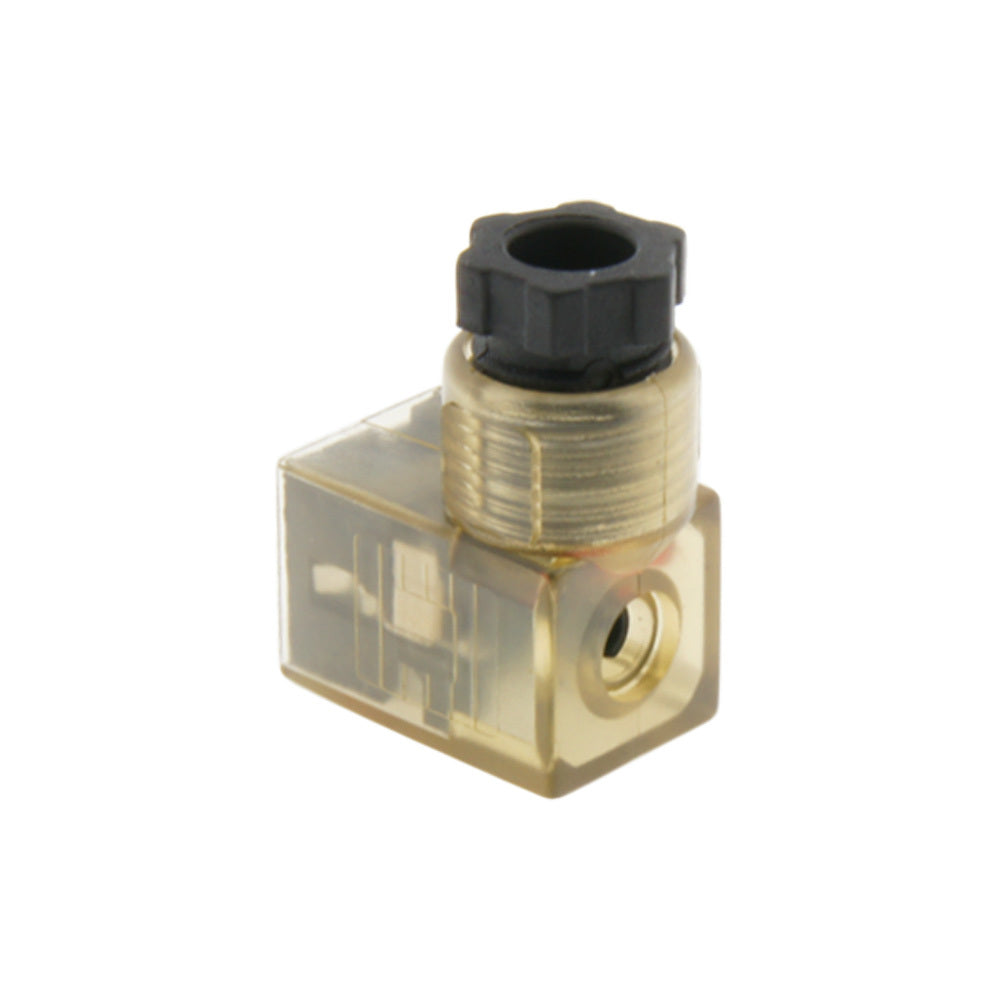

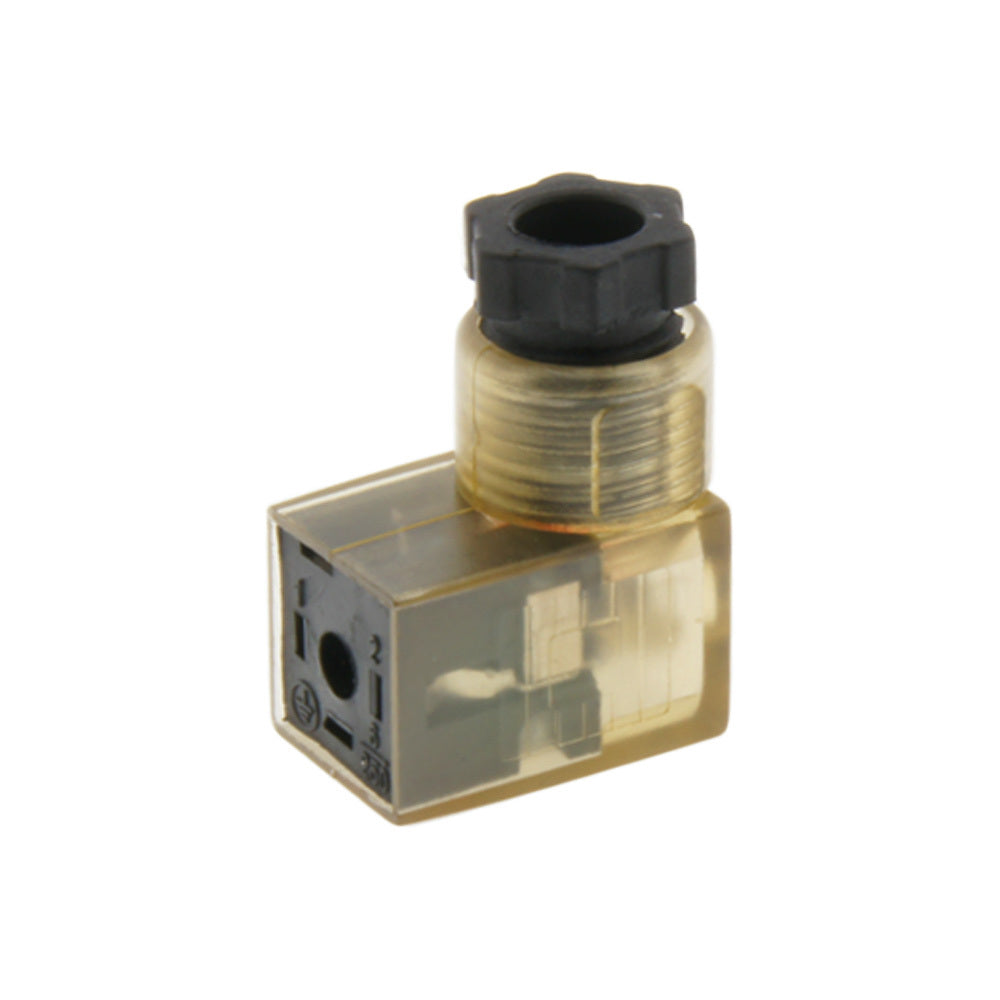

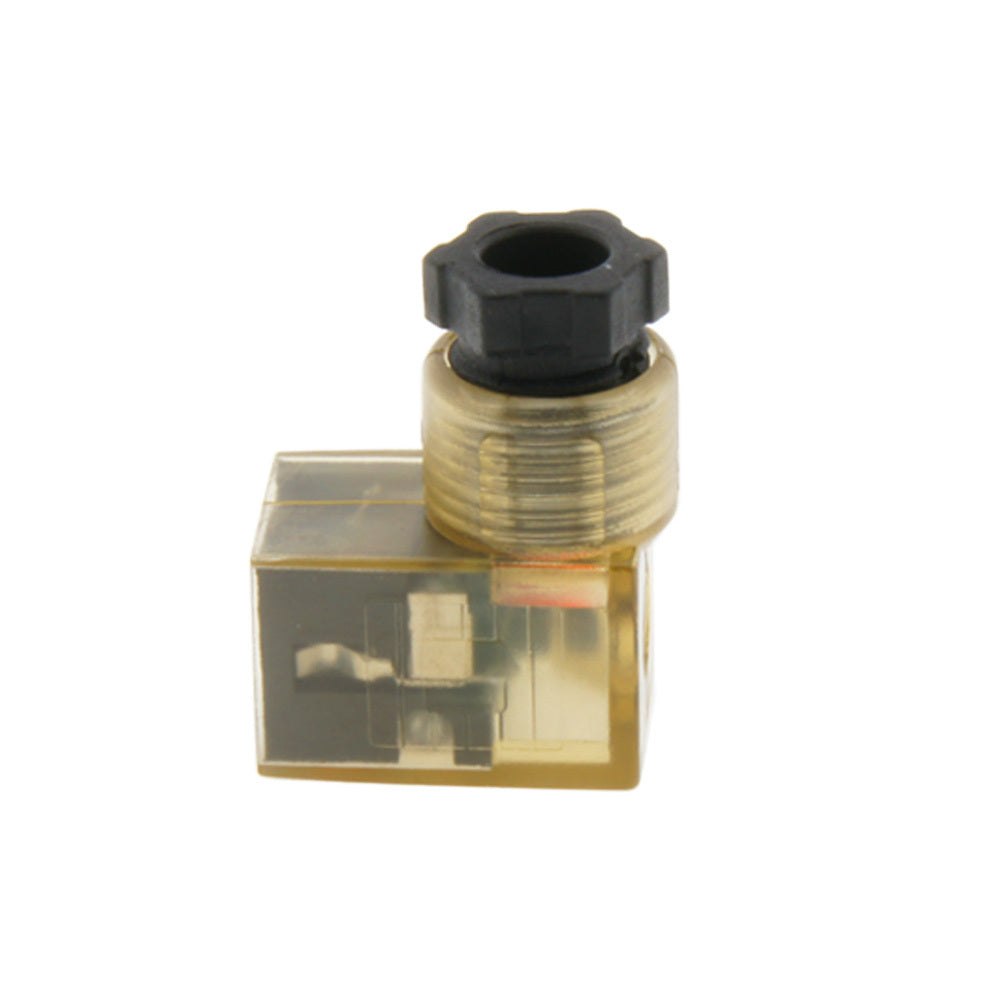

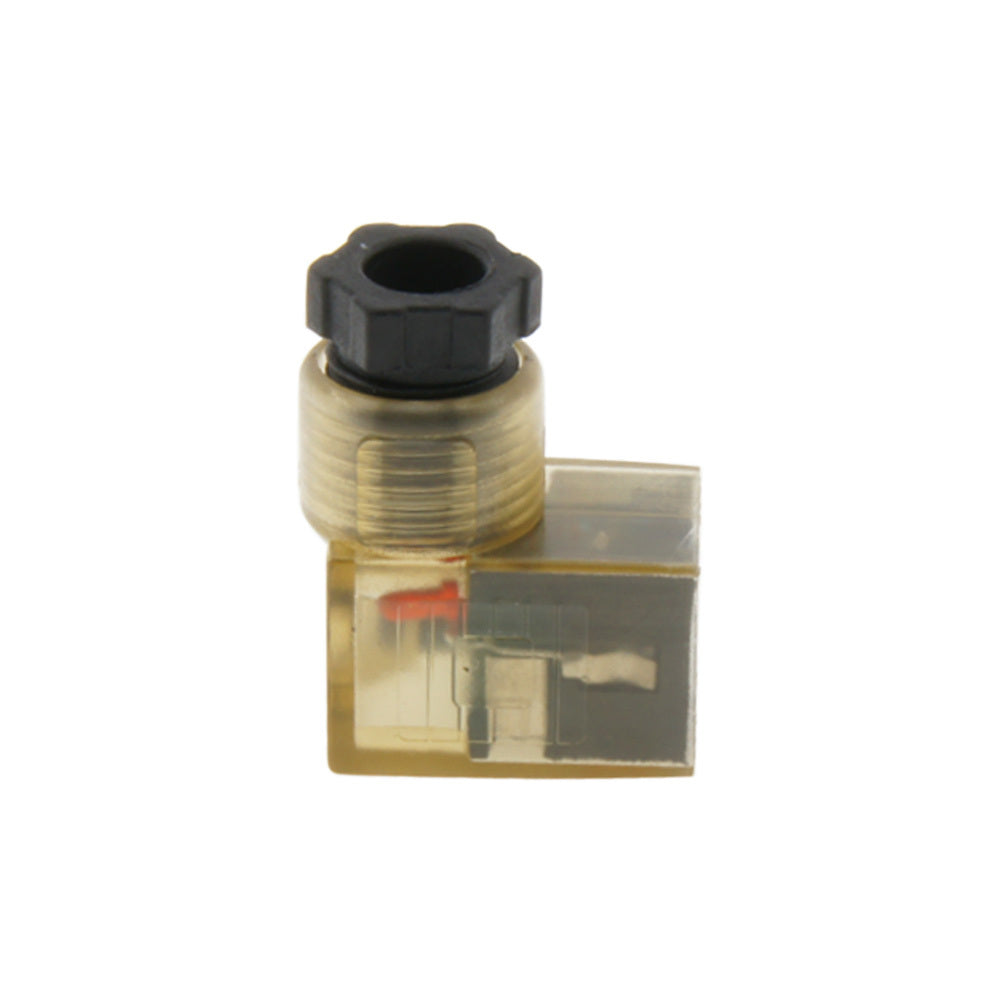

DIN - C connector (IP65) with an LED indicator. Useful tool to see if the coil is energised. Suitable for solenoid valves with a DIN - C connector for voltages from 24V up to 400V. Please note: when DC is used, the brown pole should be connected to the positive terminal.
Contains 2 pieces
- Regular price
- £6.15
excl VAT
Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00 (excl VAT)
Expected delivery in 53 - 54 business days
Description
Specifications
Related products
Description
DIN-C connector (DIN43650C) for solenoid valves. The LED indication is a handy tool to see whether the valve is activated. Suitable for 24-400V AC/DC. When DC is used please make sure that the brown wire is connected to the positive pole, otherwise the LED does not light up.
Parameters
| Parameter | Value |
| Type | 43650C |
| Pin distance | DIN - C mm |
| Version | 2+1 earth |
| Protection Class | IP65 |
| Voltage | 24-400V AC/DC |
| Nominal current | 10A |
| Max. cable size | ≤3x1.5mm2 |
| Fixing screw | M3x28 |
Dimensions
Installation
- Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
- Mount the connector and make sure no moisture can enter between coil and connector.
- Use a round cable. Make sure that drops cannot slide along the cable into the connector.
