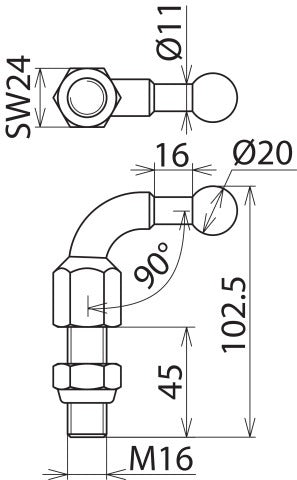

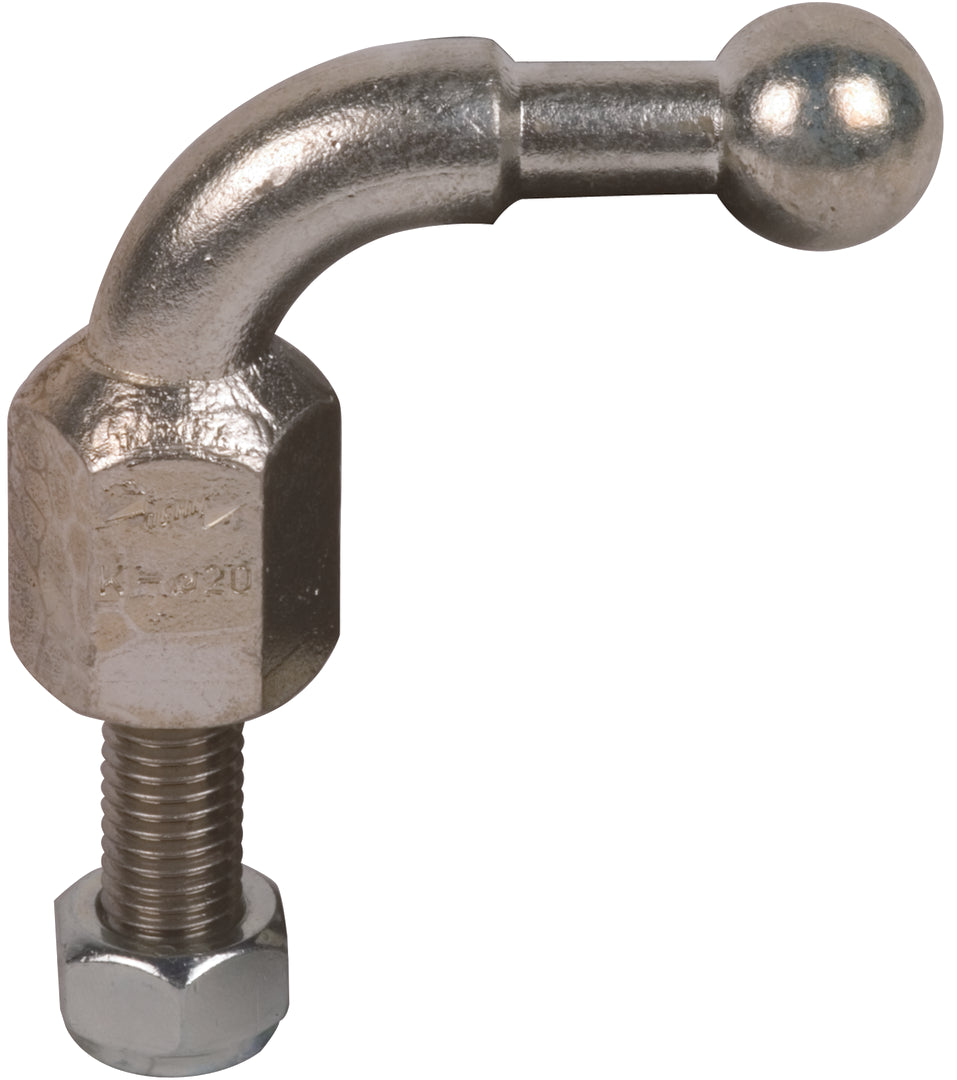

Angled Fixed Ball Point D20mm With Threaded Pin M16x45m - 707645
This is a 90° angled, fixed ball point with a threaded pin and a self-locking nut, ideal for use as a line and earth-connection point. It complies with EN/IEC 61230 (DIN VDE 0683-100) and can support a maximum short circuit current of 19.5kA. Robust due to its female thread, it has a high mechanical strength. It is suitable to fix cable lugs or connect busbars per DIN 43673-1, with a maximum cable cross-section of 70mm² for copper. The attachment point diameter is 20mm with the earthing point also 20mm.
- Regular price
- £65.20
Description
This is a 90° angled, fixed ball point with a threaded pin and a self-locking nut, ideal for use as a line and earth-connection point. It complies with EN/IEC 61230 (DIN VDE 0683-100) and can support a maximum short circuit current of 19.5kA. Robust due to its female thread, it has a high mechanical strength. It is suitable to fix cable lugs or connect busbars per DIN 43673-1, with a maximum cable cross-section of 70mm² for copper. The attachment point diameter is 20mm with the earthing point also 20mm.
