Reference: AS-CAL
Brand: JP Fluid Control

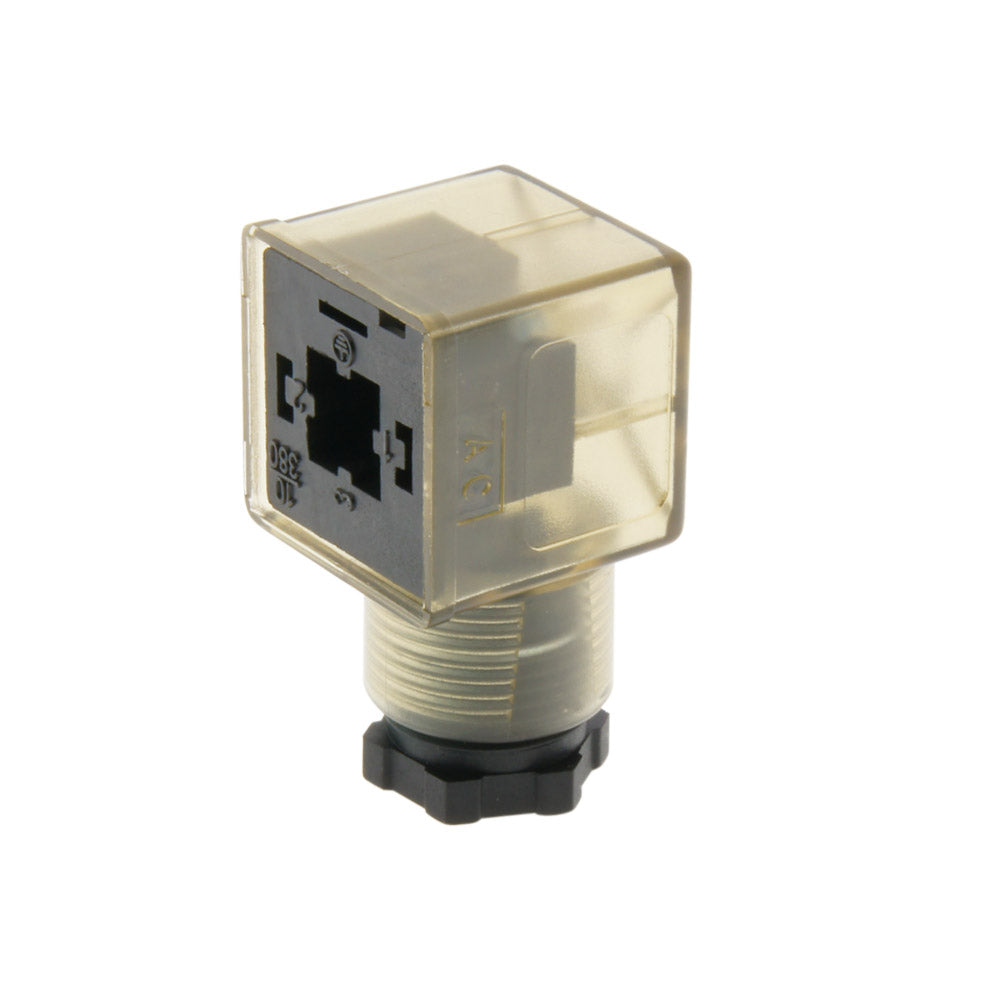

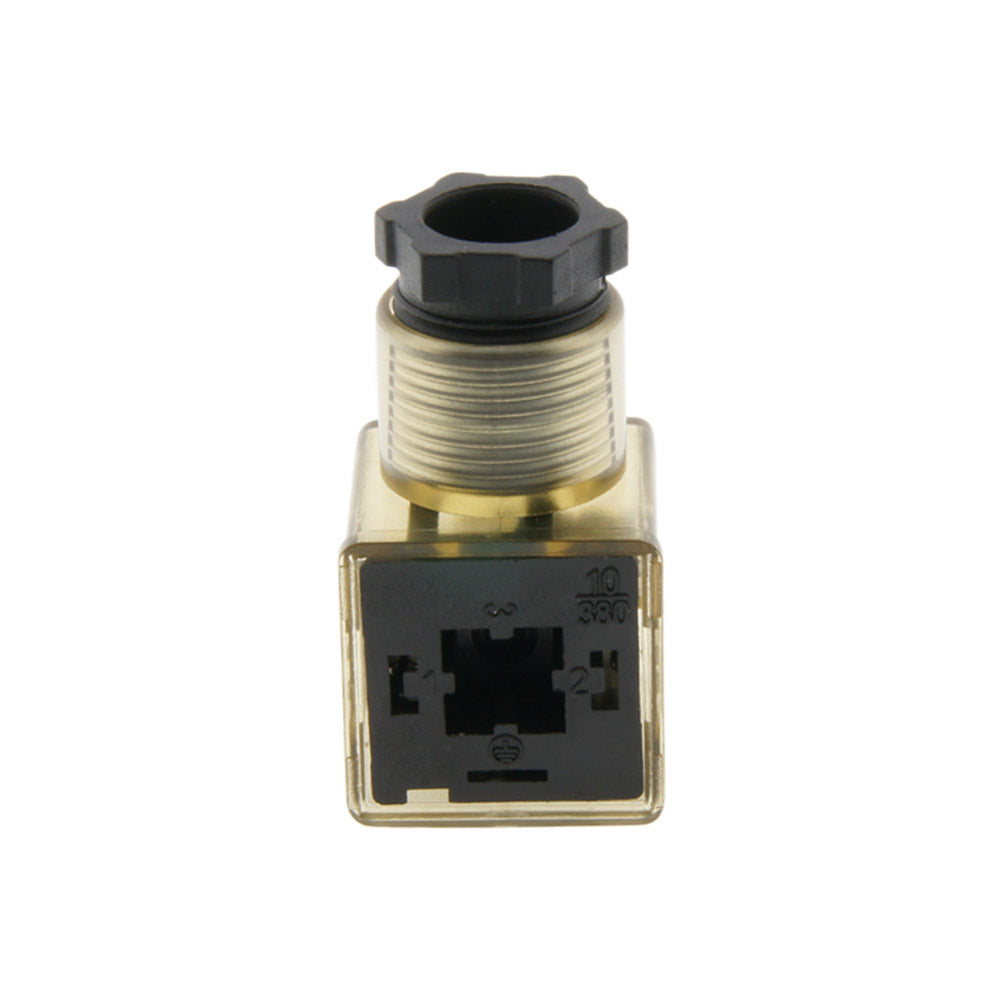

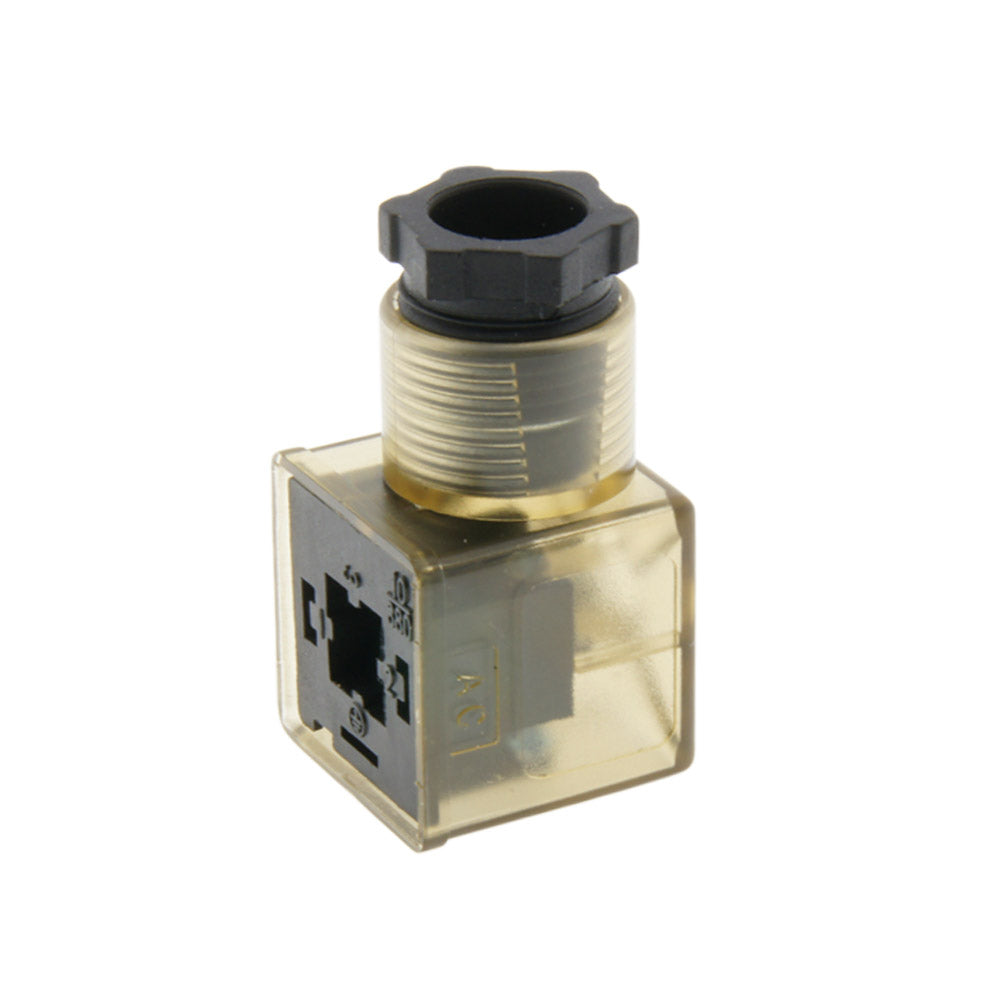

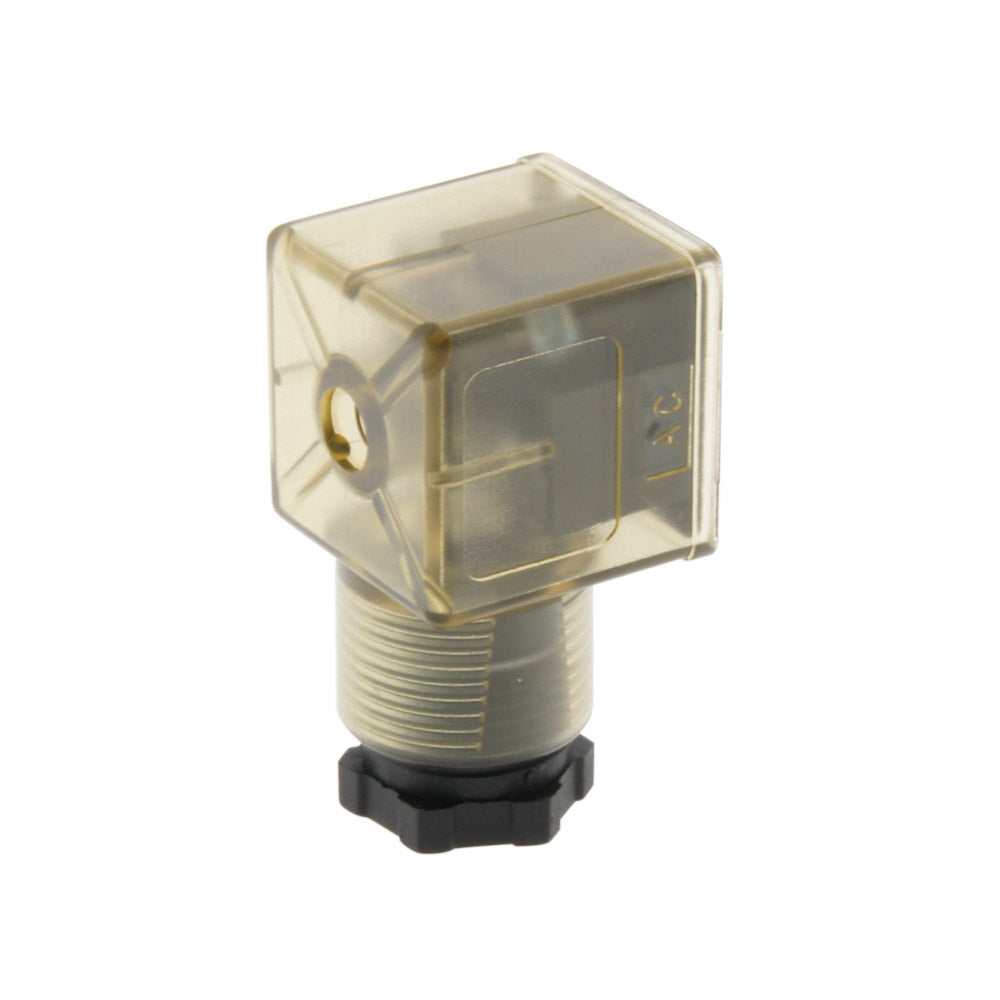

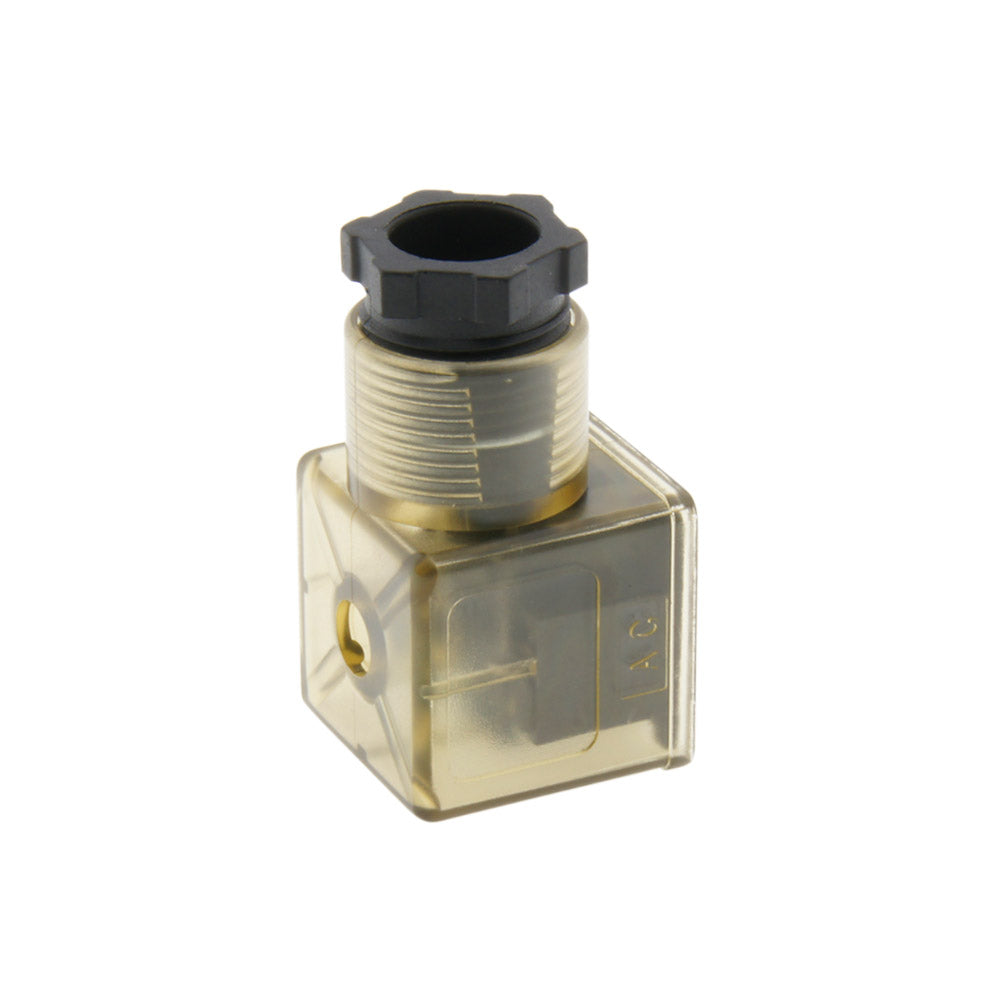

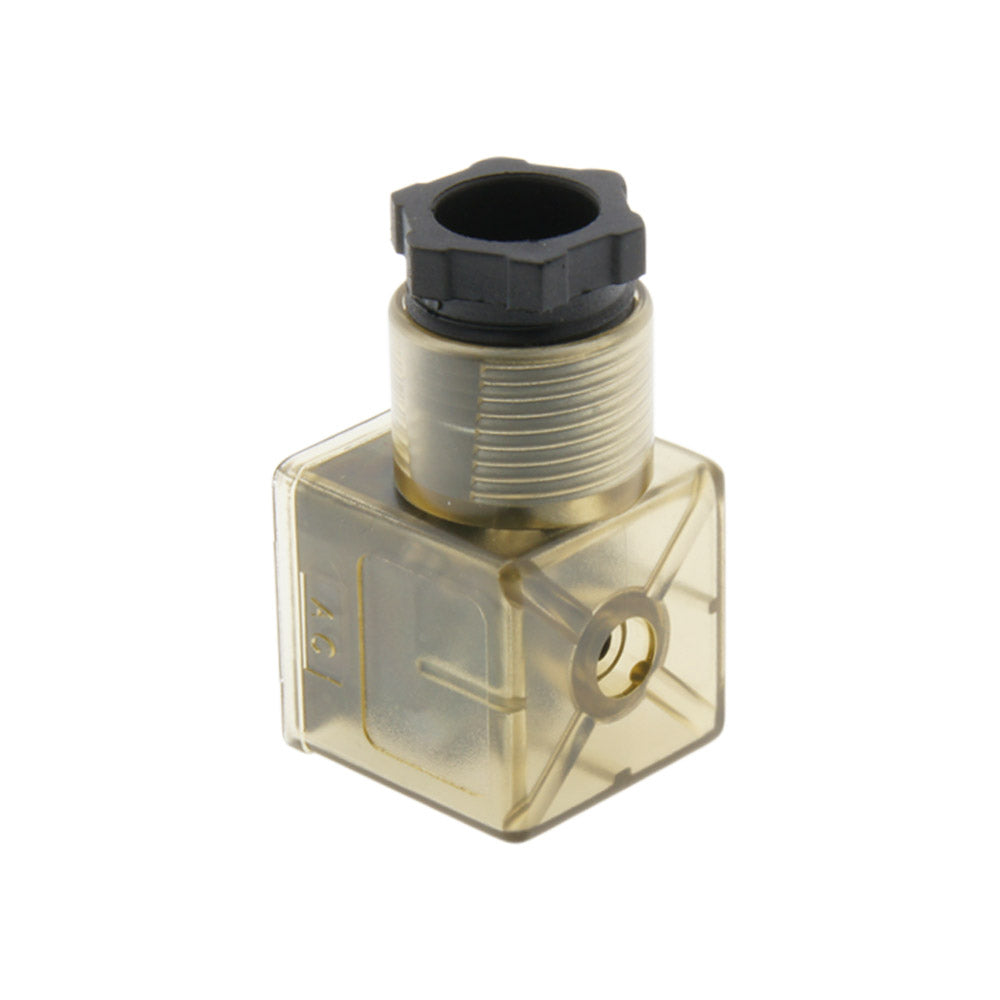

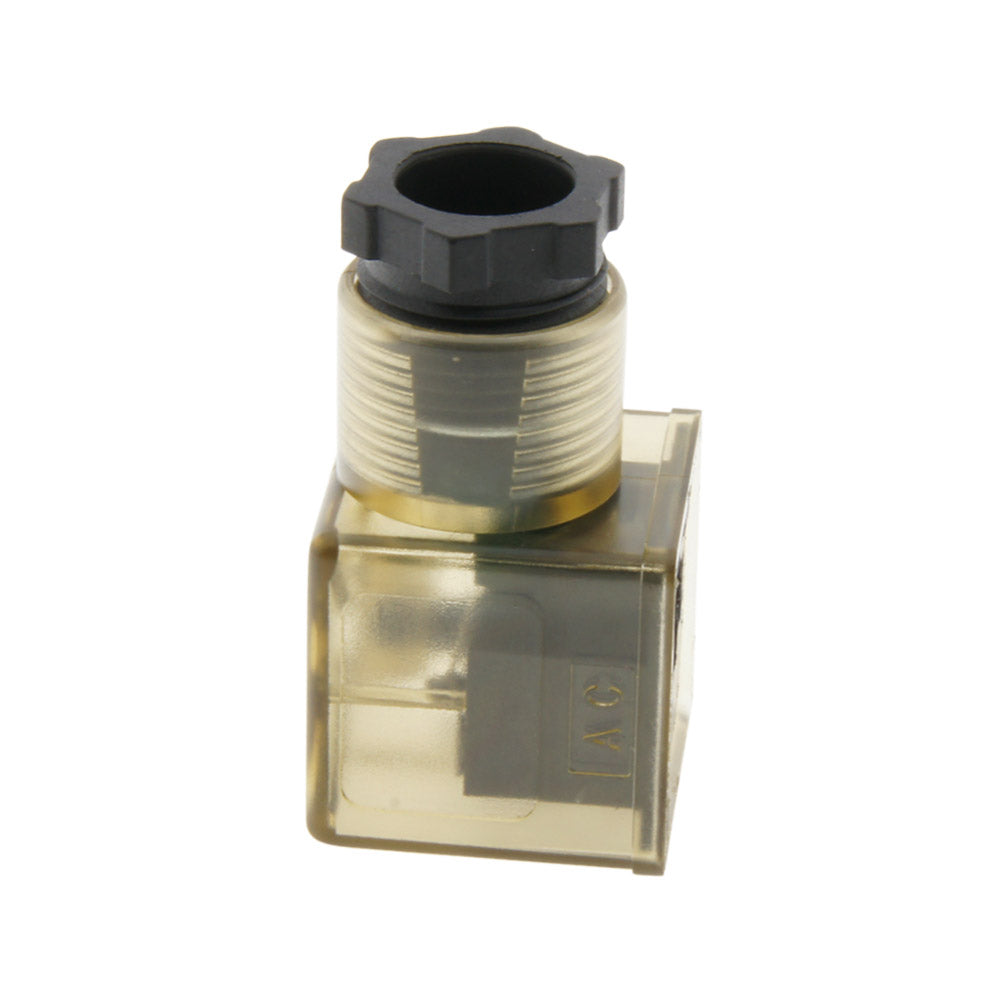

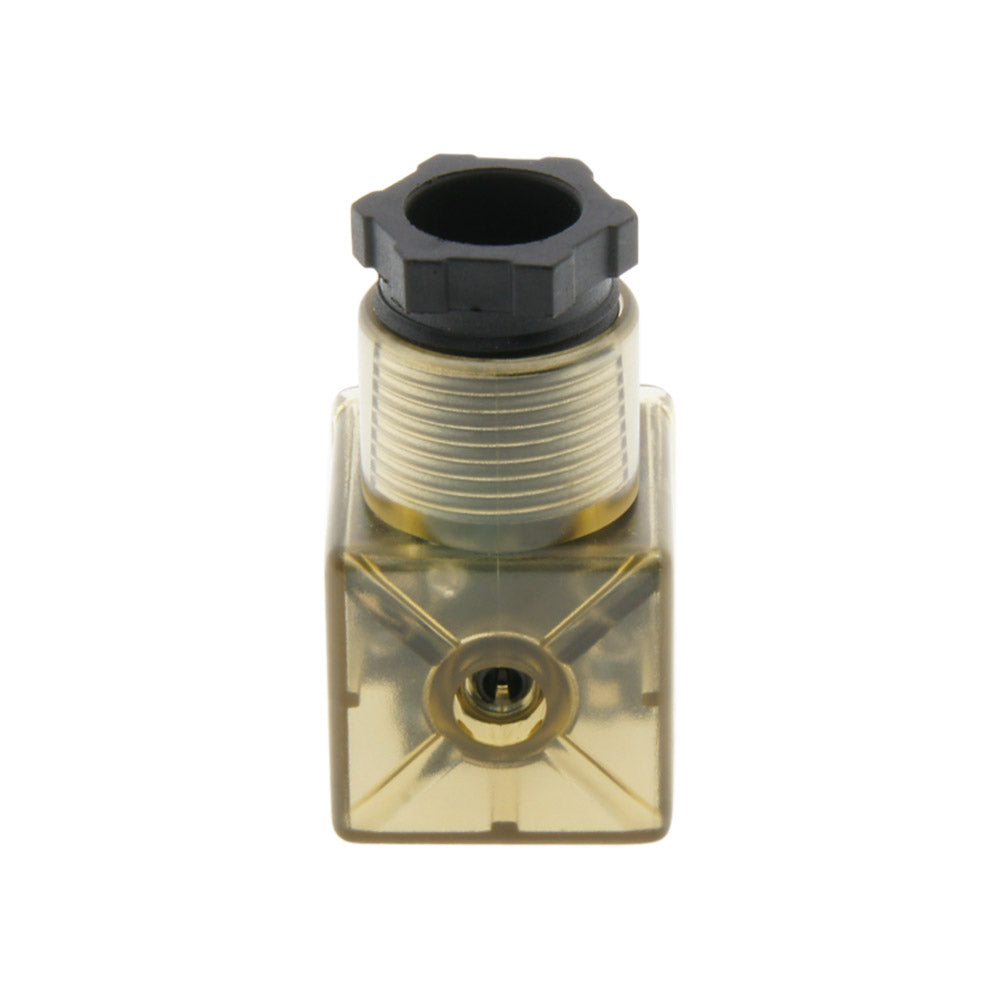

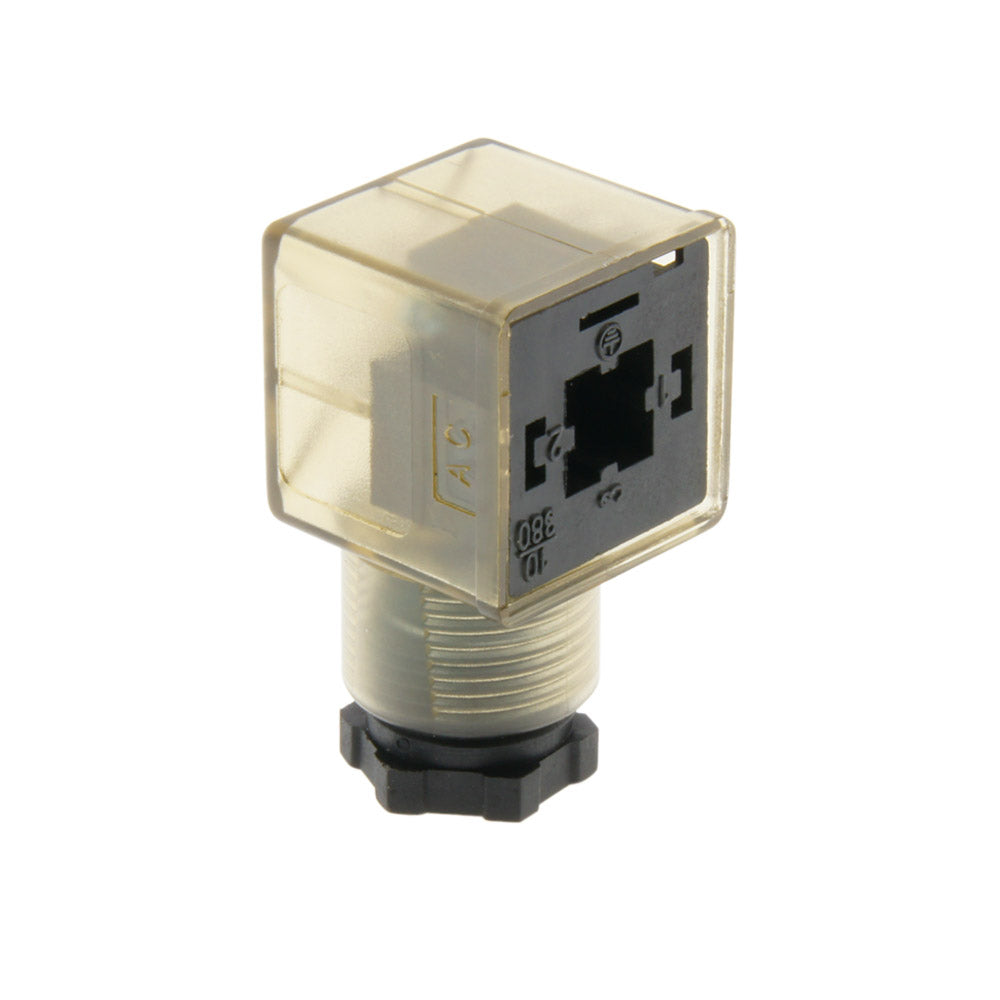

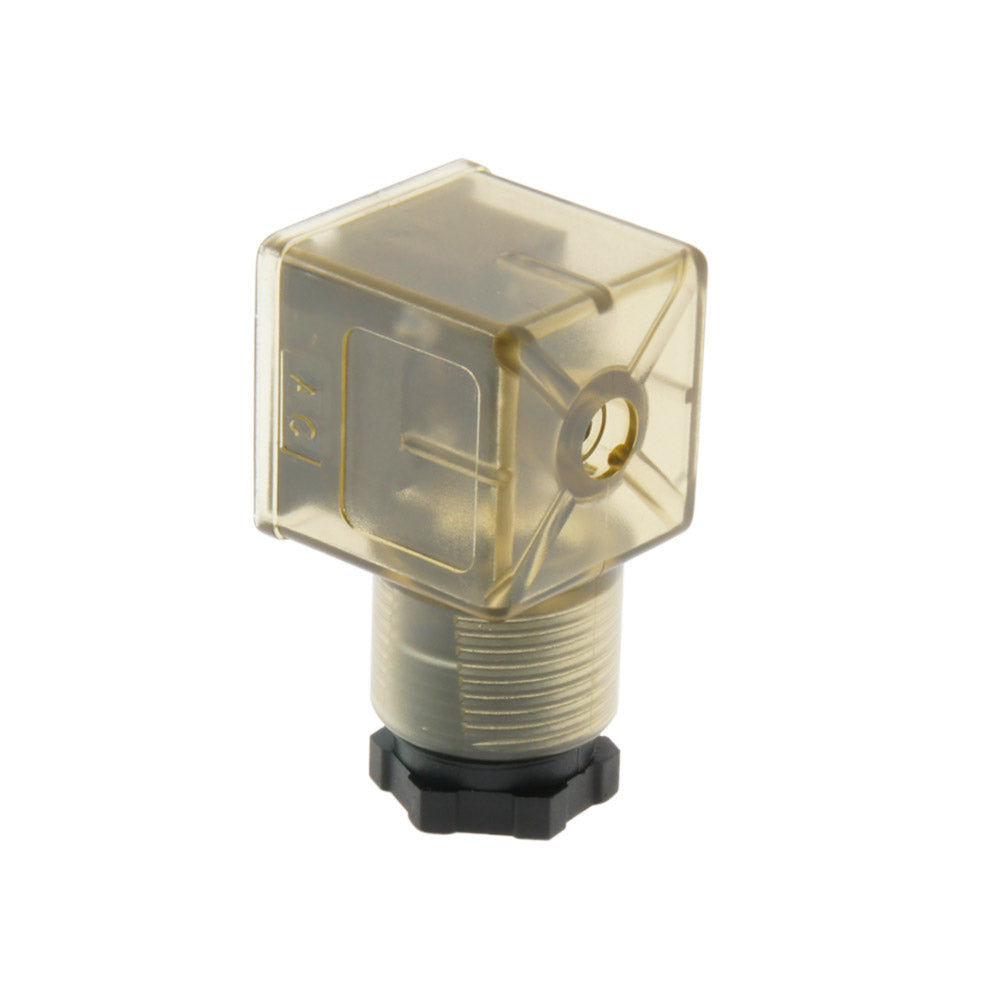

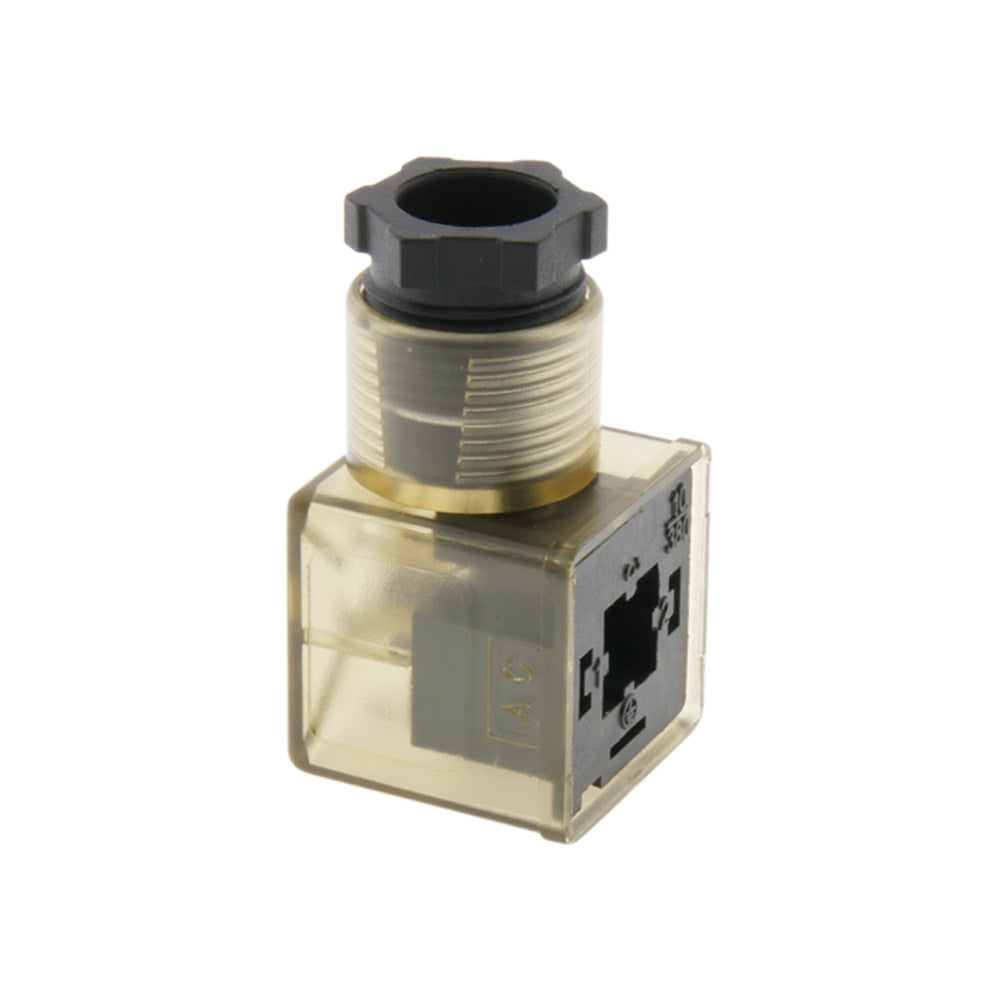

DIN - A connector (IP65) with an LED indicator. Useful tool to see if the coil is energised. Suitable for solenoid valves with a DIN - A connector for voltages from 24V up to 400V. Please note: when DC is used, the brown pole should be connected to the positive terminal.

View all
Regular price
£5.35
excl VAT

In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 95, expect an increased lead time of 0 days. Up to 195 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 2 - 4 business days

Description
Specifications
Downloads
Related products

DIN-A connector (DIN43650A) for solenoid valves. The LED indication is a handy tool to see whether the valve is activated. Suitable for 24-400V AC/DC. When DC is used please make sure that the brown wire is connected to the positive pole, otherwise the LED does not light up.

Parameters

ParameterValue
Type43650A
Pin distance18 mm
Version2+1 earth
Protection ClassIP65
Voltage24-400V AC/DC
Nominal current10A
Max. cable size≤3x1.5mm2
Fixing screwM3x28

Dimensions


Installation

  • Connect the terminals (1) and (2) to the connector. With AC, polarity is not important. Always connect to the ground, don't use the piping as earthing.
  • Mount the connector and make sure no moisture can enter between coil and connector.
  • Use a round cable. Make sure that drops cannot slide along the cable into the connector.
