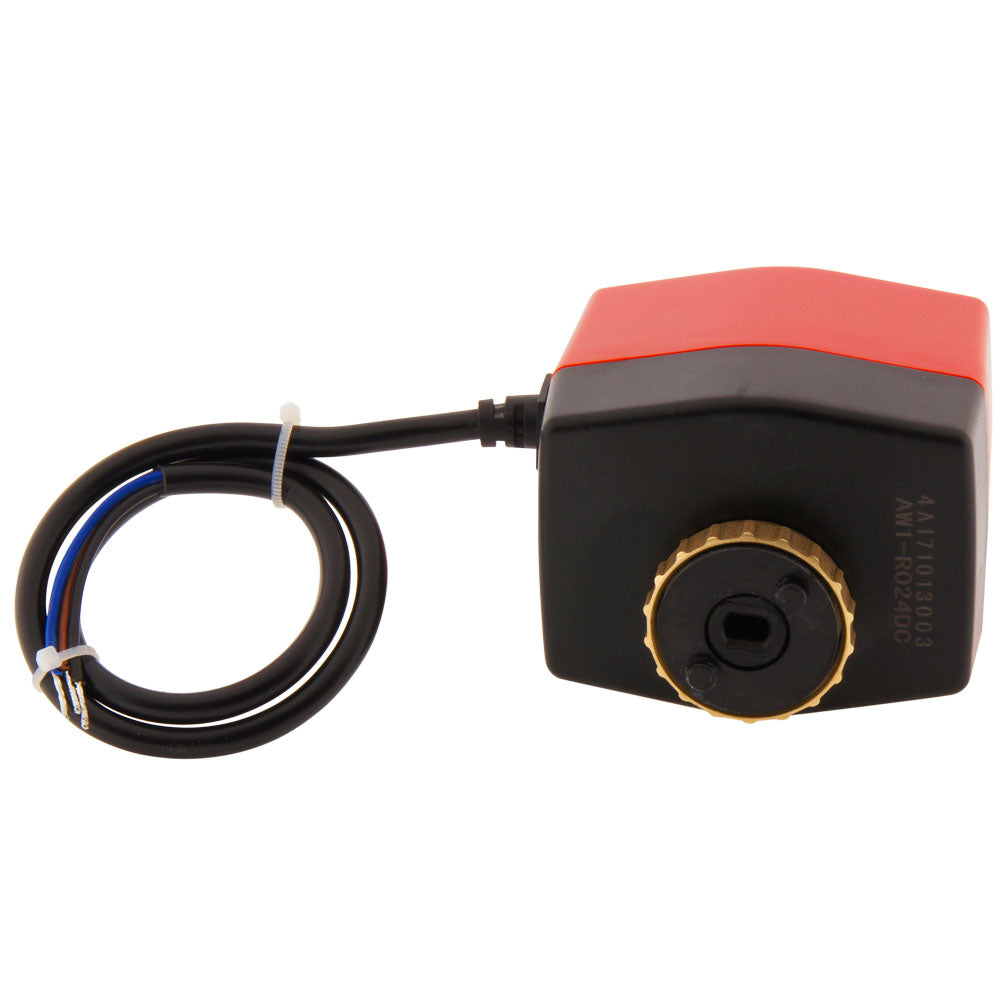

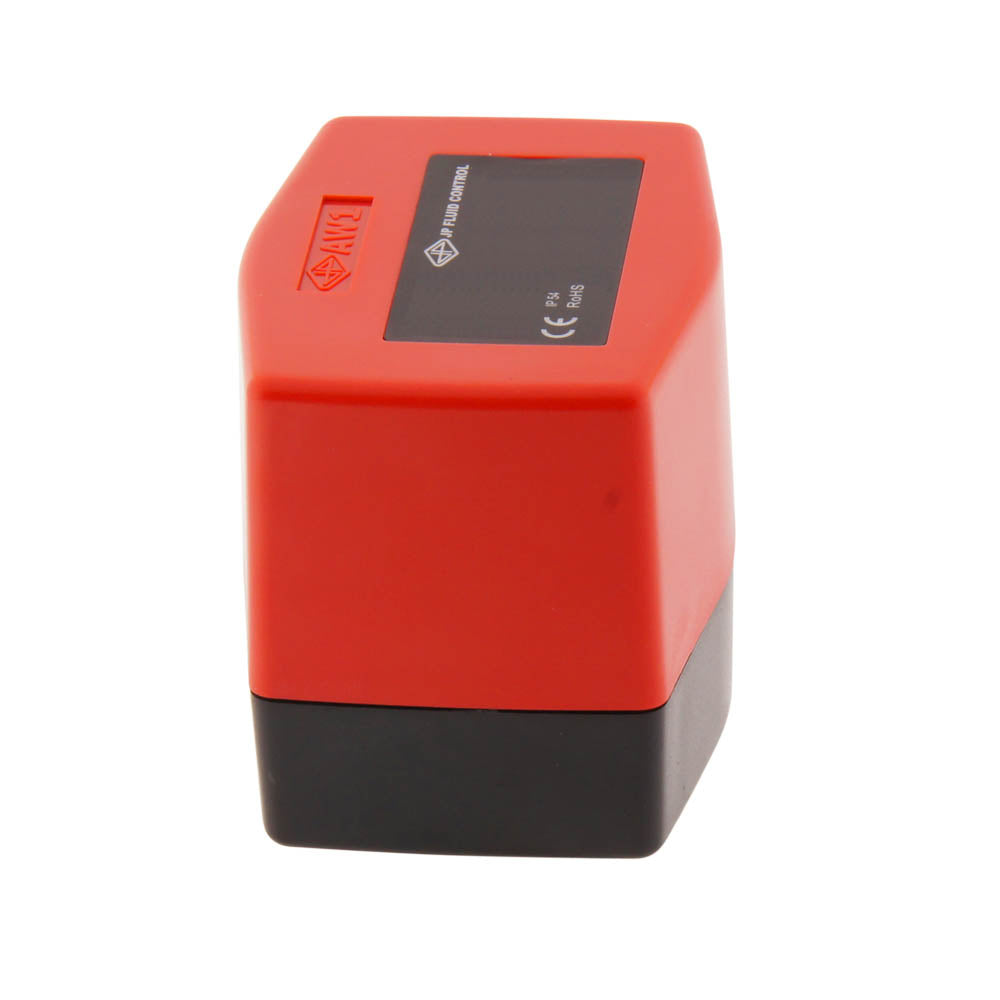

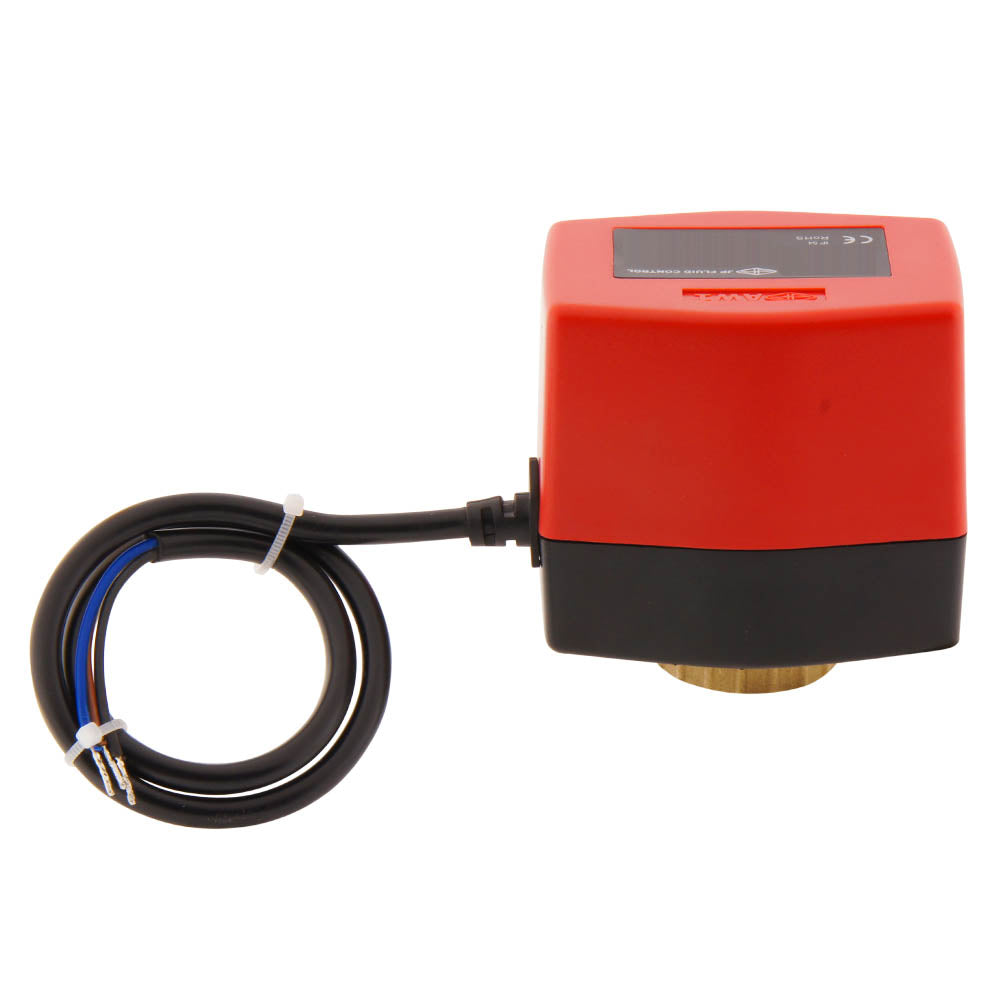

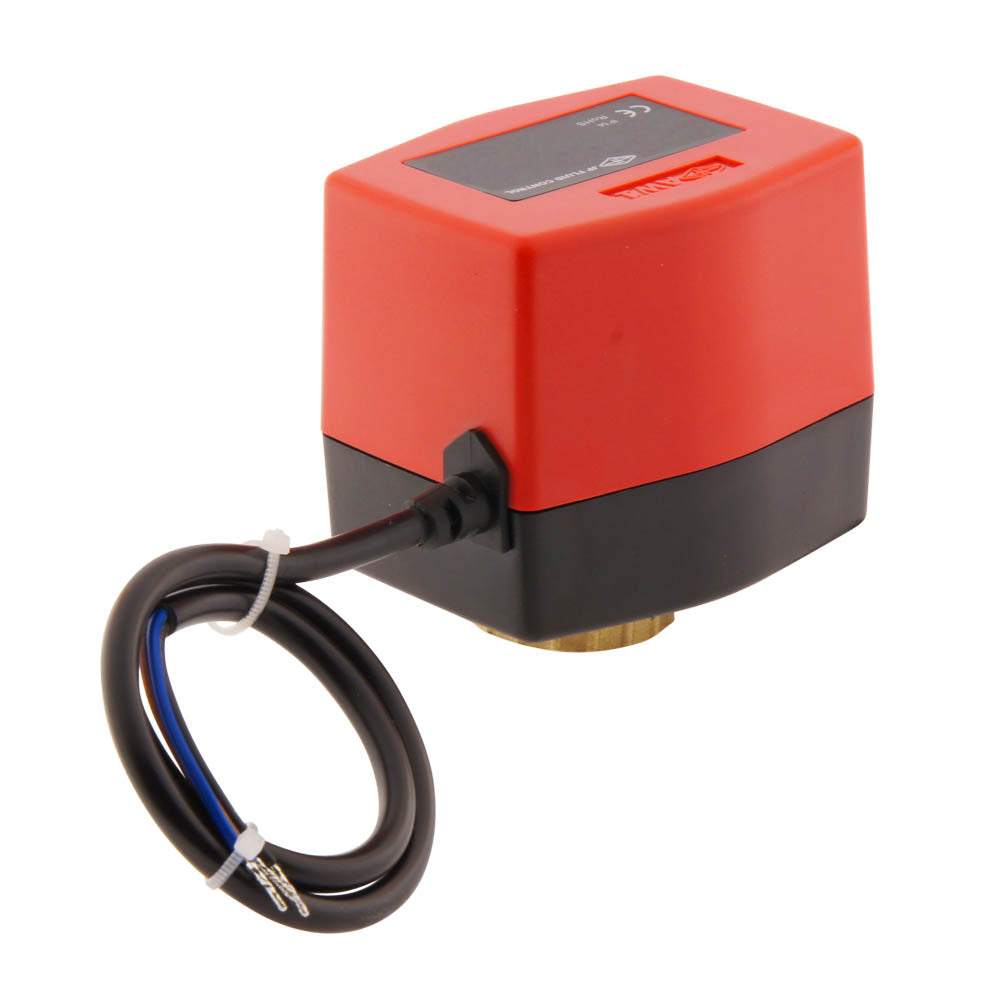

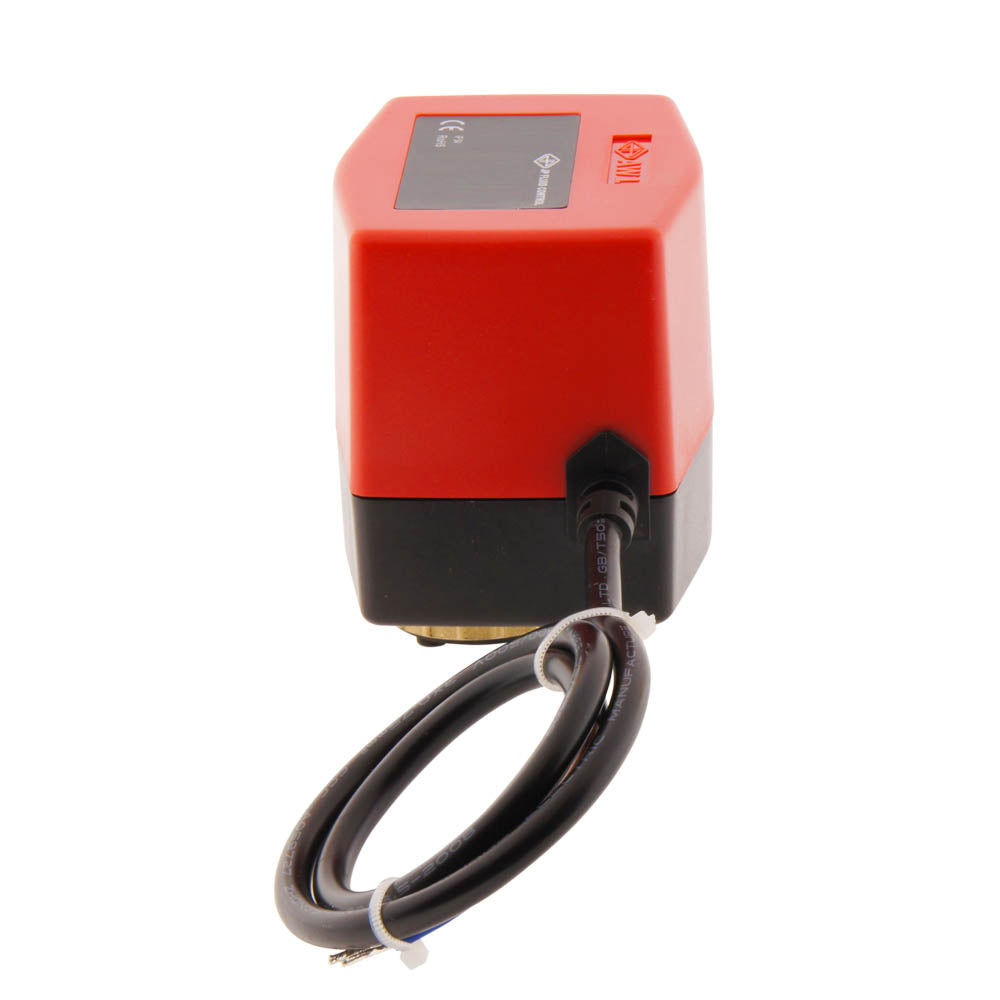

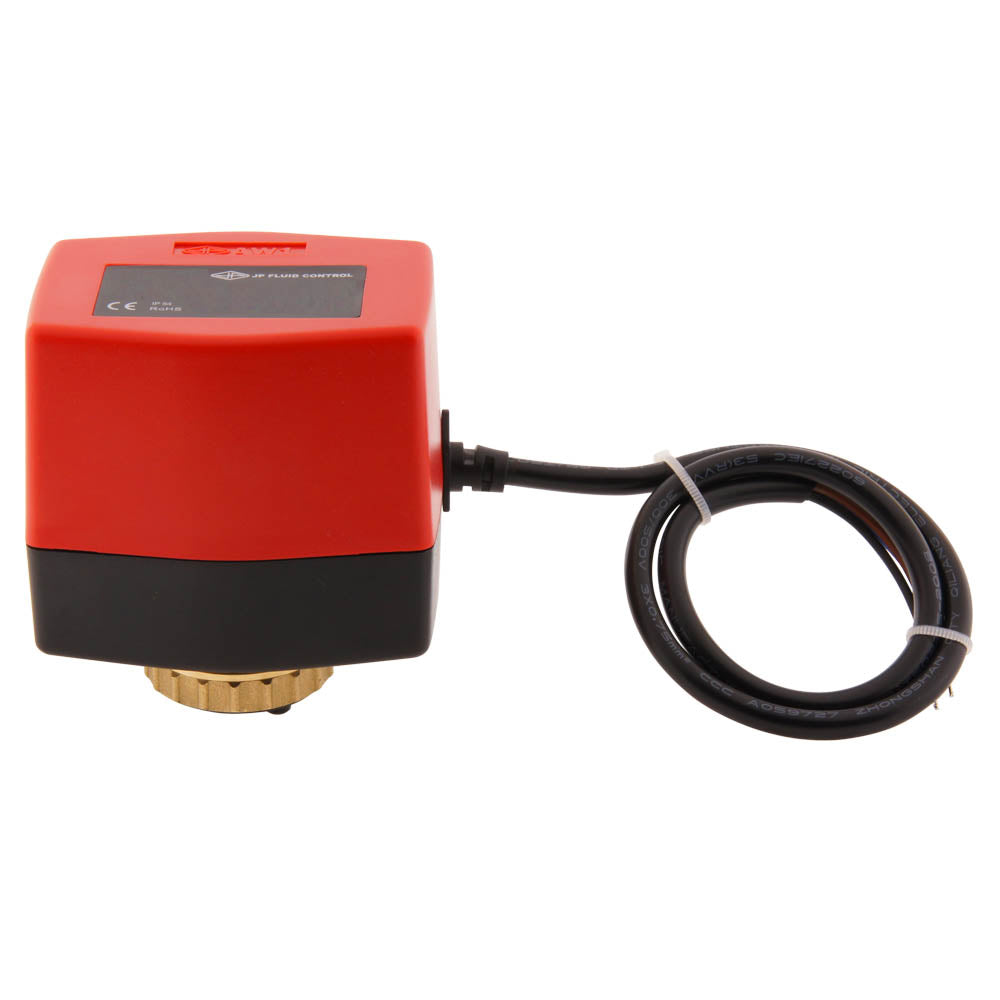

AW1 actuator 24V AC 3-point

Name: AW1 actuator 24V AC 3-point
Brand: JP Fluid Control
SKU: AW1-024AC
Price: 54.06 GBP
Availability: InStock

Reference: AW1-024AC

Brand: JP Fluid Control

24V AC actuator for ball valves. 3-wire connection (3-point): neutral and 2 control wires (to open/close). The valve opens in 16s. The actuator combines a robust construction (IP54) with a low energy consumption. The actuator is compatible with ball valves from the BW2 (2-way) and BW3 (3-way) series.

View all

Regular price: £54.06

excl VAT

Quantity

In stock Ships in 0d On request On request

0 are currently in your cart. For orders exceeding 70, expect an increased lead time of 0 days. Up to 120 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United Kingdom: £6.95

Free for orders > £75.00

Expected delivery in 2 - 4 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description

Specifications

Downloads

Description

Very energy efficient and robust electric ball valve actuator (IP54) of JP Fluid Control. The actuator can be connected to ball valves of JP Fluid Control BW2 (2-way) and BW3 (3-way) Series. The actuator needs a 24V AC power supply. This type of valve is commonly used in heating systems. The time for opening or closing the valve is approximately 16 seconds.

Installation

The actuator has a 3-wire connection, and must be connected as shown in the diagram below. The actuator is supplied with a cable. Please note: never connect the two control wires at the same time, this could damage the actuator! The actuators can be supplied with an integrated relay, in that case only one control wire is needed.
