Reference: E3Y94
Brand: DEHN
Mfr. Part: 927244

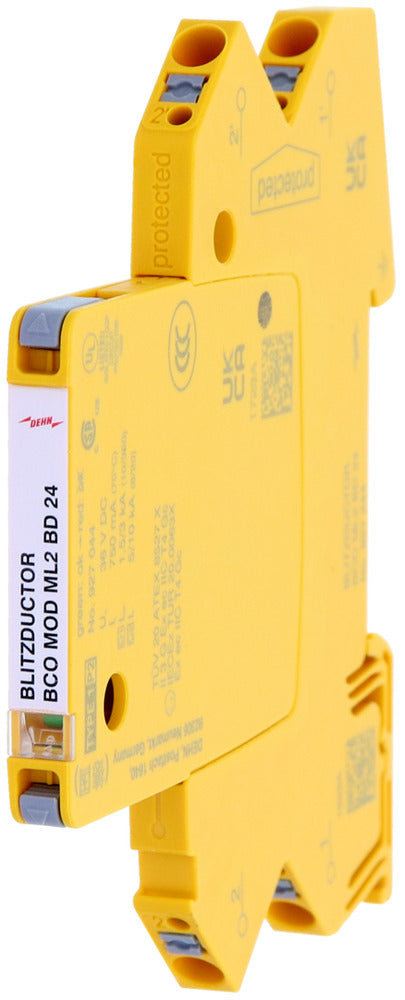

Space-saving 6mm modular combined arrester featuring push-in connection technology and integrated status indication. Designed for protecting single pair unearthed balanced interfaces, this DIN-rail mounted device includes signal disconnection capability for maintenance and IP20 protection rating.

View all
£122.73
excl VAT
In stock Ships in 3d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 14 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Expected delivery in 5 - 7 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications
Downloads

Description

Space-saving 6mm modular combined arrester featuring push-in connection technology and integrated status indication. Designed for protecting single pair unearthed balanced interfaces, this DIN-rail mounted device includes signal disconnection capability for maintenance and IP20 protection rating.

Pros:

  • Compact 6mm width saves installation space
  • Push-in connections for quick installation
  • Built-in status indication for easy monitoring
  • Maintenance-friendly signal disconnection feature

Downloads

Compliance and Certification (EN)
pdf
Download
Product datasheet (EN)
pdf
Download
Installation and Maintenance (EN)
pdf
Download

Specifications

Nominal voltage DC
24..24 V
Max. continuous voltage AC
25.4 V
Max. continuous voltage DC
36 V
Lightning impulse current (10/350 µs)
3 kA
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.75 A
Voltage protection level core/core (V)
57
Voltage protection level core/earth (V)
600
Limiting frequency
5.8 MHz
Mounting method
DIN rail (top hat rail) 35 mm
Pro-active thermo-control
Yes
With remote signalling contact
No
Explosion-tested version
No
Signal disconnection
Yes
Number of conductors (without earthing)
2
Earthing via
DIN rail (top hat rail)

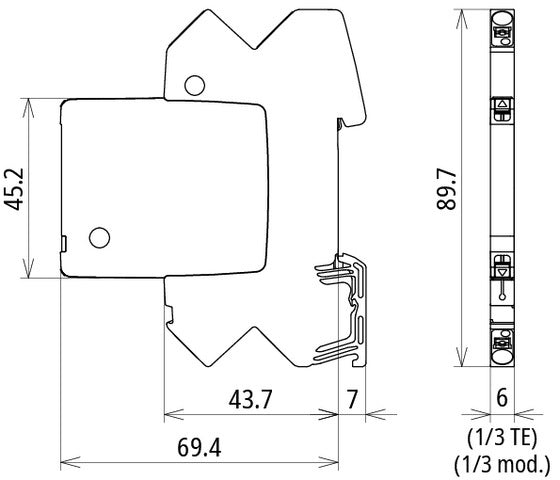

Assembly width (mm)
6
Degree of protection (IP)i
IP20
