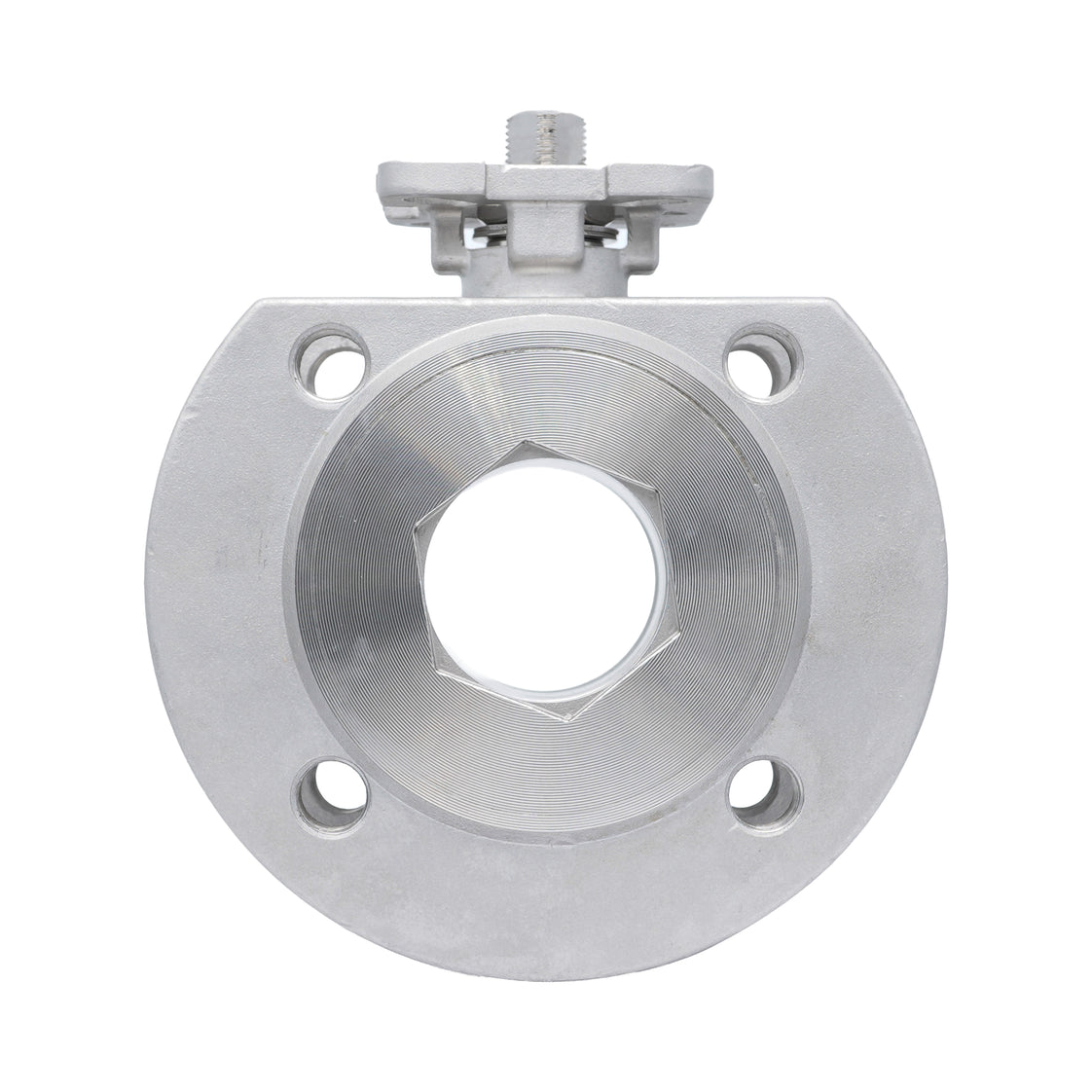

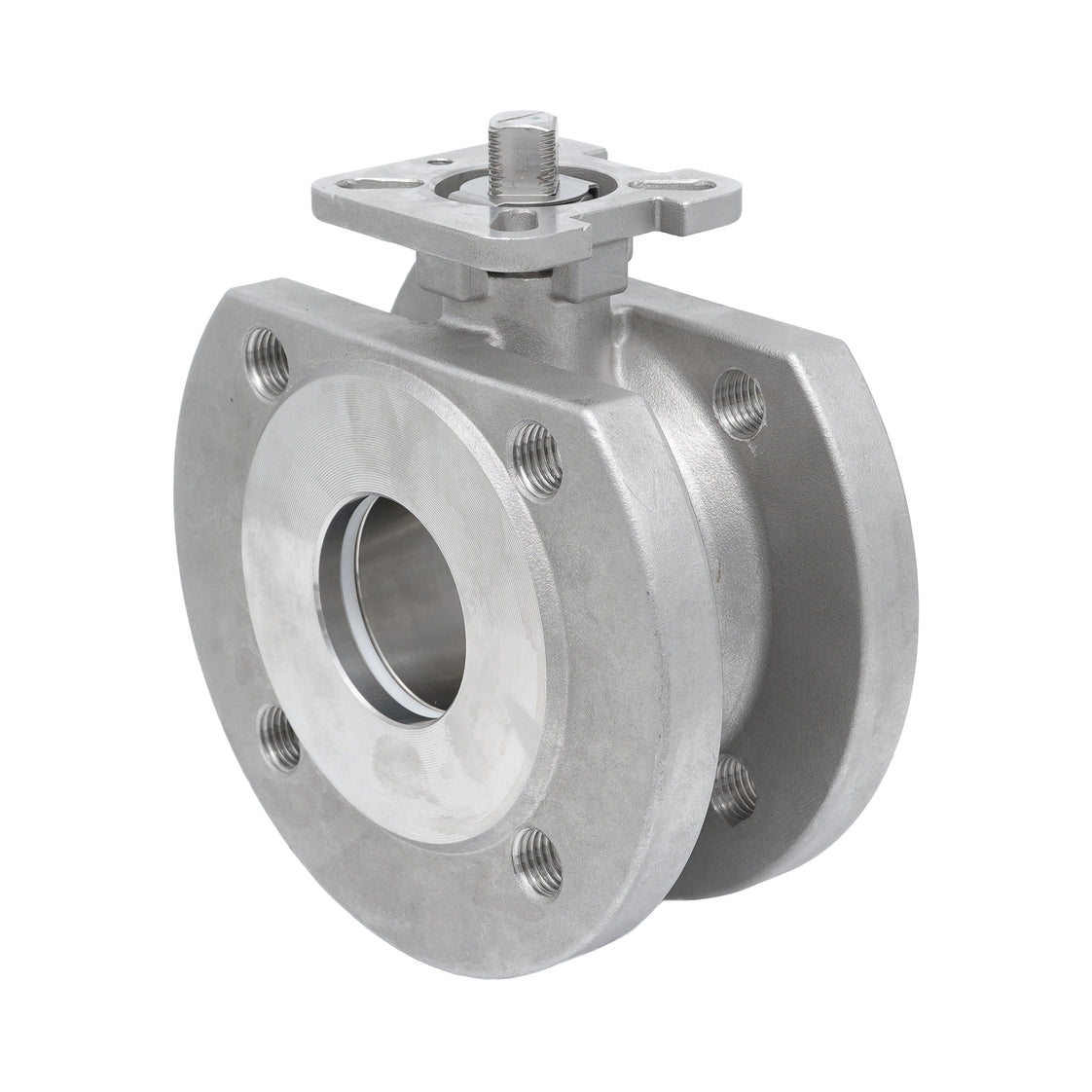

DN15 PN40 1-Piece 2-Way Stainless Steel Flanged Ball Valve PTFE ISO-Top F03 - TamesonPRO 1122-015

This 2-way 1-piece stainless steel flanged ball valve has DN15 connections. Pressure rating: PN40. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting PTFE seats to handle a wide range of media.

The valve is rated up to 40 bar at 20°C (579 psi at 68°F). It is suitable for temperatures from -29°C up to 160°C (-20°F up to 320°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 15 mm bore, with Kv value of 21 m³/h (at a differential pressure of 1 bar) (Cv = 24.3 gpm). The valve has a full bore design, offering unobstructed flow to minimise pressure drop.

The valve is suitable for electrical or pneumatic actuation thanks to the ISO-top 5211 F03

Pros:

• Flange in accordance with EN 1092-1 standard
• Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
• Wide operating temperature range from -29°C up to 160°C (-20°F to 320°F)
• Full-bore design for minimal pressure loss and maximum flow
• PTFE seats for smooth operation and tight shut-off
• Lockable handle prevents unauthorized tampering or accidental operation
• Suitable for electrical or pneumatic actuation thanks to the ISO-top F03

Dimensions

DN=15mm, d=15mm, D=95mm, C=45mm, D1=65mm, T=9mm, f=2mm, L=42mm, h=9mm, H1=48mm, H=73mm, W=141mm, B=9mm, D3=36mm, D4=42mm, O3=6mm, O4=6 mm
