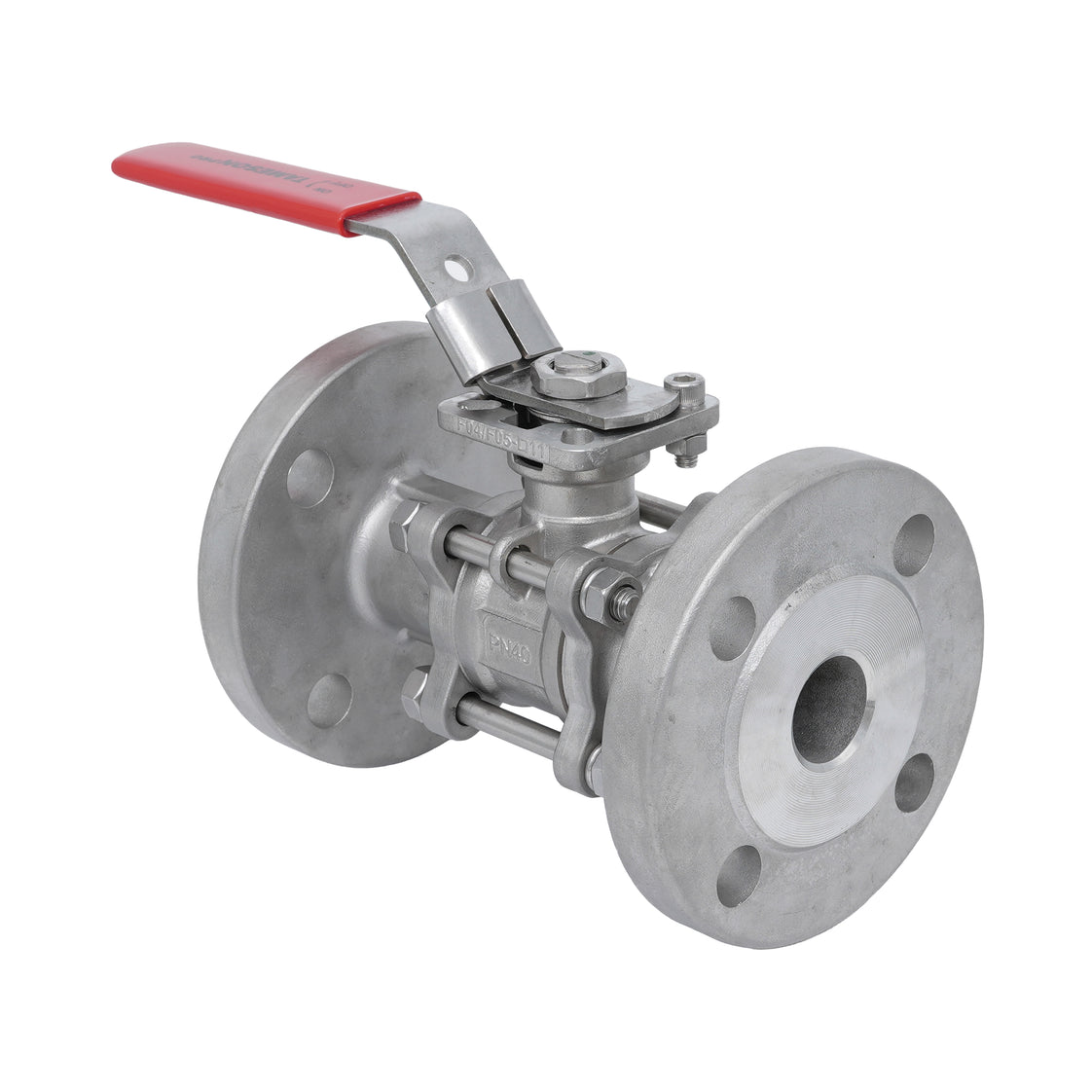

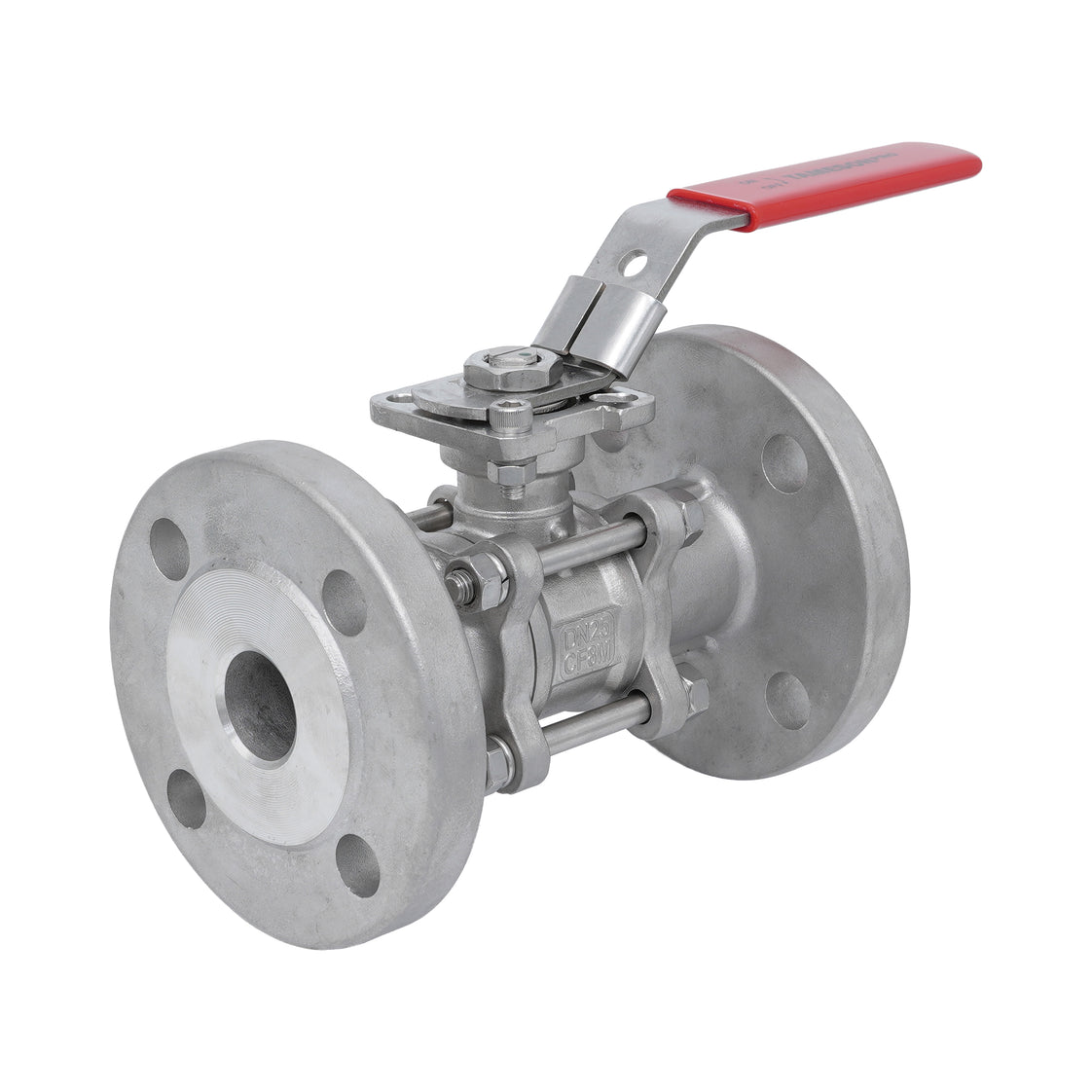

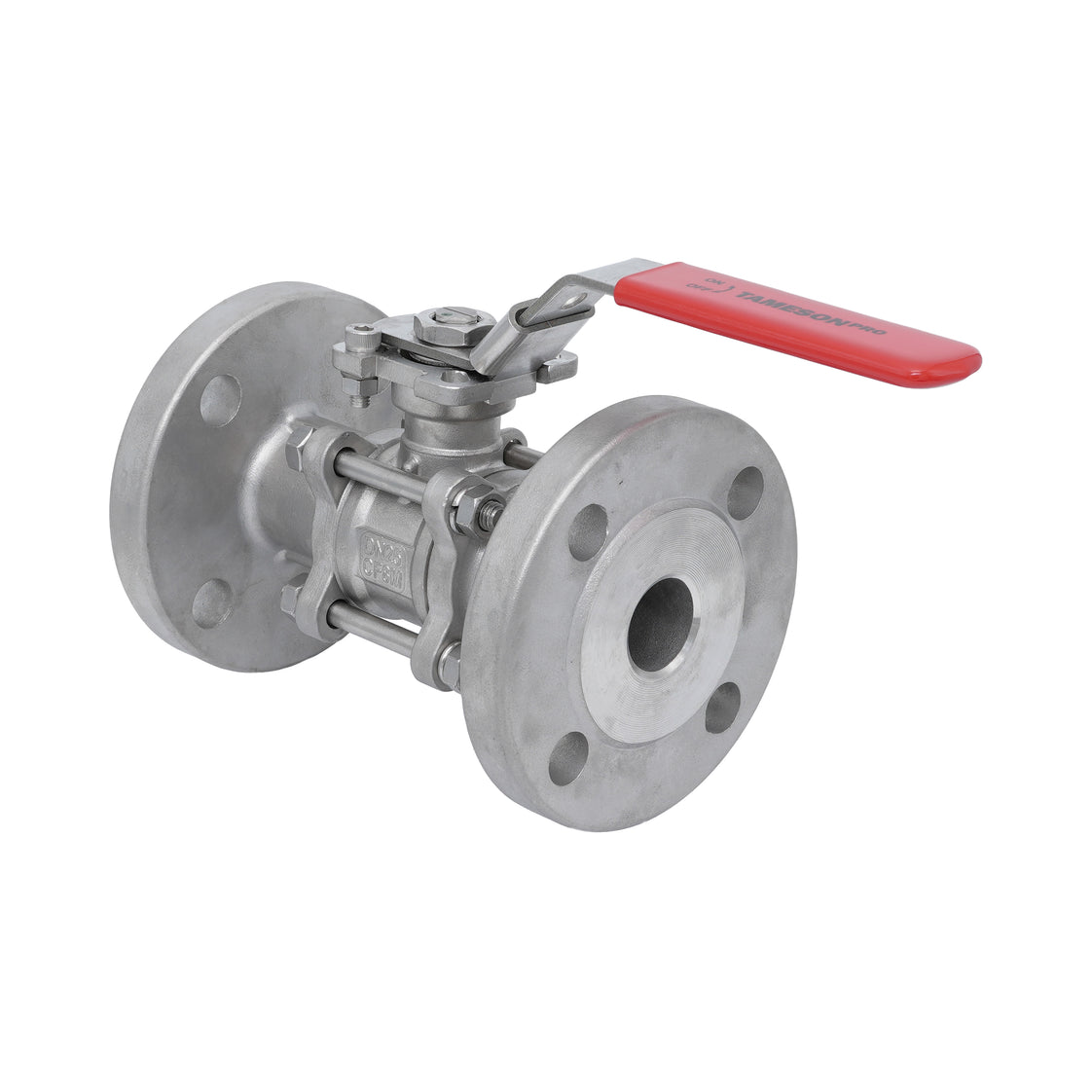

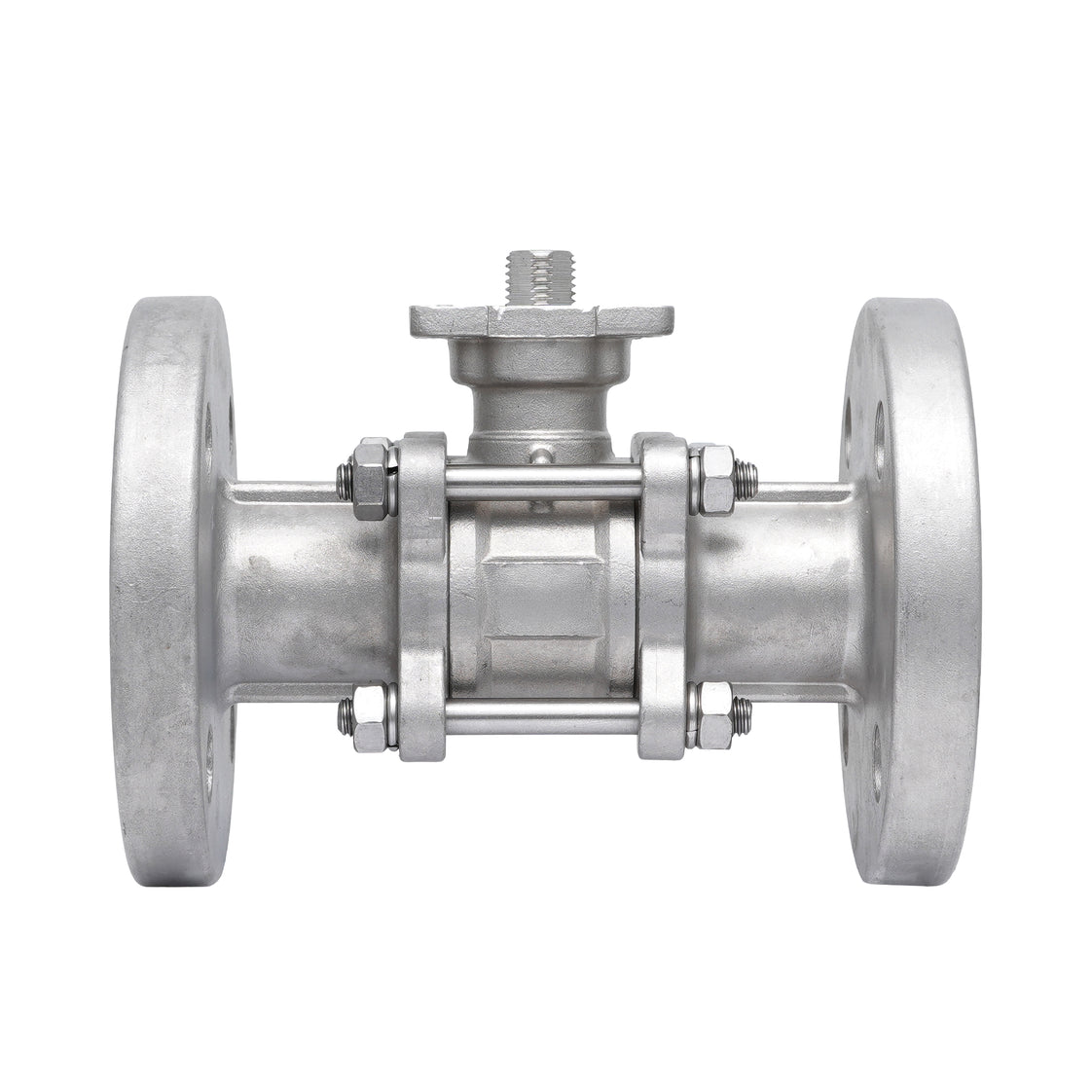

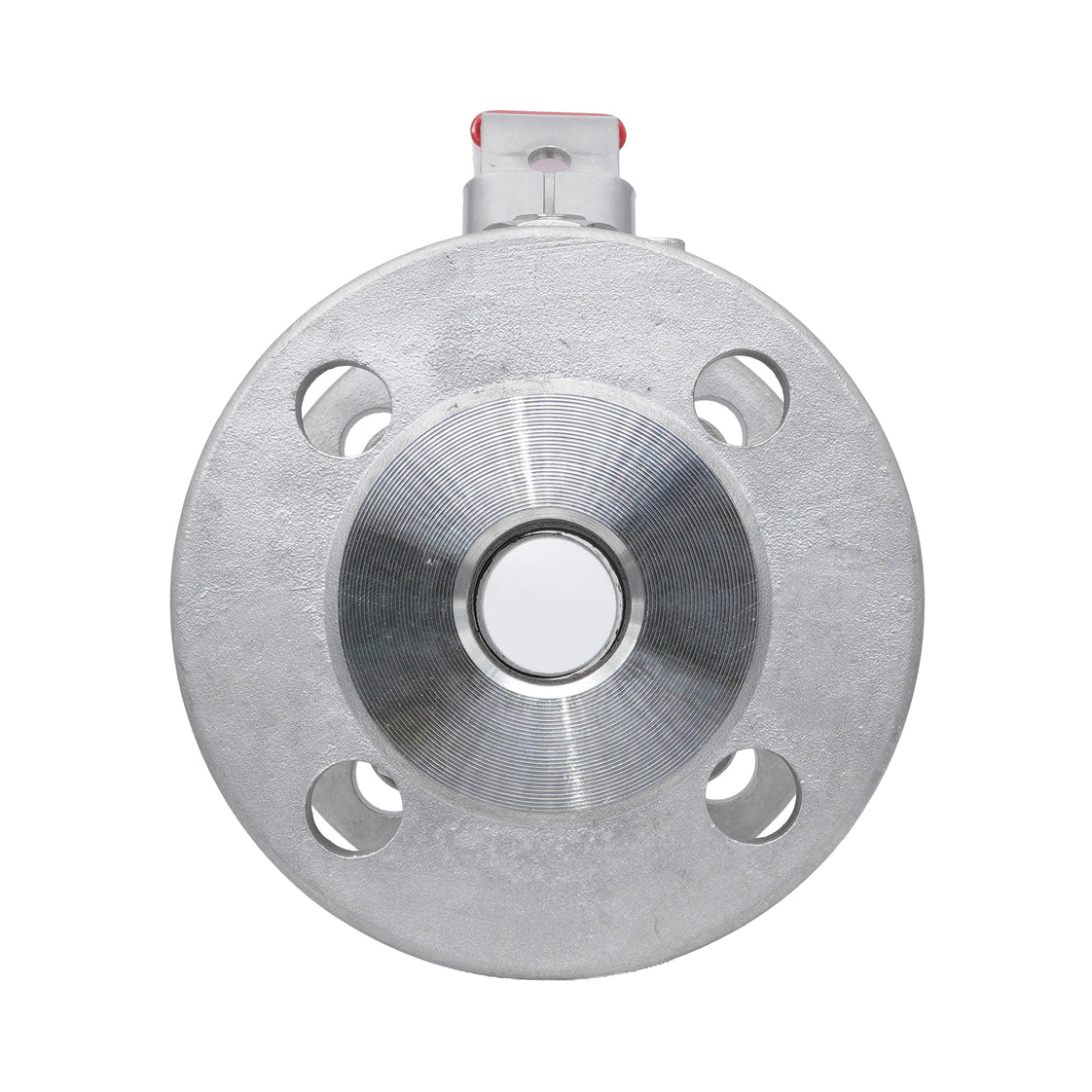

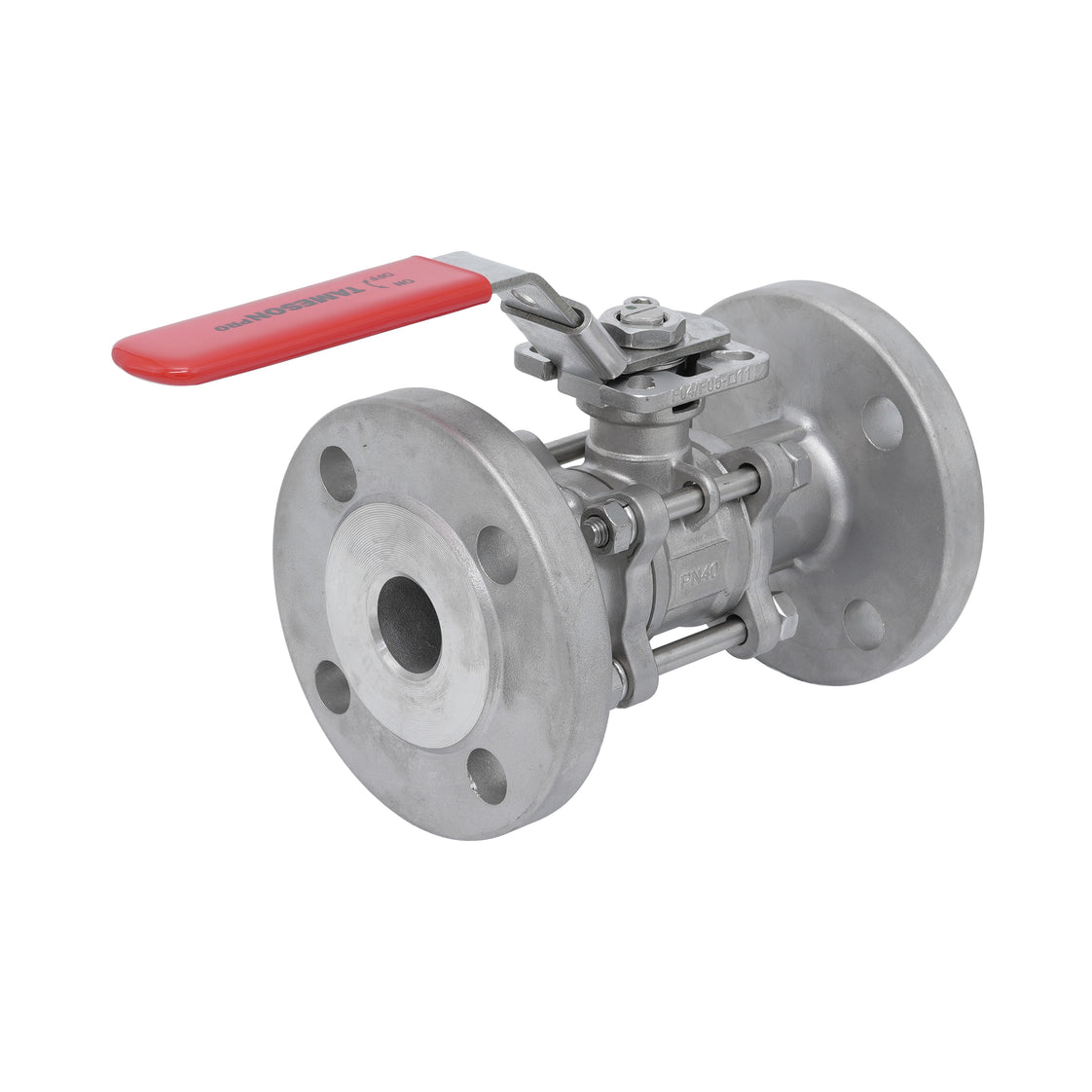

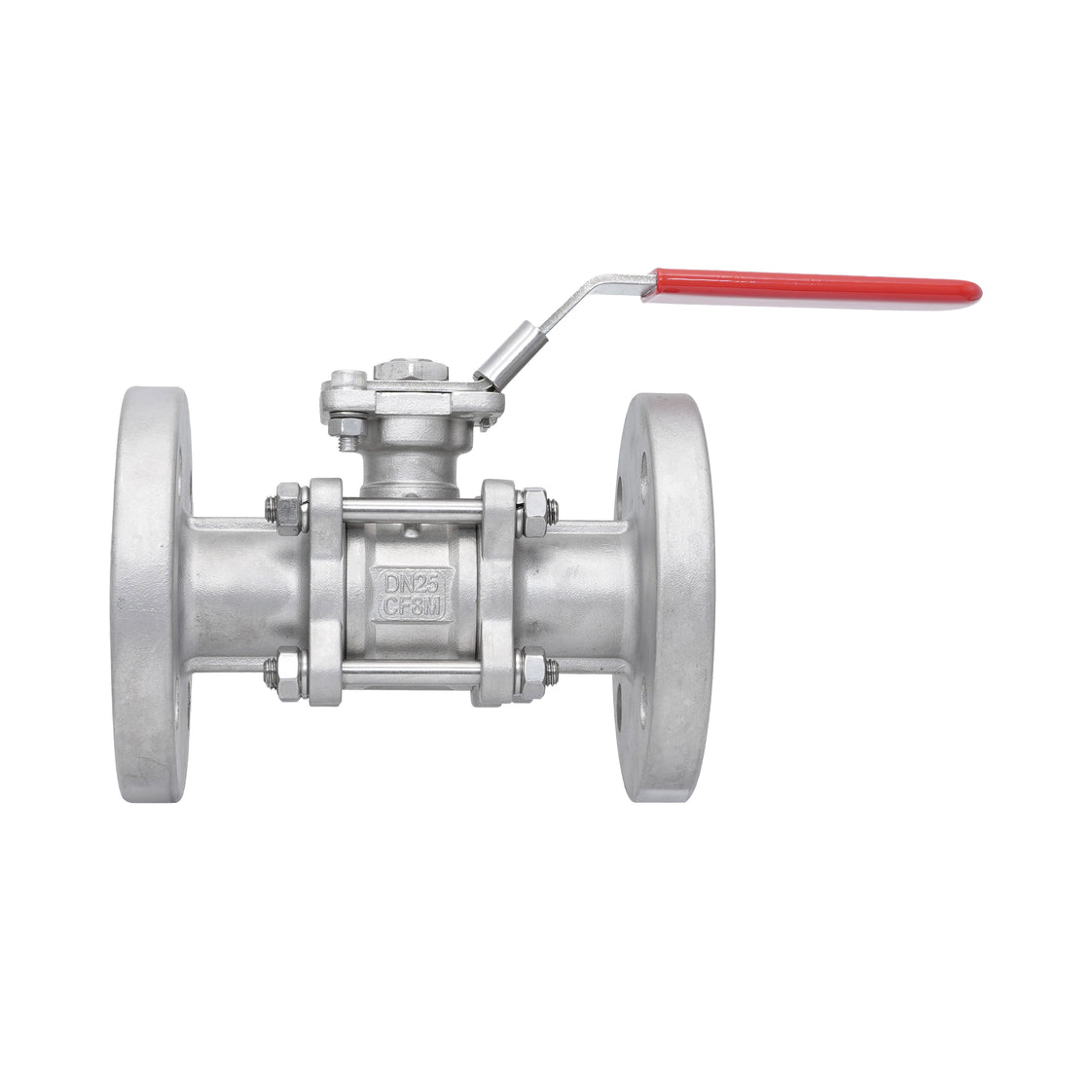

DN25 PN40 3-Piece 2-Way Stainless Steel Flanged Ball Valve PTFE ISO-Top F04/F05 - TamesonPRO 1124-025

This 2-way 3-piece stainless steel flanged ball valve has DN25 connections. Pressure rating: PN40. The housing and the ball are made of 316 stainless steel (1.4408/CF8M) paired with long-lasting PTFE seats to handle a wide range of media.

The valve is rated up to 40 bar at 20°C (579 psi at 68°F). It is suitable for temperatures from -29°C up to 160°C (-20°F up to 320°F). The valve is suitable for water, steam, oil, compressed air, fuels, solvents and aggressive media. The valve has a 25 mm bore, with Kv value of 84 m³/h (at a differential pressure of 1 bar) (Cv = 97.1 gpm). The valve has a full bore design, offering unobstructed flow to minimise pressure drop.

It is operated manually using a 304 stainless steel 1.4301 handle. The valve is suitable for electrical or pneumatic actuation thanks to the ISO-top 5211 F04/F05

Pros:

• Flange standard in accordance with DIN2545 PN40
• Suitable for aggressive media due to the 316 stainless steel (1.4408/CF8M) housing and ball
• Wide operating temperature range from -29°C up to 160°C (-20°F to 320°F)
• Full-bore design for minimal pressure loss and maximum flow
• 3-piece design offers easier maintenance and part replacement
• PTFE seats for smooth operation and tight shut-off
• Lockable handle prevents unauthorized tampering or accidental operation

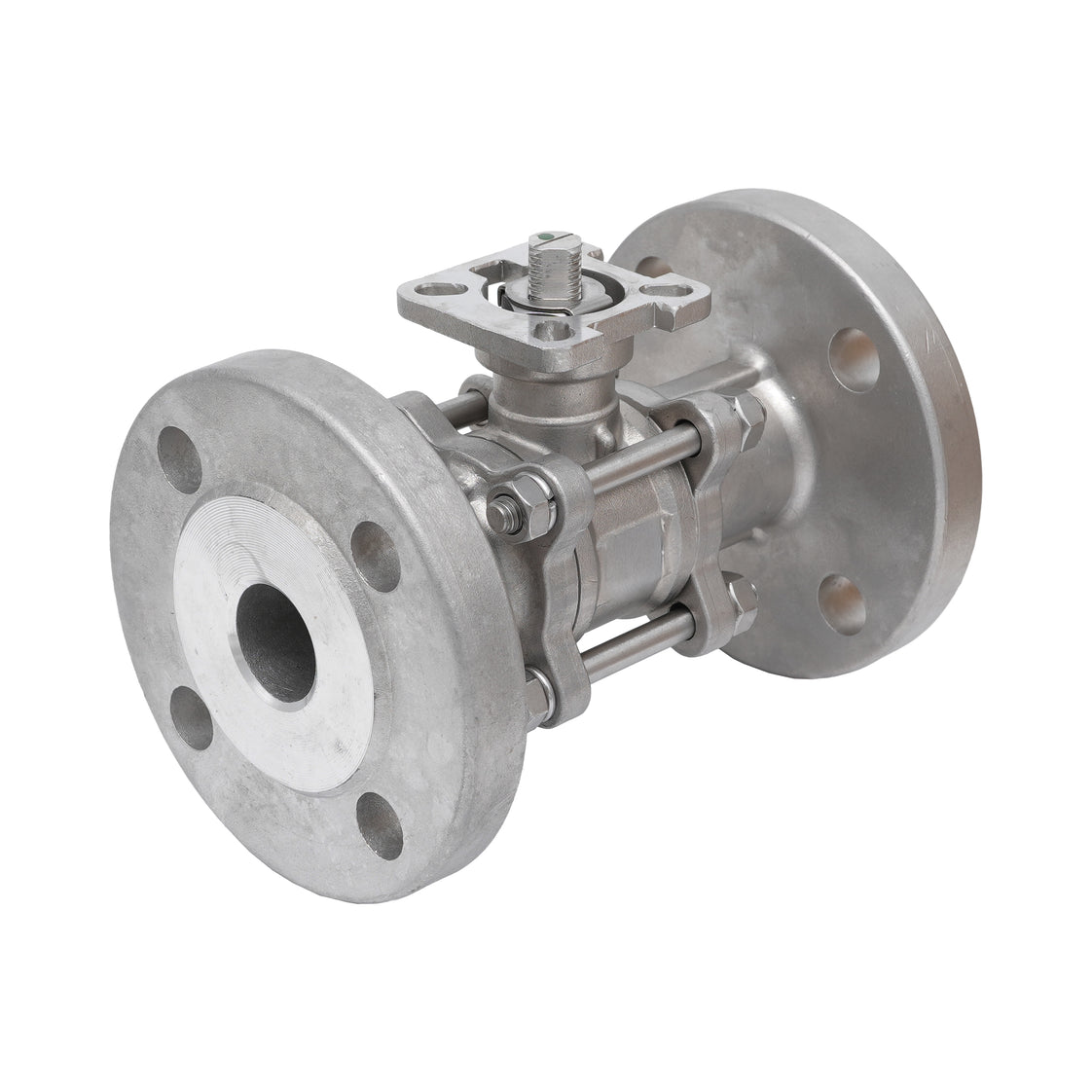

• Suitable for electrical or pneumatic actuation thanks to the ISO-top F04/F05

Dimensions

DN=25mm, D1=68mm, D2=85mm, D3=115mm, B=18mm, F=2mm, L=160mm, W=160mm, H=90.3mm, H1=55mm, H2=11mm, C=11mm
