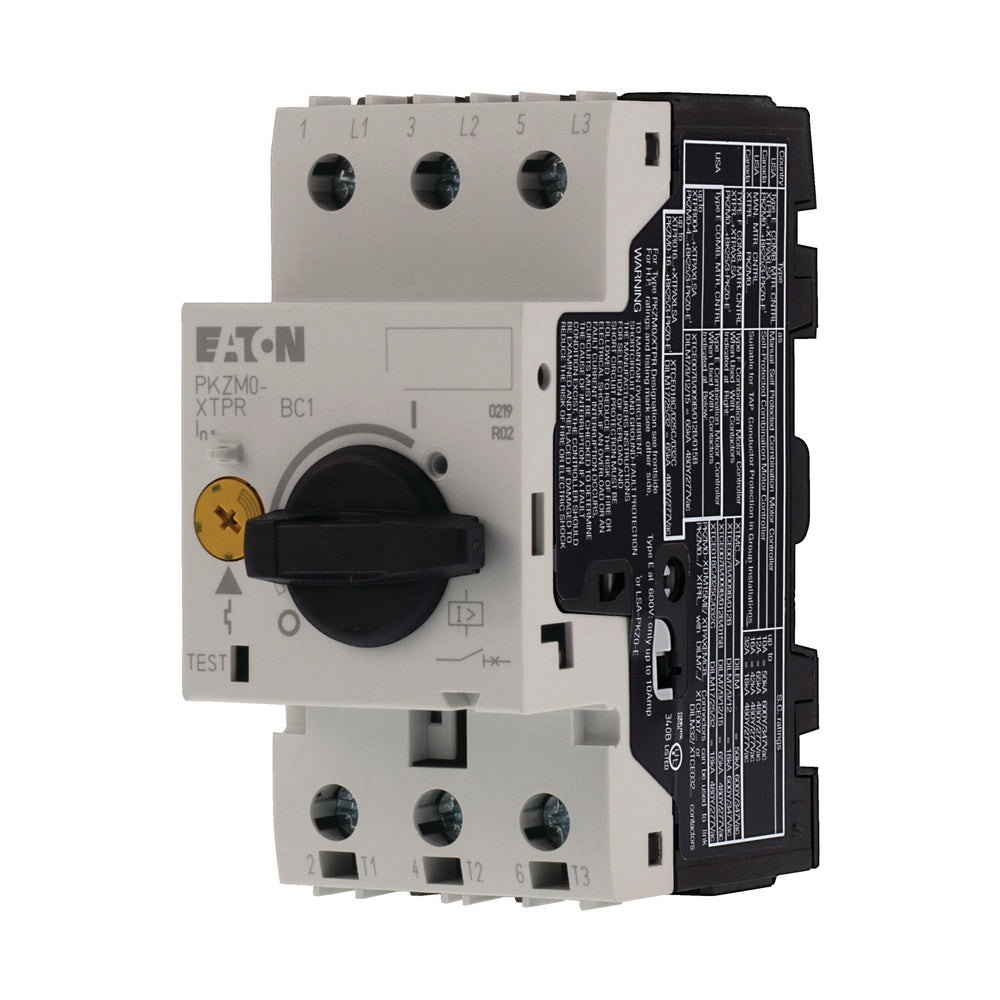

Eaton PKZM0 3-Pole Transformer Circuit Breaker 1.6-2.5A - 088913
Notice: This product is discontinued

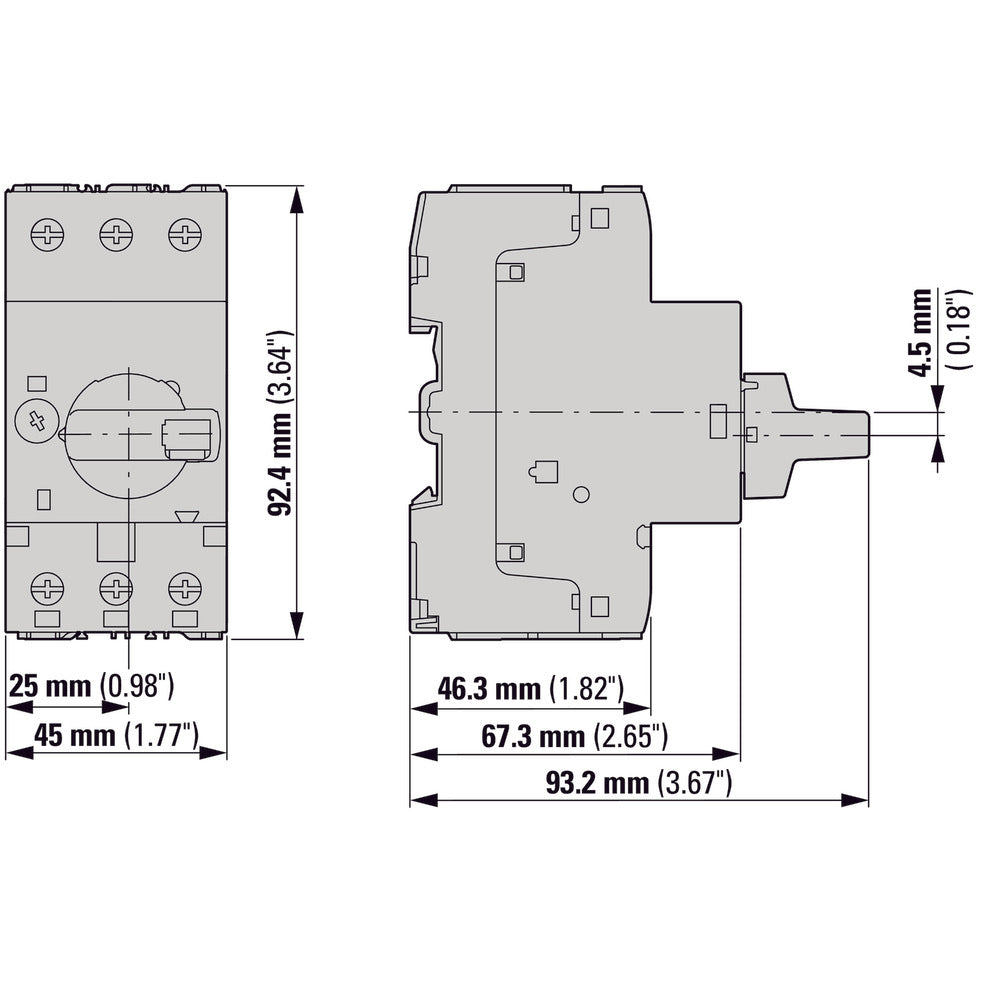

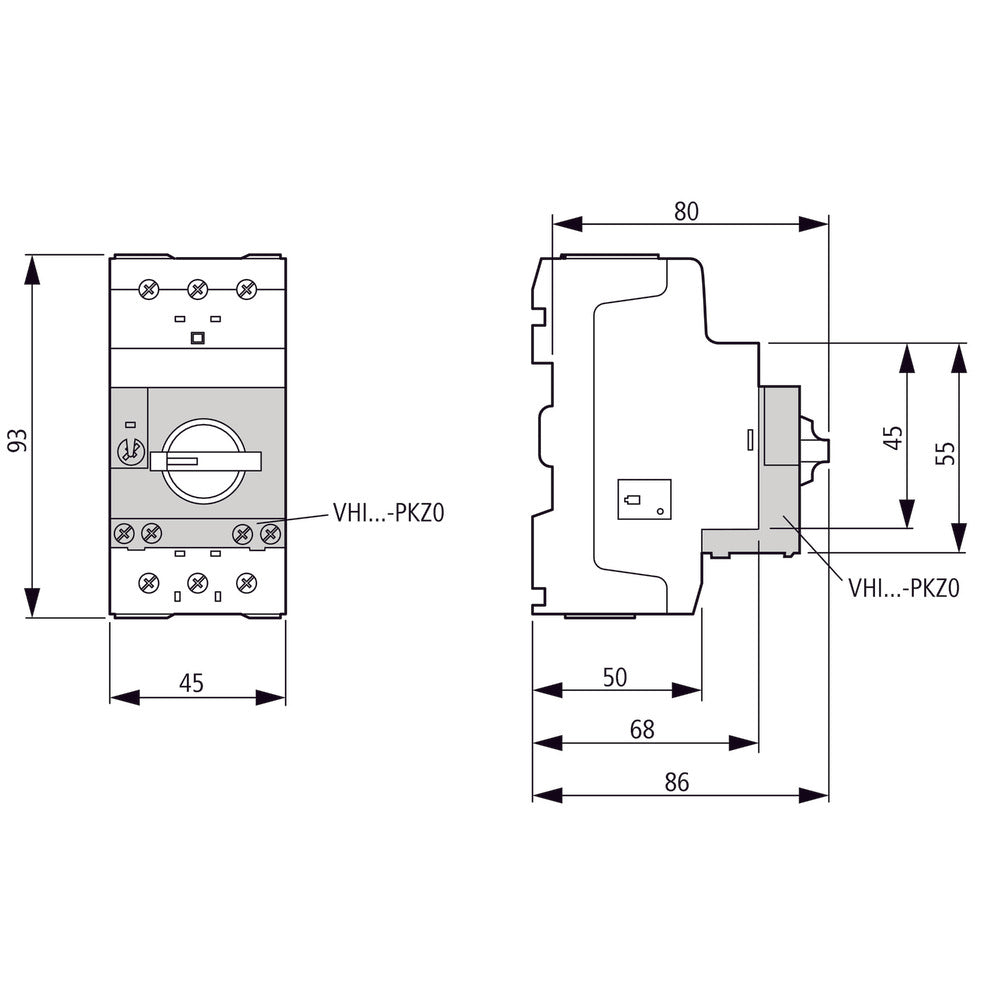

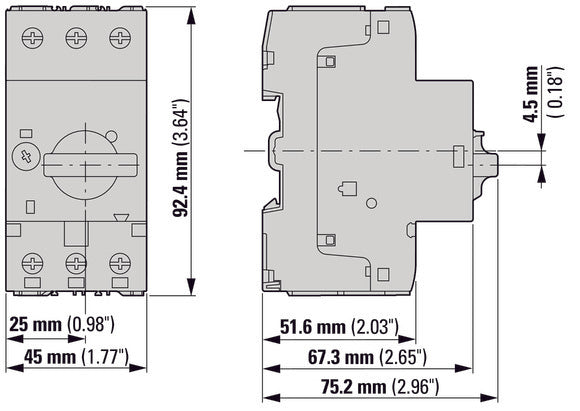

Industrial-grade 3-pole transformer circuit breaker with adjustable overload protection and non-delayed short-circuit release. Features phase failure sensitivity, 690V rated operating voltage, IP20 protection, and VDE 0106 T.100 finger-safe design. Includes screw terminals and snap fitting with 45mm cap installation dimension. Compatible with auxiliary contact and voltage release accessories.
Notice: This product is discontinued
Description
Industrial-grade 3-pole transformer circuit breaker with adjustable overload protection and non-delayed short-circuit release. Features phase failure sensitivity, 690V rated operating voltage, IP20 protection, and VDE 0106 T.100 finger-safe design. Includes screw terminals and snap fitting with 45mm cap installation dimension. Compatible with auxiliary contact and voltage release accessories.
Pros:
- Adjustable overload protection range of 1.6-2.5A
- Phase failure sensitive for enhanced safety
- 690V rated operating voltage capability
- Finger-safe design with IP20 protection
