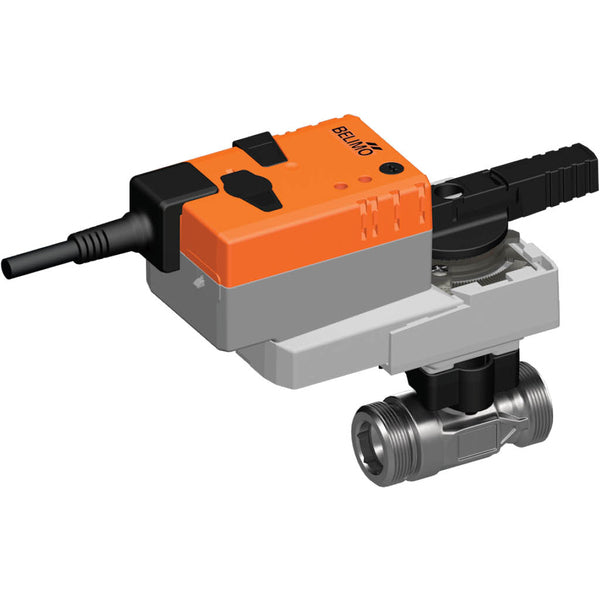

Belimo Ball Valve G1 Kvs12 24VAC/DC 9s 2-point 4Nm IP54 R415D/LRQ24A
This is a Belimo 2-way ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is G 1 inch with male threads. The maximum pressure differential is 8 bar (116 psi). The valve can operate between 2 and 130 °C (36 to 266 °F). The Kv value of the valve is 12 m3/h, equivalent to a Cv-value of 13.88 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 9 seconds. The actuator has an IP54 rating.
- Regular price
- £439.24
Description

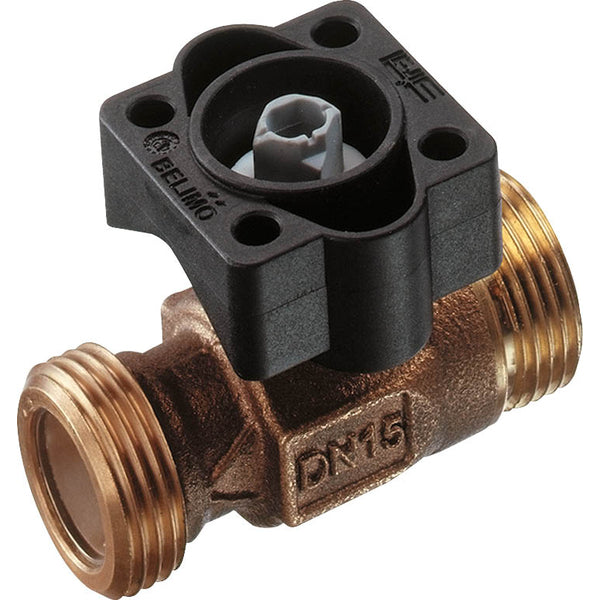

This is a Belimo 2-way ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is G 1 inch with male threads. The maximum pressure differential is 8 bar (116 psi). The valve can operate between 2 and 130 °C (36 to 266 °F). The Kv value of the valve is 12 m3/h, equivalent to a Cv-value of 13.88 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features two-point (open-close) control. The actuator opens/closes the valve in 9 seconds. The actuator has an IP54 rating.

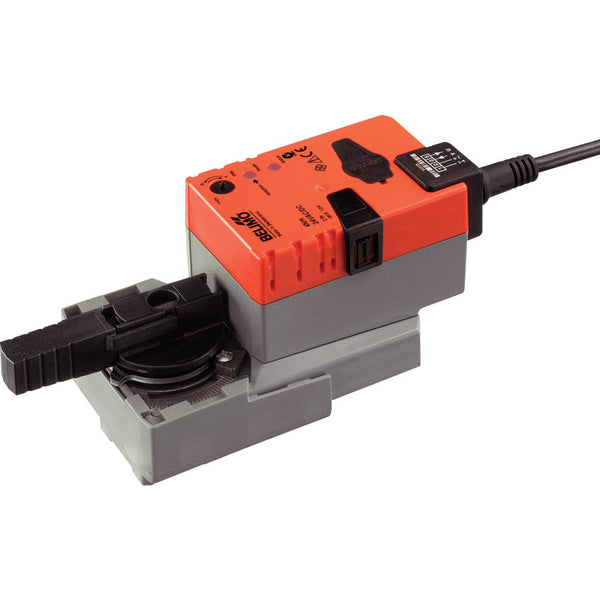

The actuator, equipped with overload protection, doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops.
Pros:
- Fast acting 9 s
- Manual override
- The actuator is overload protected
- Visual position indicator
