Ball Valve G2 1/4 Male Brass EPDM 32m3/h 25bar 24VAC/DC BACnet/Modbus RJ12 90s 10Nm IP40 R440/NR24A-MOD-J6

Ball Valve G2 1/4 Male Brass EPDM 32m3/h 25bar 24VAC/DC BACnet/Modbus RJ12 90s 10Nm IP40 R440/NR24A-MOD-J6
Ball Valve G2 1/4 Male Brass EPDM 32m3/h 25bar 24VAC/DC BACnet/Modbus RJ12 90s 10Nm IP40 R440/NR24A-MOD-J6
Ball Valve G2 1/4 Male Brass EPDM 32m3/h 25bar 24VAC/DC BACnet/Modbus RJ12 90s 10Nm IP40 R440/NR24A-MOD-J6
Image may vary slightly
See specifications for accurate information.
Reference: V3D3X
Brand: Belimo
Mfr. Part: R440/NR24A-MOD-J6

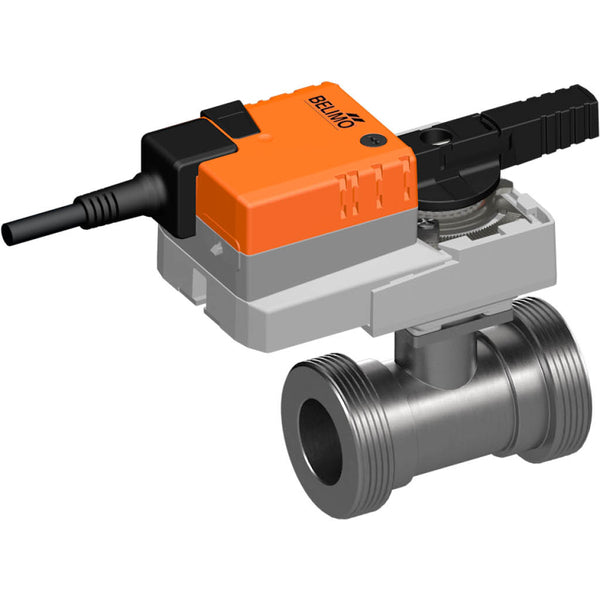

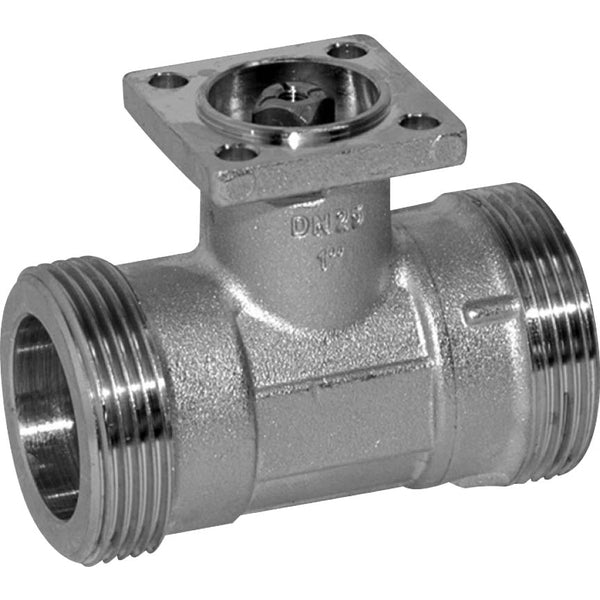

This is a 2-way Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is G 2 1/4 inch with male threads. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

View all
Note: product cannot be returned
Regular price
£577.20
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 40 and the port size is G 2 1/4 inch with male threads. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator is designed with BACnet MSTP/Modbus RTU control, offering reliable and robust communication protocols for efficient operation and integration within the networked control environment. The actuator opens/closes the valve in 90 seconds. The actuator has an IP40 rating.

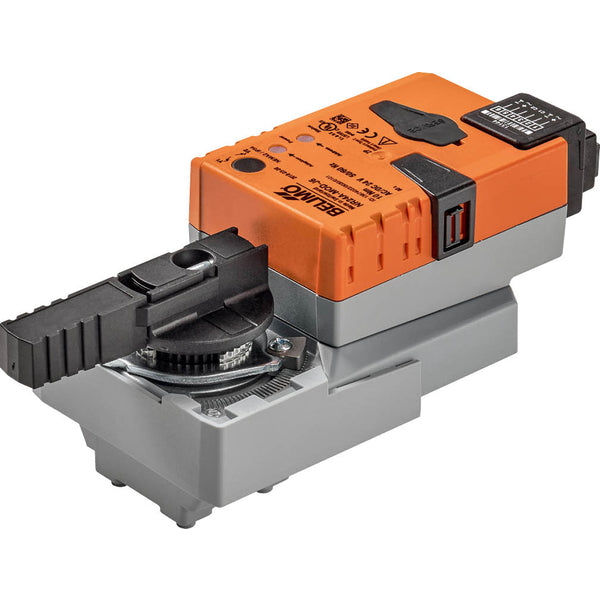

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator comes with an inbuilt interface for BACnet MSTP, Modbus RTU, and MP-Bus. It obtains the digital control signal from the control system and provides the present status. The rotation angle can be adjusted with mechanical end stops.
