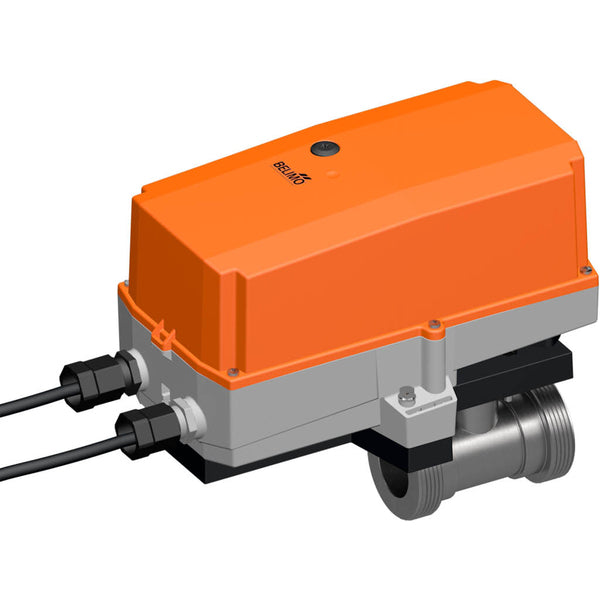

Ball Valve G2 Male Brass EPDM 32m3/h 25bar 100-240VAC 90s 20Nm IP67 R432/SR230P

Ball Valve G2 Male Brass EPDM 32m3/h 25bar 100-240VAC 90s 20Nm IP67 R432/SR230P
Ball Valve G2 Male Brass EPDM 32m3/h 25bar 100-240VAC 90s 20Nm IP67 R432/SR230P
Ball Valve G2 Male Brass EPDM 32m3/h 25bar 100-240VAC 90s 20Nm IP67 R432/SR230P
Image may vary slightly
See specifications for accurate information.
Reference: V3CX5
Brand: Belimo
Mfr. Part: R432/SR230P

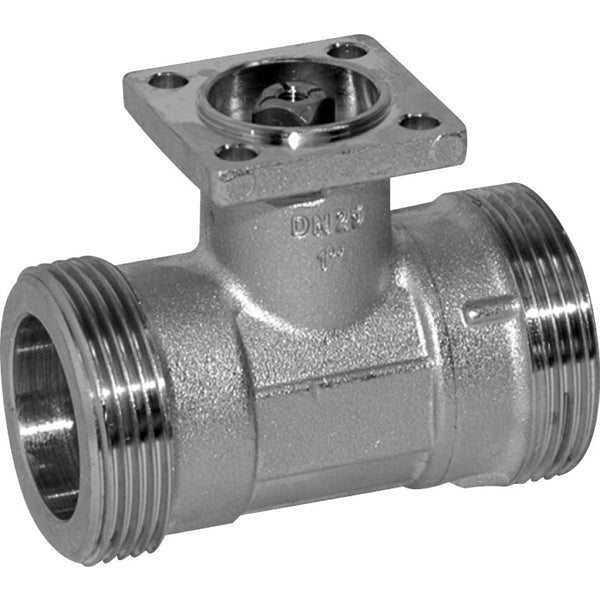

This is a 2-way Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is G 2 inch with male threads. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP67 rating.

View all
Note: product cannot be returned
Regular price
£616.38
excl VAT

In stock +14 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 14 days. Up to 6 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United Kingdom: Free
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 16 - 18 business days

Description
Specifications
Downloads
Related products

This is a 2-way Belimo ball valve with a brass housing and EPDM sealing. The bore diameter of the valve is DN 32 and the port size is G 2 inch with male threads. This valve withstands pressure up to 25 bar (362 psi). The valve can operate between -10 and 100 °C (14 to 212 °F). The Kv value of the valve is 32 m3/h, equivalent to a Cv-value of 37.02 gpm. The actuator requires a supply voltage of 100-240 V AC. The actuator features two-point and three-point control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP67 rating.

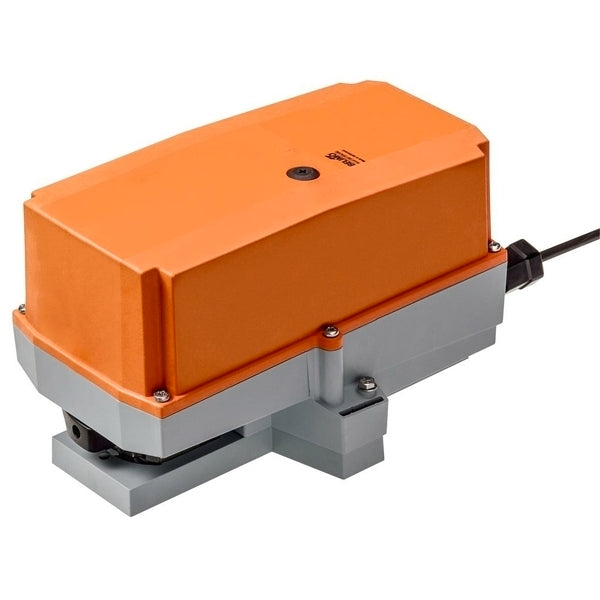

The actuator, equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached. Manual override is possible using a push-button, which disengages the gear train as long as the button is pressed or remains locked. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The rotation angle can be adjusted with mechanical end stops. The actuator is particularly suitable for challenging environments such as wood drying, animal breeding, food processing, agriculture, indoor swimming pools/bathhouses, rooftop ventilation plant rooms, and general outdoor applications. The actuator has passed various tests including the Noxious gas test EN 60068-2-60, Salt fog spray test EN 60068-2-52, Ammoniac test DIN 50916-2, Climate test IEC60068-2-30, Disinfectant (animals) test, and UV Test (Solar radiation at ground level) EN 60068-2-5, EN 60068-2-63. The housing cover must be removed for manual override.
