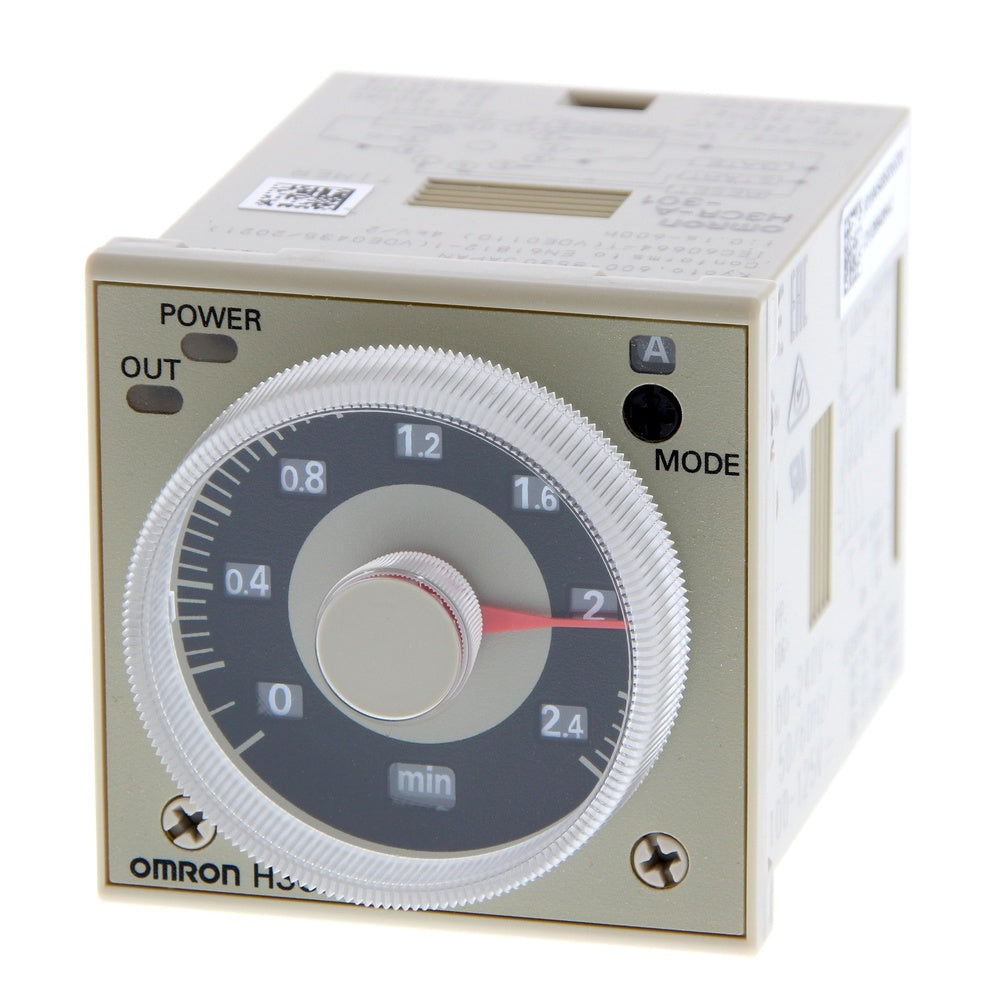

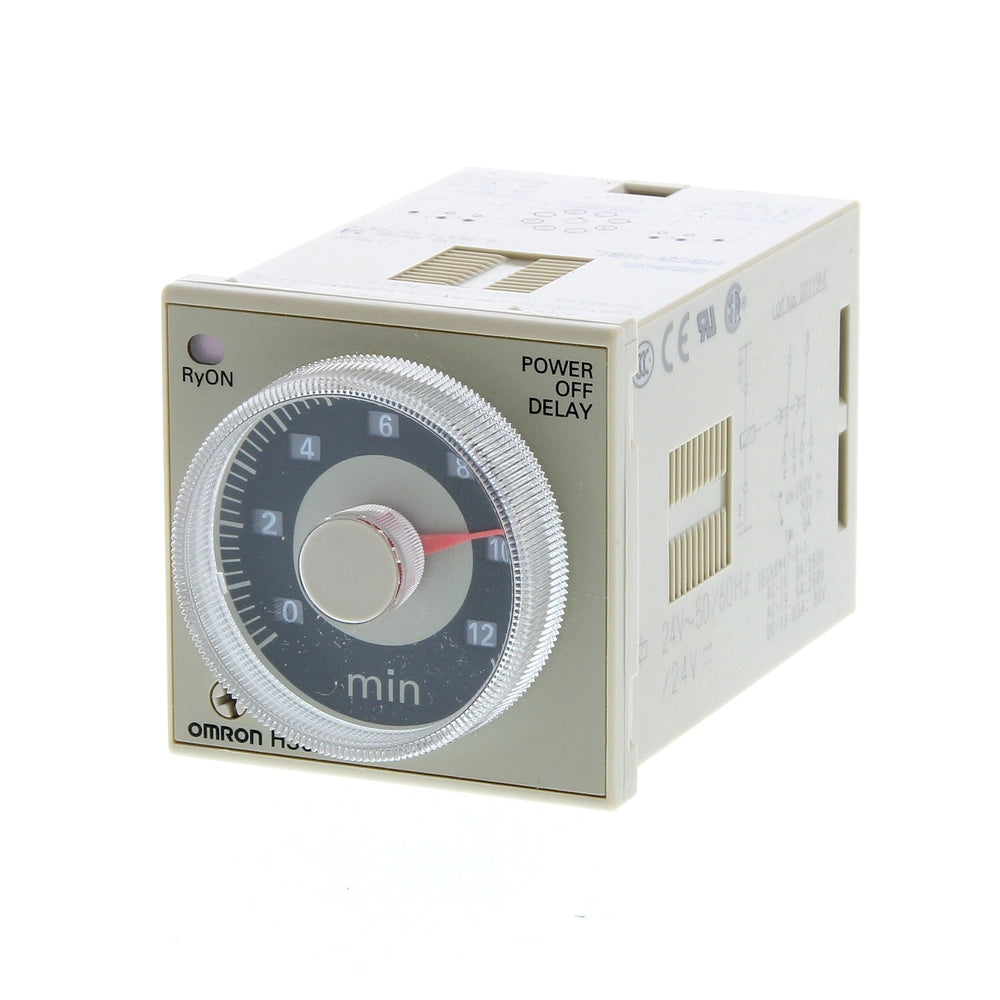

Omron H3CR Multi-Function Timer Relay 48x48mm - H3CR8096C
Industrial 8-pin plug-in timer relay with 1/16 DIN (48x48mm) form factor. Features multiple timing modes including on-delay, flicker-on/off, interval, and one-shot delay. Operating range of 0.05s to 300h with DPDT output rated at 5A. Compatible with 24-48 VAC or 12-48 VDC input power. Includes screw terminal connections and dual changeover contacts rated at 250 VAC/30 VDC.
- Regular price
- £86.58
Description
Industrial 8-pin plug-in timer relay with 1/16 DIN (48x48mm) form factor. Features multiple timing modes including on-delay, flicker-on/off, interval, and one-shot delay. Operating range of 0.05s to 300h with DPDT output rated at 5A. Compatible with 24-48 VAC or 12-48 VDC input power. Includes screw terminal connections and dual changeover contacts rated at 250 VAC/30 VDC.
Pros:
- Wide voltage range: 24-48 VAC/12-48 VDC compatibility
- Multiple timing modes for versatile applications
- Extended timing range from 0.05s to 300h
- Standard 1/16 DIN size for easy panel mounting
