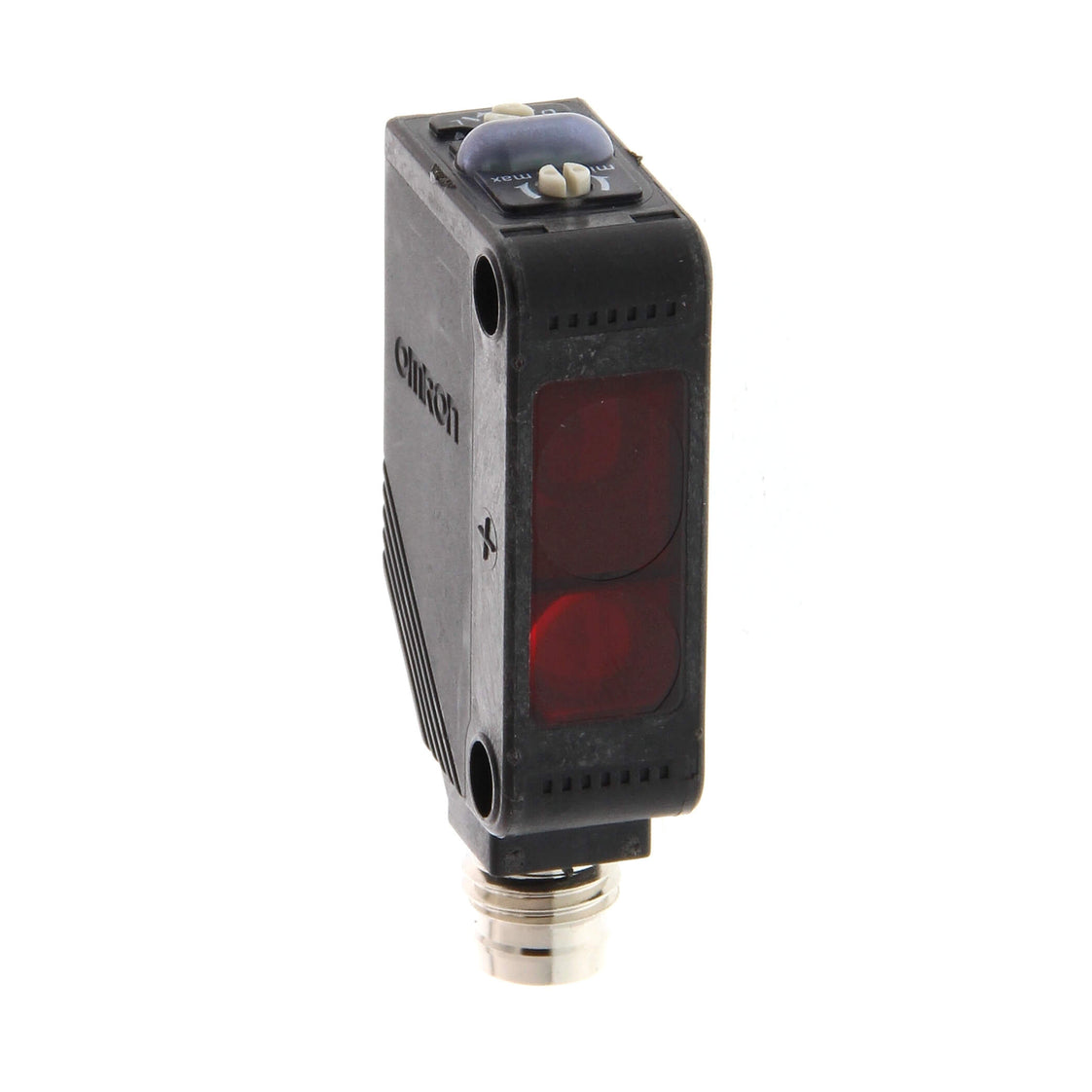

Omron PHOTO ELECTRIC SensorS Light Sensor With Background Filter - E3ZLS86OMS

Omron PHOTO ELECTRIC SensorS Light Sensor With Background Filter - E3ZLS86OMS
Omron PHOTO ELECTRIC SensorS Light Sensor With Background Filter - E3ZLS86OMS
Image may vary slightly
See specifications for accurate information.
Reference: E2ESC
Brand: Omron
Mfr. Part: E3Z 7242M

Omron PHOTO ELECTRIC SENSORS E3Z light sensor with background filter, adjustment range 20 - 200mm, housing shape cube, 1 semiconductor outputs with, AWG number 24, operating equipment safety class security class 3, protection degree (IP) IP67, sensor width 10.8mm, sensing distance 20 - 200mm.

View all
Note: product cannot be returned
£169.33
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: Free
Free for orders > £75.00
Expected delivery in 5 - 7 business days

Customers rate us: 4.90 / 5

383 reviews at TrustedShops

Description
Specifications
Downloads

Description

Omron PHOTO ELECTRIC SENSORS E3Z light sensor with background filter, adjustment range 20 - 200mm, housing shape cube, 1 semiconductor outputs with, AWG number 24, operating equipment safety class security class 3, protection degree (IP) IP67, sensor width 10.8mm, sensing distance 20 - 200mm.

Downloads

pdf
Download
Product datasheet (EN)
pdf
Download
Product datasheet (EN)
pdf
Download

Specifications

Adjustment range (mm)
20 mm to 200 mm
Operating distance (mm)
20 mm to 200 mm
Triangulation
Background fade-out
Pre failure notice
No
With time function
No
Rated switching distance (mm)
200
Max. switching distance (mm)
200
Max. output current (mA)
100
With reflector
No
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Electrical connection
Type of electric connection.
Connector M8
Signal output
Type of switching output.
PNP
Type of switch function
Normally open contact (NO)
Operation agent-safety class
Safety class 0
Explosion safety gas
None
Explosion safety dust
None
Construction type housing
Cuboid
Width sensor (mm)
10.8
Height of sensor (mm)
31
Length of sensor (mm)
20
Sensing mode
Light-/dark switching
Material of optical surface
Plastic
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Max. current (mA)
The maximum current output of the protected output channel.
100
Min. reflector distance (mm)
0
Ambient temperature (°C)
-25 °C to 55 °C
Response time (ms)
1
Switching frequency (Hz)
1000
Type of safety according to IEC 61496-1
1
Rated control supply voltage Us at DC (V)
12 V to 24 V
Voltage-type
DC
With monitoring function downstream switching devices
No
Laser protection class
None
Wavelength of the sensor (nm)
680
Type of light
Polarity free red light
AWG-number
24
Material of cable sheath
Polyvinyl chloride (PVC)
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
