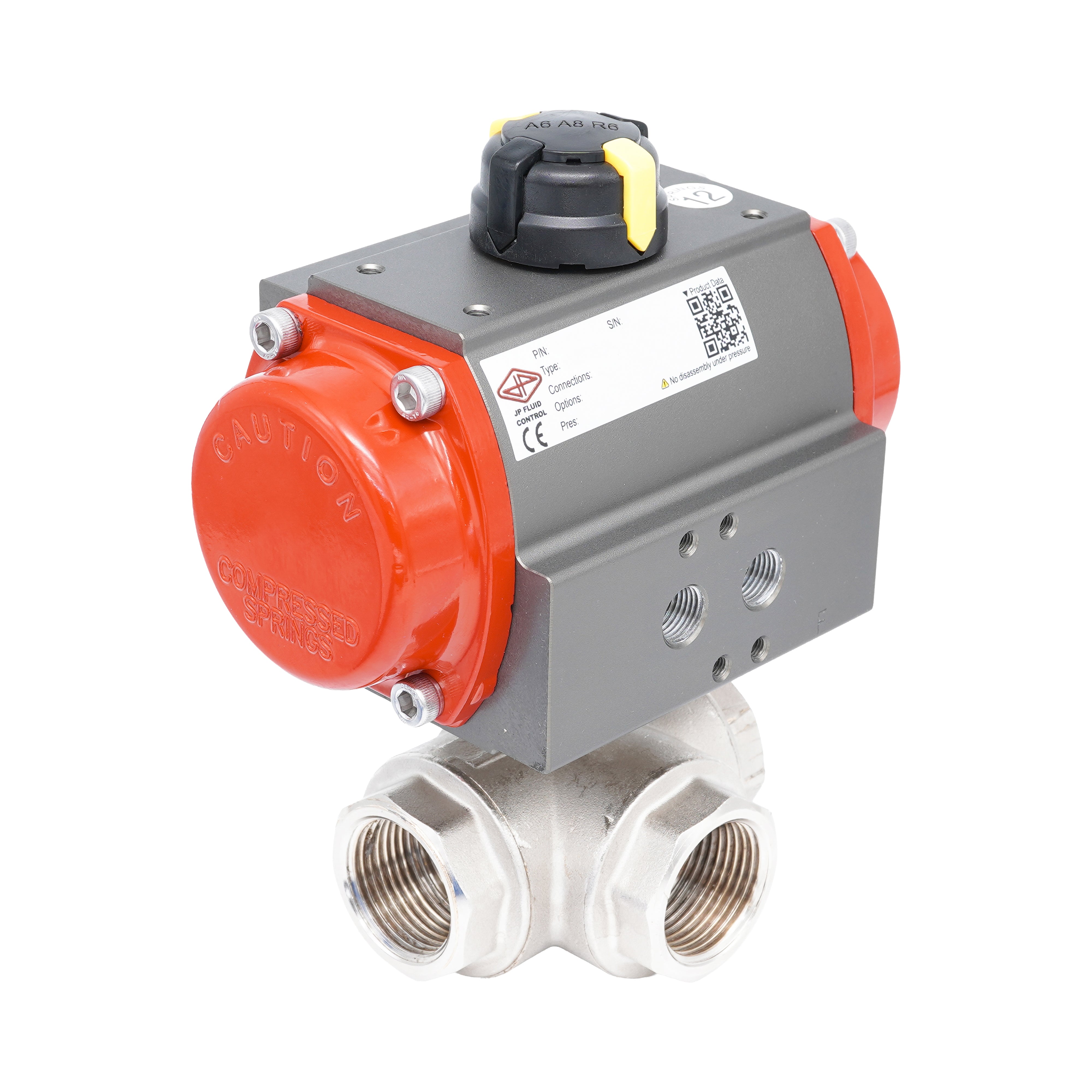

Rp 1/2" L-Bore 3-Way Pneumatic Brass Ball Valve - Spring Opening
- Regular price
- £213.59
Description
This Rp 1/2" BSP female 3-way L-bore spring opening pneumatic brass ball valve controls flow direction across three ports. The L-bore ball has two positions - switch flow from the inlet to one of two alternative outlet lines. It returns to its default flow position on loss of air pressure - suited for applications where a defined flow path must be guaranteed.
The actuator operates across an ambient temperature range of -20 to 80 °C, suited for outdoor and industrial environments. No manual override is fitted - the valve cannot be operated without an air supply.
PTFE ball seal and stem seal make it suitable for water, compressed air, oils, fuels, solvents, alcohols, lubricants, and gas. Avoid use with strong acids, ammonia, or seawater. Rated to 40 bar at 20 °C, media temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- PTFE ball seal and stem seal - suitable for wide range of media.
- Ambient temperature -20 to 80 °C - suited for outdoor and industrial environments.
- Defined fail-safe position - returns to default flow path on loss of air pressure.
- Two-position L-bore - simple and reliable flow switching between two lines.
Cons:
- Brass not suitable for strong acids, ammonia, or seawater - check stainless steel variants.
- No manual override - valve cannot be operated without air supply.
