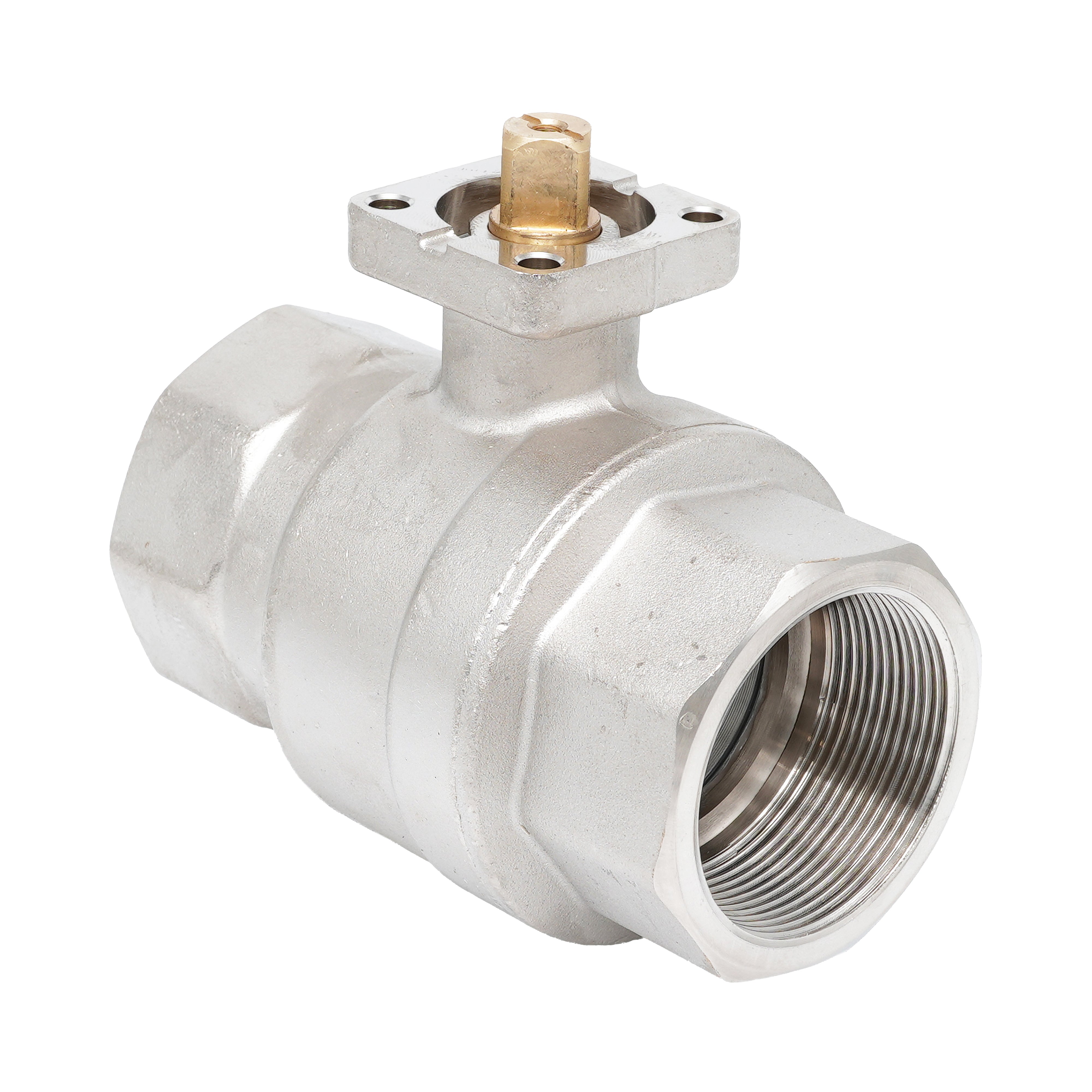

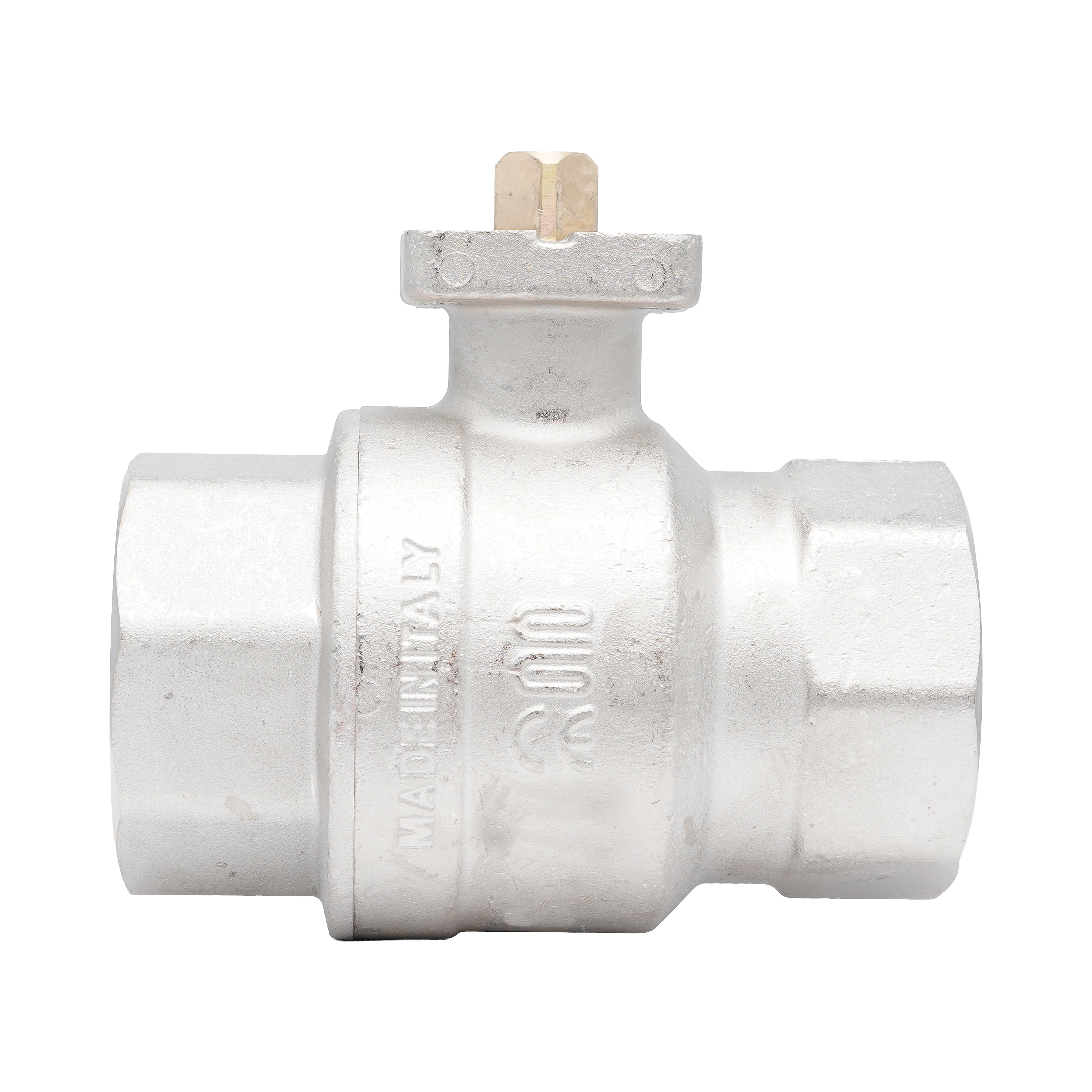

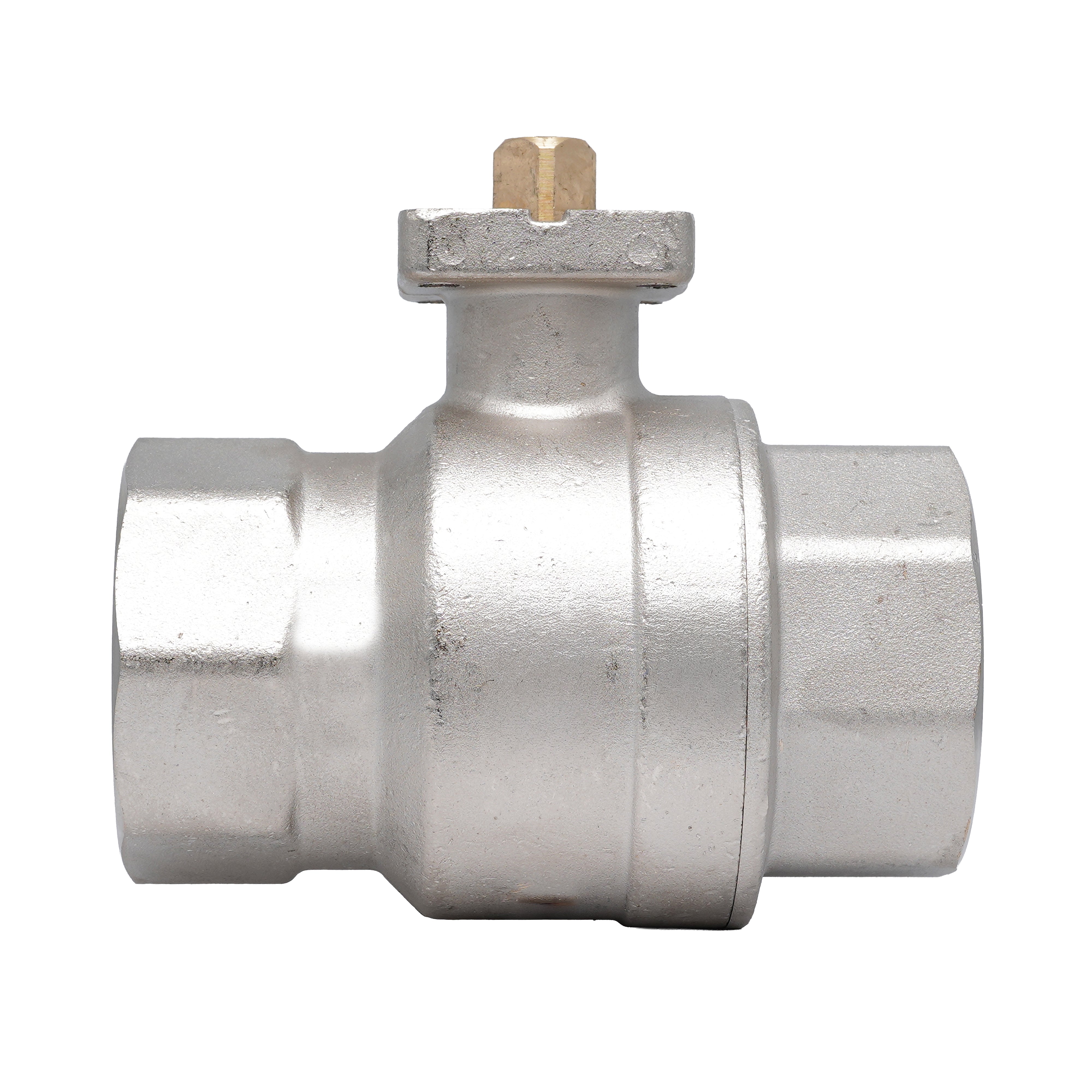

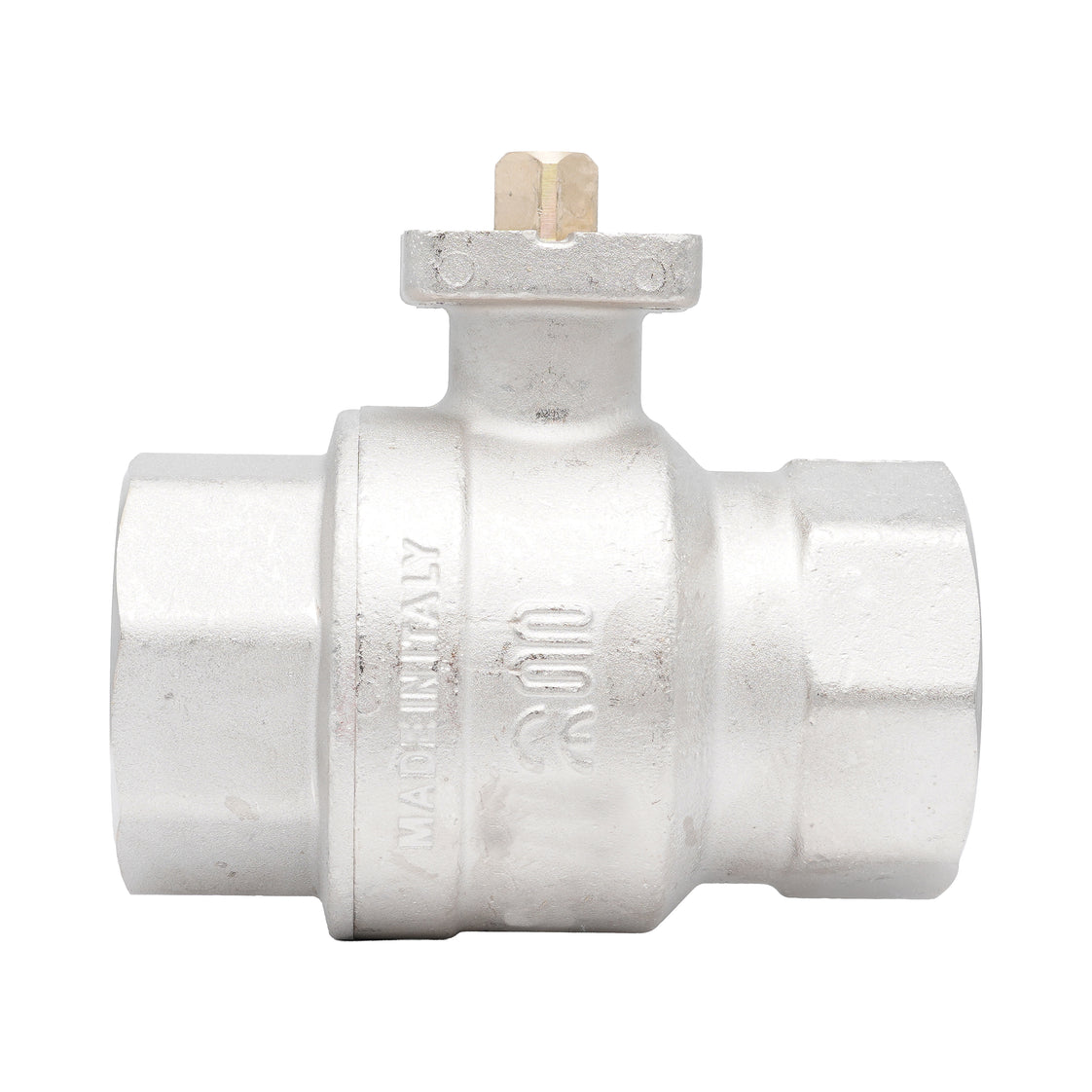

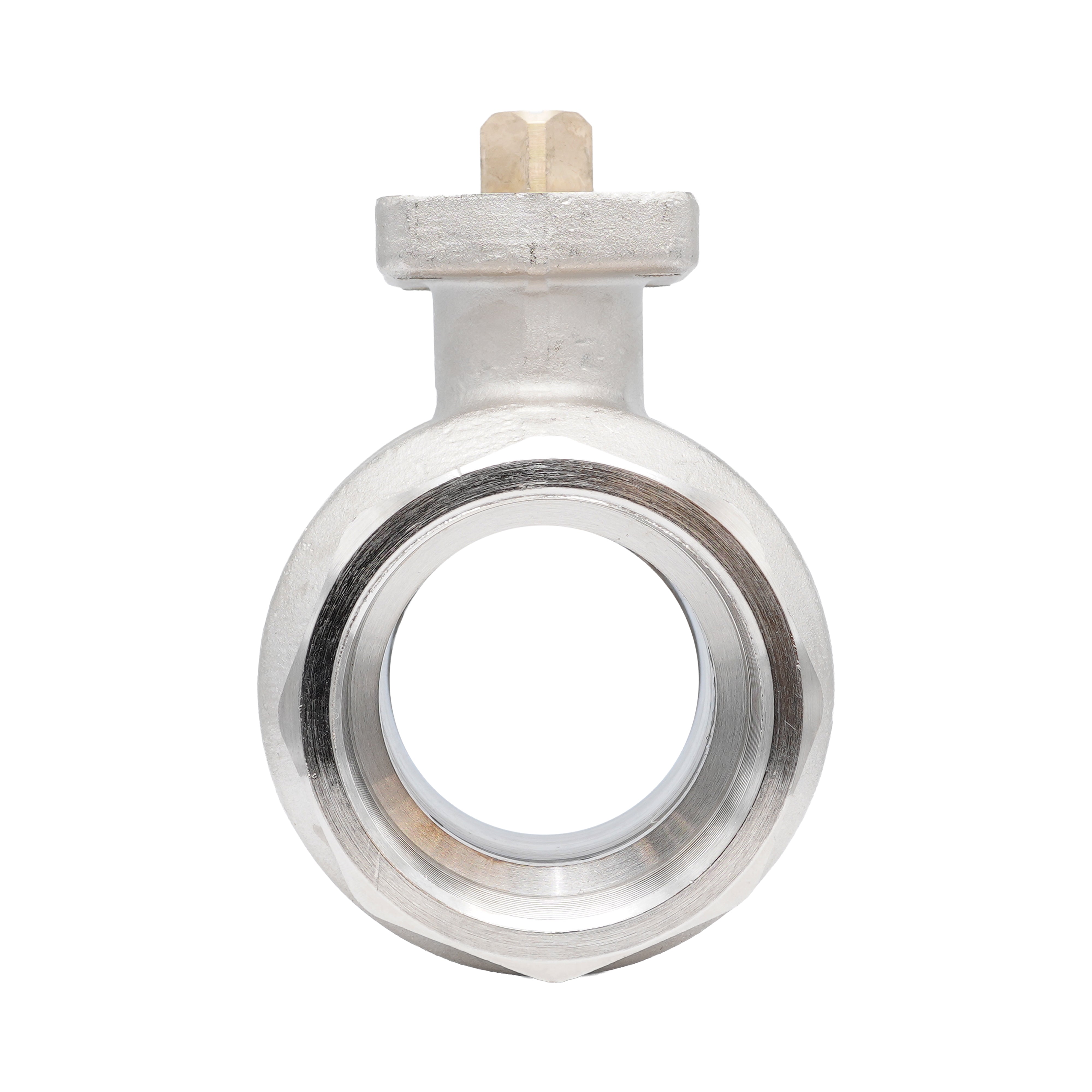

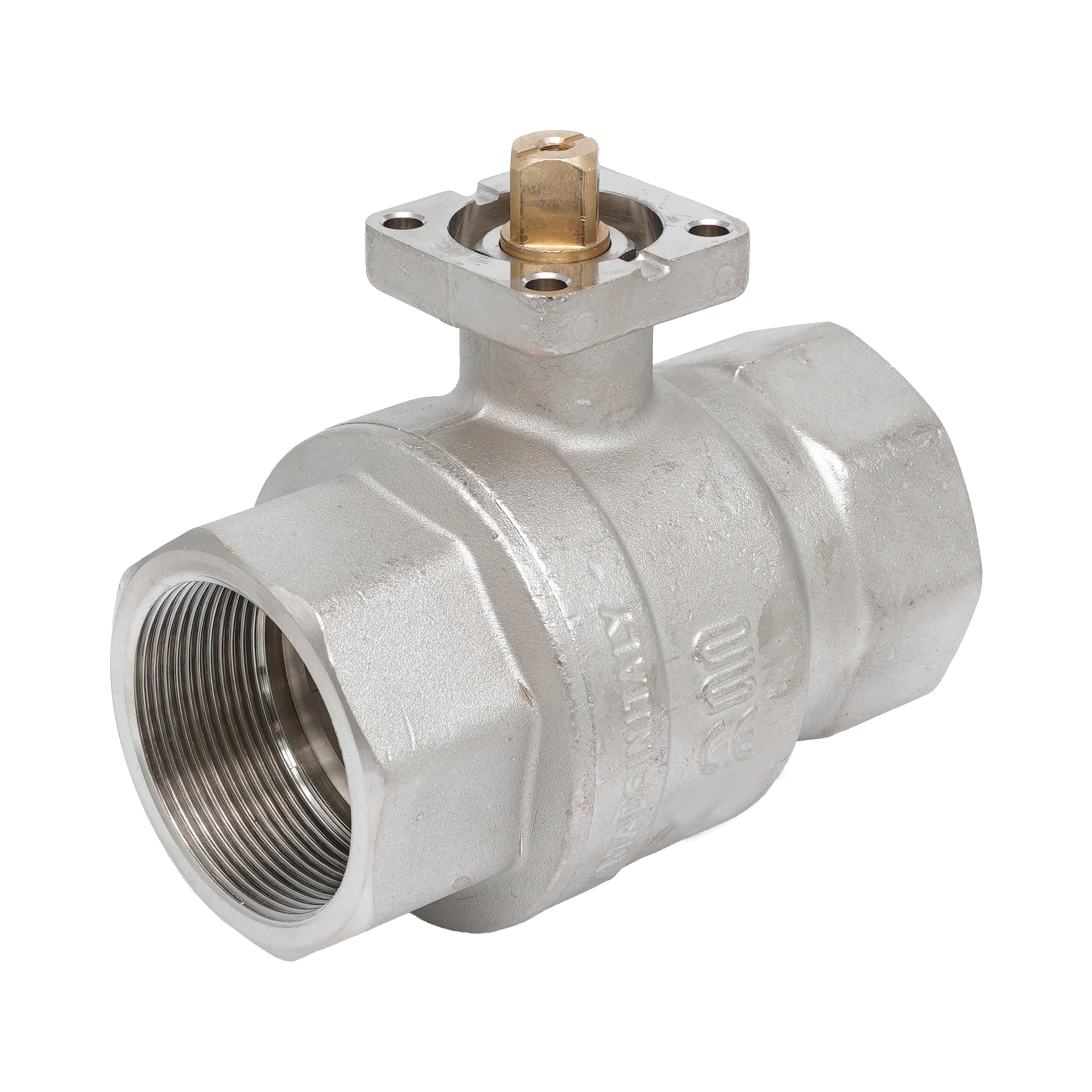

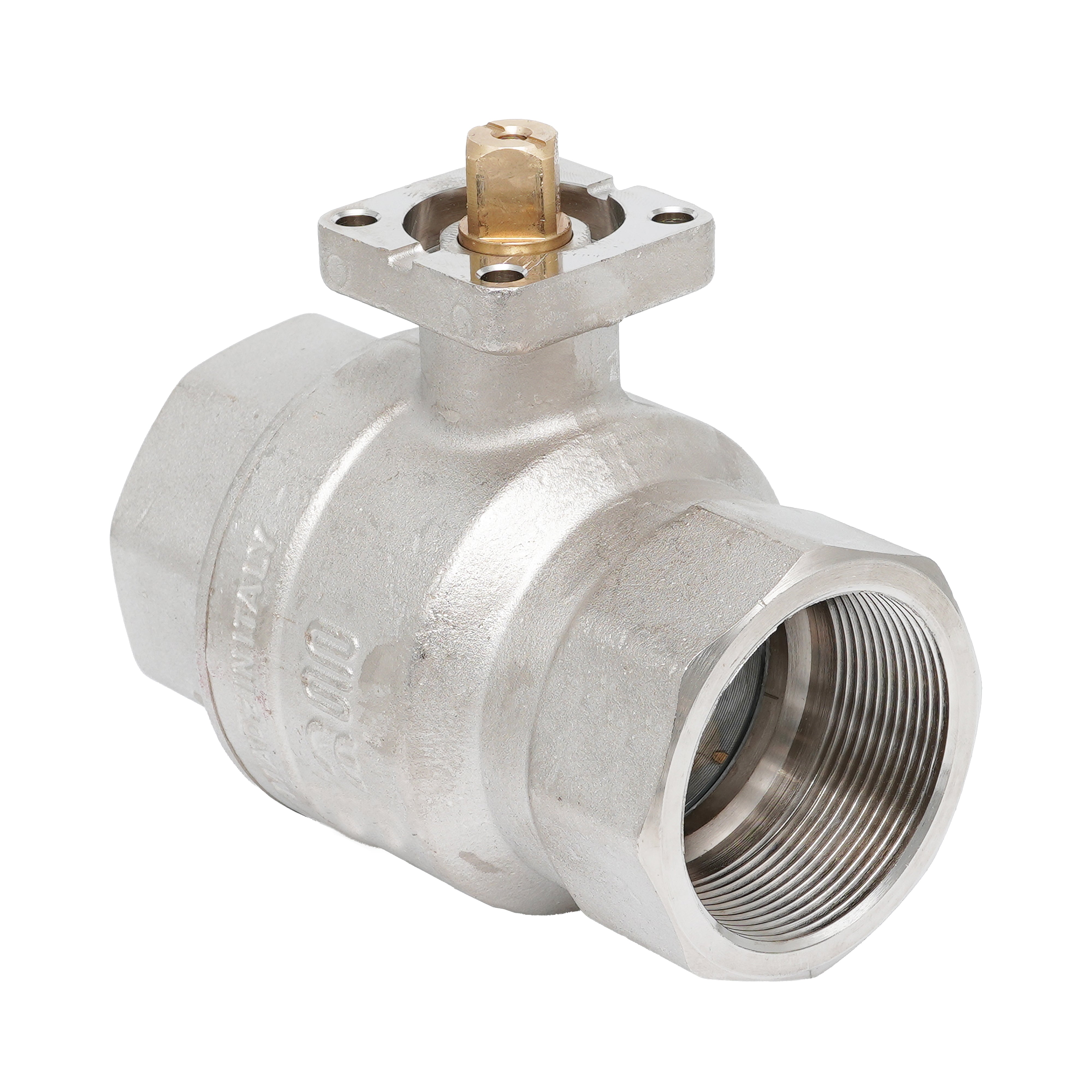

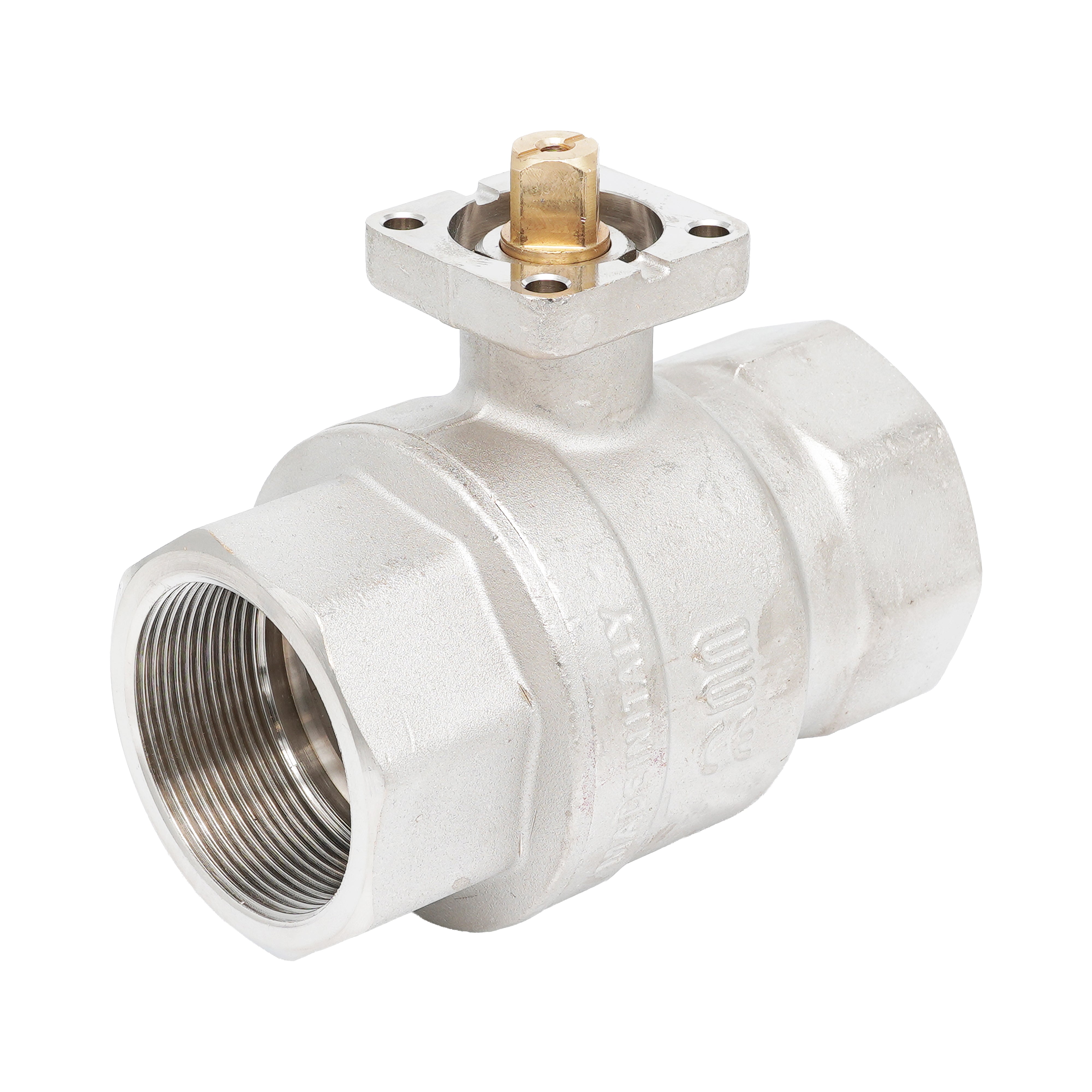

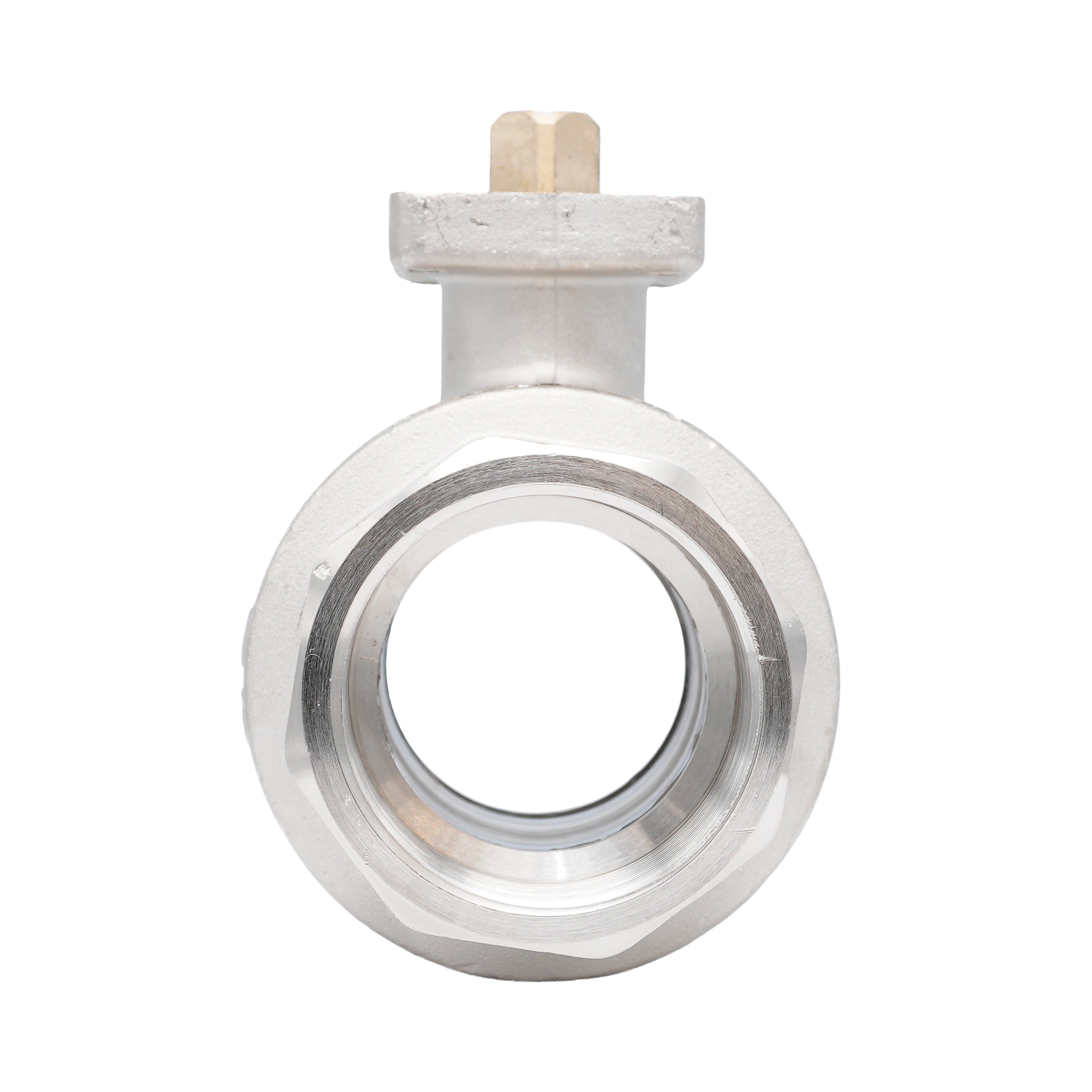

Rp 3" 2-way Brass Ball Valve ISO-Top F07 PN16
Image may vary slightly
See specifications for accurate information.
Reference:
V3M27
Brand:
TamesonPRO
Mfr. Part:
1141-300
Rp 3" BSP female 2-way brass ball valve, full bore, ISO 5211 F07 mounting flange. PTFE ball seal and EPDM stem seal - suitable for water and compressed air. Rated to 16 bar at 20 °C, temperature range -20 to 130 °C (-4 to 266 °F).
- Regular price
- £406.03
excl VAT
Description
Specifications
Downloads
Related products
Description
This Rp 3" BSP female 2-way brass ball valve has a full-bore design. A Kv of 850 m³/h, which means the valve passes 850 m³/h of water at 1 bar pressure drop.
The ISO 5211 F07 mounting flange is a standardised interface for direct mounting of any compatible electric or pneumatic actuator. A quarter-turn of the actuator fully opens or closes the valve. The break torque at maximum pressure is 40 Nm - use this value when sizing a compatible actuator.
PTFE ball seal and EPDM stem seal make it suitable for water and compressed air. Rated to 16 bar at 20 °C, working temperature range -20 to 130 °C (-4 to 266 °F).
Pros:
- Full bore - low flow resistance.
- ISO 5211 F07 flange - direct actuator mounting.
Cons:
- Suitable only for hot, cold water and compressed air.
- The valve is supplied without the handle.
