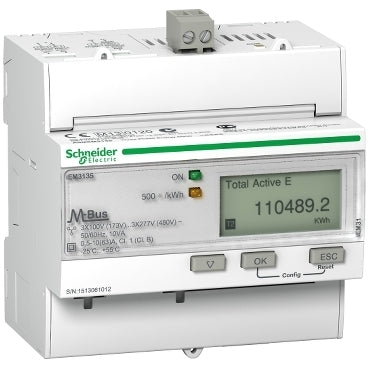

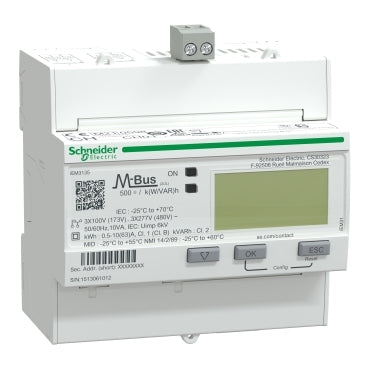

Schneider Electric Acti 9 Electricity Meter - A9MEM3135
Schneider electric iem3000 series energy meter. The acti 9 iem3000 series energy meters is a cost-attractive, feature-rich energy metering offer for din rail, modular enclosures. More than just kwh meters, the acti 9 iem3000 series meters provide a full view of both energy consumption and on-site generation with full four-quadrant measurement of active and reactive energy delivered and received.
- Regular price
- £251.45
Description
The Acti9 iEM3000 series energy meters are a desirable range of three-phase DIN rail-mounted energy meters with an LCD display. They come with additional local signaling such as a green LED power-on indicator, a flashing yellow LED for accuracy checking, an overload alarm, and communication indicators. These meters can be used in sub-billing applications and support 4 tariff schedules.
They provide the following accuracy classes:
- Active Energy class 1 per IEC 62053-21
- Active Energy class B per EN 50470-3
- Active Energy class 1 per IEC 61557-12
The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage, and Current. It is equipped with four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, its supply voltage can range from 100 to 277VAC or 173 to 480VAC. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase, and Three Phase and Neutral configurations. The communication protocol is M-Bus with screw terminal support. It features one programmable digital input and one programmable digital output that can be used as a pulsed output.
The meter has certifications including EAC, CE, UL, and MID. The product dimensions are as follows: width 3.54 inches (90 mm), depth 2.72 inches (69 mm), height 3.74 inches (95 mm), and product weight 9.17 ounces (260 g).
