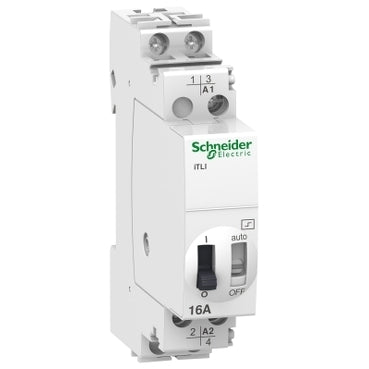

Schneider Electric Bistable Relay - A9C30215
The schneider electric acti9 itli is a modular impulse relay. It is a changeover contact with 1 normally open and 1 normally close contact. Rated current is 16a, 24vac to 250vac operating voltage and it operates with 48vac or 24vdc control voltage. Electrical endurance goes up to 200000 cycles for ac-21 or 100000 cycles for ac-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The operating frequency is 50hz or 60hz. It is din rail mountable. Pollution degree is 3. Overvoltage category is iv.
- Regular price
- £34.64
Description
This Acti9 iTLi is a modular impulse relay. It is a changeover contact with one normally open and one normally close contact. The rated current is 16A, and the operating voltage ranges from 24VAC to 250VAC. It operates with a control voltage of either 48VAC or 24VDC.
The electrical endurance goes up to 200,000 cycles for AC-21 or 100,000 cycles for AC-22. The switching frequency is either five switching operations per minute or 100 switching operations per day. The duration of the command order should be between 50ms to 1s. This relay is primarily used for lighting control applications.
The rated insulation voltage is 440VAC, and the rated impulse withstand voltage is 6kV. The operating frequency is either 50Hz or 60Hz. This device is mountable on a DIN rail. The pollution degree is three, and the overvoltage category is IV.
The dimensions are 18mm (width) x 84mm (height) x 60mm (depth). The degree of protection is IP20 and IP40 in an enclosure. The operating temperature ranges from -20°C to 50°C, while the storage temperature ranges from -40°C to 70°C.
This product complies with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
