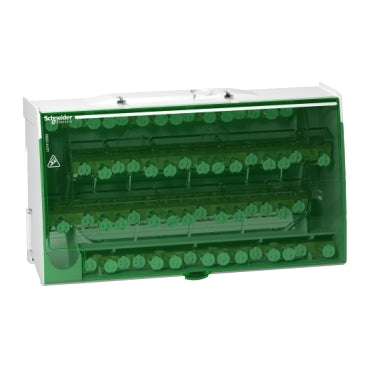

Schneider Electric INS Distribution Terminal Block - LGY412560
Notice: This product will be discontinued in the future
Schneider Electric INS distribution terminal block, conductor cross-section 35mm², 4 poles.
Notice: This product will be discontinued in the future
Description
This Linergy DS screw distribution blocks can be installed on a standard Din rail or on a mounting plate. It is specifically designed for 4P installations. The number of poles is 4. The total connection capacity is 60 holes (4x15). The Ie rated operational current is 125A. The Rated peak withstand current Ipk/60ms is 18kA, Ipk/6ms is 28kA. The Icw rated short-line withstand current according to IEC/EN 60947-7-1 is 4.2kA ms/1s. It measures 20 in 9mm pitches.
The terminal capacity is:
- 1x9mm diameter
- 3x8.5mm diameter
- 4x6.5mm diameter
The Ui Rated insulation voltage is 500VAC. The Uimp Rated impulse withstand voltage is 8kV. The Ue rated operational operating voltage is 230VAC (Ph/N), 440VAC (Ph/Ph). It operates at a frequency of 50Hz or 60Hz. The pollution degree is 3. The Overvoltage category is III. According to IEC/EN 60947-1 standard the dielectric withstand is 2500VAC. The core cross section is 35mm2. The dimensions are 100mm (H) x 162mm (W) x 50.5mm (D). It weighs 559g. The operating temperature range is -25°C to + 55°C. It complies with IEC/EN 60947-7-1 and IEC/EN 61439-1 & 2 standards.
