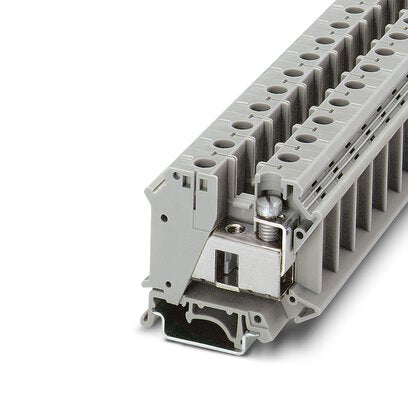

Universal Terminal Block UIK 35 Installation Clamp - 3006182

Universal Terminal Block UIK 35 Installation Clamp - 3006182
Universal Terminal Block UIK 35 Installation Clamp - 3006182
Reference: E3UEC
Brand: Phoenix Contact
Mfr. Part: 3006182

Industrial terminal block rated for 800V/125A with screw connection system. Features 35mm² rated cross-section with flexible connection range of 0.75-35mm². Compatible with multiple DIN rail mounting types including NS 35/7.5, NS 35/15, and NS 32. Gray color housing ensures professional installation appearance. Designed for reliable electrical installations in industrial environments.

View all
£9.34
excl VAT
In stock Ships in 40d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 40 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United Kingdom: £6.95
Free for orders > £75.00
Expected delivery in 42 - 44 business days

Customers rate us: 4.80 / 5

406 reviews at TrustedShops

Description
Specifications

Description

Industrial terminal block rated for 800V/125A with screw connection system. Features 35mm² rated cross-section with flexible connection range of 0.75-35mm². Compatible with multiple DIN rail mounting types including NS 35/7.5, NS 35/15, and NS 32. Gray color housing ensures professional installation appearance. Designed for reliable electrical installations in industrial environments.

Pros:

  • High current capacity of 125A with 800V rating
  • Wide connection range from 0.75mm² to 35mm²
  • Compatible with multiple DIN rail types
  • Professional screw connection system

Specifications

Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.75 mm² to 35 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.75 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²)
0.75 mm² to 35 mm²
Connectable conductor cross section multi-wired (mm²)
0.75 mm² to 35 mm²
Rated current In (A)
125
Rated voltage (V)
800
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of potentials
1
Mounting method
Other
Material insulation body
Other
Operating temperature (°C)
-60 °C to 105 °C
Inflammability class of insulation material according to with UL94
V0
Width (mm)i
15
Height (mm)i
54.925
Depth (mm)i
49.8
Closing plate required
No
Basic colour
Grey
PE-function
No
With N-disconnect slide
No
