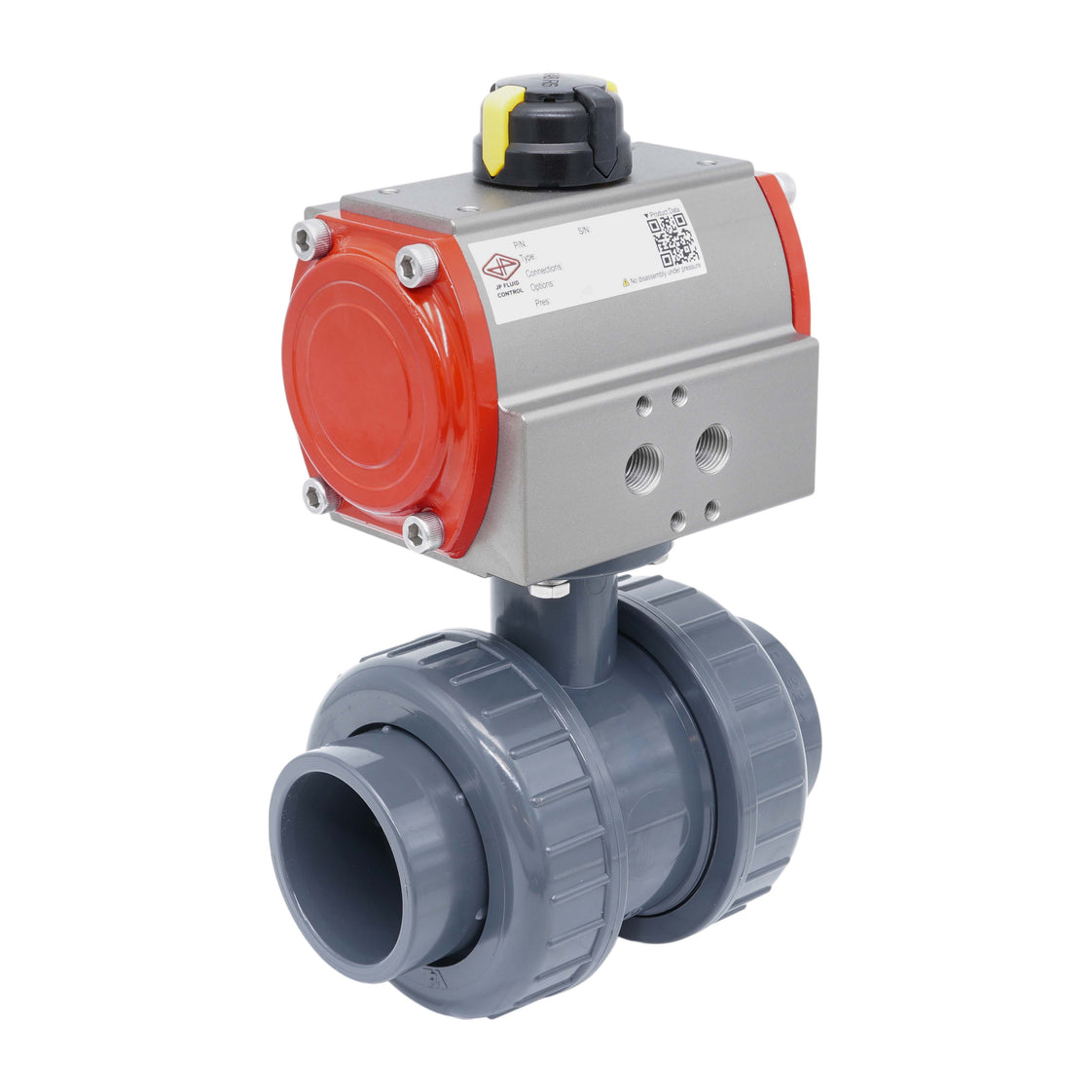

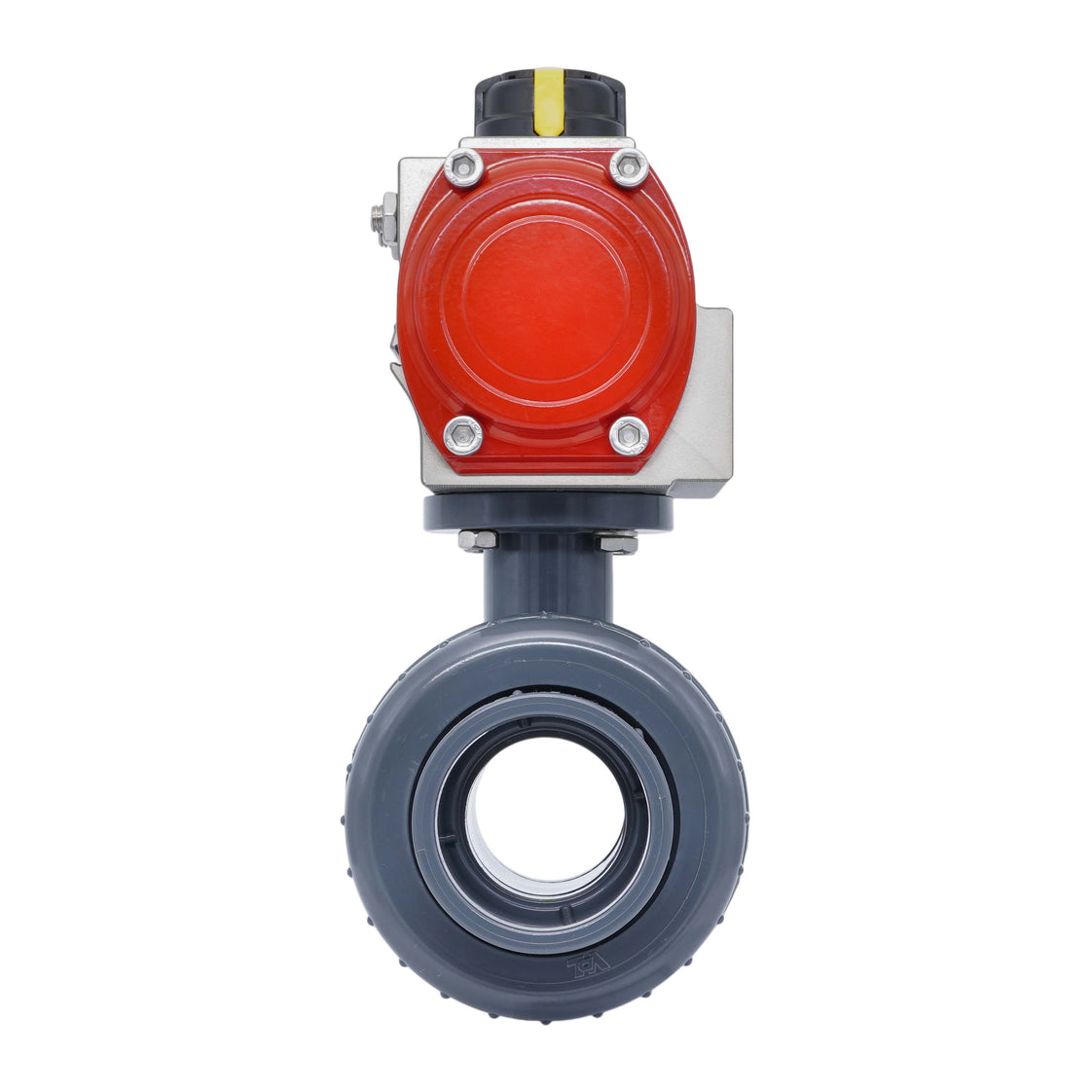

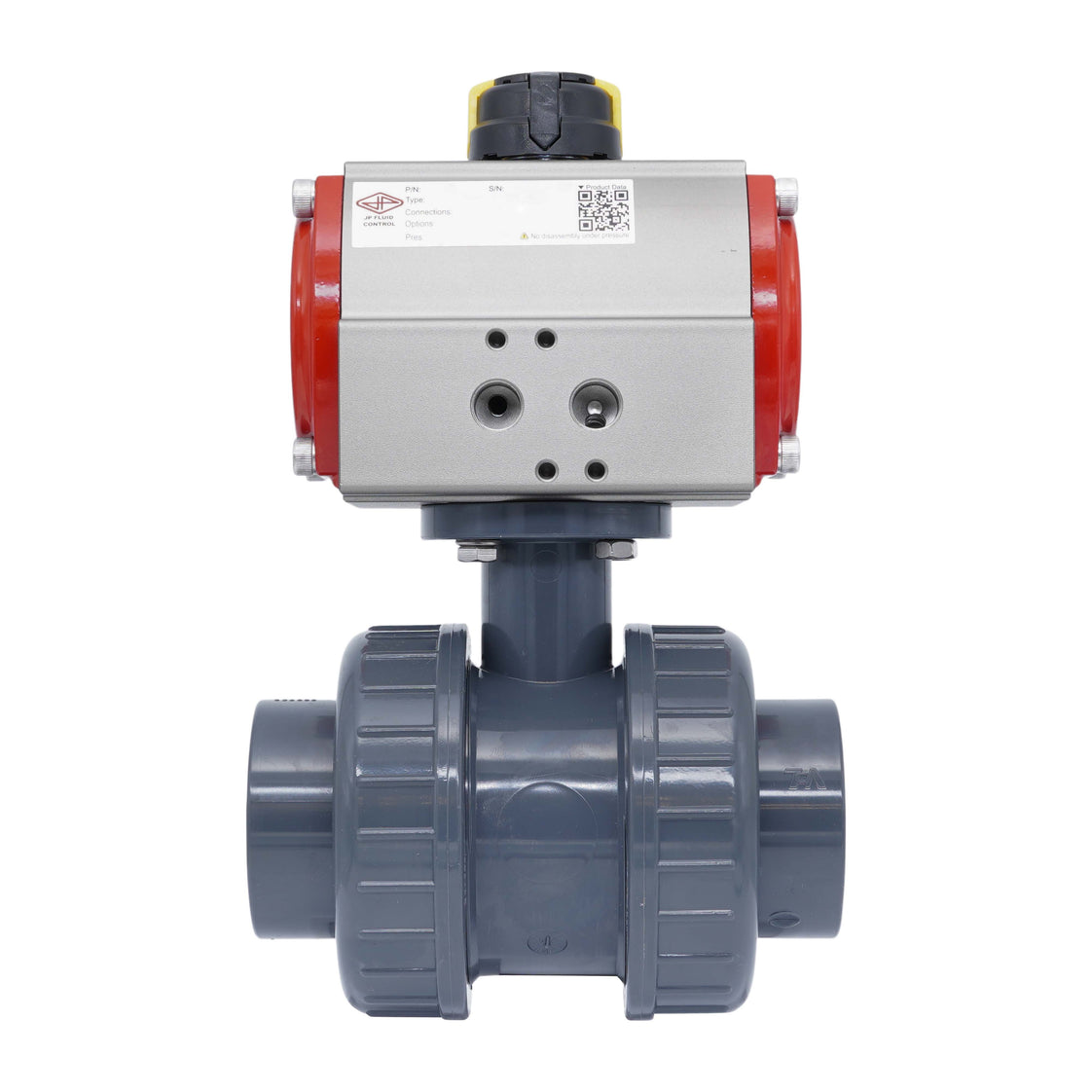

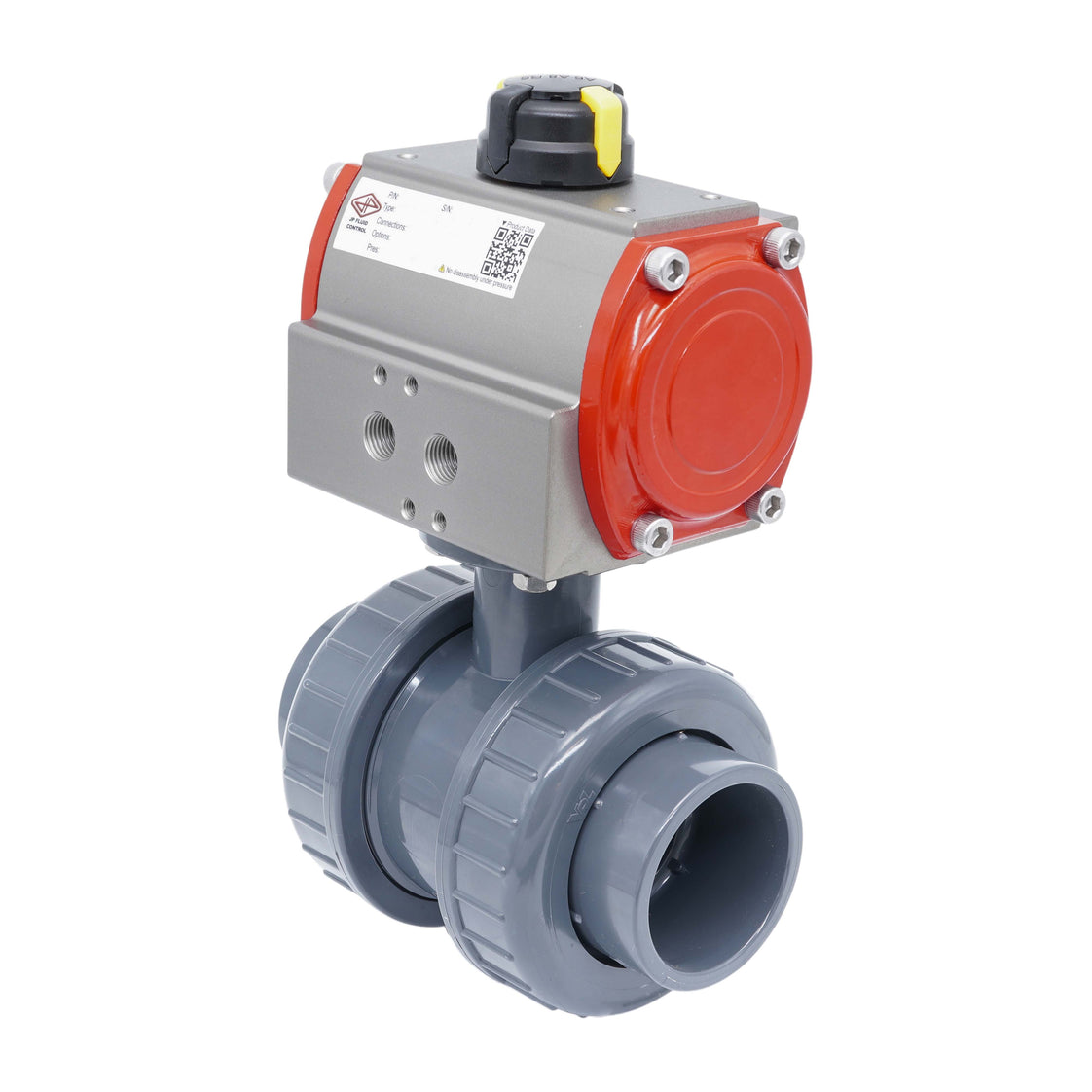

63mm 2-Way PVC Pneumatic Ball Valve Spring Open
This pneumatically actuated 2-way ball valve with 63mm glued sleeves has a nominal diameter of 50 mm (Kv-value 186 m3). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of brass with a PTFE seal, making it suitable for water, air, oil, fuel, lubricant, and vacuum.
The actuator features a robust, spring open rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (6P14P063), actuator (V3JMC/PR04B), and mounting accessories.
- Regular price
- £308.48
Description
This pneumatically actuated 2-way ball valve with 63mm glued sleeves has a nominal diameter of 50 mm (Kv-value 186 m3). Kv expresses the flow rate of water in m3/h at a one bar pressure drop.
The pneumatic input range is 3–8 bar (43–116 psi). The valve body is made of brass with a PTFE seal, making it suitable for water, air, oil, fuel, lubricant, and vacuum.
The actuator features a robust, spring open rack-and-pinion mechanism with a 35-micron hard-anodized aluminum body. It is compatible with ISO 5211 F05/F07 valves and includes BSPP air ports for air supply and return. Additionally, it features a Namur 1/4 inch interface for solenoid valves and an 80 x 30 mm interface for VDI/VDE 3845 limit switch boxes. Comes unassembled, including ball valve (6P14P063), actuator (V3JMC/PR04B), and mounting accessories.
Pros:
- Direct mounting of 1/4 Namur solenoid valve possible
- Can be equipped with a limit switch box (VDI/VDE 3845 80 x 30)
- Fast opening/closing
- Clear mechanical indicator on top shows the valve position
- Guaranteed 500,000+ cycles for the pneumatic actuator
- Suitable for contaminated water or corrosive media, such as chloride solutions (seawater or swimming pools)
Cons:
- No ATEX or SIL certificate
