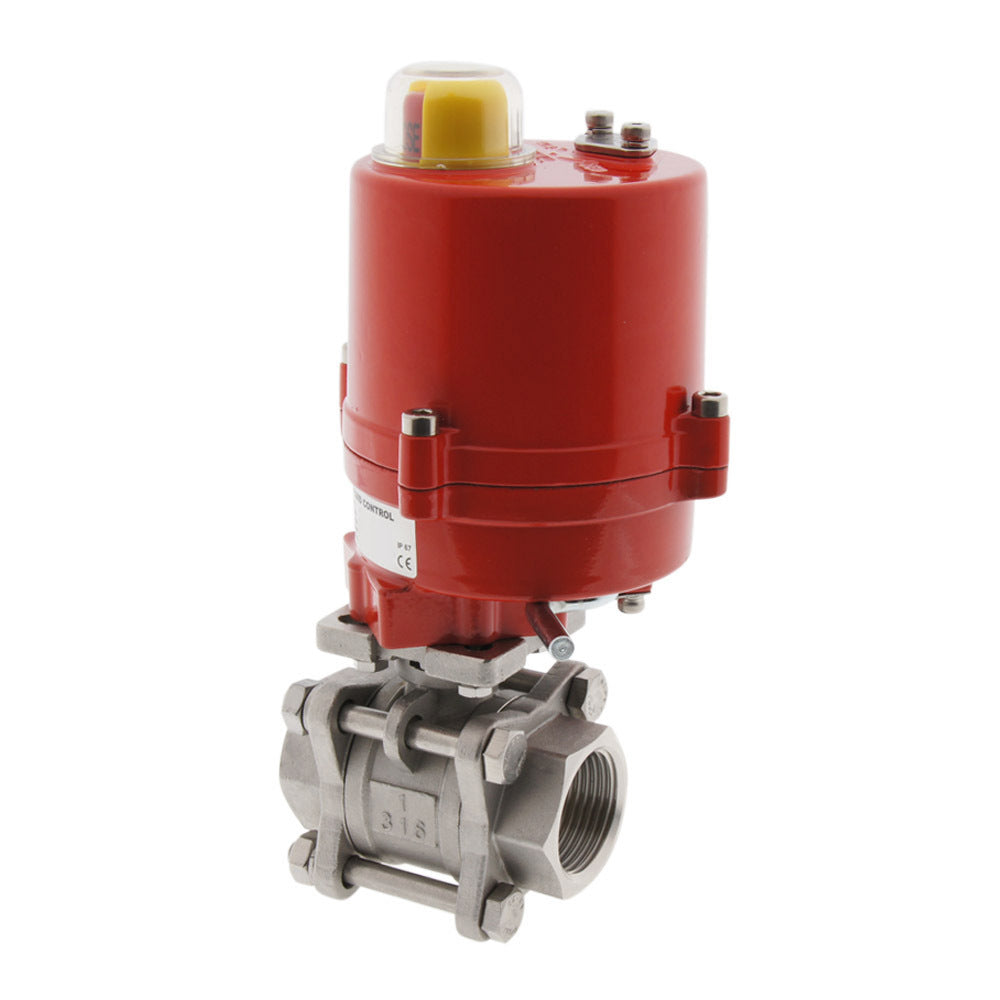

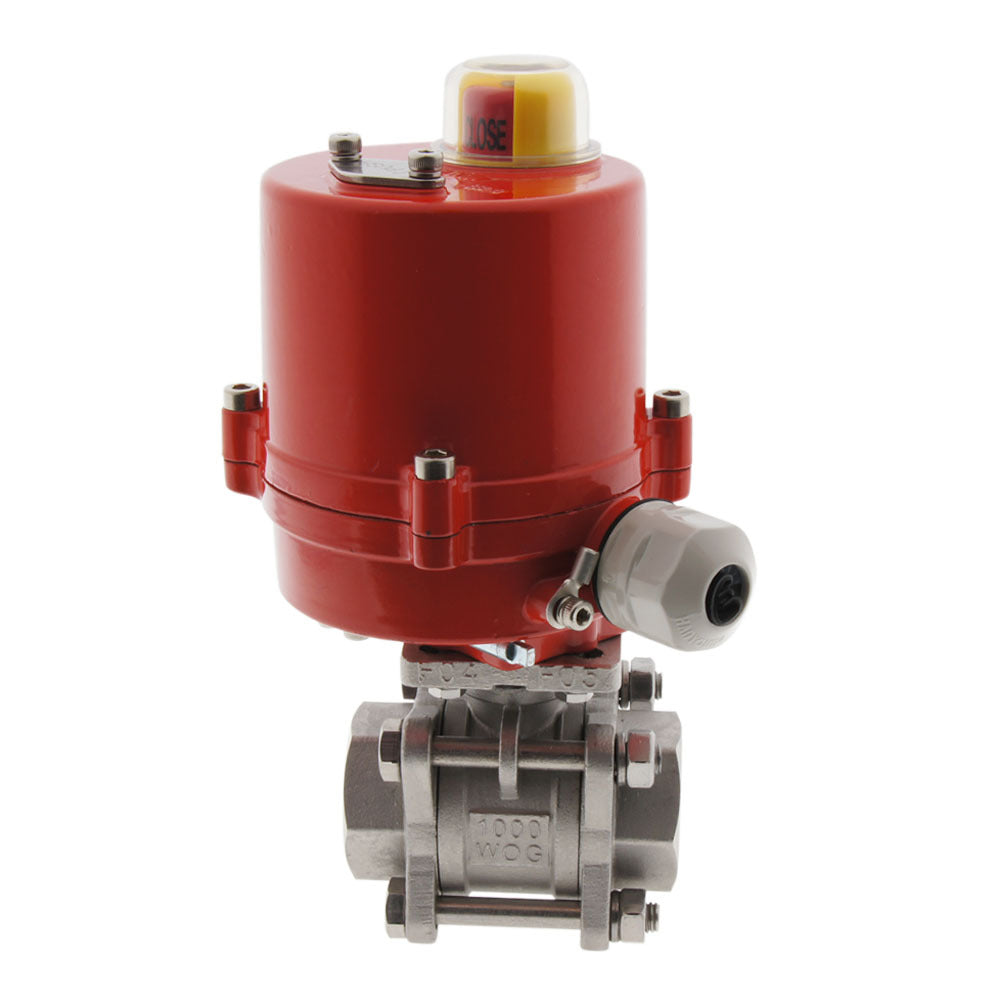

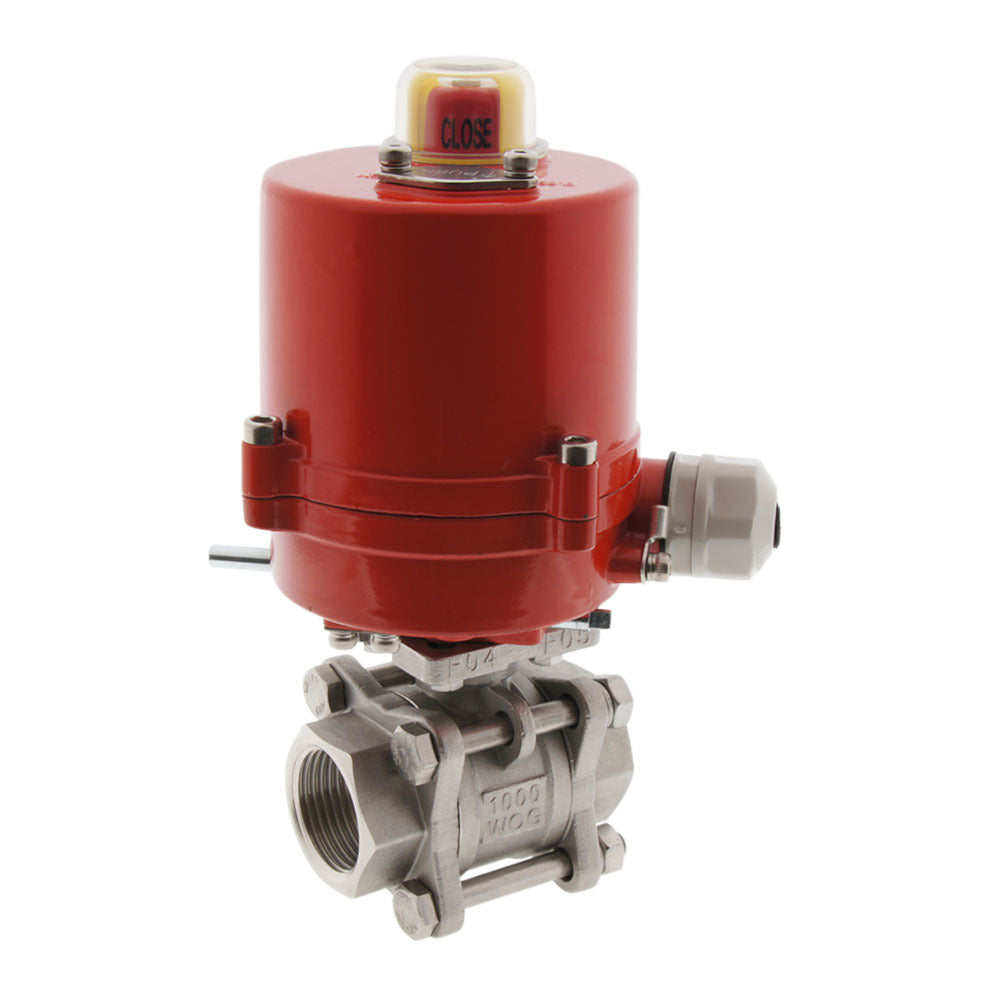

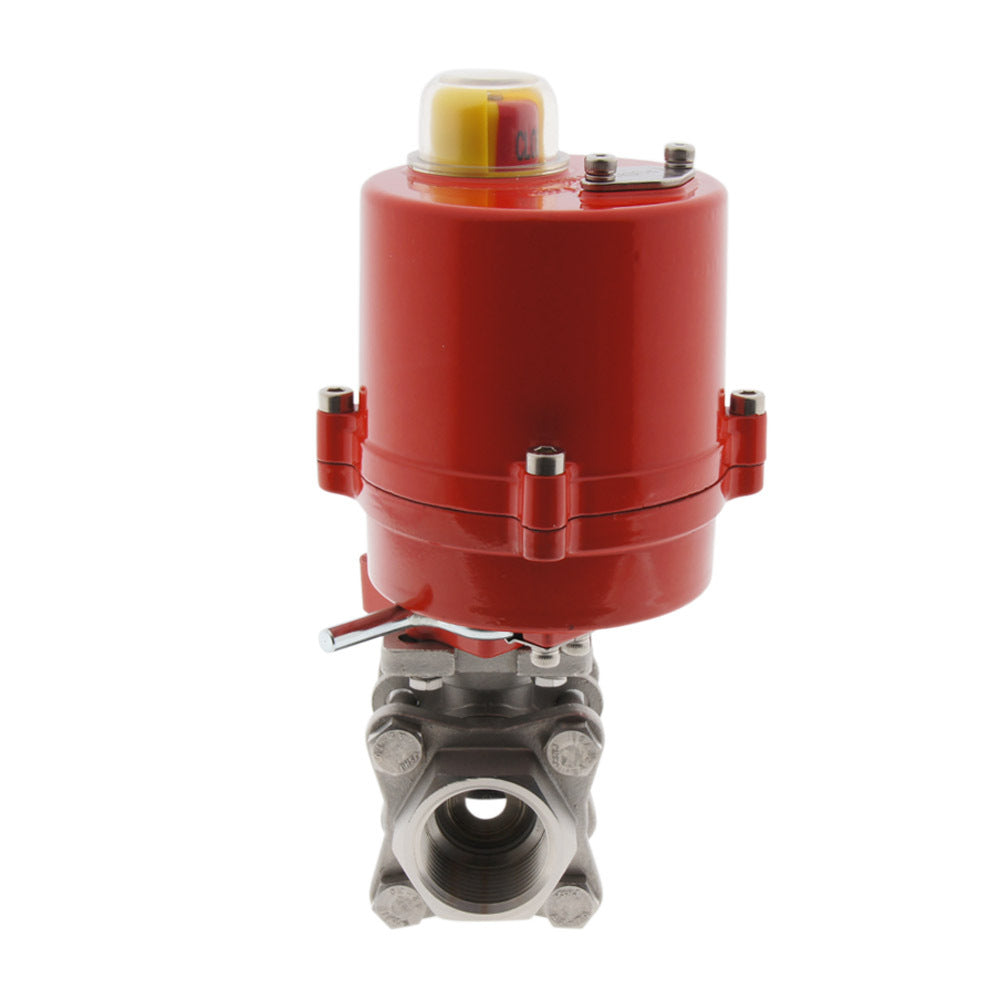

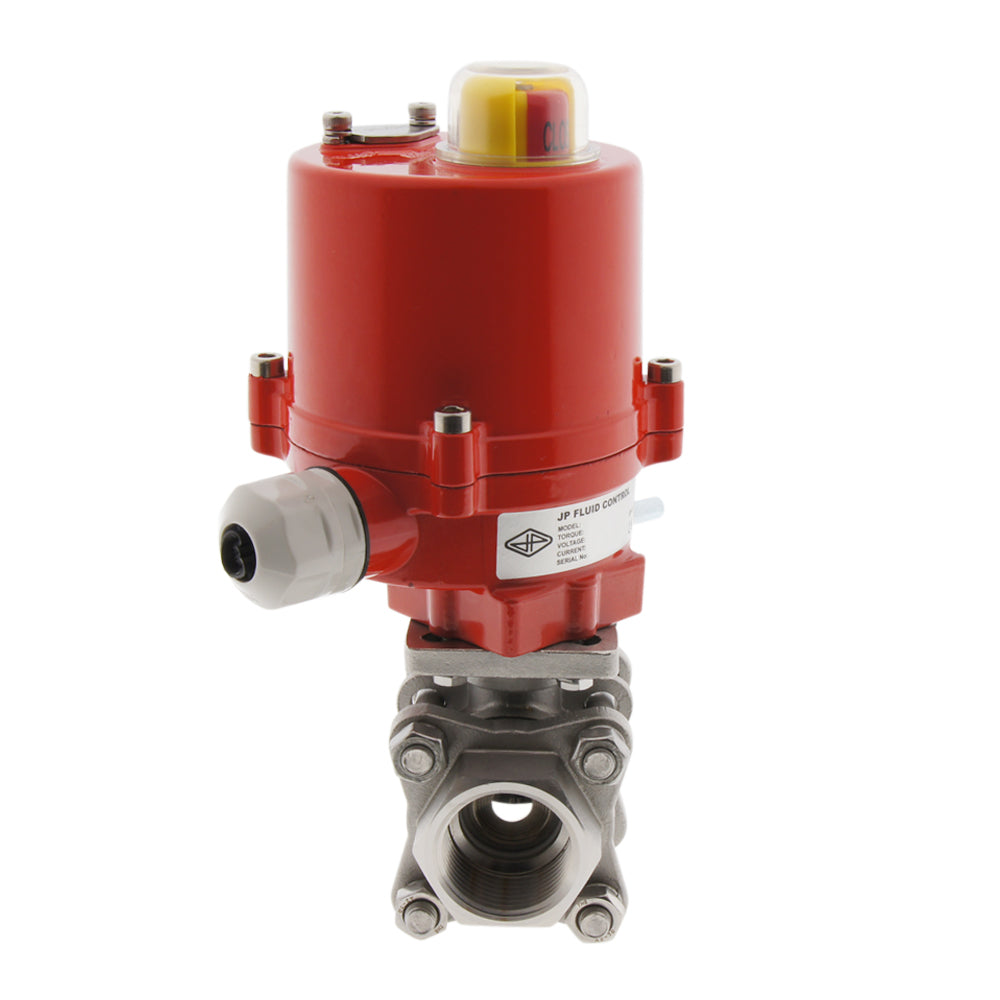

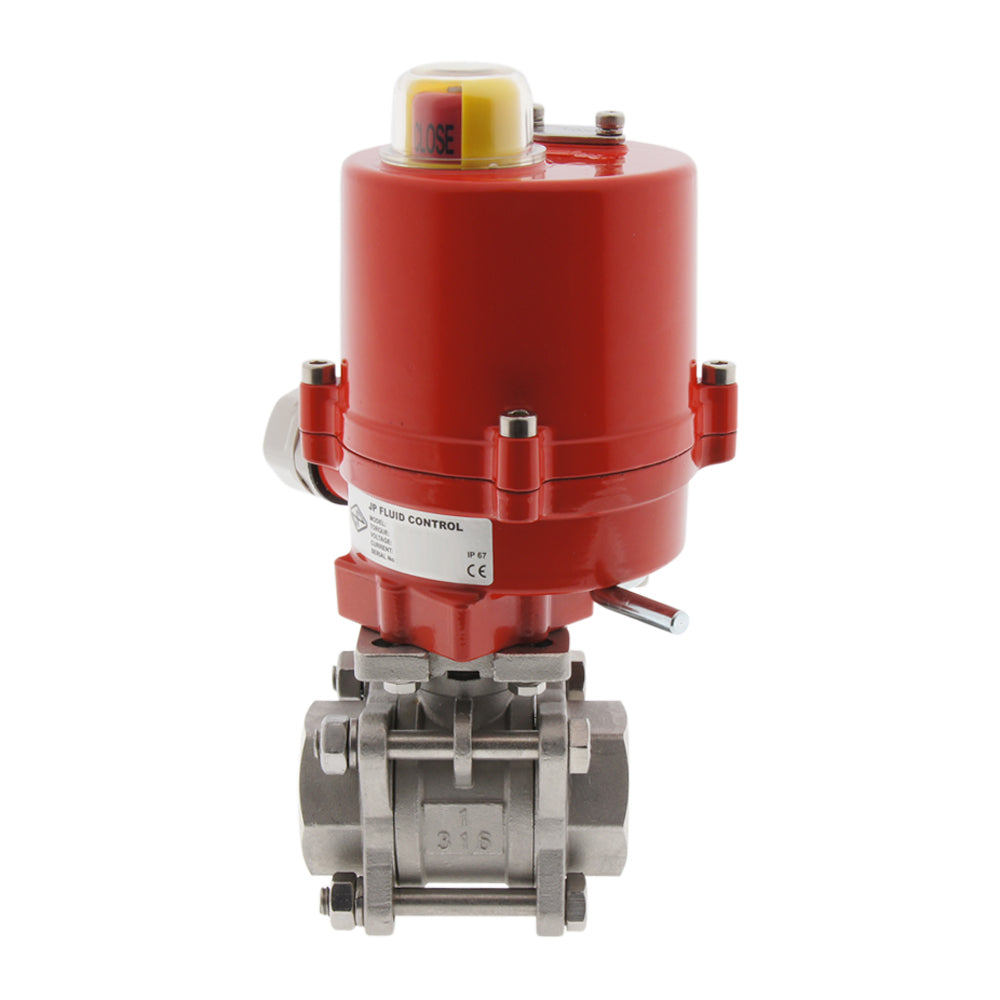

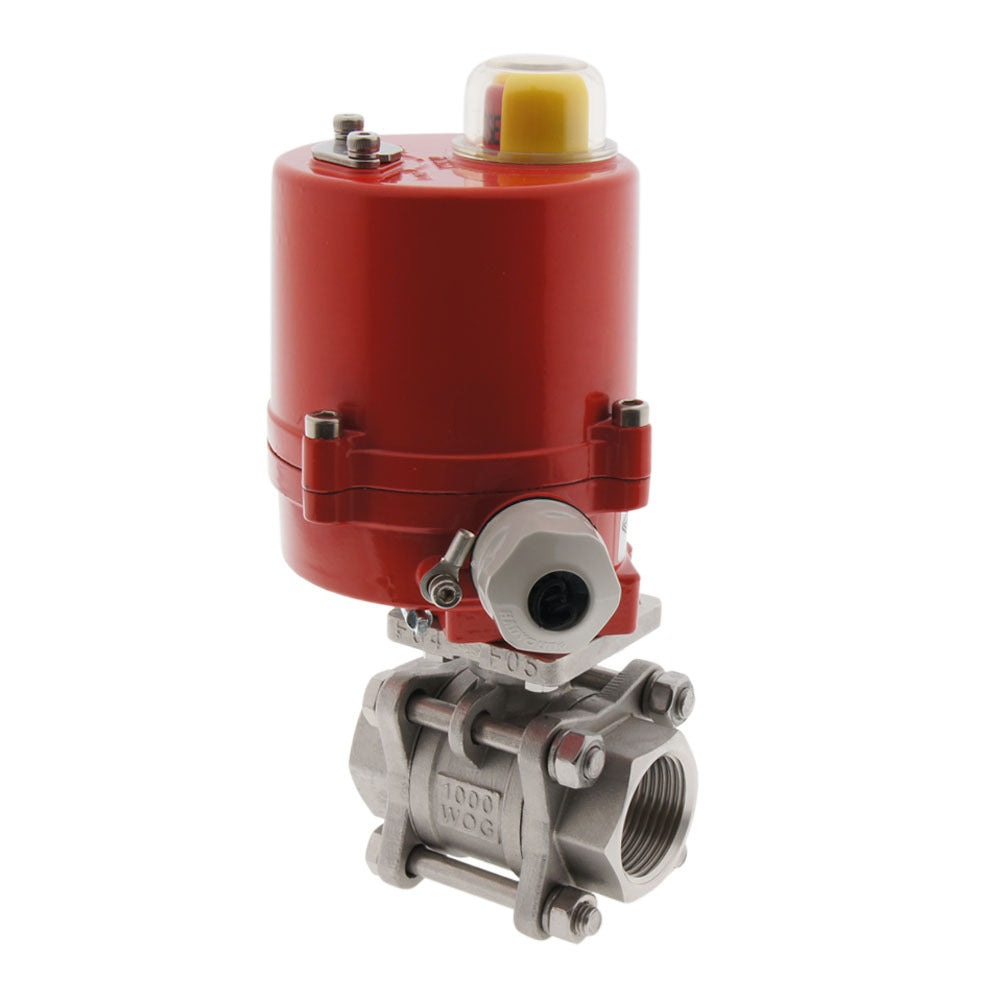

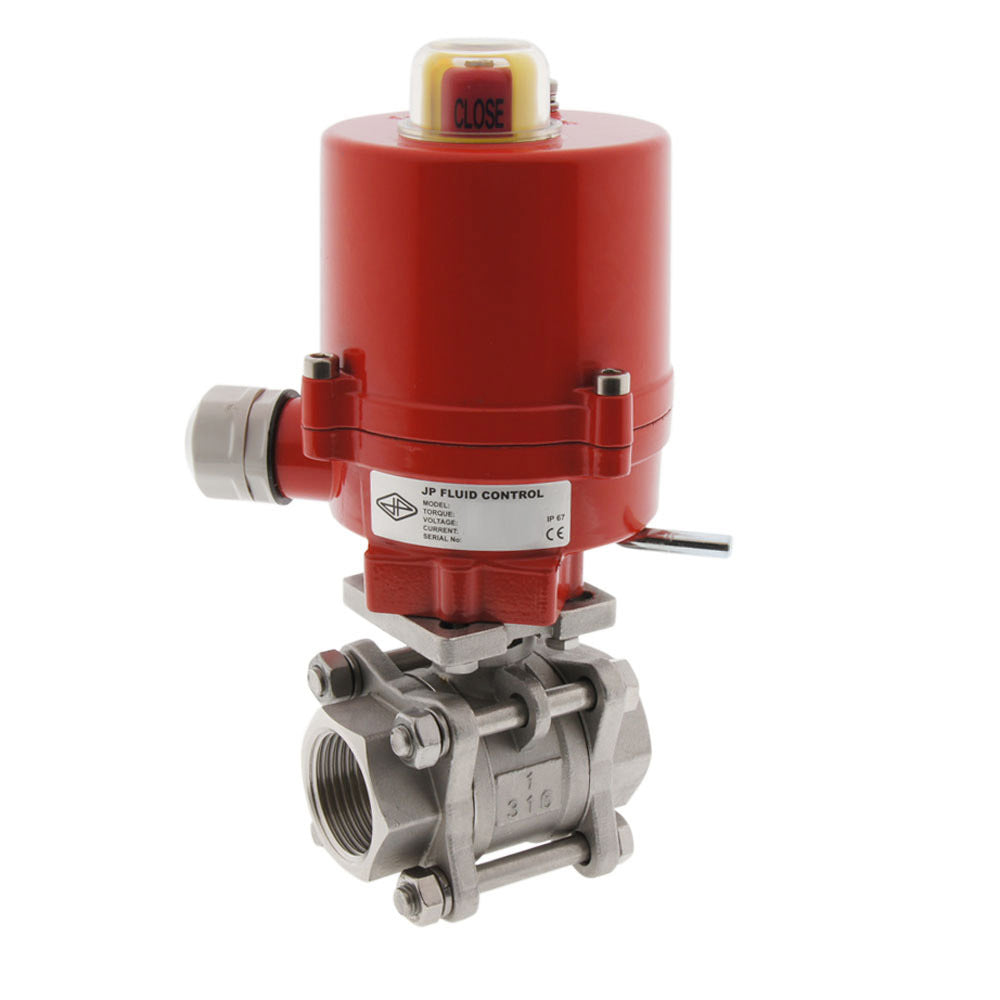

G1-1/2'' 230V AC 2-Way Stainless Steel Electrical Ball Valve - BL2SA3
2 Way electric ball valve with G1-1/2 inch pipe threads and powerful and energy efficient 100-240V AC/DC actuator (max 40Nm). Media from -20 to 130°C, max pressure 63 bar at 20°C. Stainless Steel valve housing with stainless steel ball and PTFE/FKM valve seats. The nominal diameter is 40mm, the Kv-value is 170m3/h (2833.4 l/min water at dP=1 bar). 3-point control. Rotation 0-90° in only 8 sec. Compact and strong actuator housing (IP67) with position indicator. Manual override function and two extra limit switches for position feedback.
- Regular price
- £453.82
Description
This strong and energy efficient 2-way electrical ball valve from Tameson can be used to automatically shut of pipes with gas or fluids. The valve has 1-1/2 inch pipe threads (internal thread, BSPP). The housing of the valve is made of stainless steel with a stainless steel ball and PTFE (teflon)/FKM sealing. The actuator is suitable for power supplies from 100 to 240V alternating current (50/60Hz). The actuator has a robust aluminium housing (IP67, provided that an appropriate cable is connected) and delivers maximally 40 Nm torque. The valve rotates from 0 to 90 degrees in 8 seconds. When the ball reaches an end position, the electric motor is turned off and no energy is consumed. The actuator is equipped with two additional limit switches for position-feedback. The limit switches are positioned at 0 and 90 degrees. If required, the angular position of the switches can be adjusted by the user. A mechanical position indicator on the top of the actuator shows the valve position. The actuator is equipped with a manual override.
Key benefits
- Robust stainless steel ball valve with 1-1/2 inch pipe threads
- Switching time only 8 seconds
- Strong IP67 actuator housing
- Suitable for power supplies from 100 to 240V AC
- Two extra limit switches for position feedback
- Manual override control
- Clear visual position indicator
Technical specifications
Actuator | Ball Valve | ||
---|---|---|---|
Actuator ref: | AG-040-A | Ball Valve ref: | BL2SA3-112 |
Voltage: | 100-240V AC (50/60Hz) | Housing: | Stainless steel (AISI 316) |
Nom./Max. Current: | 0.1/0.2 A | Ball: | stainless steel (AISI 316) |
Protection: | IP67 | Seat rings: | PTFE (teflon)/FKM |
Duty Cycle: | S2 30min. | Pipe threads: | G1-1/2" BSP |
Open/Close: | 7 s | Nominal Diameter: | 40mm (DN) |
Amb. Temp.: | -10°C..50°C | Installation length: | 120 mm |
Range: | 0-90° | Max pressure (@20°C): | 63 bar |
Extra limit switches: | 2 | Function: | 2 way |
Manual override: | Yes | Temp medium: | -20°C..130°C |
Dimensions
![dimensions ball valve with actuator](https://storage.tameson.com/asset/Articles/img/article-images/ag-actuator-bl2sa3-valve.png)
Dimensions of the AG-040-A actuator and BL2SA3-112 ball valve.
Applications
This valve can be used in combination with gases and fluids. The valve is durable and suitable for different aggressive and corrosive media. The maximum pressure at room temperature is 63 bar, at higher temperatures the maximum allowed temperature decreases. The direction of pressure is not important, the direction of flow may be in any direction. The temperature range of the medium lies between -20°C and 130°C. At high temperatures, it is recommended to install the valve in a ventilated area. It is allowed to install the valve in a humid environment provided that all parts, like an appropriate electrical cable, are correctly fixed. Ball valves can be used with light contaminated fluids. Some examples of applications for this valve are HVAC, irrigation, industrial automation, water management.
Electrical Wiring Diagram
Follow the safety instructions and manual before you start installation.The actuator can be used with alternating current (50/60Hz) from 100 volt up to 240 volt. The actuator draws 0.1A nominal, and 0.2A at maximal torque. To connect a cable to the actuator, the cover needs to be removed with four bolts. The system operates with 3-point control. Terminal 1 and 2 are permanently connected to the power supply. Terminal 3 and 4 are used to close or open the valve. The signal (phase/null) to terminal 3 and 4 must be the same as terminal 2. Never connect 3 and 4 at the same time to prevent short circuit and damage. The actuator has two internal limit switches. As soon as the actuator's end position is reached (0 or 90 degrees), the motor turns off and no energy is consumed. In addition, in the actuator there are two additional limit switches for control purposes. The angular position of the limiti switches can be modified. Always connect the earth and do not use the pipes as ground.
![elektrical diagram AG actuator 230V AC](https://storage.tameson.com/asset/Articles/img/article-images/wiring-ag-a.png)
Electrical wiring diagram of the AG-040-A actuator.
Assembly
Make sure that the position of the ball and the actuator are properly set before assembly. The actuator is provided with two adapters to connect the actuator to the valve shaft. Mount the actuator to the valve with the provided bolts. There should be no play between both flange. Use our fittings range for the connection between the pipe and the valve.
In the box
- Actuator AG-040-A (cable not included)
- Drive shaft adapter (9x9mm, 11x11mm)
- 4 bolts M5x16mm & spring washers (for F03 flange)
- 4 bolts M6x16mm & spring washers (for F04 & F05 flange)
- Ball Valve BL2SA3-112
Note: This product is delivered in separate parts, but with the required mounting accessories.`
