AG5 Modulating Actuator 24 V AC/DC 40 Nm Torque With Manual Override

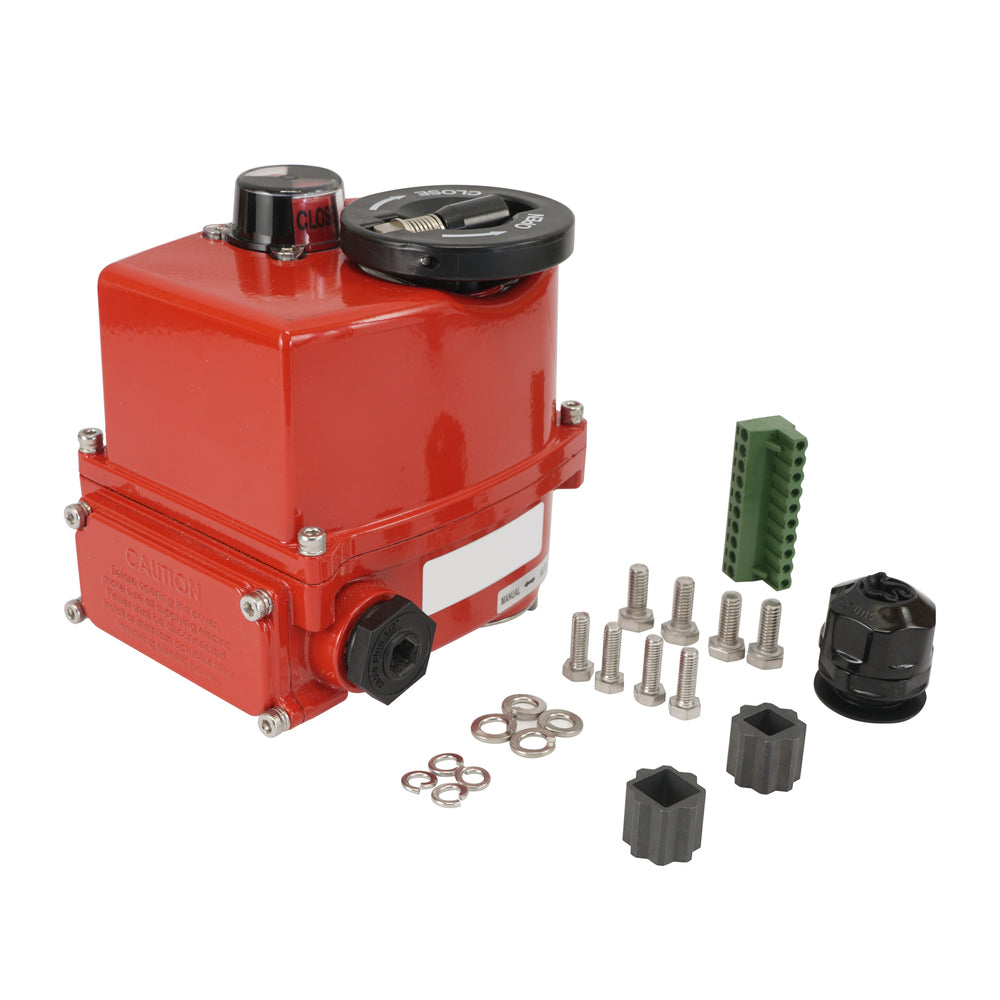

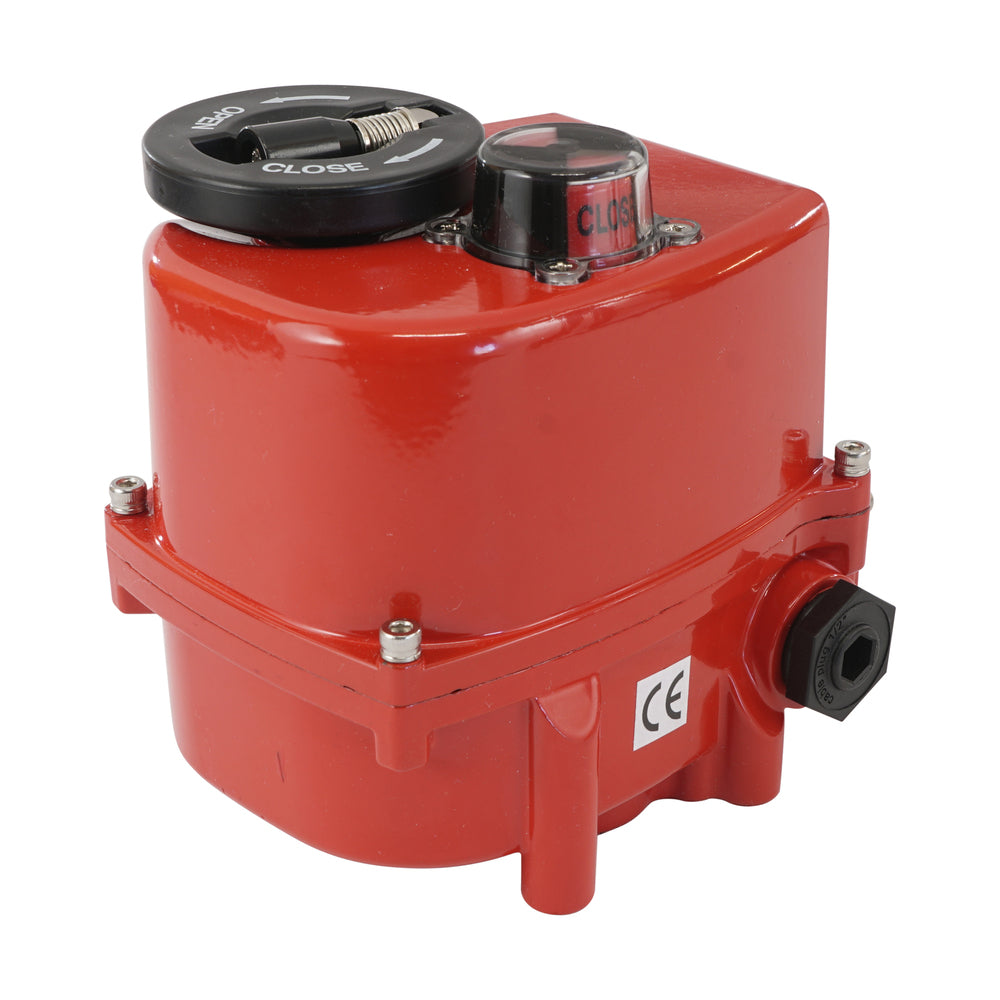

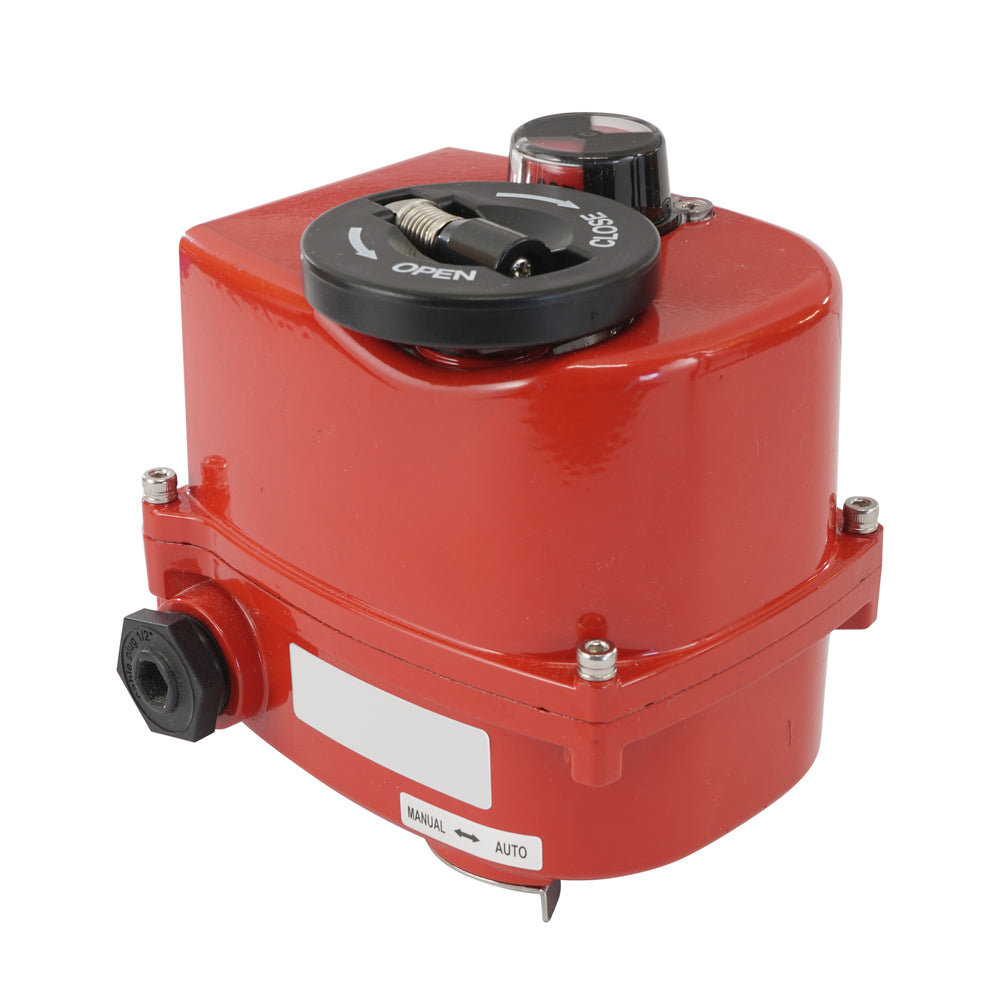

This modulating electrical actuator allows you to control quarter turn (ball or butterfly) valves. It has an operating torque of 40 Nm (higher break torque so please see the manual) and can open/close the valve in 13 seconds with a duty cycle of S2. It requires a supply voltage of 24 V AC/DC and it has a visual positioning indicator on top of the unit to clearly see valve position. As a modulating actuator, it is equipped with a digital positioning system (DPS) meaning it can position the valve anywhere between 0-90 degrees. It requires a control signal of 4-20 mA (or 0-10V, 2-10V) for positioning. As standard, it does have a manual operation cogwheel for manually rotating the actuator’s stem in case of emergency. It is designed to mount to a quarter turn ball or butterfly valve that has an ISO 5211 F03, F05 and F07 flanges. It has a durable aluminium housing making an IP67 enclosure capable of operating in an environment of -10 to 50 °C. Before connecting the actuator, please read the manual carefully.

Pros:

• It is a modulating actuator with a digital positioning system (DPS) to position the valve anywhere between 0-90 degrees with a control signal of 4-20 mA
• It has a robust IP67 housing
• It has a clear visual position indicator to see the valve’s state

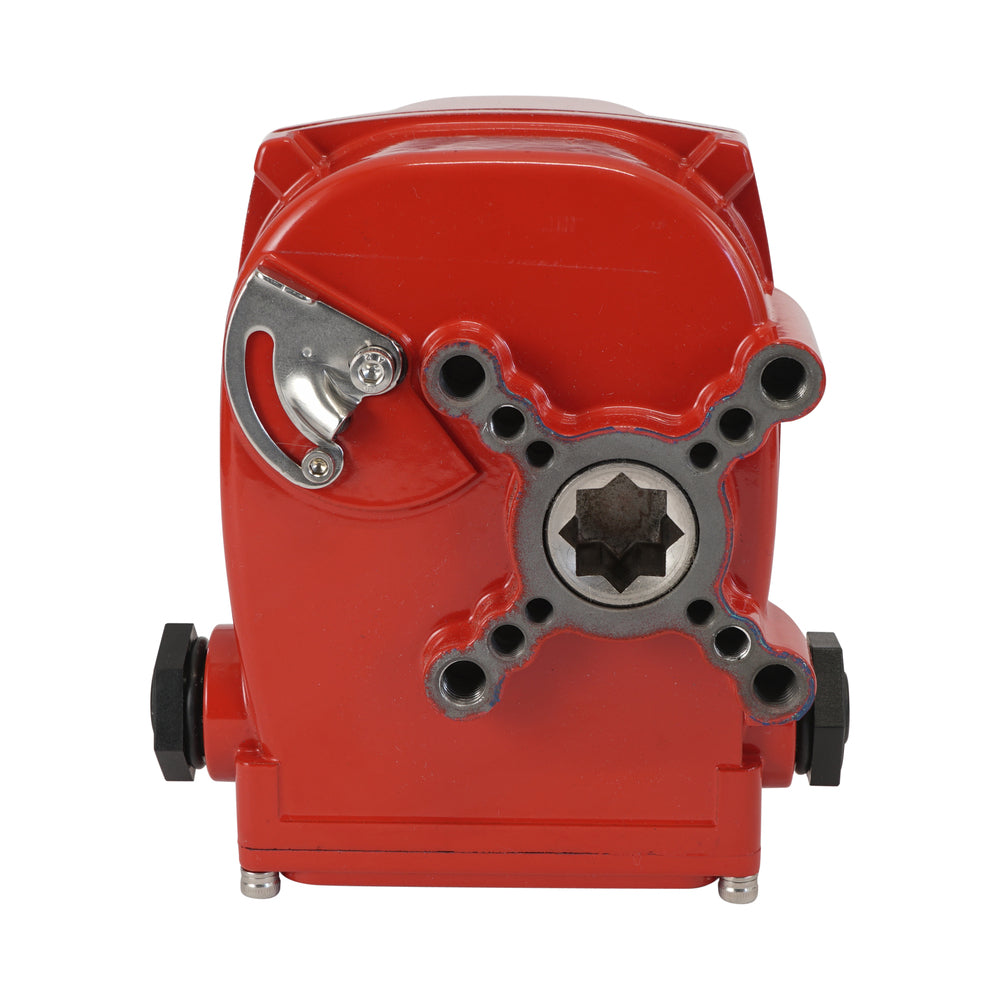

• It is designed to mount to a quarter turn ball or butterfly valve that has an ISO 5211 F03, F05 and F07 flanges.

Cons:

• In comparison to a pneumatic actuator of the same size, the operating speed is slower

AG5 series

The AG5 electric valve actuators from JP Fluid Control offers an extensive list of standard features that includes safety override against damage from over-torque and manual override. Actuators are also available with different options like modulating, called DPS (Digital Positioning System). The series has an operating torque range between 40-50 Nm. The AG5 DPS modulating actuator can be controled with 4-20 mA, 0-10V or 2-10V.
